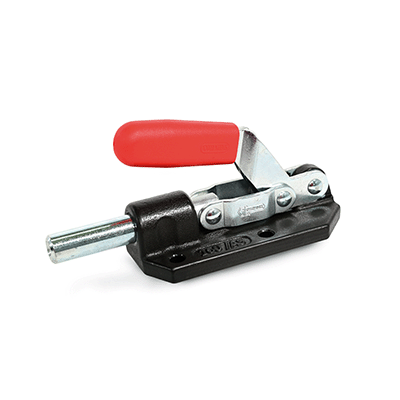

MFC-SST

Toggle clamps

Teknisk datablad
260422-C4-ebp_b-rb_52-sketch

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 3 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GG.AS397
    Description MFC.160-ASX
    Position
    —
    • —
    a
    —
    • —
    b1
    —
    • —
    b2
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    h1
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    m1
    —
    • —
    m2
    —
    • —
    m3
    —
    • —
    s
    —
    • —
    Thermometer
    —
    • —
    w
    —
    • —
    FH
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GG.AS397
    Description MFC.160-ASX
    Position 0
    a 15
    b1 85
    b2 46
    d1 11
    d2 M6
    d3 5.3
    h1 56
    l1 116
    l2 107
    l3 31
    m1 33.5
    m2 11
    m3 36.5
    s 7
    Thermometer 12
    w 30
    FH 2800
    Weight 360
    Les mer
  • Code GG.AS399
    Description MFC.360-ASX
    Position 0
    a 25
    b1 90
    b2 45.5
    d1 12
    d2 M8
    d3 5.5
    h1 70
    l1 122
    l2 114
    l3 32
    m1 33.5
    m2 30
    m3 36.5
    s 7
    Thermometer 15
    w 32
    FH 5600
    Weight 485
    Les mer
  • Code GG.AS395
    Description MFC.70-ASX
    Position 0
    a 12
    b1 64
    b2 36
    d1 8.5
    d2 M6
    d3 4.3
    h1 41
    l1 86
    l2 79
    l3 22
    m1 26
    m2 13
    m3 26
    s 6
    Thermometer 12
    w 20
    FH 1200
    Weight 165
    Les mer
