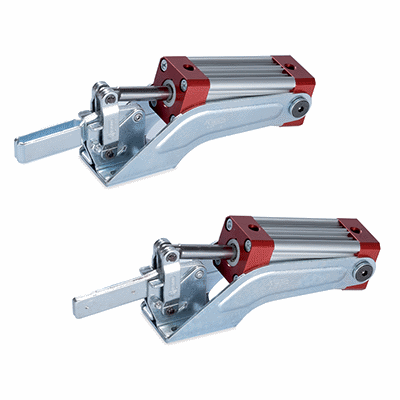

PVB-AP

PVB.

CE.99903-18-mpi_15_band

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 5 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GG.AO408
    Description PVB.130/AP
    Position
    —
    • —
    a
    —
    • —
    b1
    —
    • —
    b2
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    h4
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    m1
    —
    • —
    m2
    —
    • —
    m3
    —
    • —
    FH
    —
    • —
    FS
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GG.AO408
    Description PVB.130/AP
    Position 0
    a 28
    b1 51
    b2 6.2
    d1 M6
    d2 5.6
    d3 G1/8
    h1 66
    h2 30
    h3 16
    h4 4.5
    l1 195
    l2 45
    m1 27÷29
    m2 8÷11.2
    m3 12.5÷19
    FH 1600
    FS 800
    Weight 650
    Les mer
  • Code GG.AO416
    Description PVB.230/AP
    Position 0
    a 40
    b1 58
    b2 8.5
    d1 M8
    d2 6.7
    d3 G1/8
    h1 78
    h2 36
    h3 18
    h4 5.5
    l1 259
    l2 55
    m1 32
    m2 11.5÷12
    m3 18.5÷20.5
    FH 2200
    FS 1200
    Weight 1150
    Les mer
  • Code GG.AO428
    Description PVB.330/AP
    Position 0
    a 45
    b1 70
    b2 10.5
    d1 M10
    d2 8.6
    d3 G1/4
    h1 96
    h2 46
    h3 22
    h4 6.5
    l1 307
    l2 55
    m1 45÷46
    m2 8.5÷10.5
    m3 29÷32
    FH 2500
    FS 1750
    Weight 1850
    Les mer
  • Code GG.AO440
    Description PVB.430/AP
    Position 0
    a 48
    b1 82.5
    b2 12.5
    d1 M12
    d2 8.5
    d3 G1/4
    h1 114
    h2 55
    h3 26
    h4 7.5
    l1 363
    l2 70
    m1 45
    m2 14
    m3 32
    FH 2900
    FS 2250
    Weight 3300
    Les mer
  • Code GG.AO400
    Description PVB.75/AP
    Position 0
    a 20
    b1 47
    b2 5.2
    d1 M5
    d2 4.5
    d3 M5
    h1 54
    h2 22
    h3 11
    h4 3.5
    l1 162
    l2 40
    m1 24
    m2 6.5÷7
    m3 14.5÷16.5
    FH 700
    FS 380
    Weight 400
    Les mer
