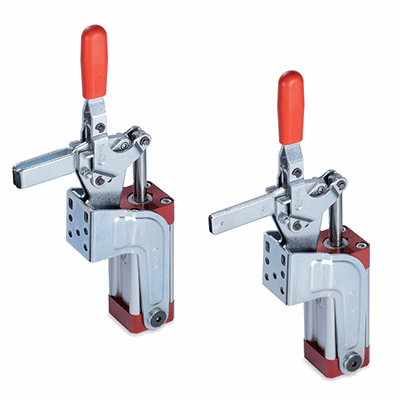

PVE-APVS

PVE.

CE.99903-45-mpi_15_band

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 2 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code GG.AO424
    Description PVE.230/APVS
    Position
    —
    • —
    a
    —
    • —
    b1
    —
    • —
    b2
    —
    • —
    b3
    —
    • —
    b4
    —
    • —
    b5
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    h4
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    m1
    —
    • —
    m2
    —
    • —
    m3
    —
    • —
    m4
    —
    • —
    m5
    —
    • —
    m6
    —
    • —
    FH
    —
    • —
    FS
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code GG.AO424
    Description PVE.230/APVS
    Position 0
    a 41
    b1 58
    b2 32
    b3 46
    b4 51
    b5 8.5
    d1 M8
    d2 6.5
    d3 G1/8
    h1 302
    h2 87
    h3 18
    h4 3
    l 62
    l1 153
    l2 94.5
    m1 26
    m2 14
    m3 16
    m4 11
    m5 16
    m6 14.2
    FH 2200
    FS 1260
    Weight 1350
    Les mer
  • Code GG.AO436
    Description PVE.330/APVS
    Position 0
    a 45
    b1 70
    b2 45
    b3 56
    b4 79
    b5 10.5
    d1 M10
    d2 8.5
    d3 G1/4
    h1 363
    h2 108
    h3 22
    h4 3.5
    l 68
    l1 182
    l2 110
    m1 30
    m2 16
    m3 28
    m4 19
    m5 30
    m6 20
    FH 2600
    FS 1800
    Weight 2300
    Les mer
