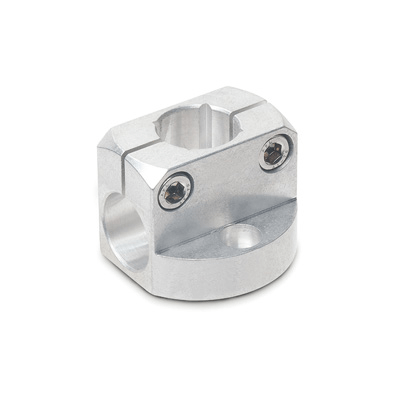

MSM-B

Connecting clamps

Teknisk datablad
260321-C6-ebp_b-pa11_pa12-sketch

Viser alle 12 resultater

    Code 500005
    Description MSM-B-10-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    L
    —
    • —
    D
    —
    • —
    H
    —
    • —
    b
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    f
    —
    • —
    s
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500005
    Description MSM-B-10-ANB
    d 10
    d1 M5
    d2 M5
    L 35
    D 38
    H 24
    b 16
    h1 8
    h2 8
    f 27
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 36
    Les mer
  • Code 500007
    Description MSM-B-10-MT
    d 10
    d1 M5
    d2 M5
    L 35
    D 38
    H 24
    b 16
    h1 8
    h2 8
    f 27
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 36
    Les mer
  • Code 500009
    Description MSM-B-12-ANB
    d 12
    d1 M5
    d2 M5
    L 35
    D 38
    H 25
    b 16
    h1 8
    h2 8
    f 27
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 33
    Les mer
  • Code 500011
    Description MSM-B-12-MT
    d 12
    d1 M5
    d2 M5
    L 35
    D 38
    H 25
    b 16
    h1 8
    h2 8
    f 27
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 33
    Les mer
  • Code 500013
    Description MSM-B-15-ANB
    d 15
    d1 M6
    d2 M6
    L 41
    D 45
    H 30
    b 20
    h1 10
    h2 10
    f 32
    s 12
    d3 Clamping kit GN 511-M 6-20
    Weight 57
    Les mer
  • Code 500015
    Description MSM-B-15-MT
    d 15
    d1 M6
    d2 M6
    L 41
    D 45
    H 30
    b 20
    h1 10
    h2 10
    f 32
    s 12
    d3 Clamping kit GN 511-M6-20
    Weight 57
    Les mer
  • Code 500017
    Description MSM-B-16-ANB
    d 16
    d1 M6
    d2 M6
    L 41
    D 45
    H 31
    b 20
    h1 10
    h2 10
    f 32
    s -
    d3 Clamping kit GN 511-M6-20
    Weight 57
    Les mer
  • Code 500019
    Description MSM-B-16-MT
    d 16
    d1 M6
    d2 M6
    L 41
    D 45
    H 31
    b 20
    h1 10
    h2 10
    f 32
    s -
    d3 Clamping kit GN 511-M6-20
    Weight 57
    Les mer
  • Code 500021
    Description MSM-B-20-ANB
    d 20
    d1 M6
    d2 M6
    L 44
    D 50
    H 35
    b 25
    h1 12.5
    h2 12.5
    f 36
    s 16
    d3 Clamping kit GN 511-M6-25
    Weight 80
    Les mer
  • Code 500023
    Description MSM-B-20-MT
    d 20
    d1 M6
    d2 M6
    L 44
    D 50
    H 35
    b 25
    h1 12.5
    h2 12.5
    f 36
    s 16
    d3 Clamping kit GN 511-M6-25
    Weight 76
    Les mer
  • Code 500001
    Description MSM-B-8-ANB
    d 8
    d1 M4
    d2 M4
    L 29
    D 31.5
    H 20
    b 14
    h1 7
    h2 7
    f 22
    s -
    d3 Clamping kit GN 511-M4-14
    Weight 23
    Les mer
  • Code 500003
    Description MSM-B-8-MT
    d 8
    d1 M4
    d2 M4
    L 29
    D 31.5
    H 20
    b 14
    h1 7
    h2 7
    f 22
    s -
    d3 Clamping kit GN 511-M4-14
    Weight 23
    Les mer
