MSM-C

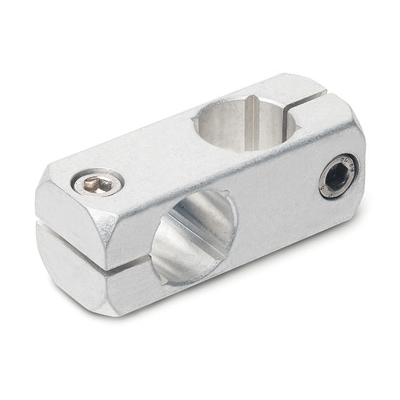

Connecting clamps

Teknisk datablad
CE.74005-pa11_pa12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 25 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 500055
    Description MSM-C-10-10-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    L
    —
    • —
    B
    —
    • —
    f
    —
    • —
    f1
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500055
    Description MSM-C-10-10-ANB
    d 10
    d1 10
    d2 M5
    L 46
    B 16
    f 17
    f1 12
    s 8
    s1 8
    d3 Clamping kit GN 511-M5-16
    Weight 25
    Les mer
  • Code 500057
    Description MSM-C-10-10-MT
    d 10
    d1 10
    d2 M5
    L 46
    B 16
    f 17
    f1 12
    s 8
    s1 8
    d3 Clamping kit GN 511-M5-16
    Weight 25
    Les mer
  • Code 500056
    Description MSM-C-10-8-MT
    d 10
    d1 8
    d2 M5
    L 46
    B 16
    f 17
    f1 12
    s 8
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 26
    Les mer
  • Code 500059
    Description MSM-C-12-12-ANB
    d 12
    d1 12
    d2 M5
    L 48
    B 16
    f 17
    f1 14
    s 10
    s1 10
    d3 Clamping kit GN 511-M5-16
    Weight 24
    Les mer
  • Code 500061
    Description MSM-C-12-12-MT
    d 12
    d1 12
    d2 M5
    L 48
    B 16
    f 17
    f1 14
    s 10
    s1 10
    d3 Clamping kit GN 511-M5-16
    Weight 23
    Les mer
  • Code 500058
    Description MSM-C-12-8-ANB
    d 12
    d1 8
    d2 M5
    L 48
    B 16
    f 17
    f1 14
    s 10
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 27
    Les mer
  • Code 500060
    Description MSM-C-12-8-MT
    d 12
    d1 8
    d2 M5
    L 48
    B 16
    f 17
    f1 14
    s 10
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 10
    Les mer
  • Code 500075
    Description MSM-C-15-10-ANB
    d 15
    d1 10
    d2 M6
    L 58
    B 20
    f 20.5
    f1 17
    s 12
    s1 8
    d3 Clamping kit GN 511-M6-20
    Weight 51
    Les mer
  • Code 500077
    Description MSM-C-15-10-MT
    d 15
    d1 10
    d2 M6
    L 58
    B 20
    f 20.5
    f1 17
    s 12
    s1 8
    d3 Clamping kit GN 511-M6-20
    Weight 49
    Les mer
  • Code 500062
    Description MSM-C-15-12-ANB
    d 15
    d1 12
    d2 M6
    L 58
    B 20
    f 20.5
    f1 17
    s 12
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 49
    Les mer
  • Code 500064
    Description MSM-C-15-12-MT
    d 15
    d1 12
    d2 M6
    L 58
    B 20
    f 20.5
    f1 17
    s 12
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 47
    Les mer
  • Code 500063
    Description MSM-C-15-15-ANB
    d 15
    d1 15
    d2 M6
    L 58
    B 20
    f 20.5
    f1 17
    s 12
    s1 12
    d3 Clamping kit GN 511-M6-20
    Weight 44
    Les mer
  • Code 500065
    Description MSM-C-15-15-MT
    d 15
    d1 15
    d2 M6
    L 58
    B 20
    f 20.5
    f1 17
    s 12
    s1 12
    d3 Clamping kit GN 511-M6-20
    Weight 44
    Les mer
  • Code 500066
    Description MSM-C-16-12-ANB
    d 16
    d1 12
    d2 M6
    L 59
    B 20
    f 20.5
    f1 18
    s -
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 49
    Les mer
  • Code 500068
    Description MSM-C-16-12-MT
    d 16
    d1 12
    d2 M6
    L 59
    B 20
    f 20.2
    f1 18
    s -
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 47
    Les mer
  • Code 500067
    Description MSM-C-16-16-ANB
    d 16
    d1 16
    d2 M6
    L 59
    B 20
    f 20.5
    f1 18
    s -
    s1 -
    d3 Clamping kit GN 511-M6-20
    Weight 43
    Les mer
  • Code 500069
    Description MSM-C-16-16-MT
    d 16
    d1 16
    d2 M6
    L 59
    B 20
    f 20.2
    f1 18
    s -
    s1 -
    d3 Clamping kit GN 511-M6-20
    Weight 43
    Les mer
  • Code 500079
    Description MSM-C-20-15-ANB
    d 20
    d1 15
    d2 M6
    L 65
    B 25
    f 21.5
    f1 22
    s 16
    s1 12
    d3 Clamping kit GN 511-M6-25
    Weight 80
    Les mer
  • Code 500081
    Description MSM-C-20-15-MT
    d 20
    d1 15
    d2 M6
    L 65
    B 25
    f 21.5
    f1 22
    s 16
    s1 12
    d3 Clamping kit GN 511-M6-25
    Weight 47
    Les mer
  • Code 500070
    Description MSM-C-20-16-ANB
    d 20
    d1 16
    d2 M6
    L 65
    B 25
    f 21.5
    f1 22
    s 16
    s1 -
    d3 Clamping kit GN 511-M6-25
    Weight 76
    Les mer
  • Code 500072
    Description MSM-C-20-16-MT
    d 20
    d1 16
    d2 M6
    L 65
    B 25
    f 21.5
    f1 22
    s 16
    s1 -
    d3 Clamping kit GN 511-M6-25
    Weight 76
    Les mer
  • Code 500071
    Description MSM-C-20-20-ANB
    d 20
    d1 20
    d2 M6
    L 65
    B 25
    f 21.5
    f1 22
    s 16
    s1 16
    d3 Clamping kit GN 511-M6-25
    Weight 67
    Les mer
  • Code 500073
    Description MSM-C-20-20-MT
    d 20
    d1 20
    d2 M6
    L 65
    B 25
    f 21.5
    f1 22
    s 16
    s1 16
    d3 Clamping kit GN 511-M6-25
    Weight 67
    Les mer
  • Code 500051
    Description MSM-C-8-8-ANB
    d 8
    d1 8
    d2 M4
    L 37
    B 14
    f 13.5
    f1 10
    s -
    s1 -
    d3 Clamping kit GN 511-M4-14
    Weight 16
    Les mer
  • Code 500053
    Description MSM-C-8-8-MT
    d 8
    d1 8
    d2 M4
    L 37
    B 14
    f 13.5
    f1 10
    s -
    s1 -
    d3 Clamping kit GN 511-M4-14
    Weight 16
    Les mer
