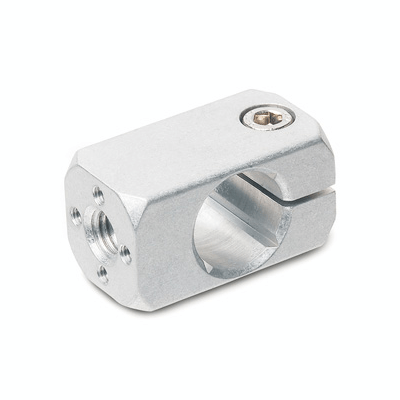

MSM-F

Connecting clamps

Teknisk datablad
CE.74006-pa11_pa12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 26 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 500105
    Description MSM-F-10-M5-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    L
    —
    • —
    B
    —
    • —
    f
    —
    • —
    f1
    —
    • —
    m
    —
    • —
    s
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500105
    Description MSM-F-10-M5-ANB
    d 10
    d1 M5
    d2 M5
    L 30
    B 16
    f 17
    f1 8
    m -
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500107
    Description MSM-F-10-M5-MT
    d 10
    d1 M5
    d2 M5
    L 30
    B 16
    f 17
    f1 8
    m -
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500109
    Description MSM-F-10-M6-ANB
    d 10
    d1 M5
    d2 M6
    L 30
    B 16
    f 17
    f1 8
    m -
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 20
    Les mer
  • Code 500111
    Description MSM-F-10-M6-MT
    d 10
    d1 M5
    d2 M6
    L 30
    B 16
    f 17
    f1 8
    m -
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 20
    Les mer
  • Code 500113
    Description MSM-F-10-M8-ANB
    d 10
    d1 M5
    d2 M8
    L 30
    B 16
    f 17
    f1 8
    m -
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500115
    Description MSM-F-10-M8-MT
    d 10
    d1 M5
    d2 M8
    L 30
    B 16
    f 17
    f1 8
    m -
    s 8
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500117
    Description MSM-F-12-M5-ANB
    d 12
    d1 M5
    d2 M5
    L 32
    B 16
    f 17
    f1 9
    m -
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500119
    Description MSM-F-12-M5-MT
    d 12
    d1 M5
    d2 M5
    L 32
    B 16
    f 17
    f1 9
    m -
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500121
    Description MSM-F-12-M6-ANB
    d 12
    d1 M5
    d2 M6
    L 32
    B 16
    f 17
    f1 9
    m -
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 37
    Les mer
  • Code 500123
    Description MSM-F-12-M6-MT
    d 12
    d1 M5
    d2 M6
    L 32
    B 16
    f 17
    f1 9
    m -
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 16
    Les mer
  • Code 500125
    Description MSM-F-12-M8-ANB
    d 12
    d1 M5
    d2 M8
    L 32
    B 16
    f 17
    f1 9
    m -
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 17
    Les mer
  • Code 500127
    Description MSM-F-12-M8-MT
    d 12
    d1 M5
    d2 M8
    L 32
    B 16
    f 17
    f1 9
    m -
    s 10
    d3 Clamping kit GN 511-M5-16
    Weight 15
    Les mer
  • Code 500129
    Description MSM-F-15-M6-ANB
    d 15
    d1 M6
    d2 M6
    L 40
    B 20
    f 20.5
    f1 12
    m 14
    s 12
    d3 Clamping kit GN 511-M6-20
    Weight 20
    Les mer
  • Code 500131
    Description MSM-F-15-M6-MT
    d 15
    d1 M6
    d2 M6
    L 40
    B 20
    f 20.5
    f1 12
    m 14
    s 12
    d3 Clamping kit GN 511-M6-20
    Weight 20
    Les mer
  • Code 500133
    Description MSM-F-15-M8-ANB
    d 15
    d1 M6
    d2 M8
    L 40
    B 20
    f 20.5
    f1 12
    m 14
    s 12
    d3 Clamping kit GN 511-M6-20
    Weight 31
    Les mer
  • Code 500135
    Description MSM-F-15-M8-MT
    d 15
    d1 M6
    d2 M8
    L 40
    B 20
    f 20.5
    f1 12
    m 14
    s 12
    d3 Clamping kit GN 511-M6-20
    Weight 31
    Les mer
  • Code 500137
    Description MSM-F-16-M6-ANB
    d 16
    d1 M6
    d2 M6
    L 40
    B 20
    f 20.5
    f1 11.5
    m 14
    s -
    d3 Clamping kit GN 511-M6-20
    Weight 31
    Les mer
  • Code 500139
    Description MSM-F-16-M6-MT
    d 16
    d1 M6
    d2 M6
    L 40
    B 20
    f 20.5
    f1 11.5
    m 14
    s -
    d3 Clamping kit GN 511-M6-20
    Weight 31
    Les mer
  • Code 500141
    Description MSM-F-16-M8-ANB
    d 16
    d1 M6
    d2 M8
    L 40
    B 20
    f 20.5
    f1 11.5
    m 14
    s -
    d3 Clamping kit GN 511-M6-20
    Weight 30
    Les mer
  • Code 500143
    Description MSM-F-16-M8-MT
    d 16
    d1 M6
    d2 M8
    L 40
    B 20
    f 20.5
    f1 11.5
    m 14
    s -
    d3 Clamping kit GN 511-M6-20
    Weight 30
    Les mer
  • Code 500149
    Description MSM-F-20-M10-ANB
    d 20
    d1 M6
    d2 M10
    L 45
    B 25
    f 21.5
    f1 12
    m 17
    s 16
    d3 Clamping kit GN 511-M6-25
    Weight 50
    Les mer
  • Code 500151
    Description MSM-F-20-M10-MT
    d 20
    d1 M6
    d2 M10
    L 45
    B 25
    f 21.5
    f1 12
    m 17
    s 16
    d3 Clamping kit GN 511-M6-25
    Weight 50
    Les mer
  • Code 500145
    Description MSM-F-20-M8-ANB
    d 20
    d1 M6
    d2 M8
    L 45
    B 25
    f 21.5
    f1 12
    m 17
    s 16
    d3 Clamping kit GN 511-M6-25
    Weight 51
    Les mer
  • Code 500147
    Description MSM-F-20-M8-MT
    d 20
    d1 M6
    d2 M8
    L 45
    B 25
    f 21.5
    f1 12
    m 17
    s 16
    d3 Clamping kit GN 511-M6-25
    Weight 51
    Les mer
  • Code 500101
    Description MSM-F-8-M5-ANB
    d 8
    d1 M4
    d2 M5
    L 25
    B 14
    f 13.5
    f1 7.5
    m -
    s -
    d3 Clamping kit GN 511-M4-14
    Weight 11
    Les mer
  • Code 500103
    Description MSM-F-8-M5-MT
    d 8
    d1 M4
    d2 M5
    L 25
    B 14
    f 13.5
    f1 7.5
    m -
    s -
    d3 Clamping kit GN 511-M4-14
    Weight 11
    Les mer
