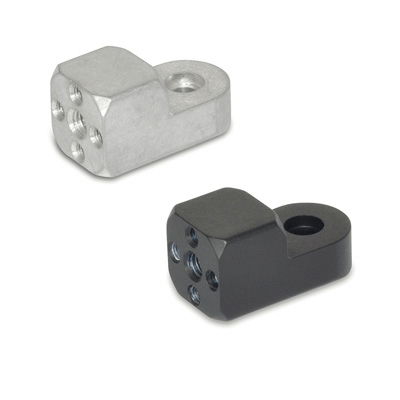

MSM-FR

Connecting clamps

Teknisk datablad
CE.74008-pa11_pa12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 20 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 500189
    Description MSM-FR-M10-25-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    L
    —
    • —
    B
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h1
    —
    • —
    m
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500189
    Description MSM-FR-M10-25-ANB
    d M10
    d1 10
    d2 6.5
    L 46
    B 25
    l1 33.5
    l2 20
    h1 12.5
    m 17
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 46
    Les mer
  • Code 500191
    Description MSM-FR-M10-25-MT
    d M10
    d1 10
    d2 6.5
    L 46
    B 25
    l1 33.5
    l2 20
    h1 12.5
    m 17
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 46
    Les mer
  • Code 500193
    Description MSM-FR-M10-30-ANB
    d M10
    d1 10
    d2 6.5
    L 55
    B 30
    l1 40
    l2 24
    h1 15
    m 20
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 58
    Les mer
  • Code 500195
    Description MSM-FR-M10-30-MT
    d M10
    d1 10
    d2 6.5
    L 55
    B 30
    l1 40
    l2 24
    h1 15
    m 20
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 58
    Les mer
  • Code 500197
    Description MSM-FR-M12-30-ANB
    d M12
    d1 10
    d2 6.5
    L 55
    B 30
    l1 40
    l2 24
    h1 15
    m 20
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 58
    Les mer
  • Code 500199
    Description MSM-FR-M12-30-MT
    d M12
    d1 10
    d2 6.5
    L 55
    B 30
    l1 40
    l2 24
    h1 15
    m 20
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 58
    Les mer
  • Code 500161
    Description MSM-FR-M5-16-ANB
    d M5
    d1 7
    d2 4.5
    L 30
    B 16
    l1 22
    l2 13
    h1 8
    m -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 12
    Les mer
  • Code 500163
    Description MSM-FR-M5-16-MT
    d M5
    d1 7
    d2 4.5
    L 30
    B 16
    l1 22
    l2 13
    h1 8
    m -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 12
    Les mer
  • Code 500165
    Description MSM-FR-M6-16-ANB
    d M6
    d1 7
    d2 4.5
    L 30
    B 16
    l1 22
    l2 13
    h1 8
    m -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 12
    Les mer
  • Code 500167
    Description MSM-FR-M6-16-MT
    d M6
    d1 7
    d2 4.5
    L 30
    B 16
    l1 22
    l2 13
    h1 8
    m -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 12
    Les mer
  • Code 500169
    Description MSM-FR-M6-20-ANB
    d M6
    d1 8.5
    d2 5.5
    L 38
    B 20
    l1 28
    l2 17
    h1 10
    m 14
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 24
    Les mer
  • Code 500171
    Description MSM-FR-M6-20-MT
    d M6
    d1 8.5
    d2 5.5
    L 38
    B 20
    l1 28
    l2 17
    h1 10
    m 14
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 24
    Les mer
  • Code 500173
    Description MSM-FR-M8-16-ANB
    d M8
    d1 7
    d2 4.5
    L 30
    B 16
    l1 22
    l2 13
    h1 8
    m -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 12
    Les mer
  • Code 500175
    Description MSM-FR-M8-16-MT
    d M8
    d1 7
    d2 4.5
    L 30
    B 16
    l1 22
    l2 13
    h1 8
    m -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 12
    Les mer
  • Code 500177
    Description MSM-FR-M8-20-ANB
    d M8
    d1 8.5
    d2 5.5
    L 38
    B 20
    l1 28
    l2 17
    h1 10
    m 14
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 24
    Les mer
  • Code 500179
    Description MSM-FR-M8-20-MT
    d M8
    d1 8.5
    d2 5.5
    L 38
    B 20
    l1 28
    l2 17
    h1 10
    m 14
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 24
    Les mer
  • Code 500181
    Description MSM-FR-M8-25-ANB
    d M8
    d1 10
    d2 6.5
    L 46
    B 25
    l1 33.5
    l2 20
    h1 12.5
    m 17
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 46
    Les mer
  • Code 500183
    Description MSM-FR-M8-25-MT
    d M8
    d1 10
    d2 6.5
    L 46
    B 25
    l1 33.5
    l2 20
    h1 12.5
    m 17
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 46
    Les mer
  • Code 500185
    Description MSM-FR-M8-30-ANB
    d M8
    d1 10
    d2 6.5
    L 55
    B 30
    l1 40
    l2 24
    h1 15
    m 20
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 58
    Les mer
  • Code 500187
    Description MSM-FR-M8-30-MT
    d M8
    d1 10
    d2 6.5
    L 55
    B 30
    l1 40
    l2 24
    h1 15
    m 20
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 58
    Les mer
