MSM-G

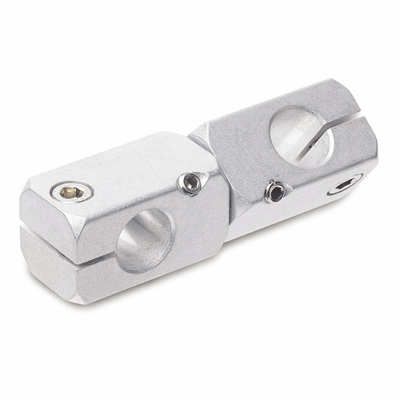

Connecting clamps

Teknisk datablad
CE.74009-pa11_pa12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 26 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 500205
    Description MSM-G-10-10-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    L
    —
    • —
    B
    —
    • —
    f
    —
    • —
    f1
    —
    • —
    s
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500205
    Description MSM-G-10-10-ANB
    d 10
    d1 M5
    d2 M5
    L 63.5
    B 20
    f 15.5
    f1 32.5
    s 8
    d3 Clamping kit GN 511-M5-20
    Weight 65
    Les mer
  • Code 500207
    Description MSM-G-10-10-MT
    d 10
    d1 M5
    d2 M5
    L 63.5
    B 20
    f 15.5
    f1 32.5
    s 8
    d3 Clamping kit GN 511-M5-20
    Weight 65
    Les mer
  • Code 500204
    Description MSM-G-10-8-ANB
    d 10
    d1 M5
    d2 M4
    L 58
    B 20
    f 15.5
    f1 29.5
    s 8
    d3 Clamping kit GN 511-M5-20
    Weight 40
    Les mer
  • Code 500206
    Description MSM-G-10-8-MT
    d 10
    d1 M5
    d2 M4
    L 58
    B 20
    f 15.5
    f1 29.5
    s 8
    d3 Clamping kit GN 511-M5-20
    Weight 40
    Les mer
  • Code 500209
    Description MSM-G-12-12-ANB
    d 12
    d1 M5
    d2 M5
    L 71.5
    B 20
    f 16.5
    f1 38.5
    s 10
    d3 Clamping kit GN 511-M5-20
    Weight 73
    Les mer
  • Code 500211
    Description MSM-G-12-12-MT
    d 12
    d1 M5
    d2 M5
    L 71.5
    B 20
    f 16.5
    f1 38.5
    s 10
    d3 Clamping kit GN 511-M5-20
    Weight 73
    Les mer
  • Code 500208
    Description MSM-G-12-8-ANB
    d 12
    d1 M5
    d2 M4
    L 62
    B 20
    f 16.5
    f1 32.5
    s 10
    d3 Clamping kit GN 511-M5-20
    Weight 54
    Les mer
  • Code 500210
    Description MSM-G-12-8-MT
    d 12
    d1 M5
    d2 M4
    L 62
    B 20
    f 16.5
    f1 32.5
    s 10
    d3 Clamping kit GN 511-M5-20
    Weight 54
    Les mer
  • Code 500226
    Description MSM-G-15-10-ANB
    d 15
    d1 M6
    d2 M4
    L 75.5
    B 25
    f 20
    f1 40
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 105
    Les mer
  • Code 500227
    Description MSM-G-15-10-MT
    d 15
    d1 M6
    d2 M4
    L 75.5
    B 25
    f 20
    f1 40
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 105
    Les mer
  • Code 500212
    Description MSM-G-15-12-ANB
    d 15
    d1 M6
    d2 M5
    L 79.5
    B 25
    f 20
    f1 43
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 109
    Les mer
  • Code 500214
    Description MSM-G-15-12-MT
    d 15
    d1 M6
    d2 M5
    L 79.5
    B 25
    f 20
    f1 43
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 109
    Les mer
  • Code 500213
    Description MSM-G-15-15-ANB
    d 15
    d1 M6
    d2 M6
    L 87.5
    B 25
    f 20
    f1 47.5
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 113
    Les mer
  • Code 500215
    Description MSM-G-15-15-MT
    d 15
    d1 M6
    d2 M6
    L 87.5
    B 25
    f 20
    f1 47.5
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 115
    Les mer
  • Code 500216
    Description MSM-G-16-12-ANB
    d 16
    d1 M6
    d2 M5
    L 81.5
    B 25
    f 20
    f1 44.5
    s -
    d3 Clamping kit GN 511-M6-25
    Weight 120
    Les mer
  • Code 500218
    Description MSM-G-16-12-MT
    d 16
    d1 M6
    d2 M5
    L 81
    B 25
    f 20
    f1 44.5
    s -
    d3 Clamping kit GN 511-M6-25
    Weight 130
    Les mer
  • Code 500217
    Description MSM-G-16-16-ANB
    d 16
    d1 M6
    d2 M6
    L 90.5
    B 25
    f 20
    f1 50.5
    s -
    d3 Clamping kit GN 511-M6-25
    Weight 139
    Les mer
  • Code 500219
    Description MSM-G-16-16-MT
    d 16
    d1 M6
    d2 M6
    L 90.5
    B 25
    f 20
    f1 50.5
    s -
    d3 Clamping kit GN 511-M6-25
    Weight 139
    Les mer
  • Code 500220
    Description MSM-G-20-15-ANB
    d 20
    d1 M6
    d2 M6
    L 95
    B 30
    f 22
    f1 53
    s 16
    d3 Clamping kit GN 511-M6-30
    Weight 165
    Les mer
  • Code 500223
    Description MSM-G-20-15-MT
    d 20
    d1 M6
    d2 M6
    L 95
    B 30
    f 22
    f1 53
    s 16
    d3 Clamping kit GN 511-M6-30
    Weight 193
    Les mer
  • Code 500221
    Description MSM-G-20-16-ANB
    d 20
    d1 M6
    d2 M6
    L 96.5
    B 30
    f 22
    f1 54.5
    s 16
    d3 Clamping kit GN 511-M6-30
    Weight 197
    Les mer
  • Code 500224
    Description MSM-G-20-16-MT
    d 20
    d1 M6
    d2 M6
    L 96.2
    B 30
    f 22
    f1 54.5
    s 16
    d3 Clamping kit GN 511-M6-30
    Weight 196
    Les mer
  • Code 500222
    Description MSM-G-20-20-ANB
    d 20
    d1 M6
    d2 M6
    L 102.5
    B 30
    f 22
    f1 58.5
    s 16
    d3 Clamping kit GN 511-M6-30
    Weight 243
    Les mer
  • Code 500225
    Description MSM-G-20-20-MT
    d 20
    d1 M6
    d2 M6
    L 102.5
    B 30
    f 22
    f1 58.5
    s 16
    d3 Clamping kit GN 511-M6-30
    Weight 242
    Les mer
  • Code 500201
    Description MSM-G-8-8-ANB
    d 8
    d1 M4
    d2 M4
    L 52.5
    B 16
    f 13
    f1 26.5
    s -
    d3 Clamping kit GN 511-M4-16
    Weight 34
    Les mer
  • Code 500203
    Description MSM-G-8-8-MT
    d 8
    d1 M4
    d2 M4
    L 52.5
    B 16
    f 13
    f1 26.5
    s -
    d3 Clamping kit GN 511-M4-16
    Weight 34
    Les mer
