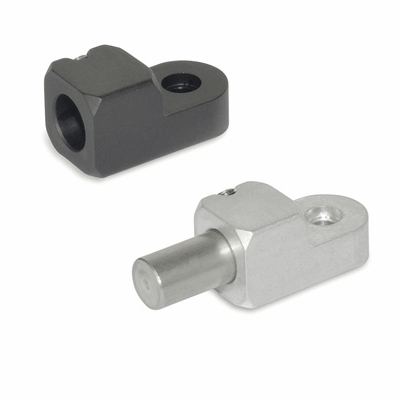

MSM-HR

Connecting clamps

Teknisk datablad
CE.74012-pa11_pa12

Viser alle 24 resultater

    Code 500718
    Description MSM-HR-10-20-A-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    L
    —
    • —
    B
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    h1
    —
    • —
    p
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500718
    Description MSM-HR-10-20-A-ANB
    d 10
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l -
    l1 28
    l2 17
    l3 7
    h1 10
    p 10
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 20
    Les mer
  • Code 500719
    Description MSM-HR-10-20-A-MT
    d 10
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l -
    l1 28
    l2 17
    l3 7
    h1 10
    p 10
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 20
    Les mer
  • Code 500720
    Description MSM-HR-10-20-W-ANB
    d 10
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l 17
    l1 28
    l2 17
    l3 7
    h1 10
    p -
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 42
    Les mer
  • Code 500721
    Description MSM-HR-10-20-W-MT
    d 10
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l 17
    l1 28
    l2 17
    l3 7
    h1 10
    p -
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 42
    Les mer
  • Code 500725
    Description MSM-HR-12-20-A-ANB
    d 12
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l -
    l1 28
    l2 17
    l3 8
    h1 10
    p 12
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 20
    Les mer
  • Code 500726
    Description MSM-HR-12-20-A-MT
    d 12
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l -
    l1 28
    l2 17
    l3 8
    h1 10
    p 12
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 20
    Les mer
  • Code 500727
    Description MSM-HR-12-20-W-ANB
    d 12
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l 19
    l1 28
    l2 17
    l3 8
    h1 10
    p -
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 51
    Les mer
  • Code 500728
    Description MSM-HR-12-20-W-MT
    d 12
    d1 8.5
    d2 5.5
    d3 M5
    L 38
    B 20
    l 19
    l1 28
    l2 17
    l3 8
    h1 10
    p -
    d3 Clamping kit GN 511.1-M5-20-S/K
    Weight 51
    Les mer
  • Code 500732
    Description MSM-HR-15-25-A-ANB
    d 15
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l -
    l1 33.5
    l2 20
    l3 10
    h1 12.5
    p 15
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 40
    Les mer
  • Code 500733
    Description MSM-HR-15-25-A-MT
    d 15
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l -
    l1 33.5
    l2 20
    l3 10
    h1 12.5
    p 15
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 40
    Les mer
  • Code 500734
    Description MSM-HR-15-25-W-ANB
    d 15
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l 21
    l1 33.5
    l2 20
    l3 10
    h1 12.5
    p -
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 94
    Les mer
  • Code 500735
    Description MSM-HR-15-25-W-MT
    d 15
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l 21
    l1 33.5
    l2 20
    l3 10
    h1 12.5
    p -
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 94
    Les mer
  • Code 500739
    Description MSM-HR-16-25-A-ANB
    d 16
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l -
    l1 33.5
    l2 20
    l3 11
    h1 12.5
    p 16
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 40
    Les mer
  • Code 500740
    Description MSM-HR-16-25-A-MT
    d 16
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l -
    l1 33.5
    l2 20
    l3 11
    h1 12.5
    p 16
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 40
    Les mer
  • Code 500741
    Description MSM-HR-16-25-W-ANB
    d 16
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l 24
    l1 33.5
    l2 20
    l3 11
    h1 12.5
    p -
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 106
    Les mer
  • Code 500742
    Description MSM-HR-16-25-W-MT
    d 16
    d1 10
    d2 6.5
    d3 M6
    L 46
    B 25
    l 24
    l1 33.5
    l2 20
    l3 11
    h1 12.5
    p -
    d3 Clamping kit GN 511.1-M6-25-S/K
    Weight 106
    Les mer
  • Code 500746
    Description MSM-HR-20-30-A-ANB
    d 20
    d1 10
    d2 6.5
    d3 M6
    L 55
    B 30
    l -
    l1 40
    l2 24
    l3 12
    h1 15
    p 18
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 80
    Les mer
  • Code 500747
    Description MSM-HR-20-30-A-MT
    d 20
    d1 10
    d2 6.5
    d3 M6
    L 55
    B 30
    l -
    l1 40
    l2 24
    l3 12
    h1 15
    p 18
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 80
    Les mer
  • Code 500748
    Description MSM-HR-20-30-W-ANB
    d 20
    d1 10
    d2 6.5
    d3 M6
    L 55
    B 30
    l 26
    l1 40
    l2 24
    l3 12
    h1 15
    p -
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 180
    Les mer
  • Code 500749
    Description MSM-HR-20-30-W-MT
    d 20
    d1 10
    d2 6.5
    d3 M6
    L 55
    B 30
    l 26
    l1 40
    l2 24
    l3 12
    h1 15
    p -
    d3 Clamping kit GN 511.1-M6-30-S/K
    Weight 180
    Les mer
  • Code 500711
    Description MSM-HR-8-16-A-ANB
    d 8
    d1 7
    d2 4.5
    d3 M4
    L 30
    B 16
    l -
    l1 22
    l2 13
    l3 5.5
    h1 8
    p 8
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 17
    Les mer
  • Code 500712
    Description MSM-HR-8-16-A-MT
    d 8
    d1 7
    d2 4.5
    d3 M4
    L 30
    B 16
    l -
    l1 22
    l2 13
    l3 5.5
    h1 8
    p 8
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 17
    Les mer
  • Code 500713
    Description MSM-HR-8-16-W-ANB
    d 8
    d1 7
    d2 4.5
    d3 M4
    L 30
    B 16
    l 16
    l1 22
    l2 13
    l3 5.5
    h1 8
    p -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 20
    Les mer
  • Code 500714
    Description MSM-HR-8-16-W-MT
    d 8
    d1 7
    d2 4.5
    d3 M4
    L 30
    B 16
    l 16
    l1 22
    l2 13
    l3 5.5
    h1 8
    p -
    d3 Clamping kit GN 511.1-M4-16-S/K
    Weight 20
    Les mer
