MSM-I

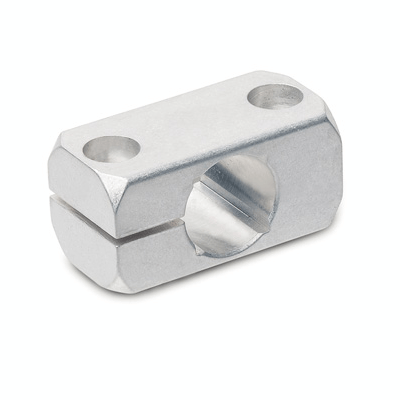

Connecting clamps

Teknisk datablad
CE.74015-pa11_pa12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 12 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 500305
    Description MSM-I-10-ANB
    d
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    B
    —
    • —
    f
    —
    • —
    s
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500305
    Description MSM-I-10-ANB
    d 10
    d1 M5
    L 38
    B 16
    f 27
    s 8
    d3 Clamping kit GN 511-M5-25
    Weight 18
    Les mer
  • Code 500307
    Description MSM-I-10-MT
    d 10
    d1 M5
    L 38
    B 16
    f 27
    s 8
    d3 Clamping kit GN 511-M5-25
    Weight 18
    Les mer
  • Code 500309
    Description MSM-I-12-ANB
    d 12
    d1 M5
    L 38
    B 16
    f 27
    s 10
    d3 Clamping kit GN 511-M5-25
    Weight 20
    Les mer
  • Code 500311
    Description MSM-I-12-MT
    d 12
    d1 M5
    L 38
    B 16
    f 27
    s 10
    d3 Clamping kit GN 511-M-25
    Weight 37
    Les mer
  • Code 500313
    Description MSM-I-15-ANB
    d 15
    d1 M6
    L 45
    B 20
    f 32
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 31
    Les mer
  • Code 500315
    Description MSM-I-15-MT
    d 15
    d1 M6
    L 45
    B 20
    f 32
    s 12
    d3 Clamping kit GN 511-M6-25
    Weight 40
    Les mer
  • Code 500317
    Description MSM-I-16-ANB
    d 16
    d1 M6
    L 45
    B 20
    f 32
    s -
    d3 Clamping kit GN 511-M6-25
    Weight 29
    Les mer
  • Code 500319
    Description MSM-I-16-MT
    d 16
    d1 M6
    L 45
    B 20
    f 32
    s -
    d3 Clamping kit GN 511-M6-25
    Weight 29
    Les mer
  • Code 500321
    Description MSM-I-20-ANB
    d 20
    d1 M6
    L 50
    B 25
    f 36
    s 16
    d3 Clamping kit GN 511-M6-32
    Weight 52
    Les mer
  • Code 500323
    Description MSM-I-20-MT
    d 20
    d1 M6
    L 50
    B 25
    f 36
    s 16
    d3 Clamping kit GN 511-M6-32
    Weight 52
    Les mer
  • Code 500301
    Description MSM-I-8-ANB
    d 8
    d1 M4
    L 31.5
    B 14
    f 22
    s -
    d3 Clamping kit GN 511-M4-20
    Weight 11
    Les mer
  • Code 500303
    Description MSM-I-8-MT
    d 8
    d1 M4
    L 31.5
    B 14
    f 22
    s -
    d3 Clamping kit GN 511-M4-20
    Weight 11
    Les mer
