MSM-PH

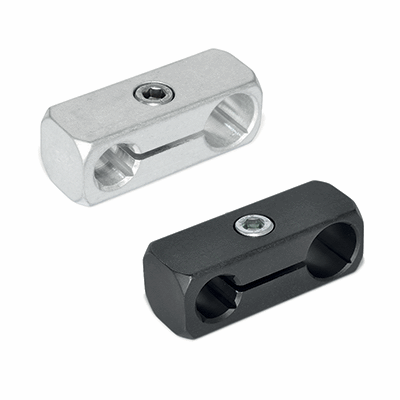

Connecting clamps

CE.74031-pa11_pa12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 34 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 500919
    Description MSM-PH-10-10-ANB
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    L
    —
    • —
    B
    —
    • —
    f
    —
    • —
    f1
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    d3 Clamping kit
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 500919
    Description MSM-PH-10-10-ANB
    d 10
    d1 10
    d2 M5
    L 44
    B 16
    f 8
    f1 28
    s 8
    s1 8
    d3 Clamping kit GN 511-M5-16
    Weight 23
    Les mer
  • Code 500920
    Description MSM-PH-10-10-MT
    d 10
    d1 10
    d2 M5
    L 44
    B 16
    f 8
    f1 28
    s 8
    s1 8
    d3 Clamping kit GN 511-M5-16
    Weight 23
    Les mer
  • Code 500917
    Description MSM-PH-10-8-ANB
    d 10
    d1 8
    d2 M5
    L 44
    B 16
    f 8
    f1 28
    s 8
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 24
    Les mer
  • Code 500918
    Description MSM-PH-10-8-MT
    d 10
    d1 8
    d2 M5
    L 44
    B 16
    f 8
    f1 28
    s 8
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 24
    Les mer
  • Code 500921
    Description MSM-PH-12-10-ANB
    d 12
    d1 10
    d2 M5
    L 45
    B 16
    f 8
    f1 29
    s 10
    s1 8
    d3 Clamping kit GN 511-M5-16
    Weight 22
    Les mer
  • Code 500922
    Description MSM-PH-12-10-MT
    d 12
    d1 10
    d2 M5
    L 45
    B 16
    f 8
    f1 29
    s 10
    s1 8
    d3 Clamping kit GN 511-M5-16
    Weight 22
    Les mer
  • Code 500923
    Description MSM-PH-12-12-ANB
    d 12
    d1 12
    d2 M5
    L 45
    B 16
    f 8
    f1 29
    s 10
    s1 10
    d3 Clamping kit GN 511-M5-16
    Weight 21
    Les mer
  • Code 500924
    Description MSM-PH-12-12-MT
    d 12
    d1 12
    d2 M5
    L 45
    B 16
    f 8
    f1 29
    s 10
    s1 10
    d3 Clamping kit GN 511-M5-16
    Weight 21
    Les mer
  • Code 500925
    Description MSM-PH-12-8-ANB
    d 12
    d1 8
    d2 M5
    L 45
    B 16
    f 8
    f1 29
    s 10
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 23
    Les mer
  • Code 500926
    Description MSM-PH-12-8-MT
    d 12
    d1 8
    d2 M5
    L 45
    B 16
    f 8
    f1 29
    s 10
    s1 -
    d3 Clamping kit GN 511-M5-16
    Weight 23
    Les mer
  • Code 500927
    Description MSM-PH-15-10-ANB
    d 15
    d1 10
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s 12
    s1 8
    d3 Clamping kit GN 511-M6-20
    Weight 45
    Les mer
  • Code 500928
    Description MSM-PH-15-10-MT
    d 15
    d1 10
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s 12
    s1 8
    d3 Clamping kit GN 511-M6-20
    Weight 45
    Les mer
  • Code 500929
    Description MSM-PH-15-12-ANB
    d 15
    d1 12
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s 12
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 43
    Les mer
  • Code 500930
    Description MSM-PH-15-12-MT
    d 15
    d1 12
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s 12
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 43
    Les mer
  • Code 500931
    Description MSM-PH-15-15-ANB
    d 15
    d1 15
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s 12
    s1 12
    d3 Clamping kit GN 511-M6-20
    Weight 40
    Les mer
  • Code 500932
    Description MSM-PH-15-15-MT
    d 15
    d1 15
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s 12
    s1 12
    d3 Clamping kit GN 511-M6-20
    Weight 40
    Les mer
  • Code 500933
    Description MSM-PH-16-10-ANB
    d 16
    d1 10
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 8
    d3 Clamping kit GN 511-M6-20
    Weight 44
    Les mer
  • Code 500934
    Description MSM-PH-16-10-MT
    d 16
    d1 10
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 8
    d3 Clamping kit GN 511-M6-20
    Weight 44
    Les mer
  • Code 500935
    Description MSM-PH-16-12-ANB
    d 16
    d1 12
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 42
    Les mer
  • Code 500936
    Description MSM-PH-16-12-MT
    d 16
    d1 12
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 10
    d3 Clamping kit GN 511-M6-20
    Weight 42
    Les mer
  • Code 500937
    Description MSM-PH-16-15-ANB
    d 16
    d1 15
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 12
    d3 Clamping kit GN 511-M6-20
    Weight 39
    Les mer
  • Code 500938
    Description MSM-PH-16-15-MT
    d 16
    d1 15
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 12
    d3 Clamping kit GN 511-M6-20
    Weight 39
    Les mer
  • Code 500939
    Description MSM-PH-16-16-ANB
    d 16
    d1 16
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 -
    d3 Clamping kit GN 511-M6-20
    Weight 38
    Les mer
  • Code 500940
    Description MSM-PH-16-16-MT
    d 16
    d1 16
    d2 M6
    L 55
    B 20
    f 10
    f1 35
    s -
    s1 -
    d3 Clamping kit GN 511-M6-20
    Weight 38
    Les mer
  • Code 500941
    Description MSM-PH-20-12-ANB
    d 20
    d1 12
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 10
    d3 Clamping kit GN 511-M6-25
    Weight 79
    Les mer
  • Code 500942
    Description MSM-PH-20-12-MT
    d 20
    d1 12
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 10
    d3 Clamping kit GN 511-M6-25
    Weight 79
    Les mer
  • Code 500943
    Description MSM-PH-20-15-ANB
    d 20
    d1 15
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 12
    d3 Clamping kit GN 511-M6-25
    Weight 75
    Les mer
  • Code 500944
    Description MSM-PH-20-15-MT
    d 20
    d1 15
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 12
    d3 Clamping kit GN 511-M6-25
    Weight 75
    Les mer
  • Code 500945
    Description MSM-PH-20-16-ANB
    d 20
    d1 16
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 -
    d3 Clamping kit GN 511-M6-25
    Weight 74
    Les mer
  • Code 500946
    Description MSM-PH-20-16-MT
    d 20
    d1 16
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 -
    d3 Clamping kit GN 511-M6-25
    Weight 74
    Les mer
  • Code 500947
    Description MSM-PH-20-20-ANB
    d 20
    d1 20
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 16
    d3 Clamping kit GN 511-M6-25
    Weight 66
    Les mer
  • Code 500948
    Description MSM-PH-20-20-MT
    d 20
    d1 20
    d2 M6
    L 66
    B 25
    f 12
    f1 41
    s 16
    s1 16
    d3 Clamping kit GN 511-M6-25
    Weight 66
    Les mer
  • Code 500915
    Description MSM-PH-8-8-ANB
    d 8
    d1 8
    d2 M4
    L 38
    B 14
    f 7
    f1 24
    s -
    s1 -
    d3 Clamping kit GN 511-M4-14
    Weight 16
    Les mer
  • Code 500916
    Description MSM-PH-8-8-MT
    d 8
    d1 8
    d2 M4
    L 38
    B 14
    f 7
    f1 24
    s -
    s1 -
    d3 Clamping kit GN 511-M4-14
    Weight 16
    Les mer
