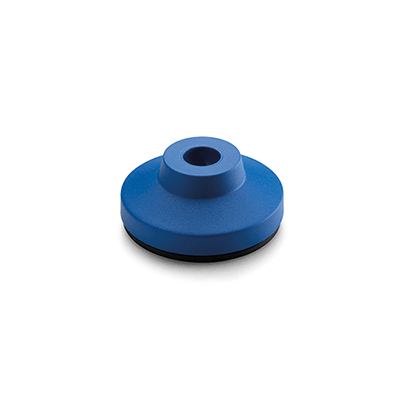

BASE LS.A-VD - LV.A-VD - LV.F-VD

Levelling Elements

Teknisk datablad
CE.71401-ga11_ga12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 38 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 180861
    Description LS.A-25-14-AS-VD
    D
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    d1
    —
    • —
    h1
    —
    • —
    f
    —
    • —
    Ground fixing
    —
    • —
    CAD
    Les mer
  • Code 180861
    Description LS.A-25-14-AS-VD
    D 25
    d2 14
    h 12
    h2 4
    h3 15
    Max limit static load 7000
    Weight 6
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180361
    Description LS.A-25-14-VD
    D 25
    d2 14
    h 12
    h2 4
    h3 -
    Max limit static load 7000
    Weight 4
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180871
    Description LS.A-32-14-AS-VD
    D 32
    d2 14
    h 15
    h2 5
    h3 18
    Max limit static load 9000
    Weight 12
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180371
    Description LS.A-32-14-VD
    D 32
    d2 14
    h 15
    h2 5
    h3 -
    Max limit static load 9000
    Weight 8
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180881
    Description LS.A-40-14-AS-VD
    D 40
    d2 14
    h 17
    h2 5.5
    h3 20
    Max limit static load 13000
    Weight 20
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180381
    Description LS.A-40-14-VD
    D 40
    d2 14
    h 17
    h2 5.5
    h3 -
    Max limit static load 13000
    Weight 13
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180891
    Description LS.A-50-14-AS-VD
    D 50
    d2 14
    h 19
    h2 6.5
    h3 22
    Max limit static load 13000
    Weight 31
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180391
    Description LS.A-50-14-VD
    D 50
    d2 14
    h 19
    h2 6.5
    h3 -
    Max limit static load 13000
    Weight 19
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180901
    Description LS.A-60-14-AS-VD
    D 60
    d2 14
    h 24
    h2 8.5
    h3 27
    Max limit static load 14000
    Weight 50
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180401
    Description LS.A-60-14-VD
    D 60
    d2 14
    h 24
    h2 8.5
    h3 -
    Max limit static load 14000
    Weight 33
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180902
    Description LS.A-60-24-AS-VD
    D 60
    d2 24
    h 24
    h2 8.5
    h3 27
    Max limit static load 18000
    Weight 45
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180402
    Description LS.A-60-24-VD
    D 60
    d2 24
    h 24
    h2 8.5
    h3 -
    Max limit static load 18000
    Weight 28
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180761
    Description LV.A-100-14-AS-VD
    D 100
    d2 14
    h 24
    h2 9
    h3 27
    Max limit static load 18000
    Weight 136
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180261
    Description LV.A-100-14-VD
    D 100
    d2 14
    h 24
    h2 9
    h3 -
    Max limit static load 18000
    Weight 136
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180762
    Description LV.A-100-24-AS-VD
    D 100
    d2 24
    h 24
    h2 9
    h3 27
    Max limit static load 25000
    Weight 135
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180262
    Description LV.A-100-24-VD
    D 100
    d2 24
    h 24
    h2 9
    h3 -
    Max limit static load 25000
    Weight 135
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180772
    Description LV.A-125-24-AS-VD
    D 125
    d2 24
    h 46
    h2 15
    h3 49
    Max limit static load 28000
    Weight 315
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180272
    Description LV.A-125-24-VD
    D 125
    d2 24
    h 46
    h2 15
    h3 -
    Max limit static load 28000
    Weight 315
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180741
    Description LV.A-60-14-AS-VD
    D 60
    d2 14
    h 24
    h2 9
    h3 27
    Max limit static load 14000
    Weight 51
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180241
    Description LV.A-60-14-VD
    D 60
    d2 14
    h 24
    h2 9
    h3 -
    Max limit static load 14000
    Weight 51
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180742
    Description LV.A-60-24-AS-VD
    D 60
    d2 24
    h 24
    h2 9
    h3 27
    Max limit static load 18000
    Weight 48
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180242
    Description LV.A-60-24-VD
    D 60
    d2 24
    h 24
    h2 9
    h3 -
    Max limit static load 18000
    Weight 48
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180746
    Description LV.A-70-14-AS-VD
    D 70
    d2 14
    h 19
    h2 7
    h3 22
    Max limit static load 14000
    Weight 50
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180246
    Description LV.A-70-14-VD
    D 70
    d2 14
    h 19
    h2 7
    h3 -
    Max limit static load 14000
    Weight 50
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180751
    Description LV.A-80-14-AS-VD
    D 80
    d2 14
    h 24
    h2 9
    h3 27
    Max limit static load 16000
    Weight 79
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180251
    Description LV.A-80-14-VD
    D 80
    d2 14
    h 24
    h2 9
    h3 -
    Max limit static load 16000
    Weight 79
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180752
    Description LV.A-80-24-AS-VD
    D 80
    d2 24
    h 24
    h2 9
    h3 27
    Max limit static load 18000
    Weight 75
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180252
    Description LV.A-80-24-VD
    D 80
    d2 24
    h 24
    h2 9
    h3 -
    Max limit static load 18000
    Weight 75
    d1 -
    h1 -
    f -
    Ground fixing -
    Les mer
  • Code 180841
    Description LV.F-100-14-AS-VD
    D 100
    d1 12.5
    d2 14
    h 24
    h1 23
    h2 9
    h3 27
    f 70
    Ground fixing -
    Max limit static load 18000
    Weight 139
    Les mer
  • Code 180341
    Description LV.F-100-14-VD
    D 100
    d1 12.5
    d2 14
    h 24
    h1 23
    h2 9
    h3 -
    f 70
    Ground fixing -
    Max limit static load 18000
    Weight 85
    Les mer
  • Code 180842
    Description LV.F-100-24-AS-VD
    D 100
    d1 12.5
    d2 24
    h 24
    h1 23
    h2 9
    h3 27
    f 70
    Ground fixing -
    Max limit static load 25000
    Weight 139
    Les mer
  • Code 180342
    Description LV.F-100-24-VD
    D 100
    d1 12.5
    d2 24
    h 24
    h1 23
    h2 9
    h3 -
    f 70
    Ground fixing -
    Max limit static load 25000
    Weight 85
    Les mer
  • Code 180852
    Description LV.F-125-24-AS-VD
    D 125
    d1 12.5
    d2 24
    h 46
    h1 23
    h2 15
    h3 49
    f 95
    Ground fixing -
    Max limit static load 28000
    Weight 325
    Les mer
  • Code 180352
    Description LV.F-125-24-VD
    D 125
    d1 12.5
    d2 24
    h 46
    h1 23
    h2 15
    h3 -
    f 95
    Ground fixing -
    Max limit static load 28000
    Weight 200
    Les mer
  • Code 180831
    Description LV.F-80-14-AS-VD
    D 80
    d1 8.5
    d2 14
    h 24
    h1 23
    h2 9
    h3 27
    f 54
    Ground fixing -
    Max limit static load 16000
    Weight 81
    Les mer
  • Code 180331
    Description LV.F-80-14-VD
    D 80
    d1 8.5
    d2 14
    h 24
    h1 23
    h2 9
    h3 -
    f 54
    Ground fixing -
    Max limit static load 16000
    Weight 55
    Les mer
  • Code 180832
    Description LV.F-80-24-AS-VD
    D 80
    d1 8.5
    d2 24
    h 24
    h1 23
    h2 9
    h3 27
    f 54
    Ground fixing -
    Max limit static load 18000
    Weight 75
    Les mer
  • Code 180332
    Description LV.F-80-24-VD
    D 80
    d1 8.5
    d2 24
    h 24
    h1 23
    h2 9
    h3 -
    f 54
    Ground fixing -
    Max limit static load 18000
    Weight 79
    Les mer
