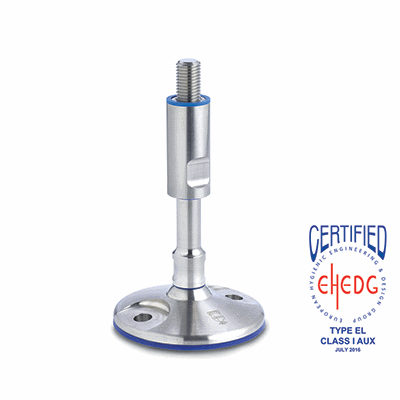

LM.F-HD-SST

Levelling Elements

Teknisk datablad
CE.72262-gw12

Viser alle 20 resultater

    Code 406231
    Description LM.F-HD-100-SST-M16x175
    Rotation
    —
    • —
    Position
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    d2
    —
    • —
    f
    —
    • —
    s1
    —
    • —
    s2
    —
    • —
    Static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 406231
    Description LM.F-HD-100-SST-M16x175
    Rotation 0
    Position 1
    D 100
    d M16
    d1 28
    l 175
    l1 19
    l2 35
    d2 12
    f 69
    s1 18
    s2 22
    Static load 30000
    Weight 1113
    Les mer
  • Code 406236
    Description LM.F-HD-100-SST-M16x225
    Rotation 0
    Position 1
    D 100
    d M16
    d1 28
    l 225
    l1 19
    l2 35
    d2 12
    f 69
    s1 18
    s2 22
    Static load 30000
    Weight 1193
    Les mer
  • Code 406241
    Description LM.F-HD-100-SST-M20x185
    Rotation 0
    Position 1
    D 100
    d M20
    d1 32
    l 185
    l1 24
    l2 35
    d2 12
    f 69
    s1 24
    s2 27
    Static load 47000
    Weight 1325
    Les mer
  • Code 406246
    Description LM.F-HD-100-SST-M20x235
    Rotation 0
    Position 1
    D 100
    d M20
    d1 32
    l 235
    l1 24
    l2 35
    d2 12
    f 69
    s1 24
    s2 27
    Static load 47000
    Weight 1455
    Les mer
  • Code 406251
    Description LM.F-HD-100-SST-M24x185
    Rotation 0
    Position 1
    D 100
    d M24
    d1 36
    l 185
    l1 29
    l2 35
    d2 12
    f 69
    s1 24
    s2 30
    Static load 67000
    Weight 1487
    Les mer
  • Code 406256
    Description LM.F-HD-100-SST-M24x235
    Rotation 0
    Position 1
    D 100
    d M24
    d1 36
    l 235
    l1 29
    l2 35
    d2 12
    f 69
    s1 24
    s2 30
    Static load 67000
    Weight 1668
    Les mer
  • Code 406261
    Description LM.F-HD-120-SST-M16x175
    Rotation 0
    Position 1
    D 120
    d M16
    d1 28
    l 175
    l1 19
    l2 35
    d2 12
    f 89
    s1 18
    s2 22
    Static load 30000
    Weight 1426
    Les mer
  • Code 406266
    Description LM.F-HD-120-SST-M16x225
    Rotation 0
    Position 1
    D 120
    d M16
    d1 28
    l 225
    l1 19
    l2 35
    d2 12
    f 89
    s1 18
    s2 22
    Static load 30000
    Weight 1508
    Les mer
  • Code 406271
    Description LM.F-HD-120-SST-M20x185
    Rotation 0
    Position 1
    D 120
    d M20
    d1 32
    l 185
    l1 24
    l2 35
    d2 12
    f 89
    s1 24
    s2 27
    Static load 47000
    Weight 1641
    Les mer
  • Code 406276
    Description LM.F-HD-120-SST-M20x235
    Rotation 0
    Position 1
    D 120
    d M20
    d1 32
    l 235
    l1 24
    l2 35
    d2 12
    f 89
    s1 24
    s2 27
    Static load 47000
    Weight 1765
    Les mer
  • Code 406281
    Description LM.F-HD-120-SST-M24x185
    Rotation 0
    Position 1
    D 120
    d M24
    d1 36
    l 185
    l1 29
    l2 35
    d2 12
    f 89
    s1 24
    s2 30
    Static load 67000
    Weight 1805
    Les mer
  • Code 406286
    Description LM.F-HD-120-SST-M24x235
    Rotation 0
    Position 1
    D 120
    d M24
    d1 36
    l 235
    l1 29
    l2 35
    d2 12
    f 89
    s1 24
    s2 30
    Static load 67000
    Weight 1980
    Les mer
  • Code 406201
    Description LM.F-HD-80-SST-M12x175
    Rotation 0
    Position 1
    D 80
    d M12
    d1 25
    l 175
    l1 14
    l2 35
    d2 9.5
    f 56
    s1 17
    s2 19
    Static load 16000
    Weight 1110
    Les mer
  • Code 406211
    Description LM.F-HD-80-SST-M12x225
    Rotation 0
    Position 1
    D 80
    d M12
    d1 25
    l 225
    l1 14
    l2 35
    d2 9.5
    f 56
    s1 17
    s2 19
    Static load 16000
    Weight 1154
    Les mer
  • Code 406213
    Description LM.F-HD-80-SST-M16x175
    Rotation 0
    Position 1
    D 80
    d M16
    d1 28
    l 175
    l1 19
    l2 35
    d2 9.5
    f 56
    s1 18
    s2 22
    Static load 30000
    Weight 1170
    Les mer
  • Code 406215
    Description LM.F-HD-80-SST-M16x225
    Rotation 0
    Position 1
    D 80
    d M16
    d1 28
    l 225
    l1 19
    l2 35
    d2 9.5
    f 56
    s1 18
    s2 22
    Static load 30000
    Weight 1250
    Les mer
  • Code 406221
    Description LM.F-HD-80-SST-M20x185
    Rotation 0
    Position 1
    D 80
    d M20
    d1 32
    l 185
    l1 24
    l2 35
    d2 9.5
    f 56
    s1 24
    s2 27
    Static load 47000
    Weight 1383
    Les mer
  • Code 406223
    Description LM.F-HD-80-SST-M20x235
    Rotation 0
    Position 1
    D 80
    d M20
    d1 32
    l 235
    l1 24
    l2 35
    d2 9.5
    f 56
    s1 24
    s2 27
    Static load 47000
    Weight 1460
    Les mer
  • Code 406225
    Description LM.F-HD-80-SST-M24x185
    Rotation 0
    Position 1
    D 80
    d M24
    d1 36
    l 185
    l1 29
    l2 35
    d2 9.5
    f 56
    s1 24
    s2 30
    Static load 67000
    Weight 1547
    Les mer
  • Code 406227
    Description LM.F-HD-80-SST-M24x235
    Rotation 0
    Position 1
    D 80
    d M24
    d1 36
    l 235
    l1 29
    l2 35
    d2 9.5
    f 56
    s1 24
    s2 30
    Static load 67000
    Weight 1725
    Les mer
