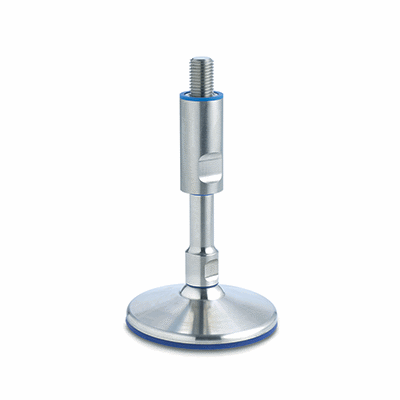

LM-HD-SST

Levelling Elements

Teknisk datablad
CE.72422-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 22 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Description LM-HD.100-SST-M16x225
    Rotation
    —
    • —
    Position
    —
    • —
    D
    —
    • —
    d
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    d1
    —
    • —
    s1
    —
    • —
    s2
    —
    • —
    Static load
    —
    • —
    Weight
    —
    • —
    CAD
  • Description LM-HD.100-SST-M16x225
    Rotation 0
    Position 1
    D 100
    d M16
    l 225
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 1253
  • Description LM-HD.100-SST-M20x185
    Rotation 0
    Position 1
    D 100
    d M20
    l 185
    l1 24
    l2 35
    d1 32
    s1 24
    s2 27
    Static load 47000
    Weight 1477
  • Description LM-HD.100-SST-M20x235
    Rotation 0
    Position 1
    D 100
    d M20
    l 235
    l1 24
    l2 35
    d1 32
    s1 24
    s2 27
    Static load 47000
    Weight 1513
  • Description LM-HD.100-SST-M24x185
    Rotation 0
    Position 1
    D 100
    d M24
    l 185
    l1 29
    l2 35
    d1 36
    s1 24
    s2 30
    Static load 67000
    Weight 1189
  • Description LM-HD.100-SST-M24x235
    Rotation 0
    Position 1
    D 100
    d M24
    l 235
    l1 29
    l2 35
    d1 36
    s1 24
    s2 30
    Static load 67000
    Weight 1727
  • Description LM-HD.120-SST-M16x175
    Rotation 0
    Position 1
    D 120
    d M16
    l 175
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 1466
  • Description LM-HD.120-SST-M16x225
    Rotation 0
    Position 1
    D 120
    d M16
    l 225
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 1705
  • Description LM-HD.120-SST-M20x185
    Rotation 0
    Position 1
    D 120
    d M20
    l 185
    l1 24
    l2 35
    d1 32
    s1 24
    s2 27
    Static load 47000
    Weight 1693
  • Description LM-HD.120-SST-M20x235
    Rotation 0
    Position 1
    D 120
    d M20
    l 235
    l1 24
    l2 35
    d1 32
    s1 24
    s2 27
    Static load 47000
    Weight 1818
  • Description LM-HD.120-SST-M24x185
    Rotation 0
    Position 1
    D 120
    d M24
    l 185
    l1 29
    l2 35
    d1 36
    s1 24
    s2 30
    Static load 67000
    Weight 1854
  • Description LM-HD.120-SST-M24x235
    Rotation 0
    Position 1
    D 120
    d M24
    l 235
    l1 29
    l2 35
    d1 36
    s1 24
    s2 30
    Static load 67000
    Weight 2126
  • Description LM-HD.60-SST-M12x225
    Rotation 0
    Position 1
    D 60
    d M12
    l 225
    l1 14
    l2 35
    d1 25
    s1 17
    s2 19
    Static load 16000
    Weight 733
  • Description LM-HD.60-SST-M16x225
    Rotation 0
    Position 1
    D 60
    d M16
    l 225
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 830
  • Description LM-HD.80-SST-M12x175
    Rotation 0
    Position 1
    D 80
    d M12
    l 175
    l1 14
    l2 35
    d1 25
    s1 17
    s2 19
    Static load 16000
    Weight 400
  • Description LM-HD.80-SST-M12x225
    Rotation 0
    Position 1
    D 80
    d M12
    l 225
    l1 14
    l2 35
    d1 25
    s1 17
    s2 19
    Static load 16000
    Weight 933
  • Description LM-HD.80-SST-M16x175
    Rotation 0
    Position 1
    D 80
    d M16
    l 175
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 1014
  • Description LM-HD.80-SST-M16x225
    Rotation 0
    Position 1
    D 80
    d M16
    l 225
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 984
  • Description LM-HD.80-SST-M20x185
    Rotation 0
    Position 1
    D 80
    d M20
    l 185
    l1 24
    l2 35
    d1 32
    s1 24
    s2 27
    Static load 47000
    Weight 1117
  • Description LM-HD.80-SST-M20x235
    Rotation 0
    Position 1
    D 80
    d M20
    l 235
    l1 24
    l2 35
    d1 32
    s1 24
    s2 27
    Static load 47000
    Weight 1244
  • Description LM-HD.80-SST-M24x185
    Rotation 0
    Position 1
    D 80
    d M24
    l 185
    l1 29
    l2 35
    d1 36
    s1 24
    s2 30
    Static load 67000
    Weight 1284
  • Description LM-HD.80-SST-M24x235
    Rotation 0
    Position 1
    D 80
    d M24
    l 235
    l1 29
    l2 35
    d1 36
    s1 24
    s2 30
    Static load 67000
    Weight 1458
  • Description LM-HD.100-SST-M16x175
    Rotation 0
    Position 1
    D 100
    d M16
    l 175
    l1 19
    l2 35
    d1 28
    s1 18
    s2 22
    Static load 30000
    Weight 1293
