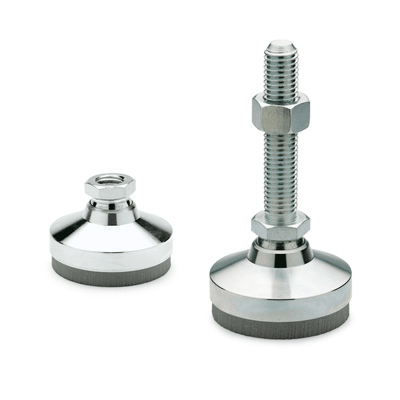

LM.SV

Levelling Elements

Teknisk datablad
CE.72402-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 12 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 401331
    Description LM.32-M10-SV
    Rotation
    —
    • —
    D
    —
    • —
    d1
    —
    • —
    l1
    —
    • —
    l3
    —
    • —
    d
    —
    • —
    h / l
    —
    • —
    s
    —
    • —
    Load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 401331
    Description LM.32-M10-SV
    Rotation 0
    D 32
    d1 30
    l1 29
    l3 11
    d M10
    h / l 10.5
    s 16
    Load 280
    Weight 65
    Les mer
  • Code 401833
    Description LM.32-M10x50-SV
    Rotation 0
    D 32
    d1 30
    l1 29
    l3 11
    d M10
    h / l 50
    s 16
    Load 280
    Weight 107
    Les mer
  • Code 401836
    Description LM.32-M10x80-SV
    Rotation 0
    D 32
    d1 30
    l1 29
    l3 11
    d M10
    h / l 80
    s 16
    Load 280
    Weight 122
    Les mer
  • Code 401341
    Description LM.40-M12-SV
    Rotation 0
    D 40
    d1 38
    l1 30
    l3 9
    d M12
    h / l 11.5
    s 18
    Load 450
    Weight 100
    Les mer
  • Code 401846
    Description LM.40-M12x100-SV
    Rotation 0
    D 40
    d1 38
    l1 30
    l3 9
    d M12
    h / l 100
    s 18
    Load 450
    Weight 189
    Les mer
  • Code 401843
    Description LM.40-M12x63-SV
    Rotation 0
    D 40
    d1 38
    l1 30
    l3 9
    d M12
    h / l 63
    s 18
    Load 450
    Weight 160
    Les mer
  • Code 401351
    Description LM.50-M12-SV
    Rotation 0
    D 50
    d1 48
    l1 30
    l3 9
    d M12
    h / l 11.5
    s 18
    Load 720
    Weight 137
    Les mer
  • Code 401856
    Description LM.50-M12x100-SV
    Rotation 0
    D 50
    d1 48
    l1 30
    l3 9
    d M12
    h / l 100
    s 18
    Load 720
    Weight 250
    Les mer
  • Code 401853
    Description LM.50-M12x63-SV
    Rotation 0
    D 50
    d1 48
    l1 30
    l3 9
    d M12
    h / l 63
    s 18
    Load 720
    Weight 208
    Les mer
  • Code 401361
    Description LM.60-M16-SV
    Rotation 0
    D 60
    d1 58
    l1 38
    l3 11
    d M16
    h / l 16
    s 24
    Load 1050
    Weight 275
    Les mer
  • Code 401866
    Description LM.60-M16x125-SV
    Rotation 0
    D 60
    d1 58
    l1 38
    l3 11
    d M16
    h / l 125
    s 24
    Load 1050
    Weight 495
    Les mer
  • Code 401863
    Description LM.60-M16x80-SV
    Rotation 0
    D 60
    d1 58
    l1 38
    l3 11
    d M16
    h / l 80
    s 24
    Load 1050
    Weight 400
    Les mer
