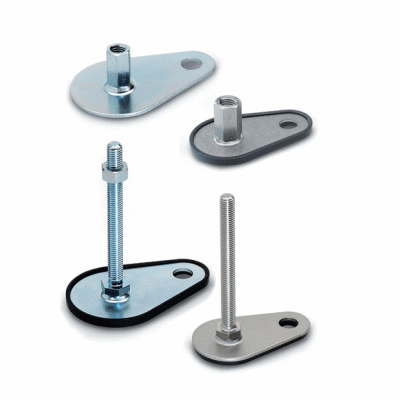

LMP.F

Levelling Elements

Teknisk datablad
CE.72432-gw12

Viser alle 171 resultater

    Code 395830
    Description LMP.F-50-A4-M10x100
    Position
    —
    • —
    D
    —
    • —
    d
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 395830
    Description LMP.F-50-A4-M10x100
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 395821
    Description LMP.F-50-A4-M10x50
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 81
    Les mer
  • Code 395824
    Description LMP.F-50-A4-M10x60
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 81
    Les mer
  • Code 395827
    Description LMP.F-50-A4-M10x80
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 100
    Les mer
  • Code 395857
    Description LMP.F-50-A4-M12x100
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 121
    Les mer
  • Code 395860
    Description LMP.F-50-A4-M12x125
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 162
    Les mer
  • Code 395851
    Description LMP.F-50-A4-M12x60
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 105
    Les mer
  • Code 395854
    Description LMP.F-50-A4-M12x80
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 395884
    Description LMP.F-50-A4-M16x100
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 202
    Les mer
  • Code 395887
    Description LMP.F-50-A4-M16x125
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 245
    Les mer
  • Code 395890
    Description LMP.F-50-A4-M16x150
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 280
    Les mer
  • Code 395893
    Description LMP.F-50-A4-M16x200
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 361
    Les mer
  • Code 395881
    Description LMP.F-50-A4-M16x75
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 177
    Les mer
  • Code 395801
    Description LMP.F-50-A4-M8x40
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 61
    Les mer
  • Code 395804
    Description LMP.F-50-A4-M8x50
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 395807
    Description LMP.F-50-A4-M8x63
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 78
    Les mer
  • Code 404954
    Description LMP.F-50-M10-100
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 100
    Les mer
  • Code 404951
    Description LMP.F-50-M10-50
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 80
    Les mer
  • Code 404952
    Description LMP.F-50-M10-60
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 80
    Les mer
  • Code 404953
    Description LMP.F-50-M10-80
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 99
    Les mer
  • Code 404958
    Description LMP.F-50-M12-100
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 120
    Les mer
  • Code 404959
    Description LMP.F-50-M12-125
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 160
    Les mer
  • Code 404956
    Description LMP.F-50-M12-60
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 104
    Les mer
  • Code 404957
    Description LMP.F-50-M12-80
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 100
    Les mer
  • Code 404962
    Description LMP.F-50-M16-100
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 8000
    Weight 200
    Les mer
  • Code 404963
    Description LMP.F-50-M16-125
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 8000
    Weight 243
    Les mer
  • Code 404964
    Description LMP.F-50-M16-150
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 8000
    Weight 277
    Les mer
  • Code 404965
    Description LMP.F-50-M16-200
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 8000
    Weight 320
    Les mer
  • Code 404961
    Description LMP.F-50-M16-75
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 8000
    Weight 175
    Les mer
  • Code 404946
    Description LMP.F-50-M8-40
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 60
    Les mer
  • Code 404947
    Description LMP.F-50-M8-50
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404948
    Description LMP.F-50-M8-63
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 76
    Les mer
  • Code 405144
    Description LMP.F-50-SST-M10-100
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 405141
    Description LMP.F-50-SST-M10-50
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 81
    Les mer
  • Code 405142
    Description LMP.F-50-SST-M10-60
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 81
    Les mer
  • Code 405143
    Description LMP.F-50-SST-M10-80
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 100
    Les mer
  • Code 405148
    Description LMP.F-50-SST-M12-100
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 121
    Les mer
  • Code 405149
    Description LMP.F-50-SST-M12-125
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 162
    Les mer
  • Code 405146
    Description LMP.F-50-SST-M12-60
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 105
    Les mer
  • Code 405147
    Description LMP.F-50-SST-M12-80
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 405152
    Description LMP.F-50-SST-M16-100
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 202
    Les mer
  • Code 405153
    Description LMP.F-50-SST-M16-125
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 245
    Les mer
  • Code 405154
    Description LMP.F-50-SST-M16-150
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 280
    Les mer
  • Code 405155
    Description LMP.F-50-SST-M16-200
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 361
    Les mer
  • Code 405151
    Description LMP.F-50-SST-M16-75
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l3 2.5
    l4 45
    s 12
    s1 8
    Max limit static load 14000
    Weight 177
    Les mer
  • Code 405136
    Description LMP.F-50-SST-M8-40
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 61
    Les mer
  • Code 405137
    Description LMP.F-50-SST-M8-50
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 405138
    Description LMP.F-50-SST-M8-63
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l3 2.5
    l4 45
    s 17
    s1 -
    Max limit static load 8000
    Weight 78
    Les mer
  • Code 395940
    Description LMP.F-60-A4-M10x100
    Position 0
    D 60
    d M10
    l 100
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 395931
    Description LMP.F-60-A4-M10x50
    Position 0
    D 60
    d M10
    l 50
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 395934
    Description LMP.F-60-A4-M10x60
    Position 0
    D 60
    d M10
    l 60
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 395937
    Description LMP.F-60-A4-M10x80
    Position 0
    D 60
    d M10
    l 80
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 115
    Les mer
  • Code 395967
    Description LMP.F-60-A4-M12x100
    Position 0
    D 60
    d M12
    l 100
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 131
    Les mer
  • Code 395970
    Description LMP.F-60-A4-M12x125
    Position 0
    D 60
    d M12
    l 125
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 169
    Les mer
  • Code 395961
    Description LMP.F-60-A4-M12x60
    Position 0
    D 60
    d M12
    l 60
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 121
    Les mer
  • Code 395964
    Description LMP.F-60-A4-M12x80
    Position 0
    D 60
    d M12
    l 80
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 137
    Les mer
  • Code 395994
    Description LMP.F-60-A4-M16x100
    Position 0
    D 60
    d M16
    l 100
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 212
    Les mer
  • Code 395997
    Description LMP.F-60-A4-M16x125
    Position 0
    D 60
    d M16
    l 125
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 261
    Les mer
  • Code 396000
    Description LMP.F-60-A4-M16x150
    Position 0
    D 60
    d M16
    l 150
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 303
    Les mer
  • Code 396003
    Description LMP.F-60-A4-M16x200
    Position 0
    D 60
    d M16
    l 200
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 378
    Les mer
  • Code 395991
    Description LMP.F-60-A4-M16x75
    Position 0
    D 60
    d M16
    l 75
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 189
    Les mer
  • Code 395911
    Description LMP.F-60-A4-M8x40
    Position 0
    D 60
    d M8
    l 40
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 66
    Les mer
  • Code 395914
    Description LMP.F-60-A4-M8x50
    Position 0
    D 60
    d M8
    l 50
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 395917
    Description LMP.F-60-A4-M8x63
    Position 0
    D 60
    d M8
    l 63
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 83
    Les mer
  • Code 405014
    Description LMP.F-60-M10-100
    Position 0
    D 60
    d M10
    l 100
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 405011
    Description LMP.F-60-M10-50
    Position 0
    D 60
    d M10
    l 50
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 405012
    Description LMP.F-60-M10-60
    Position 0
    D 60
    d M10
    l 60
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 405013
    Description LMP.F-60-M10-80
    Position 0
    D 60
    d M10
    l 80
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 114
    Les mer
  • Code 405018
    Description LMP.F-60-M12-100
    Position 0
    D 60
    d M12
    l 100
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 130
    Les mer
  • Code 405019
    Description LMP.F-60-M12-125
    Position 0
    D 60
    d M12
    l 125
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 167
    Les mer
  • Code 405016
    Description LMP.F-60-M12-60
    Position 0
    D 60
    d M12
    l 60
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 120
    Les mer
  • Code 405017
    Description LMP.F-60-M12-80
    Position 0
    D 60
    d M12
    l 80
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 10000
    Weight 136
    Les mer
  • Code 405022
    Description LMP.F-60-M16-100
    Position 0
    D 60
    d M16
    l 100
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 10000
    Weight 210
    Les mer
  • Code 405023
    Description LMP.F-60-M16-125
    Position 0
    D 60
    d M16
    l 125
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 10000
    Weight 258
    Les mer
  • Code 405024
    Description LMP.F-60-M16-150
    Position 0
    D 60
    d M16
    l 150
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 10000
    Weight 300
    Les mer
  • Code 405025
    Description LMP.F-60-M16-200
    Position 0
    D 60
    d M16
    l 200
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 10000
    Weight 300
    Les mer
  • Code 405021
    Description LMP.F-60-M16-75
    Position 0
    D 60
    d M16
    l 75
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 10000
    Weight 187
    Les mer
  • Code 405006
    Description LMP.F-60-M8-40
    Position 0
    D 60
    d M8
    l 40
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 65
    Les mer
  • Code 405007
    Description LMP.F-60-M8-50
    Position 0
    D 60
    d M8
    l 50
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 405008
    Description LMP.F-60-M8-63
    Position 0
    D 60
    d M8
    l 63
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 405204
    Description LMP.F-60-SST-M10-100
    Position 0
    D 60
    d M10
    l 100
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 405201
    Description LMP.F-60-SST-M10-50
    Position 0
    D 60
    d M10
    l 50
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 405202
    Description LMP.F-60-SST-M10-60
    Position 0
    D 60
    d M10
    l 60
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 405203
    Description LMP.F-60-SST-M10-80
    Position 0
    D 60
    d M10
    l 80
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 14000
    Weight 115
    Les mer
  • Code 405208
    Description LMP.F-60-SST-M12-100
    Position 0
    D 60
    d M12
    l 100
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 131
    Les mer
  • Code 405209
    Description LMP.F-60-SST-M12-125
    Position 0
    D 60
    d M12
    l 125
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 169
    Les mer
  • Code 405206
    Description LMP.F-60-SST-M12-60
    Position 0
    D 60
    d M12
    l 60
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 121
    Les mer
  • Code 405207
    Description LMP.F-60-SST-M12-80
    Position 0
    D 60
    d M12
    l 80
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 16000
    Weight 137
    Les mer
  • Code 405212
    Description LMP.F-60-SST-M16-100
    Position 0
    D 60
    d M16
    l 100
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 212
    Les mer
  • Code 405213
    Description LMP.F-60-SST-M16-125
    Position 0
    D 60
    d M16
    l 125
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 261
    Les mer
  • Code 405214
    Description LMP.F-60-SST-M16-150
    Position 0
    D 60
    d M16
    l 150
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 303
    Les mer
  • Code 405210
    Description LMP.F-60-SST-M16-200
    Position 0
    D 60
    d M16
    l 200
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 378
    Les mer
  • Code 405211
    Description LMP.F-60-SST-M16-75
    Position 0
    D 60
    d M16
    l 75
    l1 17
    l3 2.5
    l4 50
    s 12
    s1 8
    Max limit static load 16000
    Weight 189
    Les mer
  • Code 405196
    Description LMP.F-60-SST-M8-40
    Position 0
    D 60
    d M8
    l 40
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 66
    Les mer
  • Code 405197
    Description LMP.F-60-SST-M8-50
    Position 0
    D 60
    d M8
    l 50
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 405198
    Description LMP.F-60-SST-M8-63
    Position 0
    D 60
    d M8
    l 63
    l1 11
    l3 2.5
    l4 50
    s 17
    s1 -
    Max limit static load 8000
    Weight 83
    Les mer
  • Code 396130
    Description LMP.F-80-A4-M10x100
    Position 0
    D 80
    d M10
    l 100
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 192
    Les mer
  • Code 396121
    Description LMP.F-80-A4-M10x50
    Position 0
    D 80
    d M10
    l 50
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 152
    Les mer
  • Code 396124
    Description LMP.F-80-A4-M10x60
    Position 0
    D 80
    d M10
    l 60
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 182
    Les mer
  • Code 396127
    Description LMP.F-80-A4-M10x80
    Position 0
    D 80
    d M10
    l 80
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 182
    Les mer
  • Code 396157
    Description LMP.F-80-A4-M12x100
    Position 0
    D 80
    d M12
    l 100
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 222
    Les mer
  • Code 396160
    Description LMP.F-80-A4-M12x125
    Position 0
    D 80
    d M12
    l 125
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 235
    Les mer
  • Code 396151
    Description LMP.F-80-A4-M12x60
    Position 0
    D 80
    d M12
    l 60
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 182
    Les mer
  • Code 396154
    Description LMP.F-80-A4-M12x80
    Position 0
    D 80
    d M12
    l 80
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 202
    Les mer
  • Code 396184
    Description LMP.F-80-A4-M16x100
    Position 0
    D 80
    d M16
    l 100
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 293
    Les mer
  • Code 396187
    Description LMP.F-80-A4-M16x125
    Position 0
    D 80
    d M16
    l 125
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 283
    Les mer
  • Code 396190
    Description LMP.F-80-A4-M16x150
    Position 0
    D 80
    d M16
    l 150
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 364
    Les mer
  • Code 396193
    Description LMP.F-80-A4-M16x200
    Position 0
    D 80
    d M16
    l 200
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 460
    Les mer
  • Code 396181
    Description LMP.F-80-A4-M16x75
    Position 0
    D 80
    d M16
    l 75
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 202
    Les mer
  • Code 396214
    Description LMP.F-80-A4-M20x100
    Position 0
    D 80
    d M20
    l 100
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 384
    Les mer
  • Code 396217
    Description LMP.F-80-A4-M20x125
    Position 0
    D 80
    d M20
    l 125
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 404
    Les mer
  • Code 396220
    Description LMP.F-80-A4-M20x150
    Position 0
    D 80
    d M20
    l 150
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 464
    Les mer
  • Code 396223
    Description LMP.F-80-A4-M20x200
    Position 0
    D 80
    d M20
    l 200
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 580
    Les mer
  • Code 396211
    Description LMP.F-80-A4-M20x75
    Position 0
    D 80
    d M20
    l 75
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 354
    Les mer
  • Code 396241
    Description LMP.F-80-A4-M24x100
    Position 0
    D 80
    d M24
    l 100
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 556
    Les mer
  • Code 396244
    Description LMP.F-80-A4-M24x125
    Position 0
    D 80
    d M24
    l 125
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 625
    Les mer
  • Code 396247
    Description LMP.F-80-A4-M24x150
    Position 0
    D 80
    d M24
    l 150
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 694
    Les mer
  • Code 396250
    Description LMP.F-80-A4-M24x200
    Position 0
    D 80
    d M24
    l 200
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 850
    Les mer
  • Code 396101
    Description LMP.F-80-A4-M8x40
    Position 0
    D 80
    d M8
    l 40
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 172
    Les mer
  • Code 396104
    Description LMP.F-80-A4-M8x50
    Position 0
    D 80
    d M8
    l 50
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 162
    Les mer
  • Code 396107
    Description LMP.F-80-A4-M8x63
    Position 0
    D 80
    d M8
    l 63
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 162
    Les mer
  • Code 405074
    Description LMP.F-80-M10-100
    Position 0
    D 80
    d M10
    l 100
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 10000
    Weight 190
    Les mer
  • Code 405071
    Description LMP.F-80-M10-50
    Position 0
    D 80
    d M10
    l 50
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 10000
    Weight 150
    Les mer
  • Code 405072
    Description LMP.F-80-M10-60
    Position 0
    D 80
    d M10
    l 60
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 10000
    Weight 180
    Les mer
  • Code 405073
    Description LMP.F-80-M10-80
    Position 0
    D 80
    d M10
    l 80
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 10000
    Weight 180
    Les mer
  • Code 405078
    Description LMP.F-80-M12-100
    Position 0
    D 80
    d M12
    l 100
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 12000
    Weight 220
    Les mer
  • Code 405079
    Description LMP.F-80-M12-125
    Position 0
    D 80
    d M12
    l 125
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 12000
    Weight 233
    Les mer
  • Code 405076
    Description LMP.F-80-M12-60
    Position 0
    D 80
    d M12
    l 60
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 12000
    Weight 180
    Les mer
  • Code 405077
    Description LMP.F-80-M12-80
    Position 0
    D 80
    d M12
    l 80
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 12000
    Weight 200
    Les mer
  • Code 405082
    Description LMP.F-80-M16-100
    Position 0
    D 80
    d M16
    l 100
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 12000
    Weight 290
    Les mer
  • Code 405083
    Description LMP.F-80-M16-125
    Position 0
    D 80
    d M16
    l 125
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 12000
    Weight 280
    Les mer
  • Code 405084
    Description LMP.F-80-M16-150
    Position 0
    D 80
    d M16
    l 150
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 12000
    Weight 360
    Les mer
  • Code 405085
    Description LMP.F-80-M16-200
    Position 0
    D 80
    d M16
    l 200
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 12000
    Weight 464
    Les mer
  • Code 405081
    Description LMP.F-80-M16-75
    Position 0
    D 80
    d M16
    l 75
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 12000
    Weight 200
    Les mer
  • Code 405087
    Description LMP.F-80-M20-100
    Position 0
    D 80
    d M20
    l 100
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 16000
    Weight 380
    Les mer
  • Code 405088
    Description LMP.F-80-M20-125
    Position 0
    D 80
    d M20
    l 125
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 16000
    Weight 400
    Les mer
  • Code 405089
    Description LMP.F-80-M20-150
    Position 0
    D 80
    d M20
    l 150
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 16000
    Weight 460
    Les mer
  • Code 405090
    Description LMP.F-80-M20-200
    Position 0
    D 80
    d M20
    l 200
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 16000
    Weight 640
    Les mer
  • Code 405086
    Description LMP.F-80-M20-75
    Position 0
    D 80
    d M20
    l 75
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 16000
    Weight 350
    Les mer
  • Code 405091
    Description LMP.F-80-M24-100
    Position 0
    D 80
    d M24
    l 100
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 16000
    Weight 550
    Les mer
  • Code 405092
    Description LMP.F-80-M24-125
    Position 0
    D 80
    d M24
    l 125
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 16000
    Weight 619
    Les mer
  • Code 405093
    Description LMP.F-80-M24-150
    Position 0
    D 80
    d M24
    l 150
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 16000
    Weight 687
    Les mer
  • Code 405094
    Description LMP.F-80-M24-200
    Position 0
    D 80
    d M24
    l 200
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 16000
    Weight 860
    Les mer
  • Code 405066
    Description LMP.F-80-M8-40
    Position 0
    D 80
    d M8
    l 40
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 140
    Les mer
  • Code 405067
    Description LMP.F-80-M8-50
    Position 0
    D 80
    d M8
    l 50
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 160
    Les mer
  • Code 405068
    Description LMP.F-80-M8-63
    Position 0
    D 80
    d M8
    l 63
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 170
    Les mer
  • Code 405264
    Description LMP.F-80-SST-M10-100
    Position 0
    D 80
    d M10
    l 100
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 192
    Les mer
  • Code 405261
    Description LMP.F-80-SST-M10-50
    Position 0
    D 80
    d M10
    l 50
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 152
    Les mer
  • Code 405262
    Description LMP.F-80-SST-M10-60
    Position 0
    D 80
    d M10
    l 60
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 182
    Les mer
  • Code 405263
    Description LMP.F-80-SST-M10-80
    Position 0
    D 80
    d M10
    l 80
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 14000
    Weight 182
    Les mer
  • Code 405268
    Description LMP.F-80-SST-M12-100
    Position 0
    D 80
    d M12
    l 100
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 222
    Les mer
  • Code 405269
    Description LMP.F-80-SST-M12-125
    Position 0
    D 80
    d M12
    l 125
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 235
    Les mer
  • Code 405266
    Description LMP.F-80-SST-M12-60
    Position 0
    D 80
    d M12
    l 60
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 182
    Les mer
  • Code 405267
    Description LMP.F-80-SST-M12-80
    Position 0
    D 80
    d M12
    l 80
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 20000
    Weight 202
    Les mer
  • Code 405272
    Description LMP.F-80-SST-M16-100
    Position 0
    D 80
    d M16
    l 100
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 293
    Les mer
  • Code 405273
    Description LMP.F-80-SST-M16-125
    Position 0
    D 80
    d M16
    l 125
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 283
    Les mer
  • Code 405274
    Description LMP.F-80-SST-M16-150
    Position 0
    D 80
    d M16
    l 150
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 364
    Les mer
  • Code 405215
    Description LMP.F-80-SST-M16-200
    Position 0
    D 80
    d M16
    l 200
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 460
    Les mer
  • Code 405271
    Description LMP.F-80-SST-M16-75
    Position 0
    D 80
    d M16
    l 75
    l1 18
    l3 3
    l4 70
    s 12
    s1 8
    Max limit static load 20000
    Weight 202
    Les mer
  • Code 405277
    Description LMP.F-80-SST-M20-100
    Position 0
    D 80
    d M20
    l 100
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 384
    Les mer
  • Code 405278
    Description LMP.F-80-SST-M20-125
    Position 0
    D 80
    d M20
    l 125
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 404
    Les mer
  • Code 405279
    Description LMP.F-80-SST-M20-150
    Position 0
    D 80
    d M20
    l 150
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 464
    Les mer
  • Code 405216
    Description LMP.F-80-SST-M20-200
    Position 0
    D 80
    d M20
    l 200
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 580
    Les mer
  • Code 405276
    Description LMP.F-80-SST-M20-75
    Position 0
    D 80
    d M20
    l 75
    l1 19
    l3 3
    l4 70
    s 15
    s1 10
    Max limit static load 20000
    Weight 354
    Les mer
  • Code 405281
    Description LMP.F-80-SST-M24-100
    Position 0
    D 80
    d M24
    l 100
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 556
    Les mer
  • Code 405282
    Description LMP.F-80-SST-M24-125
    Position 0
    D 80
    d M24
    l 125
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 625
    Les mer
  • Code 405283
    Description LMP.F-80-SST-M24-150
    Position 0
    D 80
    d M24
    l 150
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 694
    Les mer
  • Code 405280
    Description LMP.F-80-SST-M24-200
    Position 0
    D 80
    d M24
    l 200
    l1 22
    l3 3
    l4 70
    s 19
    s1 12
    Max limit static load 22000
    Weight 850
    Les mer
  • Code 405256
    Description LMP.F-80-SST-M8-40
    Position 0
    D 80
    d M8
    l 40
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 172
    Les mer
  • Code 405257
    Description LMP.F-80-SST-M8-50
    Position 0
    D 80
    d M8
    l 50
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 162
    Les mer
  • Code 405258
    Description LMP.F-80-SST-M8-63
    Position 0
    D 80
    d M8
    l 63
    l1 12
    l3 3
    l4 70
    s 17
    s1 -
    Max limit static load 8000
    Weight 162
    Les mer
Handlekurv
Skroll til toppen
