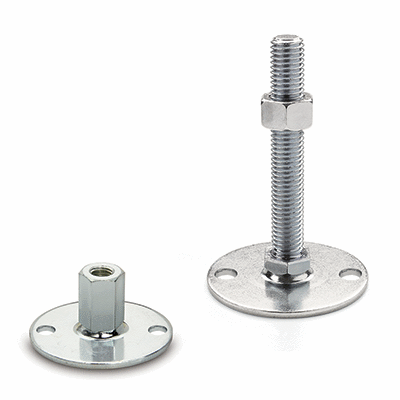

LMP.FF

Levelling Elements

Teknisk datablad
CE.72451-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 226 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 395014
    Description LMP.40-A4-M10x100-FF
    Postion
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l4
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 395014
    Description LMP.40-A4-M10x100-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 100
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 196
    Les mer
  • Code 395002
    Description LMP.40-A4-M10x50-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 50
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 175
    Les mer
  • Code 395006
    Description LMP.40-A4-M10x60-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 60
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 175
    Les mer
  • Code 395010
    Description LMP.40-A4-M10x80-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 80
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 185
    Les mer
  • Code 395040
    Description LMP.40-A4-M12x100-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 100
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 218
    Les mer
  • Code 395044
    Description LMP.40-A4-M12x125-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 125
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 235
    Les mer
  • Code 395032
    Description LMP.40-A4-M12x60-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 60
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 66
    Les mer
  • Code 395036
    Description LMP.40-A4-M12x80-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 80
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 203
    Les mer
  • Code 395062
    Description LMP.40-A4-M8x40-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 40
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 38
    Les mer
  • Code 395066
    Description LMP.40-A4-M8x50-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 50
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 142
    Les mer
  • Code 395070
    Description LMP.40-A4-M8x63-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 63
    l1 11
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 146
    Les mer
  • Code 402803
    Description LMP.40-M10-FF
    Position 0
    D 40
    d M10
    d1 5.4
    l1 28
    l2 2
    l4 30
    h 10
    s 14
    Max limit static load 7000
    Weight 61
    Les mer
  • Code 402827
    Description LMP.40-M10x100-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 100
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 106
    L 110.5
    Les mer
  • Code 402821
    Description LMP.40-M10x50-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 50
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 82
    L 60.5
    Les mer
  • Code 402823
    Description LMP.40-M10x60-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 60
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 86
    L 70.5
    Les mer
  • Code 402825
    Description LMP.40-M10x80-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 80
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 96
    L 90.5
    Les mer
  • Code 402804
    Description LMP.40-M12-FF
    Position 0
    D 40
    d M12
    d1 5.4
    l1 31
    l2 2
    l4 30
    h 12
    s 17
    Max limit static load 7000
    Weight 77
    Les mer
  • Code 402835
    Description LMP.40-M12x100-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 100
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 133
    L 110.5
    Les mer
  • Code 402837
    Description LMP.40-M12x125-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 125
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 159
    L 135.5
    Les mer
  • Code 402831
    Description LMP.40-M12x60-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 60
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 104
    L 70.5
    Les mer
  • Code 402833
    Description LMP.40-M12x80-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 80
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 119
    L 90.5
    Les mer
  • Code 402801
    Description LMP.40-M8-FF
    Position 0
    D 40
    d M8
    d1 5.4
    l1 25
    l2 2
    l4 30
    h 8
    s 14
    Max limit static load 7000
    Weight 63
    Les mer
  • Code 402811
    Description LMP.40-M8x40-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 40
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 45
    L 50.5
    Les mer
  • Code 402813
    Description LMP.40-M8x50-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 50
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 48
    L 60.5
    Les mer
  • Code 402815
    Description LMP.40-M8x63-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 63
    l1 10.5
    l2 2
    l4 30
    s 17
    s1 -
    Max limit static load 7000
    Weight 52
    L 73.5
    Les mer
  • Code 403103
    Description LMP.40-SST-M10-FF
    Position 0
    D 40
    d M10
    d1 5.4
    l1 28
    l2 2
    l4 30
    h 10
    s 14
    Max limit static load 12000
    Weight 61
    Les mer
  • Code 403127
    Description LMP.40-SST-M10x100-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 100
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 106
    Les mer
  • Code 403121
    Description LMP.40-SST-M10x50-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 50
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 82
    Les mer
  • Code 403123
    Description LMP.40-SST-M10x60-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 60
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 86
    Les mer
  • Code 403125
    Description LMP.40-SST-M10x80-FF
    Postion 0
    D 40
    d M10
    d1 5.4
    l 80
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 96
    Les mer
  • Code 404493
    Description LMP.40-SST-M12-FF
    Position 0
    D 40
    d M12
    d1 5.4
    l1 31
    l2 2
    l4 30
    h 12
    s 17
    Max limit static load 12000
    Weight 68
    Les mer
  • Code 403135
    Description LMP.40-SST-M12x100-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 100
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 133
    Les mer
  • Code 403137
    Description LMP.40-SST-M12x125-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 125
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 159
    Les mer
  • Code 403131
    Description LMP.40-SST-M12x60-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 60
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 104
    Les mer
  • Code 403133
    Description LMP.40-SST-M12x80-FF
    Postion 0
    D 40
    d M12
    d1 5.4
    l 80
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 12000
    Weight 119
    Les mer
  • Code 403101
    Description LMP.40-SST-M8-FF
    Position 0
    D 40
    d M8
    d1 5.4
    l1 25
    l2 2
    l4 30
    h 8
    s 14
    Max limit static load 8000
    Weight 63
    Les mer
  • Code 403111
    Description LMP.40-SST-M8x40-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 40
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 8000
    Weight 45
    Les mer
  • Code 403113
    Description LMP.40-SST-M8x50-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 50
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 8000
    Weight 48
    Les mer
  • Code 403115
    Description LMP.40-SST-M8x63-FF
    Postion 0
    D 40
    d M8
    d1 5.4
    l 63
    l1 10.5
    l2 2
    l4 30
    s 17
    Max limit static load 8000
    Weight 52
    Les mer
  • Code 395244
    Description LMP.50-A4-M10x100-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 120
    Les mer
  • Code 395232
    Description LMP.50-A4-M10x50-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 90
    Les mer
  • Code 395236
    Description LMP.50-A4-M10x60-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 94
    Les mer
  • Code 395240
    Description LMP.50-A4-M10x80-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 104
    Les mer
  • Code 395270
    Description LMP.50-A4-M12x100-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 137
    Les mer
  • Code 395274
    Description LMP.50-A4-M12x125-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 125
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 154
    Les mer
  • Code 395262
    Description LMP.50-A4-M12x60-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 108
    Les mer
  • Code 395266
    Description LMP.50-A4-M12x80-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 110
    Les mer
  • Code 395296
    Description LMP.50-A4-M16x100-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 100
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 107
    Les mer
  • Code 395300
    Description LMP.50-A4-M16x125-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 125
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 140
    Les mer
  • Code 395304
    Description LMP.50-A4-M16x150-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 150
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 158
    Les mer
  • Code 395308
    Description LMP.50-A4-M16x200-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 200
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 112
    Les mer
  • Code 395292
    Description LMP.50-A4-M16x75-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 75
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 104
    Les mer
  • Code 395202
    Description LMP.50-A4-M8x40-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 40
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 60
    Les mer
  • Code 395206
    Description LMP.50-A4-M8x50-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 60
    Les mer
  • Code 395210
    Description LMP.50-A4-M8x63-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 63
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 63
    Les mer
  • Code 402853
    Description LMP.50-M10-FF
    Position 0
    D 50
    d M10
    d1 6.6
    l1 28
    l2 2.5
    l4 38
    h 10
    s 14
    Max limit static load 8000
    Weight 79
    Les mer
  • Code 402877
    Description LMP.50-M10x100-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 124
    L 111
    Les mer
  • Code 402871
    Description LMP.50-M10x50-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 83
    L 61
    Les mer
  • Code 402873
    Description LMP.50-M10x60-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 104
    L 71
    Les mer
  • Code 402875
    Description LMP.50-M10x80-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 114
    L 91
    Les mer
  • Code 402885
    Description LMP.50-M12x100-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 151
    L 111
    Les mer
  • Code 402887
    Description LMP.50-M12x125-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 125
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 177
    L 136
    Les mer
  • Code 402881
    Description LMP.50-M12x60-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 122
    L 71
    Les mer
  • Code 402883
    Description LMP.50-M12x80-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 137
    L 91
    Les mer
  • Code 402893
    Description LMP.50-M16x100-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 100
    l1 17
    l2 2.5
    l4 38
    s 12
    s1 8
    Max limit static load 8000
    Weight 201
    L 117
    Les mer
  • Code 402895
    Description LMP.50-M16x125-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 125
    l1 17
    l2 2.5
    l4 38
    s 12
    s1 8
    Max limit static load 8000
    Weight 233
    L 142
    Les mer
  • Code 402897
    Description LMP.50-M16x150-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 150
    l1 17
    l2 2.5
    l4 38
    s 12
    s1 8
    Max limit static load 8000
    Weight 265
    L 167
    Les mer
  • Code 402899
    Description LMP.50-M16x200-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 200
    l1 17
    l2 2.5
    l4 38
    s 12
    s1 8
    Max limit static load 8000
    Weight 325
    L 217
    Les mer
  • Code 402891
    Description LMP.50-M16x75-FF
    Postion 0
    D 50
    d M16
    d1 6
    l 75
    l1 17
    l2 2
    l4 38
    s 12
    s1 8
    Max limit static load 8000
    Weight 169
    L 92
    Les mer
  • Code 402851
    Description LMP.50-M8-FF
    Position 0
    D 50
    d M8
    d1 6.6
    l1 25
    l2 2.5
    l4 38
    h 8
    s 14
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 402861
    Description LMP.50-M8x40-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 40
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 63
    L 51
    Les mer
  • Code 402863
    Description LMP.50-M8x50-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 66
    L 61
    Les mer
  • Code 402865
    Description LMP.50-M8x63-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 63
    l1 11
    l2 2.5
    l4 38
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    L 74
    Les mer
  • Code 403143
    Description LMP.50-SST-M10-FF
    Position 0
    D 50
    d M10
    d1 6.6
    l1 28
    l2 2.5
    l4 38
    h 10
    s 14
    Max limit static load 14000
    Weight 79
    Les mer
  • Code 403167
    Description LMP.50-SST-M10x100-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 124
    Les mer
  • Code 403161
    Description LMP.50-SST-M10x50-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 83
    Les mer
  • Code 403163
    Description LMP.50-SST-M10x60-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 104
    Les mer
  • Code 403165
    Description LMP.50-SST-M10x80-FF
    Postion 0
    D 50
    d M10
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 114
    Les mer
  • Code 403175
    Description LMP.50-SST-M12x100-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 151
    Les mer
  • Code 403177
    Description LMP.50-SST-M12x125-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 125
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 177
    Les mer
  • Code 403171
    Description LMP.50-SST-M12x60-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 122
    Les mer
  • Code 403173
    Description LMP.50-SST-M12x80-FF
    Postion 0
    D 50
    d M12
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 14000
    Weight 137
    Les mer
  • Code 403183
    Description LMP.50-SST-M16x100-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 100
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 201
    Les mer
  • Code 403185
    Description LMP.50-SST-M16x125-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 125
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 233
    Les mer
  • Code 403187
    Description LMP.50-SST-M16x150-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 150
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 265
    Les mer
  • Code 403189
    Description LMP.50-SST-M16x200-FF
    Postion 0
    D 50
    d M16
    d1 6.6
    l 200
    l1 17
    l2 2.5
    l4 38
    s 12
    Max limit static load 14000
    Weight 325
    Les mer
  • Code 403181
    Description LMP.50-SST-M16x75-FF
    Postion 0
    D 50
    d M16
    d1 6
    l 75
    l1 17
    l2 2
    l4 38
    s 12
    Max limit static load 14000
    Weight 169
    Les mer
  • Code 403141
    Description LMP.50-SST-M8-FF
    Position 0
    D 50
    d M8
    d1 6.6
    l1 25
    l2 2.5
    l4 38
    h 8
    s 14
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 403151
    Description LMP.50-SST-M8x40-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 40
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 8000
    Weight 63
    Les mer
  • Code 403153
    Description LMP.50-SST-M8x50-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 8000
    Weight 66
    Les mer
  • Code 403155
    Description LMP.50-SST-M8x63-FF
    Postion 0
    D 50
    d M8
    d1 6.6
    l 63
    l1 11
    l2 2.5
    l4 38
    s 17
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 395444
    Description LMP.60-A4-M10x100-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 120
    Les mer
  • Code 395432
    Description LMP.60-A4-M10x50-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 107
    Les mer
  • Code 395436
    Description LMP.60-A4-M10x60-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 111
    Les mer
  • Code 395440
    Description LMP.60-A4-M10x80-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 121
    Les mer
  • Code 395470
    Description LMP.60-A4-M12x100-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 154
    Les mer
  • Code 395474
    Description LMP.60-A4-M12x125-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 125
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 171
    Les mer
  • Code 395462
    Description LMP.60-A4-M12x60-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 125
    Les mer
  • Code 395466
    Description LMP.60-A4-M12x80-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 139
    Les mer
  • Code 395496
    Description LMP.60-A4-M16x100-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 100
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 158
    Les mer
  • Code 395500
    Description LMP.60-A4-M16x125-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 125
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 175
    Les mer
  • Code 395504
    Description LMP.60-A4-M16x150-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 150
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 180
    Les mer
  • Code 395508
    Description LMP.60-A4-M16x200-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 200
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 185
    Les mer
  • Code 395492
    Description LMP.60-A4-M16x75-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 75
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 144
    Les mer
  • Code 395402
    Description LMP.60-A4-M8x40-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 40
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 8000
    Weight 74
    Les mer
  • Code 395406
    Description LMP.60-A4-M8x50-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 8000
    Weight 78
    Les mer
  • Code 395410
    Description LMP.60-A4-M8x63-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 8000
    Weight 82
    Les mer
  • Code 402903
    Description LMP.60-M10-FF
    Position 0
    D 60
    d M10
    d1 6.6
    l1 28
    l2 2.5
    l4 48
    h 10
    s 14
    Max limit static load 10000
    Weight 96
    Les mer
  • Code 402927
    Description LMP.60-M10x100-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 140
    L 111
    Les mer
  • Code 402921
    Description LMP.60-M10x50-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 116
    L 61
    Les mer
  • Code 402923
    Description LMP.60-M10x60-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 121
    L 71
    Les mer
  • Code 402925
    Description LMP.60-M10x80-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 130
    L 91
    Les mer
  • Code 402905
    Description LMP.60-M12-FF
    Position 0
    D 60
    d M12
    d1 6.6
    l1 32
    l2 2.5
    l4 48
    h 12
    s 17
    Max limit static load 10000
    Weight 111
    Les mer
  • Code 402935
    Description LMP.60-M12x100-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 167
    L 111
    Les mer
  • Code 402937
    Description LMP.60-M12x125-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 125
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 189
    L 136
    Les mer
  • Code 402931
    Description LMP.60-M12x60-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 138
    L 71
    Les mer
  • Code 402933
    Description LMP.60-M12x80-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 10000
    Weight 153
    L 91
    Les mer
  • Code 402943
    Description LMP.60-M16x100-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 100
    l1 17
    l2 2.5
    l4 48
    s 12
    s1 8
    Max limit static load 10000
    Weight 218
    L 117
    Les mer
  • Code 402945
    Description LMP.60-M16x125-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 125
    l1 17
    l2 2.5
    l4 48
    s 12
    s1 8
    Max limit static load 10000
    Weight 250
    L 142
    Les mer
  • Code 402947
    Description LMP.60-M16x150-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 150
    l1 17
    l2 2.5
    l4 48
    s 12
    s1 8
    Max limit static load 10000
    Weight 282
    L 167
    Les mer
  • Code 402949
    Description LMP.60-M16x200-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 200
    l1 17
    l2 2.5
    l4 48
    s 12
    s1 8
    Max limit static load 10000
    Weight 342
    L 217
    Les mer
  • Code 402941
    Description LMP.60-M16x75-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 75
    l1 17
    l2 2.5
    l4 48
    s 12
    s1 8
    Max limit static load 10000
    Weight 186
    L 92
    Les mer
  • Code 402901
    Description LMP.60-M8-FF
    Position 0
    D 60
    d M8
    d1 6.6
    l1 25
    l2 2.5
    l4 48
    h 8
    s 14
    Max limit static load 8000
    Weight 98
    Les mer
  • Code 402911
    Description LMP.60-M8x40-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 40
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 8000
    Weight 80
    L 51
    Les mer
  • Code 402913
    Description LMP.60-M8x50-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 8000
    Weight 83
    L 61
    Les mer
  • Code 402915
    Description LMP.60-M8x63-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 63
    l1 11
    l2 2.5
    l4 48
    s 17
    s1 -
    Max limit static load 8000
    Weight 87
    L 74
    Les mer
  • Code 403193
    Description LMP.60-SST-M10-FF
    Position 0
    D 60
    d M10
    d1 6.6
    l1 28
    l2 2.5
    l4 48
    h 10
    s 14
    Max limit static load 14000
    Weight 96
    Les mer
  • Code 403217
    Description LMP.60-SST-M10x100-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 140
    Les mer
  • Code 403211
    Description LMP.60-SST-M10x50-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 116
    Les mer
  • Code 403213
    Description LMP.60-SST-M10x60-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 121
    Les mer
  • Code 403215
    Description LMP.60-SST-M10x80-FF
    Postion 0
    D 60
    d M10
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 14000
    Weight 130
    Les mer
  • Code 403195
    Description LMP.60-SST-M12-FF
    Position 0
    D 60
    d M12
    d1 6.6
    l1 32
    l2 2.5
    l4 48
    h 12
    s 17
    Max limit static load 16000
    Weight 111
    Les mer
  • Code 403225
    Description LMP.60-SST-M12x100-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 100
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 167
    Les mer
  • Code 403227
    Description LMP.60-SST-M12x125-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 125
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 189
    Les mer
  • Code 403221
    Description LMP.60-SST-M12x60-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 60
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 138
    Les mer
  • Code 403223
    Description LMP.60-SST-M12x80-FF
    Postion 0
    D 60
    d M12
    d1 6.6
    l 80
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 16000
    Weight 153
    Les mer
  • Code 403233
    Description LMP.60-SST-M16x100-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 100
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 218
    Les mer
  • Code 403235
    Description LMP.60-SST-M16x125-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 125
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 250
    Les mer
  • Code 403237
    Description LMP.60-SST-M16x150-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 150
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 282
    Les mer
  • Code 403239
    Description LMP.60-SST-M16x200-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 200
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 342
    Les mer
  • Code 403231
    Description LMP.60-SST-M16x75-FF
    Postion 0
    D 60
    d M16
    d1 6.6
    l 75
    l1 17
    l2 2.5
    l4 48
    s 12
    Max limit static load 16000
    Weight 186
    Les mer
  • Code 403191
    Description LMP.60-SST-M8-FF
    Position 0
    D 60
    d M8
    d1 6.6
    l1 25
    l2 2.5
    l4 48
    h 8
    s 14
    Max limit static load 8000
    Weight 98
    Les mer
  • Code 403201
    Description LMP.60-SST-M8x40-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 40
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 8000
    Weight 80
    Les mer
  • Code 403203
    Description LMP.60-SST-M8x50-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 50
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 8000
    Weight 83
    Les mer
  • Code 403205
    Description LMP.60-SST-M8x63-FF
    Postion 0
    D 60
    d M8
    d1 6.6
    l 63
    l1 11
    l2 2.5
    l4 48
    s 17
    Max limit static load 8000
    Weight 87
    Les mer
  • Code 395644
    Description LMP.80-A4-M10x100-FF
    Postion 0
    D 80
    d M10
    d1 8.5
    l 100
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 196
    Les mer
  • Code 395632
    Description LMP.80-A4-M10x50-FF
    Postion 0
    D 80
    d M10
    d1 8.5
    l 50
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 171
    Les mer
  • Code 395636
    Description LMP.80-A4-M10x60-FF
    Postion 0
    D 80
    d M10
    d1 8.5
    l 60
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 175
    Les mer
  • Code 395640
    Description LMP.80-A4-M10x80-FF
    Postion 0
    D 80
    d M10
    d1 8.5
    l 80
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 198
    Les mer
  • Code 395670
    Description LMP.80-A4-M12x100-FF
    Postion 0
    D 80
    d M12
    d1 8.5
    l 100
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 218
    Les mer
  • Code 395674
    Description LMP.80-A4-M12x125-FF
    Postion 0
    D 80
    d M12
    d1 8.5
    l 125
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 235
    Les mer
  • Code 395662
    Description LMP.80-A4-M12x60-FF
    Postion 0
    D 80
    d M12
    d1 8.5
    l 60
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 150
    Les mer
  • Code 395666
    Description LMP.80-A4-M12x80-FF
    Postion 0
    D 80
    d M12
    d1 8.5
    l 80
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 203
    Les mer
  • Code 395696
    Description LMP.80-A4-M16x100-FF
    Postion 0
    D 80
    d M16
    d1 8.5
    l 100
    l1 18
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 222
    Les mer
  • Code 395700
    Description LMP.80-A4-M16x125-FF
    Postion 0
    D 80
    d M16
    d1 8.5
    l 125
    l1 18
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 239
    Les mer
  • Code 395704
    Description LMP.80-A4-M16x150-FF
    Postion 0
    D 80
    d M16
    d1 8.5
    l 150
    l1 18
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 250
    Les mer
  • Code 395708
    Description LMP.80-A4-M16x200-FF
    Postion 0
    D 80
    d M16
    d1 8.5
    l 200
    l1 18
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 261
    Les mer
  • Code 395692
    Description LMP.80-A4-M16x75-FF
    Postion 0
    D 80
    d M16
    d1 8.5
    l 75
    l1 18
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 200
    Les mer
  • Code 395736
    Description LMP.80-A4-M20x100-FF
    Postion 0
    D 80
    d M20
    d1 8.5
    l 100
    l1 19
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 226
    Les mer
  • Code 395740
    Description LMP.80-A4-M20x125-FF
    Postion 0
    D 80
    d M20
    d1 8.5
    l 125
    l1 19
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 245
    Les mer
  • Code 395744
    Description LMP.80-A4-M20x150-FF
    Postion 0
    D 80
    d M20
    d1 8.5
    l 150
    l1 19
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 254
    Les mer
  • Code 395748
    Description LMP.80-A4-M20x200-FF
    Postion 0
    D 80
    d M20
    d1 8.5
    l 200
    l1 19
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 265
    Les mer
  • Code 395732
    Description LMP.80-A4-M20x75-FF
    Postion 0
    D 80
    d M20
    d1 8.5
    l 75
    l1 19
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 205
    Les mer
  • Code 395772
    Description LMP.80-A4-M24x100-FF
    Postion 0
    D 80
    d M24
    d1 8.5
    l 100
    l1 22
    l2 3
    l4 64
    s 19
    Max limit static load 20000
    Weight 230
    Les mer
  • Code 395776
    Description LMP.80-A4-M24x125-FF
    Postion 0
    D 80
    d M24
    d1 8.5
    l 125
    l1 22
    l2 3
    l4 64
    s 19
    Max limit static load 20000
    Weight 249
    Les mer
  • Code 395780
    Description LMP.80-A4-M24x150-FF
    Postion 0
    D 80
    d M24
    d1 8.5
    l 150
    l1 22
    l2 3
    l4 64
    s 19
    Max limit static load 20000
    Weight 259
    Les mer
  • Code 395784
    Description LMP.80-A4-M24x200-FF
    Postion 0
    D 80
    d M24
    d1 8.5
    l 200
    l1 22
    l2 3
    l4 64
    s 19
    Max limit static load 20000
    Weight 269
    Les mer
  • Code 395602
    Description LMP.80-A4-M8x40-FF
    Postion 0
    D 80
    d M8
    d1 8.5
    l 40
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 8000
    Weight 138
    Les mer
  • Code 395606
    Description LMP.80-A4-M8x50-FF
    Postion 0
    D 80
    d M8
    d1 8.5
    l 50
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 8000
    Weight 142
    Les mer
  • Code 395610
    Description LMP.80-A4-M8x63-FF
    Postion 0
    D 80
    d M8
    d1 8.5
    l 63
    l1 12
    l2 3
    l4 64
    s 17
    Max limit static load 8000
    Weight 146
    Les mer
  • Code 402951
    Description LMP.80-M10-FF
    Position 0
    D 80
    d M10
    d1 8.6
    l1 29
    l2 3
    l4 64
    h 10
    s 14
    Max limit static load 10000
    Weight 156
    Les mer
  • Code 402977
    Description LMP.80-M10x100-FF
    Postion 0
    D 80
    d M10
    d1 8.6
    l 100
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 10000
    Weight 167
    L 111
    Les mer
  • Code 402971
    Description LMP.80-M10x50-FF
    Postion 0
    D 80
    d M10
    d1 8.6
    l 50
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 10000
    Weight 177
    L 61
    Les mer
  • Code 402973
    Description LMP.80-M10x60-FF
    Postion 0
    D 80
    d M10
    d1 8
    l 60
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 10000
    Weight 182
    L 71
    Les mer
  • Code 402975
    Description LMP.80-M10x80-FF
    Postion 0
    D 80
    d M10
    d1 8.6
    l 80
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 10000
    Weight 191
    L 91
    Les mer
  • Code 402953
    Description LMP.80-M12-FF
    Position 0
    D 80
    d M12
    d1 8.6
    l1 32
    l2 3
    l4 64
    h 12
    s 17
    Max limit static load 12000
    Weight 172
    Les mer
  • Code 402985
    Description LMP.80-M12x100-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 100
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 12000
    Weight 228
    L 111
    Les mer
  • Code 402987
    Description LMP.80-M12x125-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 125
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 12000
    Weight 275
    L 136
    Les mer
  • Code 402981
    Description LMP.80-M12x60-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 60
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 12000
    Weight 199
    L 71
    Les mer
  • Code 402983
    Description LMP.80-M12x80-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 80
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 12000
    Weight 200
    L 91
    Les mer
  • Code 402955
    Description LMP.80-M16-FF
    Position 0
    D 80
    d M16
    d1 8.6
    l1 38
    l2 3
    l4 64
    h 16
    s 22
    Max limit static load 12000
    Weight 189
    Les mer
  • Code 402993
    Description LMP.80-M16x100-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 100
    l1 17
    l2 3
    l4 64
    s 12
    s1 8
    Max limit static load 12000
    Weight 279
    L 117
    Les mer
  • Code 402995
    Description LMP.80-M16x125-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 125
    l1 17
    l2 3
    l4 64
    s 12
    s1 8
    Max limit static load 12000
    Weight 320
    L 142
    Les mer
  • Code 402997
    Description LMP.80-M16x150-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 150
    l1 17
    l2 3
    l4 64
    s 12
    s1 8
    Max limit static load 12000
    Weight 343
    L 167
    Les mer
  • Code 402999
    Description LMP.80-M16x200-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 200
    l1 17
    l2 3
    l4 64
    s 12
    s1 8
    Max limit static load 12000
    Weight 403
    L 217
    Les mer
  • Code 402991
    Description LMP.80-M16x75-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 75
    l1 17
    l2 3
    l4 64
    s 12
    s1 8
    Max limit static load 12000
    Weight 247
    L 92
    Les mer
  • Code 403003
    Description LMP.80-M20x100-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 100
    l1 18
    l2 3
    l4 64
    s 15
    s1 10
    Max limit static load 16000
    Weight 390
    L 118
    Les mer
  • Code 403005
    Description LMP.80-M20x125-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 125
    l1 18
    l2 3
    l4 64
    s 15
    s1 10
    Max limit static load 16000
    Weight 440
    L 143
    Les mer
  • Code 403007
    Description LMP.80-M20x150-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 150
    l1 18
    l2 3
    l4 64
    s 15
    s1 10
    Max limit static load 16000
    Weight 489
    L 168
    Les mer
  • Code 403009
    Description LMP.80-M20x200-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 200
    l1 18
    l2 3
    l4 64
    s 15
    s1 10
    Max limit static load 16000
    Weight 580
    L 218
    Les mer
  • Code 403001
    Description LMP.80-M20x75-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 75
    l1 18
    l2 3
    l4 64
    s 15
    s1 10
    Max limit static load 16000
    Weight 340
    L 93
    Les mer
  • Code 403011
    Description LMP.80-M24x100-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 100
    l1 20
    l2 3
    l4 64
    s 19
    s1 12
    Max limit static load 16000
    Weight 534
    L 120
    Les mer
  • Code 403013
    Description LMP.80-M24x125-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 125
    l1 20
    l2 3
    l4 64
    s 19
    s1 12
    Max limit static load 16000
    Weight 606
    L 145
    Les mer
  • Code 403015
    Description LMP.80-M24x150-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 150
    l1 20
    l2 3
    l4 64
    s 19
    s1 12
    Max limit static load 16000
    Weight 678
    L 170
    Les mer
  • Code 403017
    Description LMP.80-M24x200-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 200
    l1 20
    l2 3
    l4 64
    s 19
    s1 12
    Max limit static load 16000
    Weight 816
    L 220
    Les mer
  • Code 402961
    Description LMP.80-M8x40-FF
    Postion 0
    D 80
    d M8
    d1 8.6
    l 40
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 8000
    Weight 140
    L 51
    Les mer
  • Code 402963
    Description LMP.80-M8x50-FF
    Postion 0
    D 80
    d M8
    d1 8.6
    l 50
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 8000
    Weight 143
    L 61
    Les mer
  • Code 402965
    Description LMP.80-M8x63-FF
    Postion 0
    D 80
    d M8
    d1 8.6
    l 63
    l1 11
    l2 3
    l4 64
    s 17
    s1 -
    Max limit static load 8000
    Weight 147
    L 74
    Les mer
  • Code 403241
    Description LMP.80-SST-M10-FF
    Position 0
    D 80
    d M10
    d1 8.6
    l1 29
    l2 3
    l4 64
    h 10
    s 14
    Max limit static load 14000
    Weight 156
    Les mer
  • Code 403267
    Description LMP.80-SST-M10x100-FF
    Postion 0
    D 80
    d M10
    d1 8.6
    l 100
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 167
    Les mer
  • Code 403261
    Description LMP.80-SST-M10x50-FF
    Postion 0
    D 80
    d M10
    d1 8.6
    l 50
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 177
    Les mer
  • Code 403263
    Description LMP.80-SST-M10x60-FF
    Postion 0
    D 80
    d M10
    d1 8
    l 60
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 182
    Les mer
  • Code 403265
    Description LMP.80-SST-M10x80-FF
    Postion 0
    D 80
    d M10
    d1 8.6
    l 80
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 14000
    Weight 191
    Les mer
  • Code 403243
    Description LMP.80-SST-M12-FF
    Position 0
    D 80
    d M12
    d1 8.6
    l1 32
    l2 3
    l4 64
    h 12
    s 17
    Max limit static load 20000
    Weight 172
    Les mer
  • Code 403275
    Description LMP.80-SST-M12x100-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 100
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 228
    Les mer
  • Code 403277
    Description LMP.80-SST-M12x125-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 125
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 275
    Les mer
  • Code 403271
    Description LMP.80-SST-M12x60-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 60
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 199
    Les mer
  • Code 403273
    Description LMP.80-SST-M12x80-FF
    Postion 0
    D 80
    d M12
    d1 8.6
    l 80
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 20000
    Weight 200
    Les mer
  • Code 403245
    Description LMP.80-SST-M16-FF
    Position 0
    D 80
    d M16
    d1 8.6
    l1 38
    l2 3
    l4 64
    h 16
    s 22
    Max limit static load 20000
    Weight 189
    Les mer
  • Code 403283
    Description LMP.80-SST-M16x100-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 100
    l1 17
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 279
    Les mer
  • Code 403285
    Description LMP.80-SST-M16x125-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 125
    l1 17
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 320
    Les mer
  • Code 403287
    Description LMP.80-SST-M16x150-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 150
    l1 17
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 343
    Les mer
  • Code 403289
    Description LMP.80-SST-M16x200-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 200
    l1 17
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 403
    Les mer
  • Code 403281
    Description LMP.80-SST-M16x75-FF
    Postion 0
    D 80
    d M16
    d1 8.6
    l 75
    l1 17
    l2 3
    l4 64
    s 12
    Max limit static load 20000
    Weight 247
    Les mer
  • Code 403293
    Description LMP.80-SST-M20x100-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 100
    l1 18
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 390
    Les mer
  • Code 403295
    Description LMP.80-SST-M20x125-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 125
    l1 18
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 440
    Les mer
  • Code 403297
    Description LMP.80-SST-M20x150-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 150
    l1 18
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 489
    Les mer
  • Code 403299
    Description LMP.80-SST-M20x200-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 200
    l1 18
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 580
    Les mer
  • Code 403291
    Description LMP.80-SST-M20x75-FF
    Postion 0
    D 80
    d M20
    d1 8.6
    l 75
    l1 18
    l2 3
    l4 64
    s 15
    Max limit static load 20000
    Weight 340
    Les mer
  • Code 403301
    Description LMP.80-SST-M24x100-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 100
    l1 20
    l2 3
    l4 64
    s 19
    Max limit static load 22000
    Weight 534
    Les mer
  • Code 403303
    Description LMP.80-SST-M24x125-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 125
    l1 20
    l2 3
    l4 64
    s 19
    Max limit static load 22000
    Weight 606
    Les mer
  • Code 403305
    Description LMP.80-SST-M24x150-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 150
    l1 20
    l2 3
    l4 64
    s 19
    Max limit static load 22000
    Weight 678
    Les mer
  • Code 403307
    Description LMP.80-SST-M24x200-FF
    Postion 0
    D 80
    d M24
    d1 8.6
    l 200
    l1 20
    l2 3
    l4 64
    s 19
    Max limit static load 22000
    Weight 816
    Les mer
  • Code 403251
    Description LMP.80-SST-M8x40-FF
    Postion 0
    D 80
    d M8
    d1 8.6
    l 40
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 8000
    Weight 140
    Les mer
  • Code 403253
    Description LMP.80-SST-M8x50-FF
    Postion 0
    D 80
    d M8
    d1 8.6
    l 50
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 8000
    Weight 143
    Les mer
  • Code 403255
    Description LMP.80-SST-M8x63-FF
    Postion 0
    D 80
    d M8
    d1 8.6
    l 63
    l1 11
    l2 3
    l4 64
    s 17
    Max limit static load 8000
    Weight 147
    Les mer
Handlekurv
Skroll til toppen
