LMP.

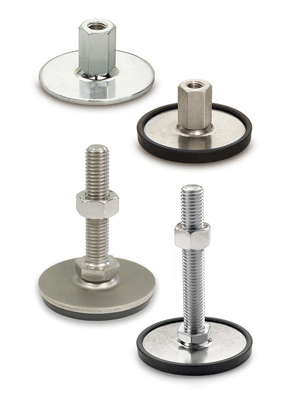

Levelling Elements

Teknisk datablad
CE.72431-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser 1–300 av 723 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 395013
    Description LMP.40-A4-M10x100
    Position
    —
    • —
    D
    —
    • —
    d
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 395013
    Description LMP.40-A4-M10x100
    Position 0
    D 40
    d M10
    l 100
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 101
    Les mer
  • Code 395015
    Description LMP.40-A4-M10x100-TR
    Position 0
    D 43
    d M10
    l 100
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 395016
    Description LMP.40-A4-M10x100-TV
    Position 0
    D 40
    d M10
    l 100
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 101
    Les mer
  • Code 395001
    Description LMP.40-A4-M10x50
    Position 0
    D 40
    d M10
    l 50
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 61
    Les mer
  • Code 395003
    Description LMP.40-A4-M10x50-TR
    Position 0
    D 43
    d M10
    l 50
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 56
    Les mer
  • Code 395004
    Description LMP.40-A4-M10x50-TV
    Position 0
    D 40
    d M10
    l 50
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 61
    Les mer
  • Code 395005
    Description LMP.40-A4-M10x60
    Position 0
    D 40
    d M10
    l 60
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 395007
    Description LMP.40-A4-M10x60-TR
    Position 0
    D 43
    d M10
    l 60
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 61
    Les mer
  • Code 395008
    Description LMP.40-A4-M10x60-TV
    Position 0
    D 40
    d M10
    l 60
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 71
    Les mer
  • Code 395009
    Description LMP.40-A4-M10x80
    Position 0
    D 40
    d M10
    l 80
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 395011
    Description LMP.40-A4-M10x80-TR
    Position 0
    D 43
    d M10
    l 80
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 395012
    Description LMP.40-A4-M10x80-TV
    Position 0
    D 40
    d M10
    l 80
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 81
    Les mer
  • Code 395039
    Description LMP.40-A4-M12x100
    Position 0
    D 40
    d M12
    l 100
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 131
    Les mer
  • Code 395041
    Description LMP.40-A4-M12x100-TR
    Position 0
    D 43
    d M12
    l 100
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 102
    Les mer
  • Code 395042
    Description LMP.40-A4-M12x100-TV
    Position 0
    D 40
    d M12
    l 100
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 120
    Les mer
  • Code 395043
    Description LMP.40-A4-M12x125
    Position 0
    D 40
    d M12
    l 125
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 152
    Les mer
  • Code 395045
    Description LMP.40-A4-M12x125-TR
    Position 0
    D 43
    d M12
    l 125
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 120
    Les mer
  • Code 395046
    Description LMP.40-A4-M12x125-TV
    Position 0
    D 40
    d M12
    l 125
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 142
    Les mer
  • Code 395031
    Description LMP.40-A4-M12x60
    Position 0
    D 40
    d M12
    l 60
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 91
    Les mer
  • Code 395033
    Description LMP.40-A4-M12x60-TR
    Position 0
    D 43
    d M12
    l 60
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 101
    Les mer
  • Code 395034
    Description LMP.40-A4-M12x60-TV
    Position 0
    D 40
    d M12
    l 60
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 91
    Les mer
  • Code 395035
    Description LMP.40-A4-M12x80
    Position 0
    D 40
    d M12
    l 80
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 111
    Les mer
  • Code 395037
    Description LMP.40-A4-M12x80-TR
    Position 0
    D 43
    d M12
    l 80
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 91
    Les mer
  • Code 395038
    Description LMP.40-A4-M12x80-TV
    Position 0
    D 40
    d M12
    l 80
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 102
    Les mer
  • Code 395094
    Description LMP.40-A4-M16x100
    Position 0
    D 40
    d M16
    l 100
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 177
    Les mer
  • Code 395095
    Description LMP.40-A4-M16x100-TR
    Position 0
    D 43
    d M16
    l 100
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 155
    Les mer
  • Code 395096
    Description LMP.40-A4-M16x100-TV
    Position 0
    D 40
    d M16
    l 100
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 180
    Les mer
  • Code 395097
    Description LMP.40-A4-M16x125
    Position 0
    D 40
    d M16
    l 125
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 192
    Les mer
  • Code 395098
    Description LMP.40-A4-M16x125-TR
    Position 0
    D 43
    d M16
    l 125
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 180
    Les mer
  • Code 395099
    Description LMP.40-A4-M16x125-TV
    Position 0
    D 40
    d M16
    l 125
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 205
    Les mer
  • Code 395100
    Description LMP.40-A4-M16x150
    Position 0
    D 40
    d M16
    l 150
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 217
    Les mer
  • Code 395101
    Description LMP.40-A4-M16x150-TR
    Position 0
    D 43
    d M16
    l 150
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 205
    Les mer
  • Code 395102
    Description LMP.40-A4-M16x150-TV
    Position 0
    D 40
    d M16
    l 150
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 255
    Les mer
  • Code 395103
    Description LMP.40-A4-M16x200
    Position 0
    D 40
    d M16
    l 200
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 12000
    Weight 303
    Les mer
  • Code 395104
    Description LMP.40-A4-M16x200-TR
    Position 0
    D 43
    d M16
    l 200
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 322
    Les mer
  • Code 395105
    Description LMP.40-A4-M16x200-TV
    Position 0
    D 40
    d M16
    l 200
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 322
    Les mer
  • Code 395091
    Description LMP.40-A4-M16x75
    Position 0
    D 40
    d M16
    l 75
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 162
    Les mer
  • Code 395092
    Description LMP.40-A4-M16x75-TR
    Position 0
    D 43
    d M16
    l 75
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 142
    Les mer
  • Code 395093
    Description LMP.40-A4-M16x75-TV
    Position 0
    D 40
    d M16
    l 75
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 155
    Les mer
  • Code 395061
    Description LMP.40-A4-M8x40
    Position 0
    D 40
    d M8
    l 40
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 41
    Les mer
  • Code 395063
    Description LMP.40-A4-M8x40-TR
    Position 0
    D 43
    d M8
    l 40
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 18000
    Weight 700
    Les mer
  • Code 395064
    Description LMP.40-A4-M8x40-TV
    Position 0
    D 40
    d M8
    l 40
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 41
    Les mer
  • Code 395065
    Description LMP.40-A4-M8x50
    Position 0
    D 40
    d M8
    l 50
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 51
    Les mer
  • Code 395067
    Description LMP.40-A4-M8x50-TR
    Position 0
    D 43
    d M8
    l 50
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 41
    Les mer
  • Code 395068
    Description LMP.40-A4-M8x50-TV
    Position 0
    D 40
    d M8
    l 50
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 46
    Les mer
  • Code 395069
    Description LMP.40-A4-M8x63
    Position 0
    D 40
    d M8
    l 63
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 56
    Les mer
  • Code 395071
    Description LMP.40-A4-M8x63-TR
    Position 0
    D 43
    d M8
    l 63
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 46
    Les mer
  • Code 395072
    Description LMP.40-A4-M8x63-TV
    Position 0
    D 40
    d M8
    l 63
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 56
    Les mer
  • Code 403992
    Description LMP.40-M10
    Position 0
    D 40
    d M10
    l1 28
    l2 2
    h 10
    s 14
    Max limit static load 7000
    Weight 40
    Les mer
  • Code 404200
    Description LMP.40-M10-TR
    Position 0
    D 43
    d M10
    l1 28
    l2 5
    l3 1.5
    h 10
    s 14
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 404402
    Description LMP.40-M10-TV
    Position 0
    D 40
    d M10
    l1 28
    l2 5.5
    l3 3.5
    h 10
    s 14
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 404017
    Description LMP.40-M10-100
    Position 0
    D 40
    d M10
    l 100
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 100
    Les mer
  • Code 404217
    Description LMP.40-M10x100-TR
    Position 0
    D 43
    d M10
    l 100
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 100
    Les mer
  • Code 404409
    Description LMP.40-M10x100-TV
    Position 0
    D 40
    d M10
    l 100
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 100
    Les mer
  • Code 404011
    Description LMP.40-M10-50
    Position 0
    D 40
    d M10
    l 50
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 60
    Les mer
  • Code 404211
    Description LMP.40-M10x50-TR
    Position 0
    D 43
    d M10
    l 50
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 60
    Les mer
  • Code 404406
    Description LMP.40-M10x50-TV
    Position 0
    D 40
    d M10
    l 50
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 60
    Les mer
  • Code 404013
    Description LMP.40-M10-60
    Position 0
    D 40
    d M10
    l 60
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404213
    Description LMP.40-M10x60-TR
    Position 0
    D 43
    d M10
    l 60
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404407
    Description LMP.40-M10x60-TV
    Position 0
    D 40
    d M10
    l 60
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 70
    Les mer
  • Code 404015
    Description LMP.40-M10-80
    Position 0
    D 40
    d M10
    l 80
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 80
    Les mer
  • Code 404215
    Description LMP.40-M10x80-TR
    Position 0
    D 43
    d M10
    l 80
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 80
    Les mer
  • Code 404408
    Description LMP.40-M10x80-TV
    Position 0
    D 40
    d M10
    l 80
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 80
    Les mer
  • Code 403993
    Description LMP.40-M12
    Position 0
    D 40
    d M12
    l1 31
    l2 2
    h 12
    s 17
    Max limit static load 7000
    Weight 68
    Les mer
  • Code 404204
    Description LMP.40-M12-TR
    Position 0
    D 43
    d M12
    l1 31
    l2 5
    l3 1.5
    h 12
    s 17
    Max limit static load 7000
    Weight 80
    Les mer
  • Code 404400
    Description LMP.40-M12-TV
    Position 0
    D 40
    d M12
    l1 31
    l2 5.5
    l3 3.5
    h 12
    s 17
    Max limit static load 7000
    Weight 91
    Les mer
  • Code 404025
    Description LMP.40-M12-100
    Position 0
    D 40
    d M12
    l 100
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 130
    Les mer
  • Code 404225
    Description LMP.40-M12x100-TR
    Position 0
    D 43
    d M12
    l 100
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 118
    Les mer
  • Code 404412
    Description LMP.40-M12x100-TV
    Position 0
    D 40
    d M12
    l 100
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 118
    Les mer
  • Code 404027
    Description LMP.40-M12-125
    Position 0
    D 40
    d M12
    l 125
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 150
    Les mer
  • Code 404227
    Description LMP.40-M12x125-TR
    Position 0
    D 43
    d M12
    l 125
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 140
    Les mer
  • Code 404413
    Description LMP.40-M12x125-TV
    Position 0
    D 40
    d M12
    l 125
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 140
    Les mer
  • Code 404021
    Description LMP.40-M12-60
    Position 0
    D 40
    d M12
    l 60
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 90
    Les mer
  • Code 404221
    Description LMP.40-M12x60-TR
    Position 0
    D 43
    d M12
    l 60
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 90
    Les mer
  • Code 404410
    Description LMP.40-M12x60-TV
    Position 0
    D 40
    d M12
    l 60
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 90
    Les mer
  • Code 404023
    Description LMP.40-M12-80
    Position 0
    D 40
    d M12
    l 80
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 110
    Les mer
  • Code 404223
    Description LMP.40-M12x80-TR
    Position 0
    D 43
    d M12
    l 80
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 100
    Les mer
  • Code 404411
    Description LMP.40-M12x80-TV
    Position 0
    D 40
    d M12
    l 80
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 100
    Les mer
  • Code 404033
    Description LMP.40-M16-100
    Position 0
    D 40
    d M16
    l 100
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 175
    Les mer
  • Code 404233
    Description LMP.40-M16x100-TR
    Position 0
    D 43
    d M16
    l 100
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 178
    Les mer
  • Code 404415
    Description LMP.40-M16x100-TV
    Position 0
    D 40
    d M16
    l 100
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 7000
    Weight 178
    Les mer
  • Code 404035
    Description LMP.40-M16-125
    Position 0
    D 40
    d M16
    l 125
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 190
    Les mer
  • Code 404235
    Description LMP.40-M16x125-TR
    Position 0
    D 43
    d M16
    l 125
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 203
    Les mer
  • Code 404416
    Description LMP.40-M16x125-TV
    Position 0
    D 40
    d M16
    l 125
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 7000
    Weight 203
    Les mer
  • Code 404037
    Description LMP.40-M16-150
    Position 0
    D 40
    d M16
    l 150
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 215
    Les mer
  • Code 404237
    Description LMP.40-M16x150-TR
    Position 0
    D 43
    d M16
    l 150
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 253
    Les mer
  • Code 404417
    Description LMP.40-M16x150-TV
    Position 0
    D 40
    d M16
    l 150
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 7000
    Weight 253
    Les mer
  • Code 404039
    Description LMP.40-M16-200
    Position 0
    D 40
    d M16
    l 200
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 12000
    Weight 300
    Les mer
  • Code 404239
    Description LMP.40-M16x200-TR
    Position 0
    D 43
    d M16
    l 200
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 7000
    Weight 320
    Les mer
  • Code 404418
    Description LMP.40-M16x200-TV
    Position 0
    D 40
    d M16
    l 200
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 7000
    Weight 320
    Les mer
  • Code 404031
    Description LMP.40-M16-75
    Position 0
    D 40
    d M16
    l 75
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 160
    Les mer
  • Code 404231
    Description LMP.40-M16x75-TR
    Position 0
    D 43
    d M16
    l 75
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 153
    Les mer
  • Code 404414
    Description LMP.40-M16x75-TV
    Position 0
    D 40
    d M16
    l 75
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 7000
    Weight 153
    Les mer
  • Code 403991
    Description LMP.40-M8
    Position 0
    D 40
    d M8
    l1 25
    l2 2
    h 8
    s 14
    Max limit static load 7000
    Weight 40
    Les mer
  • Code 404199
    Description LMP.40-M8-TR
    Position 0
    D 43
    d M8
    l1 25
    l2 5
    l3 1.5
    h 8
    s 14
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 404401
    Description LMP.40-M8-TV
    Position 0
    D 40
    d M8
    l1 25
    l2 5.5
    l3 3.5
    h 8
    s 14
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 404001
    Description LMP.40-M8-40
    Position 0
    D 40
    d M8
    l 40
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 40
    Les mer
  • Code 404201
    Description LMP.40-M8x40-TR
    Position 0
    D 43
    d M8
    l 40
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 40
    Les mer
  • Code 404403
    Description LMP.40-M8x40-TV
    Position 0
    D 40
    d M8
    l 40
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 40
    Les mer
  • Code 404002
    Description LMP.40-M8-50
    Position 0
    D 40
    d M8
    l 50
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 50
    Les mer
  • Code 404202
    Description LMP.40-M8x50-TR
    Position 0
    D 43
    d M8
    l 50
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 404404
    Description LMP.40-M8x50-TV
    Position 0
    D 40
    d M8
    l 63
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 55
    Les mer
  • Code 404003
    Description LMP.40-M8-63
    Position 0
    D 40
    d M8
    l 63
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 55
    Les mer
  • Code 404203
    Description LMP.40-M8x63-TR
    Position 0
    D 43
    d M8
    l 63
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 55
    Les mer
  • Code 404405
    Description LMP.40-M8x63-TV
    Position 0
    D 40
    d M8
    l 50
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 404492
    Description LMP.40-SST-M10
    Position 0
    D 40
    d M10
    l1 28
    l2 2
    h 10
    s 14
    Max limit static load 12000
    Weight 41
    Les mer
  • Code 404700
    Description LMP.40-SST-M10-TR
    Position 0
    D 43
    d M10
    l1 28
    l2 5
    l3 1.5
    h 10
    s 14
    Max limit static load 12000
    Weight 46
    Les mer
  • Code 403502
    Description LMP.40-SST-M10-TV
    Position 0
    D 40
    d M10
    l1 28
    l2 5.5
    l3 3.5
    h 10
    s 14
    Max limit static load 12000
    Weight 46
    Les mer
  • Code 404517
    Description LMP.40-SST-M10-100
    Position 0
    D 40
    d M10
    l 100
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 101
    Les mer
  • Code 404717
    Description LMP.40-SST-M10x100-TR
    Position 0
    D 43
    d M10
    l 100
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 403509
    Description LMP.40-SST-M10x100-TV
    Position 0
    D 40
    d M10
    l 100
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 101
    Les mer
  • Code 404511
    Description LMP.40-SST-M10-50
    Position 0
    D 40
    d M10
    l 50
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 61
    Les mer
  • Code 404711
    Description LMP.40-SST-M10x50-TR
    Position 0
    D 43
    d M10
    l 50
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 56
    Les mer
  • Code 403506
    Description LMP.40-SST-M10x50-TV
    Position 0
    D 40
    d M10
    l 50
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 61
    Les mer
  • Code 404513
    Description LMP.40-SST-M10-60
    Position 0
    D 40
    d M10
    l 60
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 404713
    Description LMP.40-SST-M10x60-TR
    Position 0
    D 43
    d M10
    l 60
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 61
    Les mer
  • Code 403507
    Description LMP.40-SST-M10x60-TV
    Position 0
    D 40
    d M10
    l 60
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 71
    Les mer
  • Code 404515
    Description LMP.40-SST-M10-80
    Position 0
    D 40
    d M10
    l 80
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 81
    Les mer
  • Code 404715
    Description LMP.40-SST-M10x80-TR
    Position 0
    D 43
    d M10
    l 80
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 403508
    Description LMP.40-SST-M10x80-TV
    Position 0
    D 40
    d M10
    l 80
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 81
    Les mer
  • Code 403104
    Description LMP.40-SST-M12
    Position 0
    D 40
    d M12
    l1 31
    l2 2
    h 12
    s 17
    Max limit static load 12000
    Weight 60
    Les mer
  • Code 404704
    Description LMP.40-SST-M12-TR
    Position 0
    D 43
    d M12
    l1 31
    l2 5
    l3 1.5
    h 12
    s 17
    Max limit static load 12000
    Weight 60
    Les mer
  • Code 403500
    Description LMP.40-SST-M12-TV
    Position 0
    D 40
    d M12
    l1 31
    l2 5.5
    l3 3.5
    h 12
    s 17
    Max limit static load 12000
    Weight 78
    Les mer
  • Code 404525
    Description LMP.40-SST-M12-100
    Position 0
    D 40
    d M12
    l 100
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 131
    Les mer
  • Code 404725
    Description LMP.40-SST-M12x100-TR
    Position 0
    D 43
    d M12
    l 100
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 102
    Les mer
  • Code 403512
    Description LMP.40-SST-M12x100-TV
    Position 0
    D 40
    d M12
    l 100
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 120
    Les mer
  • Code 404527
    Description LMP.40-SST-M12-125
    Position 0
    D 40
    d M12
    l 125
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 152
    Les mer
  • Code 404727
    Description LMP.40-SST-M12x125-TR
    Position 0
    D 43
    d M12
    l 125
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 120
    Les mer
  • Code 403513
    Description LMP.40-SST-M12x125-TV
    Position 0
    D 40
    d M12
    l 125
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 142
    Les mer
  • Code 404521
    Description LMP.40-SST-M12-60
    Position 0
    D 40
    d M12
    l 60
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 91
    Les mer
  • Code 404721
    Description LMP.40-SST-M12x60-TR
    Position 0
    D 43
    d M12
    l 60
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 101
    Les mer
  • Code 403510
    Description LMP.40-SST-M12x60-TV
    Position 0
    D 40
    d M12
    l 60
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 91
    Les mer
  • Code 404523
    Description LMP.40-SST-M12-80
    Position 0
    D 40
    d M12
    l 80
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 111
    Les mer
  • Code 404723
    Description LMP.40-SST-M12x80-TR
    Position 0
    D 43
    d M12
    l 80
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 91
    Les mer
  • Code 403511
    Description LMP.40-SST-M12x80-TV
    Position 0
    D 40
    d M12
    l 80
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 12000
    Weight 102
    Les mer
  • Code 404533
    Description LMP.40-SST-M16-100
    Position 0
    D 40
    d M16
    l 100
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 177
    Les mer
  • Code 404733
    Description LMP.40-SST-M16x100-TR
    Position 0
    D 43
    d M16
    l 100
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 155
    Les mer
  • Code 403515
    Description LMP.40-SST-M16x100-TV
    Position 0
    D 40
    d M16
    l 100
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 180
    Les mer
  • Code 404535
    Description LMP.40-SST-M16-125
    Position 0
    D 40
    d M16
    l 125
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 192
    Les mer
  • Code 404735
    Description LMP.40-SST-M16x125-TR
    Position 0
    D 43
    d M16
    l 125
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 180
    Les mer
  • Code 403516
    Description LMP.40-SST-M16x125-TV
    Position 0
    D 40
    d M16
    l 125
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 205
    Les mer
  • Code 404537
    Description LMP.40-SST-M16-150
    Position 0
    D 40
    d M16
    l 150
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 217
    Les mer
  • Code 404737
    Description LMP.40-SST-M16x150-TR
    Position 0
    D 43
    d M16
    l 150
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 205
    Les mer
  • Code 403517
    Description LMP.40-SST-M16x150-TV
    Position 0
    D 40
    d M16
    l 150
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 255
    Les mer
  • Code 404539
    Description LMP.40-SST-M16-200
    Position 0
    D 40
    d M16
    l 200
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 12000
    Weight 303
    Les mer
  • Code 404739
    Description LMP.40-SST-M16x200-TR
    Position 0
    D 43
    d M16
    l 200
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 322
    Les mer
  • Code 403518
    Description LMP.40-SST-M16x200-TV
    Position 0
    D 40
    d M16
    l 200
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 322
    Les mer
  • Code 404531
    Description LMP.40-SST-M16-75
    Position 0
    D 40
    d M16
    l 75
    l1 17
    l2 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 162
    Les mer
  • Code 404731
    Description LMP.40-SST-M16x75-TR
    Position 0
    D 43
    d M16
    l 75
    l1 17
    l2 5
    l3 1.5
    s 12
    s1 8
    Max limit static load 8000
    Weight 142
    Les mer
  • Code 403514
    Description LMP.40-SST-M16x75-TV
    Position 0
    D 40
    d M16
    l 75
    l1 17
    l2 5.5
    l3 3.5
    s 12
    s1 8
    Max limit static load 12000
    Weight 155
    Les mer
  • Code 404491
    Description LMP.40-SST-M8
    Position 0
    D 40
    d M8
    l1 25
    l2 2
    h 8
    s 14
    Max limit static load 8000
    Weight 41
    Les mer
  • Code 404699
    Description LMP.40-SST-M8-TR
    Position 0
    D 43
    d M8
    l1 25
    l2 5
    l3 1.5
    h 8
    s 14
    Max limit static load 8000
    Weight 46
    Les mer
  • Code 403501
    Description LMP.40-SST-M8-TV
    Position 0
    D 40
    d M8
    l1 25
    l2 5.5
    l3 3.5
    h 8
    s 14
    Max limit static load 8000
    Weight 46
    Les mer
  • Code 404501
    Description LMP.40-SST-M8-40
    Position 0
    D 40
    d M8
    l 40
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 41
    Les mer
  • Code 404701
    Description LMP.40-SST-M8x40-TR
    Position 0
    D 43
    d M8
    l 40
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 18000
    Weight 700
    Les mer
  • Code 403503
    Description LMP.40-SST-M8x40-TV
    Position 0
    D 40
    d M8
    l 40
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 41
    Les mer
  • Code 404502
    Description LMP.40-SST-M8-50
    Position 0
    D 40
    d M8
    l 50
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 51
    Les mer
  • Code 404702
    Description LMP.40-SST-M8x50-TR
    Position 0
    D 43
    d M8
    l 50
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 41
    Les mer
  • Code 403504
    Description LMP.40-SST-M8x50-TV
    Position 0
    D 40
    d M8
    l 63
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 56
    Les mer
  • Code 404503
    Description LMP.40-SST-M8-63
    Position 0
    D 40
    d M8
    l 63
    l1 11
    l2 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 56
    Les mer
  • Code 404703
    Description LMP.40-SST-M8x63-TR
    Position 0
    D 43
    d M8
    l 63
    l1 11
    l2 5
    l3 1.5
    s 17
    s1 -
    Max limit static load 7000
    Weight 46
    Les mer
  • Code 403505
    Description LMP.40-SST-M8x63-TV
    Position 0
    D 40
    d M8
    l 50
    l1 11
    l2 5.5
    l3 3.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 46
    Les mer
  • Code 395243
    Description LMP.50-A4-M10x100
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 109
    Les mer
  • Code 395245
    Description LMP.50-A4-M10x100-TR
    Position 0
    D 54
    d M10
    l 100
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 142
    Les mer
  • Code 395246
    Description LMP.50-A4-M10x100-TV
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 142
    Les mer
  • Code 395231
    Description LMP.50-A4-M10x50
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 79
    Les mer
  • Code 395233
    Description LMP.50-A4-M10x50-TR
    Position 0
    D 54
    d M10
    l 50
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 101
    Les mer
  • Code 395234
    Description LMP.50-A4-M10x50-TV
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 395235
    Description LMP.50-A4-M10x60
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 89
    Les mer
  • Code 395237
    Description LMP.50-A4-M10x60-TR
    Position 0
    D 54
    d M10
    l 60
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 112
    Les mer
  • Code 395238
    Description LMP.50-A4-M10x60-TV
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 112
    Les mer
  • Code 395239
    Description LMP.50-A4-M10x80
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 101
    Les mer
  • Code 395241
    Description LMP.50-A4-M10x80-TR
    Position 0
    D 54
    d M10
    l 80
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 122
    Les mer
  • Code 395242
    Description LMP.50-A4-M10x80-TV
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 122
    Les mer
  • Code 395269
    Description LMP.50-A4-M12x100
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 131
    Les mer
  • Code 395271
    Description LMP.50-A4-M12x100-TR
    Position 0
    D 54
    d M12
    l 100
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 143
    Les mer
  • Code 395272
    Description LMP.50-A4-M12x100-TV
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 143
    Les mer
  • Code 395273
    Description LMP.50-A4-M12x125
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 157
    Les mer
  • Code 395275
    Description LMP.50-A4-M12x125-TR
    Position 0
    D 54
    d M12
    l 125
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 162
    Les mer
  • Code 395276
    Description LMP.50-A4-M12x125-TV
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 162
    Les mer
  • Code 395261
    Description LMP.50-A4-M12x60
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 105
    Les mer
  • Code 395263
    Description LMP.50-A4-M12x60-TR
    Position 0
    D 54
    d M12
    l 60
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 122
    Les mer
  • Code 395264
    Description LMP.50-A4-M12x60-TV
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 122
    Les mer
  • Code 395265
    Description LMP.50-A4-M12x80
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 115
    Les mer
  • Code 395267
    Description LMP.50-A4-M12x80-TR
    Position 0
    D 54
    d M12
    l 80
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 132
    Les mer
  • Code 395268
    Description LMP.50-A4-M12x80-TV
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 132
    Les mer
  • Code 395295
    Description LMP.50-A4-M16x100
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 210
    Les mer
  • Code 395297
    Description LMP.50-A4-M16x100-TR
    Position 0
    D 54
    d M16
    l 100
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 222
    Les mer
  • Code 395298
    Description LMP.50-A4-M16x100-TV
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 222
    Les mer
  • Code 395299
    Description LMP.50-A4-M16x125
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 245
    Les mer
  • Code 395301
    Description LMP.50-A4-M16x125-TR
    Position 0
    D 54
    d M16
    l 125
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 253
    Les mer
  • Code 395302
    Description LMP.50-A4-M16x125-TV
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 253
    Les mer
  • Code 395303
    Description LMP.50-A4-M16x150
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 280
    Les mer
  • Code 395305
    Description LMP.50-A4-M16x150-TR
    Position 0
    D 54
    d M16
    l 150
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 22
    Les mer
  • Code 395306
    Description LMP.50-A4-M16x150-TV
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 282
    Les mer
  • Code 395307
    Description LMP.50-A4-M16x200
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 14000
    Weight 322
    Les mer
  • Code 395309
    Description LMP.50-A4-M16x200-TR
    Position 0
    D 54
    d M16
    l 200
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 400
    Les mer
  • Code 395310
    Description LMP.50-A4-M16x200-TV
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 400
    Les mer
  • Code 395291
    Description LMP.50-A4-M16x75
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 177
    Les mer
  • Code 395293
    Description LMP.50-A4-M16x75-TR
    Position 0
    D 54
    d M16
    l 75
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 180
    Les mer
  • Code 395294
    Description LMP.50-A4-M16x75-TV
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 180
    Les mer
  • Code 395201
    Description LMP.50-A4-M8x40
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 395203
    Description LMP.50-A4-M8x40-TR
    Position 0
    D 54
    d M8
    l 40
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 7000
    Weight 71
    Les mer
  • Code 395204
    Description LMP.50-A4-M8x40-TV
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 71
    Les mer
  • Code 395205
    Description LMP.50-A4-M8x50
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 122
    Les mer
  • Code 395207
    Description LMP.50-A4-M8x50-TR
    Position 0
    D 54
    d M8
    l 50
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 79
    Les mer
  • Code 395208
    Description LMP.50-A4-M8x50-TV
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 77
    Les mer
  • Code 395209
    Description LMP.50-A4-M8x63
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 76
    Les mer
  • Code 395211
    Description LMP.50-A4-M8x63-TR
    Position 0
    D 54
    d M8
    l 63
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 77
    Les mer
  • Code 395212
    Description LMP.50-A4-M8x63-TV
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 79
    Les mer
  • Code 404042
    Description LMP.50-M10
    Position 0
    D 50
    d M10
    l1 28
    l2 2.5
    h 10
    s 14
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404242
    Description LMP.50-M10-TR
    Position 0
    D 54
    d M10
    l1 28
    l2 6
    l3 2
    h 10
    s 14
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404422
    Description LMP.50-M10-TV
    Position 0
    D 50
    d M10
    l1 28
    l2 6.5
    l3 4
    h 10
    s 14
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404067
    Description LMP.50-M10-100
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 108
    Les mer
  • Code 404267
    Description LMP.50-M10x100-TR
    Position 0
    D 54
    d M10
    l 100
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 140
    Les mer
  • Code 404429
    Description LMP.50-M10x100-TV
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 140
    Les mer
  • Code 404061
    Description LMP.50-M10-50
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 78
    Les mer
  • Code 404261
    Description LMP.50-M10x50-TR
    Position 0
    D 54
    d M10
    l 50
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 404426
    Description LMP.50-M10x50-TV
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 100
    Les mer
  • Code 404063
    Description LMP.50-M10-60
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 88
    Les mer
  • Code 404263
    Description LMP.50-M10x60-TR
    Position 0
    D 54
    d M10
    l 60
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 110
    Les mer
  • Code 404427
    Description LMP.50-M10x60-TV
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 110
    Les mer
  • Code 404065
    Description LMP.50-M10-80
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 404265
    Description LMP.50-M10x80-TR
    Position 0
    D 54
    d M10
    l 80
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 120
    Les mer
  • Code 404428
    Description LMP.50-M10x80-TV
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 120
    Les mer
  • Code 404075
    Description LMP.50-M12-100
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 130
    Les mer
  • Code 404275
    Description LMP.50-M12x100-TR
    Position 0
    D 54
    d M12
    l 100
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 140
    Les mer
  • Code 404432
    Description LMP.50-M12x100-TV
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 140
    Les mer
  • Code 404077
    Description LMP.50-M12-125
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 155
    Les mer
  • Code 404277
    Description LMP.50-M12x125-TR
    Position 0
    D 54
    d M12
    l 125
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 160
    Les mer
  • Code 404433
    Description LMP.50-M12x125-TV
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 160
    Les mer
  • Code 404071
    Description LMP.50-M12-60
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 104
    Les mer
  • Code 404271
    Description LMP.50-M12x60-TR
    Position 0
    D 54
    d M12
    l 60
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 120
    Les mer
  • Code 404430
    Description LMP.50-M12x60-TV
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 120
    Les mer
  • Code 404073
    Description LMP.50-M12-80
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 114
    Les mer
  • Code 404273
    Description LMP.50-M12x80-TR
    Position 0
    D 54
    d M12
    l 80
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 130
    Les mer
  • Code 404431
    Description LMP.50-M12x80-TV
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 130
    Les mer
  • Code 404083
    Description LMP.50-M16-100
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 208
    Les mer
  • Code 404283
    Description LMP.50-M16x100-TR
    Position 0
    D 54
    d M16
    l 100
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 220
    Les mer
  • Code 404435
    Description LMP.50-M16x100-TV
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 8000
    Weight 220
    Les mer
  • Code 404085
    Description LMP.50-M16-125
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 243
    Les mer
  • Code 404285
    Description LMP.50-M16x125-TR
    Position 0
    D 54
    d M16
    l 125
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 250
    Les mer
  • Code 404436
    Description LMP.50-M16x125-TV
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 8000
    Weight 250
    Les mer
  • Code 404087
    Description LMP.50-M16-150
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 277
    Les mer
  • Code 404287
    Description LMP.50-M16x150-TR
    Position 0
    D 54
    d M16
    l 150
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 280
    Les mer
  • Code 404437
    Description LMP.50-M16x150-TV
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 8000
    Weight 280
    Les mer
  • Code 404089
    Description LMP.50-M16-200
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 14000
    Weight 320
    Les mer
  • Code 404289
    Description LMP.50-M16x200-TR
    Position 0
    D 54
    d M16
    l 200
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 8000
    Weight 338
    Les mer
  • Code 404438
    Description LMP.50-M16x200-TV
    Position 0
    D 50
    d M16
    l 200
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 8000
    Weight 338
    Les mer
  • Code 404081
    Description LMP.50-M16-75
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 175
    Les mer
  • Code 404281
    Description LMP.50-M16x75-TR
    Position 0
    D 54
    d M16
    l 75
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 178
    Les mer
  • Code 404434
    Description LMP.50-M16x75-TV
    Position 0
    D 50
    d M16
    l 75
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 8000
    Weight 178
    Les mer
  • Code 404041
    Description LMP.50-M8
    Position 0
    D 50
    d M8
    l1 25
    l2 2.5
    h 8
    s 14
    Max limit static load 8000
    Weight 60
    Les mer
  • Code 404241
    Description LMP.50-M8-TR
    Position 0
    D 54
    d M8
    l1 25
    l2 6
    l3 2
    h 8
    s 14
    Max limit static load 8000
    Weight 60
    Les mer
  • Code 404421
    Description LMP.50-M8-TV
    Position 0
    D 50
    d M8
    l1 25
    l2 6.5
    l3 4
    h 8
    s 14
    Max limit static load 8000
    Weight 60
    Les mer
  • Code 404051
    Description LMP.50-M8-40
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404251
    Description LMP.50-M8x40-TR
    Position 0
    D 54
    d M8
    l 40
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404423
    Description LMP.50-M8x40-TV
    Position 0
    D 50
    d M8
    l 40
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 70
    Les mer
  • Code 404052
    Description LMP.50-M8-50
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 120
    Les mer
  • Code 404252
    Description LMP.50-M8x50-TR
    Position 0
    D 54
    d M8
    l 50
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 78
    Les mer
  • Code 404424
    Description LMP.50-M8x50-TV
    Position 0
    D 50
    d M8
    l 50
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 76
    Les mer
  • Code 404053
    Description LMP.50-M8-63
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 8000
    Weight 75
    Les mer
  • Code 404253
    Description LMP.50-M8x63-TR
    Position 0
    D 54
    d M8
    l 63
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 76
    Les mer
  • Code 404425
    Description LMP.50-M8x63-TV
    Position 0
    D 50
    d M8
    l 63
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 8000
    Weight 78
    Les mer
  • Code 404542
    Description LMP.50-SST-M10
    Position 0
    D 50
    d M10
    l1 28
    l2 2.5
    h 10
    s 14
    Max limit static load 14000
    Weight 71
    Les mer
  • Code 404742
    Description LMP.50-SST-M10-TR
    Position 0
    D 54
    d M10
    l1 28
    l2 6
    l3 2
    h 10
    s 14
    Max limit static load 14000
    Weight 71
    Les mer
  • Code 403522
    Description LMP.50-SST-M10-TV
    Position 0
    D 50
    d M10
    l1 28
    l2 6.5
    l3 4
    h 10
    s 14
    Max limit static load 14000
    Weight 71
    Les mer
  • Code 404567
    Description LMP.50-SST-M10-100
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 109
    Les mer
  • Code 404767
    Description LMP.50-SST-M10x100-TR
    Position 0
    D 54
    d M10
    l 100
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 142
    Les mer
  • Code 403529
    Description LMP.50-SST-M10x100-TV
    Position 0
    D 50
    d M10
    l 100
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 142
    Les mer
  • Code 404561
    Description LMP.50-SST-M10-50
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 79
    Les mer
  • Code 404761
    Description LMP.50-SST-M10x50-TR
    Position 0
    D 54
    d M10
    l 50
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 8000
    Weight 101
    Les mer
  • Code 403526
    Description LMP.50-SST-M10x50-TV
    Position 0
    D 50
    d M10
    l 50
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 404563
    Description LMP.50-SST-M10-60
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 89
    Les mer
  • Code 404763
    Description LMP.50-SST-M10x60-TR
    Position 0
    D 54
    d M10
    l 60
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 112
    Les mer
  • Code 403527
    Description LMP.50-SST-M10x60-TV
    Position 0
    D 50
    d M10
    l 60
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 112
    Les mer
  • Code 404565
    Description LMP.50-SST-M10-80
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 101
    Les mer
  • Code 404765
    Description LMP.50-SST-M10x80-TR
    Position 0
    D 54
    d M10
    l 80
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 122
    Les mer
  • Code 403528
    Description LMP.50-SST-M10x80-TV
    Position 0
    D 50
    d M10
    l 80
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 122
    Les mer
  • Code 404575
    Description LMP.50-SST-M12-100
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 131
    Les mer
  • Code 404775
    Description LMP.50-SST-M12x100-TR
    Position 0
    D 54
    d M12
    l 100
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 143
    Les mer
  • Code 403532
    Description LMP.50-SST-M12x100-TV
    Position 0
    D 50
    d M12
    l 100
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 143
    Les mer
  • Code 404577
    Description LMP.50-SST-M12-125
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 157
    Les mer
  • Code 404777
    Description LMP.50-SST-M12x125-TR
    Position 0
    D 54
    d M12
    l 125
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 162
    Les mer
  • Code 403533
    Description LMP.50-SST-M12x125-TV
    Position 0
    D 50
    d M12
    l 125
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 162
    Les mer
  • Code 404571
    Description LMP.50-SST-M12-60
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 105
    Les mer
  • Code 404771
    Description LMP.50-SST-M12x60-TR
    Position 0
    D 54
    d M12
    l 60
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 122
    Les mer
  • Code 403530
    Description LMP.50-SST-M12x60-TV
    Position 0
    D 50
    d M12
    l 60
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 122
    Les mer
  • Code 404573
    Description LMP.50-SST-M12-80
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l2 2.5
    s 17
    s1 -
    Max limit static load 10000
    Weight 115
    Les mer
  • Code 404773
    Description LMP.50-SST-M12x80-TR
    Position 0
    D 54
    d M12
    l 80
    l1 11
    l2 6
    l3 2
    s 17
    s1 -
    Max limit static load 10000
    Weight 132
    Les mer
  • Code 403531
    Description LMP.50-SST-M12x80-TV
    Position 0
    D 50
    d M12
    l 80
    l1 11
    l2 6.5
    l3 4
    s 17
    s1 -
    Max limit static load 14000
    Weight 132
    Les mer
  • Code 404583
    Description LMP.50-SST-M16-100
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 210
    Les mer
  • Code 404783
    Description LMP.50-SST-M16x100-TR
    Position 0
    D 54
    d M16
    l 100
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 222
    Les mer
  • Code 403535
    Description LMP.50-SST-M16x100-TV
    Position 0
    D 50
    d M16
    l 100
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 222
    Les mer
  • Code 404585
    Description LMP.50-SST-M16-125
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 245
    Les mer
  • Code 404785
    Description LMP.50-SST-M16x125-TR
    Position 0
    D 54
    d M16
    l 125
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 253
    Les mer
  • Code 403536
    Description LMP.50-SST-M16x125-TV
    Position 0
    D 50
    d M16
    l 125
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 253
    Les mer
  • Code 404587
    Description LMP.50-SST-M16-150
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l2 2.5
    s 12
    s1 8
    Max limit static load 10000
    Weight 280
    Les mer
  • Code 404787
    Description LMP.50-SST-M16x150-TR
    Position 0
    D 54
    d M16
    l 150
    l1 17
    l2 6
    l3 2
    s 12
    s1 8
    Max limit static load 10000
    Weight 22
    Les mer
  • Code 403537
    Description LMP.50-SST-M16x150-TV
    Position 0
    D 50
    d M16
    l 150
    l1 17
    l2 6.5
    l3 4
    s 12
    s1 8
    Max limit static load 14000
    Weight 282
    Les mer
Handlekurv
Skroll til toppen
