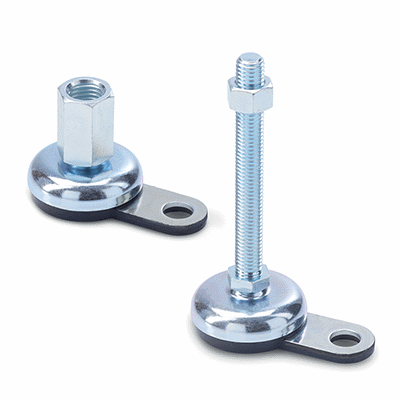

LMR.F

Levelling Elements

Teknisk datablad
CE.72462-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 163 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 406991
    Description LMR.F-100-AS-M10
    Position
    —
    • —
    D
    —
    • —
    d
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    l5
    —
    • —
    d1
    —
    • —
    h
    —
    • —
    s2
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    Rotation
    —
    • —
    d NDM
    —
    • —
    l
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    CAD
    Les mer
  • Code 406991
    Description LMR.F-100-AS-M10
    Position 0
    D 100
    d M10
    l1 46
    l2 21
    l3 7
    l4 80
    l5 30
    d1 13
    h 10
    s2 14
    Max limit static load 11000
    Weight 448
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406998
    Description LMR.F-100-AS-M10x100
    Rotation 0
    D 100
    d M10
    d NDM 10
    l 100
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 484
    Position -
    h -
    s2 -
    Les mer
  • Code 406995
    Description LMR.F-100-AS-M10x50
    Rotation 0
    D 100
    d M10
    d NDM 10
    l 50
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 460
    Position -
    h -
    s2 -
    Les mer
  • Code 406996
    Description LMR.F-100-AS-M10x60
    Rotation 0
    D 100
    d M10
    d NDM 10
    l 60
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 465
    Position -
    h -
    s2 -
    Les mer
  • Code 406997
    Description LMR.F-100-AS-M10x80
    Rotation 0
    D 100
    d M10
    d NDM 10
    l 80
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 474
    Position -
    h -
    s2 -
    Les mer
  • Code 407006
    Description LMR.F-100-AS-M12
    Position 0
    D 100
    d M12
    l1 50
    l2 21
    l3 7
    l4 80
    l5 30
    d1 13
    h 12
    s2 17
    Max limit static load 11000
    Weight 464
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 407015
    Description LMR.F-100-AS-M12x100
    Rotation 0
    D 100
    d M12
    d NDM 12
    l 100
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 11000
    Weight 540
    Position -
    h -
    s2 -
    Les mer
  • Code 407017
    Description LMR.F-100-AS-M12x125
    Rotation 0
    D 100
    d M12
    d NDM 12
    l 125
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 11000
    Weight 520
    Position -
    h -
    s2 -
    Les mer
  • Code 407011
    Description LMR.F-100-AS-M12x60
    Rotation 0
    D 100
    d M12
    d NDM 12
    l 60
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 11000
    Weight 440
    Position -
    h -
    s2 -
    Les mer
  • Code 407013
    Description LMR.F-100-AS-M12x80
    Rotation 0
    D 100
    d M12
    d NDM 12
    l 80
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 11000
    Weight 490
    Position -
    h -
    s2 -
    Les mer
  • Code 407030
    Description LMR.F-100-AS-M16
    Position 0
    D 100
    d M16
    l1 55
    l2 21
    l3 7
    l4 80
    l5 30
    d1 13
    h 16
    s2 22
    Max limit static load 11000
    Weight 499
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 407034
    Description LMR.F-100-AS-M16x100
    Rotation 0
    D 100
    d M16
    d NDM 16
    l 100
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 11000
    Weight 560
    Position -
    h -
    s2 -
    Les mer
  • Code 407036
    Description LMR.F-100-AS-M16x125
    Rotation 0
    D 100
    d M16
    d NDM 16
    l 125
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 11000
    Weight 605
    Position -
    h -
    s2 -
    Les mer
  • Code 407038
    Description LMR.F-100-AS-M16x150
    Rotation 0
    D 100
    d M16
    d NDM 16
    l 150
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 11000
    Weight 635
    Position -
    h -
    s2 -
    Les mer
  • Code 407039
    Description LMR.F-100-AS-M16x200
    Rotation 0
    D 100
    d M16
    d NDM 16
    l 200
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 11000
    Weight 680
    Position -
    h -
    s2 -
    Les mer
  • Code 407040
    Description LMR.F-100-AS-M16x250
    Rotation 0
    D 100
    d M16
    d NDM 16
    l 250
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 11000
    Weight 740
    Position -
    h -
    s2 -
    Les mer
  • Code 407032
    Description LMR.F-100-AS-M16x75
    Rotation 0
    D 100
    d M16
    d NDM 16
    l 75
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 11000
    Weight 480
    Position -
    h -
    s2 -
    Les mer
  • Code 407050
    Description LMR.F-100-AS-M20
    Position 0
    D 100
    d M20
    l1 63
    l2 21
    l3 7
    l4 80
    l5 30
    d1 13
    h 20
    s2 27
    Max limit static load 11000
    Weight 500
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 407054
    Description LMR.F-100-AS-M20x100
    Rotation 0
    D 100
    d M20
    d NDM 20
    l 100
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 11000
    Weight 665
    Position -
    h -
    s2 -
    Les mer
  • Code 407056
    Description LMR.F-100-AS-M20x125
    Rotation 0
    D 100
    d M20
    d NDM 20
    l 125
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 11000
    Weight 700
    Position -
    h -
    s2 -
    Les mer
  • Code 407058
    Description LMR.F-100-AS-M20x150
    Rotation 0
    D 100
    d M20
    d NDM 20
    l 150
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 11000
    Weight 760
    Position -
    h -
    s2 -
    Les mer
  • Code 407059
    Description LMR.F-100-AS-M20x200
    Rotation 0
    D 100
    d M20
    d NDM 20
    l 200
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 11000
    Weight 820
    Position -
    h -
    s2 -
    Les mer
  • Code 407060
    Description LMR.F-100-AS-M20x250
    Rotation 0
    D 100
    d M20
    d NDM 20
    l 250
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 11000
    Weight 880
    Position -
    h -
    s2 -
    Les mer
  • Code 407052
    Description LMR.F-100-AS-M20x75
    Rotation 0
    D 100
    d M20
    d NDM 20
    l 75
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 11000
    Weight 600
    Position -
    h -
    s2 -
    Les mer
  • Code 407072
    Description LMR.F-100-AS-M24x100
    Rotation 0
    D 100
    d M24
    d NDM 24
    l 100
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 11000
    Weight 800
    Position -
    h -
    s2 -
    Les mer
  • Code 407074
    Description LMR.F-100-AS-M24x125
    Rotation 0
    D 100
    d M24
    d NDM 24
    l 125
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 11000
    Weight 900
    Position -
    h -
    s2 -
    Les mer
  • Code 407076
    Description LMR.F-100-AS-M24x150
    Rotation 0
    D 100
    d M24
    d NDM 24
    l 150
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 11000
    Weight 960
    Position -
    h -
    s2 -
    Les mer
  • Code 407078
    Description LMR.F-100-AS-M24x200
    Rotation 0
    D 100
    d M24
    d NDM 24
    l 200
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 11000
    Weight 1020
    Position -
    h -
    s2 -
    Les mer
  • Code 407080
    Description LMR.F-100-AS-M24x300
    Rotation 0
    D 100
    d M24
    d NDM 24
    l 300
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 11000
    Weight 1080
    Position -
    h -
    s2 -
    Les mer
  • Code 406983
    Description LMR.F-100-AS-M8
    Position 0
    D 100
    d M8
    l1 43
    l2 21
    l3 7
    l4 80
    l5 30
    d1 13
    h 8
    s2 14
    Max limit static load 8000
    Weight 450
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406985
    Description LMR.F-100-AS-M8x40
    Rotation 0
    D 100
    d M8
    d NDM 8
    l 40
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 8000
    Weight 426
    Position -
    h -
    s2 -
    Les mer
  • Code 406986
    Description LMR.F-100-AS-M8x50
    Rotation 0
    D 100
    d M8
    d NDM 8
    l 50
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 8000
    Weight 430
    Position -
    h -
    s2 -
    Les mer
  • Code 406987
    Description LMR.F-100-AS-M8x63
    Rotation 0
    D 100
    d M8
    d NDM 8
    l 63
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 8000
    Weight 433
    Position -
    h -
    s2 -
    Les mer
  • Code 409015
    Description LMR.F-100-AS-SST-M12x100
    Rotation 0
    D 100
    d NDM 12
    l 100
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 17000
    Weight 545
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409011
    Description LMR.F-100-AS-SST-M12x60
    Rotation 0
    D 100
    d NDM 12
    l 60
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 17000
    Weight 444
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409013
    Description LMR.F-100-AS-SST-M12x80
    Rotation 0
    D 100
    d NDM 12
    l 80
    l1 29
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 17000
    Weight 495
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409034
    Description LMR.F-100-AS-SST-M16x100
    Rotation 0
    D 100
    d NDM 16
    l 100
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 17000
    Weight 566
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409036
    Description LMR.F-100-AS-SST-M16x125
    Rotation 0
    D 100
    d NDM 16
    l 125
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 17000
    Weight 611
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409038
    Description LMR.F-100-AS-SST-M16x150
    Rotation 0
    D 100
    d NDM 16
    l 150
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 17000
    Weight 641
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409032
    Description LMR.F-100-AS-SST-M16x75
    Rotation 0
    D 100
    d NDM 16
    l 75
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 17000
    Weight 485
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409054
    Description LMR.F-100-AS-SST-M20x100
    Rotation 0
    D 100
    d NDM 20
    l 100
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 17000
    Weight 672
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409056
    Description LMR.F-100-AS-SST-M20x125
    Rotation 0
    D 100
    d NDM 20
    l 125
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 17000
    Weight 707
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409058
    Description LMR.F-100-AS-SST-M20x150
    Rotation 0
    D 100
    d NDM 20
    l 150
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 17000
    Weight 768
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409052
    Description LMR.F-100-AS-SST-M20x75
    Rotation 0
    D 100
    d NDM 20
    l 75
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 17000
    Weight 606
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409072
    Description LMR.F-100-AS-SST-M24x100
    Rotation 0
    D 100
    d NDM 24
    l 100
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 17000
    Weight 808
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409074
    Description LMR.F-100-AS-SST-M24x125
    Rotation 0
    D 100
    d NDM 24
    l 125
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 17000
    Weight 909
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 409076
    Description LMR.F-100-AS-SST-M24x150
    Rotation 0
    D 100
    d NDM 24
    l 150
    l1 35
    l2 21
    l3 7
    l4 80
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 17000
    Weight 970
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 406714
    Description LMR.F-50-AS-M10
    Position 0
    D 50
    d M10
    l1 43
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    h 10
    s2 14
    Max limit static load 13000
    Weight 181
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406718
    Description LMR.F-50-AS-M10x100
    Rotation 0
    D 50
    d M10
    d NDM 10
    l 100
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 170
    Position -
    h -
    s2 -
    Les mer
  • Code 406715
    Description LMR.F-50-AS-M10x50
    Rotation 0
    D 50
    d M10
    d NDM 10
    l 50
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 130
    Position -
    h -
    s2 -
    Les mer
  • Code 406717
    Description LMR.F-50-AS-M10x60
    Rotation 0
    D 50
    d M10
    d NDM 10
    l 60
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 140
    Position -
    h -
    s2 -
    Les mer
  • Code 406719
    Description LMR.F-50-AS-M10x80
    Rotation 0
    D 50
    d M10
    d NDM 10
    l 80
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 155
    Position -
    h -
    s2 -
    Les mer
  • Code 406720
    Description LMR.F-50-AS-M12
    Position 0
    D 50
    d M12
    l1 47
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    h 12
    s2 17
    Max limit static load 16000
    Weight 161
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406725
    Description LMR.F-50-AS-M12x100
    Rotation 0
    D 50
    d M12
    d NDM 12
    l 100
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 180
    Position -
    h -
    s2 -
    Les mer
  • Code 406726
    Description LMR.F-50-AS-M12x125
    Rotation 0
    D 50
    d M12
    d NDM 12
    l 125
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 200
    Position -
    h -
    s2 -
    Les mer
  • Code 406721
    Description LMR.F-50-AS-M12x60
    Rotation 0
    D 50
    d M12
    d NDM 12
    l 60
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 200
    Position -
    h -
    s2 -
    Les mer
  • Code 406723
    Description LMR.F-50-AS-M12x80
    Rotation 0
    D 50
    d M12
    d NDM 12
    l 80
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 160
    Position -
    h -
    s2 -
    Les mer
  • Code 406729
    Description LMR.F-50-AS-M16
    Position 0
    D 50
    d M16
    l1 52
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    h 16
    s2 22
    Max limit static load 16000
    Weight 252
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406734
    Description LMR.F-50-AS-M16x100
    Rotation 0
    D 50
    d M16
    d NDM 16
    l 100
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 265
    Position -
    h -
    s2 -
    Les mer
  • Code 406736
    Description LMR.F-50-AS-M16x125
    Rotation 0
    D 50
    d M16
    d NDM 16
    l 125
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 305
    Position -
    h -
    s2 -
    Les mer
  • Code 406738
    Description LMR.F-50-AS-M16x150
    Rotation 0
    D 50
    d M16
    d NDM 16
    l 150
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 340
    Position -
    h -
    s2 -
    Les mer
  • Code 406739
    Description LMR.F-50-AS-M16x200
    Rotation 0
    D 50
    d M16
    d NDM 16
    l 200
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 380
    Position -
    h -
    s2 -
    Les mer
  • Code 406740
    Description LMR.F-50-AS-M16x250
    Rotation 0
    D 50
    d M16
    d NDM 16
    l 250
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 400
    Position -
    h -
    s2 -
    Les mer
  • Code 406732
    Description LMR.F-50-AS-M16x75
    Rotation 0
    D 50
    d M16
    d NDM 16
    l 75
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 232
    Position -
    h -
    s2 -
    Les mer
  • Code 406707
    Description LMR.F-50-AS-M8
    Position 0
    D 50
    d M8
    l1 40
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    h 8
    s2 14
    Max limit static load 8000
    Weight 150
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406711
    Description LMR.F-50-AS-M8x40
    Rotation 0
    D 50
    d M8
    d NDM 8
    l 40
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 95
    Position -
    h -
    s2 -
    Les mer
  • Code 406713
    Description LMR.F-50-AS-M8x50
    Rotation 0
    D 50
    d M8
    d NDM 8
    l 50
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 105
    Position -
    h -
    s2 -
    Les mer
  • Code 406712
    Description LMR.F-50-AS-M8x63
    Rotation 0
    D 50
    d M8
    d NDM 8
    l 63
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 140
    Position -
    h -
    s2 -
    Les mer
  • Code 408715
    Description LMR.F-50-AS-SST-M10x50
    Rotation 0
    D 50
    d NDM 10
    l 50
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 14000
    Weight 131
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408717
    Description LMR.F-50-AS-SST-M10x60
    Rotation 0
    D 50
    d NDM 10
    l 60
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 14000
    Weight 141
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408719
    Description LMR.F-50-AS-SST-M10x80
    Rotation 0
    D 50
    d NDM 10
    l 80
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 14000
    Weight 157
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408725
    Description LMR.F-50-AS-SST-M12x100
    Rotation 0
    D 50
    d NDM 12
    l 100
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 20000
    Weight 182
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408721
    Description LMR.F-50-AS-SST-M12x60
    Rotation 0
    D 50
    d NDM 12
    l 60
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 20000
    Weight 141
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408723
    Description LMR.F-50-AS-SST-M12x80
    Rotation 0
    D 50
    d NDM 12
    l 80
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 20000
    Weight 162
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408734
    Description LMR.F-50-AS-SST-M16x100
    Rotation 0
    D 50
    d NDM 16
    l 100
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 268
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408736
    Description LMR.F-50-AS-SST-M16x125
    Rotation 0
    D 50
    d NDM 16
    l 125
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 308
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408738
    Description LMR.F-50-AS-SST-M16x150
    Rotation 0
    D 50
    d NDM 16
    l 150
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 343
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408732
    Description LMR.F-50-AS-SST-M16x75
    Rotation 0
    D 50
    d NDM 16
    l 75
    l1 32
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 234
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408711
    Description LMR.F-50-AS-SST-M8x40
    Rotation 0
    D 50
    d NDM 8
    l 40
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 96
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408713
    Description LMR.F-50-AS-SST-M8x50
    Rotation 0
    D 50
    d NDM 8
    l 50
    l1 26
    l2 18
    l3 7
    l4 45
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 106
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 406814
    Description LMR.F-60-AS-M10
    Position 0
    D 60
    d M10
    l1 44
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    h 10
    s2 14
    Max limit static load 13000
    Weight 255
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406818
    Description LMR.F-60-AS-M10x100
    Rotation 0
    D 60
    d M10
    d NDM 10
    l 100
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 291
    Position -
    h -
    s2 -
    Les mer
  • Code 406815
    Description LMR.F-60-AS-M10x50
    Rotation 0
    D 60
    d M10
    d NDM 10
    l 50
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 170
    Position -
    h -
    s2 -
    Les mer
  • Code 406817
    Description LMR.F-60-AS-M10x60
    Rotation 0
    D 60
    d M10
    d NDM 10
    l 60
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 180
    Position -
    h -
    s2 -
    Les mer
  • Code 406819
    Description LMR.F-60-AS-M10x80
    Rotation 0
    D 60
    d M10
    d NDM 10
    l 80
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 10000
    Weight 190
    Position -
    h -
    s2 -
    Les mer
  • Code 406820
    Description LMR.F-60-AS-M12
    Position 0
    D 60
    d M12
    l1 48
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    h 12
    s2 17
    Max limit static load 16000
    Weight 180
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406825
    Description LMR.F-60-AS-M12x100
    Rotation 0
    D 60
    d M12
    d NDM 12
    l 100
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 220
    Position -
    h -
    s2 -
    Les mer
  • Code 406826
    Description LMR.F-60-AS-M12x125
    Rotation 0
    D 60
    d M12
    d NDM 12
    l 125
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 260
    Position -
    h -
    s2 -
    Les mer
  • Code 406821
    Description LMR.F-60-AS-M12x60
    Rotation 0
    D 60
    d M12
    d NDM 12
    l 60
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 215
    Position -
    h -
    s2 -
    Les mer
  • Code 406823
    Description LMR.F-60-AS-M12x80
    Rotation 0
    D 60
    d M12
    d NDM 12
    l 80
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 12000
    Weight 216
    Position -
    h -
    s2 -
    Les mer
  • Code 406829
    Description LMR.F-60-AS-M16
    Position 0
    D 60
    d M16
    l1 53
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    h 16
    s2 22
    Max limit static load 16000
    Weight 306
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406834
    Description LMR.F-60-AS-M16x100
    Rotation 0
    D 60
    d M16
    d NDM 16
    l 100
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 315
    Position -
    h -
    s2 -
    Les mer
  • Code 406836
    Description LMR.F-60-AS-M16x125
    Rotation 0
    D 60
    d M16
    d NDM 16
    l 125
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 350
    Position -
    h -
    s2 -
    Les mer
  • Code 406838
    Description LMR.F-60-AS-M16x150
    Rotation 0
    D 60
    d M16
    d NDM 16
    l 150
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 390
    Position -
    h -
    s2 -
    Les mer
  • Code 406839
    Description LMR.F-60-AS-M16x200
    Rotation 0
    D 60
    d M16
    d NDM 16
    l 200
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 430
    Position -
    h -
    s2 -
    Les mer
  • Code 406840
    Description LMR.F-60-AS-M16x250
    Rotation 0
    D 60
    d M16
    d NDM 16
    l 250
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 450
    Position -
    h -
    s2 -
    Les mer
  • Code 406832
    Description LMR.F-60-AS-M16x75
    Rotation 0
    D 60
    d M16
    d NDM 16
    l 75
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 16000
    Weight 240
    Position -
    h -
    s2 -
    Les mer
  • Code 406807
    Description LMR.F-60-AS-M8
    Position 0
    D 60
    d M8
    l1 41
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    h 8
    s2 14
    Max limit static load 8000
    Weight 236
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406811
    Description LMR.F-60-AS-M8x40
    Rotation 0
    D 60
    d M8
    d NDM 8
    l 40
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 140
    Position -
    h -
    s2 -
    Les mer
  • Code 406813
    Description LMR.F-60-AS-M8x50
    Rotation 0
    D 60
    d M8
    d NDM 8
    l 50
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 150
    Position -
    h -
    s2 -
    Les mer
  • Code 406812
    Description LMR.F-60-AS-M8x63
    Rotation 0
    D 60
    d M8
    d NDM 8
    l 63
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 180
    Position -
    h -
    s2 -
    Les mer
  • Code 408815
    Description LMR.F-60-AS-SST-M10x50
    Rotation 0
    D 60
    d NDM 10
    l 50
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 14000
    Weight 172
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408817
    Description LMR.F-60-AS-SST-M10x60
    Rotation 0
    D 60
    d NDM 10
    l 60
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 14000
    Weight 182
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408819
    Description LMR.F-60-AS-SST-M10x80
    Rotation 0
    D 60
    d NDM 10
    l 80
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 14000
    Weight 192
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408825
    Description LMR.F-60-AS-SST-M12x100
    Rotation 0
    D 60
    d NDM 12
    l 100
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 20000
    Weight 222
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408821
    Description LMR.F-60-AS-SST-M12x60
    Rotation 0
    D 60
    d NDM 12
    l 60
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 20000
    Weight 217
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408823
    Description LMR.F-60-AS-SST-M12x80
    Rotation 0
    D 60
    d NDM 12
    l 80
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 20000
    Weight 218
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408834
    Description LMR.F-60-AS-SST-M16x100
    Rotation 0
    D 60
    d NDM 16
    l 100
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 318
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408836
    Description LMR.F-60-AS-SST-M16x125
    Rotation 0
    D 60
    d NDM 16
    l 125
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 353
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408838
    Description LMR.F-60-AS-SST-M16x150
    Rotation 0
    D 60
    d NDM 16
    l 150
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 394
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408832
    Description LMR.F-60-AS-SST-M16x75
    Rotation 0
    D 60
    d NDM 16
    l 75
    l1 33
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s 8
    s1 12
    Max limit static load 28000
    Weight 242
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408811
    Description LMR.F-60-AS-SST-M8x40
    Rotation 0
    D 60
    d NDM 8
    l 40
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 141
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408813
    Description LMR.F-60-AS-SST-M8x50
    Rotation 0
    D 60
    d NDM 8
    l 50
    l1 27
    l2 19
    l3 7
    l4 50
    l5 25
    d1 13
    s -
    s1 17
    Max limit static load 8000
    Weight 152
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 406909
    Description LMR.F-80-AS-M10
    Position 0
    D 80
    d M10
    l1 45
    l2 20
    l3 7
    l4 70
    l5 30
    d1 13
    h 10
    s2 14
    Max limit static load 12000
    Weight 322
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406914
    Description LMR.F-80-AS-M10x100
    Rotation 0
    D 80
    d M10
    d NDM 10
    l 100
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 380
    Position -
    h -
    s2 -
    Les mer
  • Code 406911
    Description LMR.F-80-AS-M10x50
    Rotation 0
    D 80
    d M10
    d NDM 10
    l 50
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 280
    Position -
    h -
    s2 -
    Les mer
  • Code 406913
    Description LMR.F-80-AS-M10x60
    Rotation 0
    D 80
    d M10
    d NDM 10
    l 60
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 290
    Position -
    h -
    s2 -
    Les mer
  • Code 406915
    Description LMR.F-80-AS-M10x80
    Rotation 0
    D 80
    d M10
    d NDM 10
    l 80
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 10000
    Weight 310
    Position -
    h -
    s2 -
    Les mer
  • Code 406916
    Description LMR.F-80-AS-M12
    Position 0
    D 80
    d M12
    l1 49
    l2 20
    l3 7
    l4 70
    l5 30
    d1 13
    h 12
    s2 17
    Max limit static load 12000
    Weight 300
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406921
    Description LMR.F-80-AS-M12x100
    Rotation 0
    D 80
    d M12
    d NDM 12
    l 100
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 12000
    Weight 330
    Position -
    h -
    s2 -
    Les mer
  • Code 406923
    Description LMR.F-80-AS-M12x125
    Rotation 0
    D 80
    d M12
    d NDM 12
    l 125
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 12000
    Weight 400
    Position -
    h -
    s2 -
    Les mer
  • Code 406917
    Description LMR.F-80-AS-M12x60
    Rotation 0
    D 80
    d M12
    d NDM 12
    l 60
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 12000
    Weight 325
    Position -
    h -
    s2 -
    Les mer
  • Code 406919
    Description LMR.F-80-AS-M12x80
    Rotation 0
    D 80
    d M12
    d NDM 12
    l 80
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 12000
    Weight 327
    Position -
    h -
    s2 -
    Les mer
  • Code 406930
    Description LMR.F-80-AS-M16
    Position 0
    D 80
    d M16
    l1 54
    l2 20
    l3 7
    l4 70
    l5 30
    d1 13
    h 16
    s2 22
    Max limit static load 12000
    Weight 375
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406934
    Description LMR.F-80-AS-M16x100
    Rotation 0
    D 80
    d M16
    d NDM 16
    l 100
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 12000
    Weight 430
    Position -
    h -
    s2 -
    Les mer
  • Code 406936
    Description LMR.F-80-AS-M16x125
    Rotation 0
    D 80
    d M16
    d NDM 16
    l 125
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 12000
    Weight 465
    Position -
    h -
    s2 -
    Les mer
  • Code 406938
    Description LMR.F-80-AS-M16x150
    Rotation 0
    D 80
    d M16
    d NDM 16
    l 150
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 12000
    Weight 495
    Position -
    h -
    s2 -
    Les mer
  • Code 406939
    Description LMR.F-80-AS-M16x200
    Rotation 0
    D 80
    d M16
    d NDM 16
    l 200
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 12000
    Weight 550
    Position -
    h -
    s2 -
    Les mer
  • Code 406940
    Description LMR.F-80-AS-M16x250
    Rotation 0
    D 80
    d M16
    d NDM 16
    l 250
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 12000
    Weight 590
    Position -
    h -
    s2 -
    Les mer
  • Code 406932
    Description LMR.F-80-AS-M16x75
    Rotation 0
    D 80
    d M16
    d NDM 16
    l 75
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 12000
    Weight 365
    Position -
    h -
    s2 -
    Les mer
  • Code 406950
    Description LMR.F-80-AS-M20
    Position 0
    D 80
    d M20
    l1 62
    l2 20
    l3 7
    l4 70
    l5 30
    d1 13
    h 20
    s2 27
    Max limit static load 12000
    Weight 420
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406954
    Description LMR.F-80-AS-M20x100
    Rotation 0
    D 80
    d M20
    d NDM 20
    l 100
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 12000
    Weight 525
    Position -
    h -
    s2 -
    Les mer
  • Code 406956
    Description LMR.F-80-AS-M20x125
    Rotation 0
    D 80
    d M20
    d NDM 20
    l 125
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 12000
    Weight 570
    Position -
    h -
    s2 -
    Les mer
  • Code 406958
    Description LMR.F-80-AS-M20x150
    Rotation 0
    D 80
    d M20
    d NDM 20
    l 150
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 12000
    Weight 635
    Position -
    h -
    s2 -
    Les mer
  • Code 406959
    Description LMR.F-80-AS-M20x200
    Rotation 0
    D 80
    d M20
    d NDM 20
    l 200
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 12000
    Weight 680
    Position -
    h -
    s2 -
    Les mer
  • Code 406960
    Description LMR.F-80-AS-M20x250
    Rotation 0
    D 80
    d M20
    d NDM 20
    l 250
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 12000
    Weight 720
    Position -
    h -
    s2 -
    Les mer
  • Code 406952
    Description LMR.F-80-AS-M20x75
    Rotation 0
    D 80
    d M20
    d NDM 20
    l 75
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 12000
    Weight 470
    Position -
    h -
    s2 -
    Les mer
  • Code 406972
    Description LMR.F-80-AS-M24x100
    Rotation 0
    D 80
    d M24
    d NDM 24
    l 100
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 12000
    Weight 660
    Position -
    h -
    s2 -
    Les mer
  • Code 406974
    Description LMR.F-80-AS-M24x125
    Rotation 0
    D 80
    d M24
    d NDM 24
    l 125
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 12000
    Weight 700
    Position -
    h -
    s2 -
    Les mer
  • Code 406976
    Description LMR.F-80-AS-M24x150
    Rotation 0
    D 80
    d M24
    d NDM 24
    l 150
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 12000
    Weight 800
    Position -
    h -
    s2 -
    Les mer
  • Code 406978
    Description LMR.F-80-AS-M24x200
    Rotation 0
    D 80
    d M24
    d NDM 24
    l 200
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 12000
    Weight 900
    Position -
    h -
    s2 -
    Les mer
  • Code 406980
    Description LMR.F-80-AS-M24x300
    Rotation 0
    D 80
    d M24
    d NDM 24
    l 300
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 12000
    Weight 950
    Position -
    h -
    s2 -
    Les mer
  • Code 406901
    Description LMR.F-80-AS-M8
    Position 0
    D 80
    d M8
    l1 42
    l2 20
    l3 7
    l4 70
    l5 30
    d1 13
    h 8
    s2 14
    Max limit static load 8000
    Weight 324
    Rotation -
    d NDM -
    l -
    s -
    s1 -
    Les mer
  • Code 406905
    Description LMR.F-80-AS-M8x40
    Rotation 0
    D 80
    d M8
    d NDM 8
    l 40
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 8000
    Weight 300
    Position -
    h -
    s2 -
    Les mer
  • Code 406906
    Description LMR.F-80-AS-M8x50
    Rotation 0
    D 80
    d M8
    d NDM 8
    l 50
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 8000
    Weight 304
    Position -
    h -
    s2 -
    Les mer
  • Code 406907
    Description LMR.F-80-AS-M8x63
    Rotation 0
    D 80
    d M8
    d NDM 8
    l 63
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 8000
    Weight 307
    Position -
    h -
    s2 -
    Les mer
  • Code 408911
    Description LMR.F-80-AS-SST-M10x50
    Rotation 0
    D 80
    d NDM 10
    l 50
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 14000
    Weight 283
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408913
    Description LMR.F-80-AS-SST-M10x60
    Rotation 0
    D 80
    d NDM 10
    l 60
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 14000
    Weight 293
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408915
    Description LMR.F-80-AS-SST-M10x80
    Rotation 0
    D 80
    d NDM 10
    l 80
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 14000
    Weight 313
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408921
    Description LMR.F-80-AS-SST-M12x100
    Rotation 0
    D 80
    d NDM 12
    l 100
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 19000
    Weight 333
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408917
    Description LMR.F-80-AS-SST-M12x60
    Rotation 0
    D 80
    d NDM 12
    l 60
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 19000
    Weight 328
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408919
    Description LMR.F-80-AS-SST-M12x80
    Rotation 0
    D 80
    d NDM 12
    l 80
    l1 28
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s -
    s1 17
    Max limit static load 19000
    Weight 330
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408934
    Description LMR.F-80-AS-SST-M16x100
    Rotation 0
    D 80
    d NDM 16
    l 100
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 19000
    Weight 434
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408936
    Description LMR.F-80-AS-SST-M16x125
    Rotation 0
    D 80
    d NDM 16
    l 125
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 19000
    Weight 470
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408938
    Description LMR.F-80-AS-SST-M16x150
    Rotation 0
    D 80
    d NDM 16
    l 150
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 19000
    Weight 500
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408932
    Description LMR.F-80-AS-SST-M16x75
    Rotation 0
    D 80
    d NDM 16
    l 75
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 8
    s1 12
    Max limit static load 19000
    Weight 369
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408954
    Description LMR.F-80-AS-SST-M20x100
    Rotation 0
    D 80
    d NDM 20
    l 100
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 19000
    Weight 530
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408956
    Description LMR.F-80-AS-SST-M20x125
    Rotation 0
    D 80
    d NDM 20
    l 125
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 19000
    Weight 576
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408958
    Description LMR.F-80-AS-SST-M20x150
    Rotation 0
    D 80
    d NDM 20
    l 150
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 19000
    Weight 641
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408952
    Description LMR.F-80-AS-SST-M20x75
    Rotation 0
    D 80
    d NDM 20
    l 75
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 10
    s1 15
    Max limit static load 19000
    Weight 475
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408972
    Description LMR.F-80-AS-SST-M24x100
    Rotation 0
    D 80
    d NDM 24
    l 100
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 19000
    Weight 667
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408974
    Description LMR.F-80-AS-SST-M24x125
    Rotation 0
    D 80
    d NDM 24
    l 125
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 19000
    Weight 707
    Position -
    d -
    h -
    s2 -
    Les mer
  • Code 408976
    Description LMR.F-80-AS-SST-M24x150
    Rotation 0
    D 80
    d NDM 24
    l 150
    l1 34
    l2 20
    l3 7
    l4 70
    l5 30
    d1 15
    s 12
    s1 19
    Max limit static load 19000
    Weight 808
    Position -
    d -
    h -
    s2 -
    Les mer
Handlekurv
Skroll til toppen
