LMR.

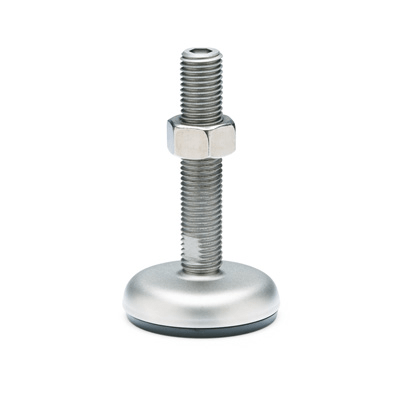

Levelling Elements

Teknisk datablad
CE.72452-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 166 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 406610
    Description LMR.100-AS-M10x100
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    s2
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 406610
    Description LMR.100-AS-M10x100
    Rotation 0
    D 100
    d M12
    l 100
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 449
    Les mer
  • Code 406607
    Description LMR.100-AS-M10x50
    Rotation 0
    D 100
    d M12
    l 50
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 413
    Les mer
  • Code 406608
    Description LMR.100-AS-M10x60
    Rotation 0
    D 100
    d M12
    l 60
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 430
    Les mer
  • Code 406609
    Description LMR.100-AS-M10x80
    Rotation 0
    D 100
    d M12
    l 80
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 439
    Les mer
  • Code 406615
    Description LMR.100-AS-M12x100
    Rotation 0
    D 100
    d M12
    l 100
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 471
    Les mer
  • Code 406617
    Description LMR.100-AS-M12x125
    Rotation 0
    D 100
    d M12
    l 125
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 493
    Les mer
  • Code 406611
    Description LMR.100-AS-M12x60
    Rotation 0
    D 100
    d M12
    l 60
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 442
    Les mer
  • Code 406613
    Description LMR.100-AS-M12x80
    Rotation 0
    D 100
    d M12
    l 80
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 457
    Les mer
  • Code 406634
    Description LMR.100-AS-M16x100
    Rotation 0
    D 100
    d M16
    l 100
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 525
    Les mer
  • Code 406636
    Description LMR.100-AS-M16x125
    Rotation 0
    D 100
    d M16
    l 125
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 557
    Les mer
  • Code 406638
    Description LMR.100-AS-M16x150
    Rotation 0
    D 100
    d M16
    l 150
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 589
    Les mer
  • Code 406639
    Description LMR.100-AS-M16x200
    Rotation 0
    D 100
    d M16
    l 200
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 649
    Les mer
  • Code 406640
    Description LMR.100-AS-M16x250
    Rotation 0
    D 100
    d M16
    l 250
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 715
    Les mer
  • Code 406632
    Description LMR.100-AS-M16x75
    Rotation 0
    D 100
    d M16
    l 75
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 480
    Les mer
  • Code 406654
    Description LMR.100-AS-M20x100
    Rotation 0
    D 100
    d M20
    l 100
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 734
    Les mer
  • Code 406656
    Description LMR.100-AS-M20x125
    Rotation 0
    D 100
    d M20
    l 125
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 784
    Les mer
  • Code 406658
    Description LMR.100-AS-M20x150
    Rotation 0
    D 100
    d M20
    l 150
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 833
    Les mer
  • Code 406659
    Description LMR.100-AS-M20x200
    Rotation 0
    D 100
    d M20
    l 200
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 924
    Les mer
  • Code 406660
    Description LMR.100-AS-M20x250
    Rotation 0
    D 100
    d M20
    l 250
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 975
    Les mer
  • Code 406652
    Description LMR.100-AS-M20x75
    Rotation 0
    D 100
    d M20
    l 75
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 684
    Les mer
  • Code 406672
    Description LMR.100-AS-M24x100
    Rotation 0
    D 100
    d M24
    l 100
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 818
    Les mer
  • Code 406674
    Description LMR.100-AS-M24x125
    Rotation 0
    D 100
    d M24
    l 125
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 890
    Les mer
  • Code 406676
    Description LMR.100-AS-M24x150
    Rotation 0
    D 100
    d M24
    l 150
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 962
    Les mer
  • Code 406677
    Description LMR.100-AS-M24x200
    Rotation 0
    D 100
    d M24
    l 200
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 1100
    Les mer
  • Code 406678
    Description LMR.100-AS-M24x300
    Rotation 0
    D 100
    d M24
    l 300
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 1200
    Les mer
  • Code 406604
    Description LMR.100-AS-M8x40
    Rotation 0
    D 100
    d M12
    l 40
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 293
    Les mer
  • Code 406605
    Description LMR.100-AS-M8x50
    Rotation 0
    D 100
    d M12
    l 50
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 395
    Les mer
  • Code 406606
    Description LMR.100-AS-M8x63
    Rotation 0
    D 100
    d M12
    l 63
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 399
    Les mer
  • Code 408615
    Description LMR.100-AS-SST-M12x100
    Rotation 0
    D 100
    d M12
    l 100
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 540
    Les mer
  • Code 408611
    Description LMR.100-AS-SST-M12x60
    Rotation 0
    D 100
    d M12
    l 60
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 440
    Les mer
  • Code 408613
    Description LMR.100-AS-SST-M12x80
    Rotation 0
    D 100
    d M12
    l 80
    l1 28
    l2 20
    l3 6
    s -
    s1 17
    s2 3
    Max limit static load 11000
    Weight 490
    Les mer
  • Code 408634
    Description LMR.100-AS-SST-M16x100
    Rotation 0
    D 100
    d M16
    l 100
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 532
    Les mer
  • Code 408636
    Description LMR.100-AS-SST-M16x125
    Rotation 0
    D 100
    d M16
    l 125
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 565
    Les mer
  • Code 408638
    Description LMR.100-AS-SST-M16x150
    Rotation 0
    D 100
    d M16
    l 150
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 598
    Les mer
  • Code 408632
    Description LMR.100-AS-SST-M16x75
    Rotation 0
    D 100
    d M16
    l 75
    l1 34
    l2 20
    l3 6
    s 8
    s1 12
    s2 3
    Max limit static load 11000
    Weight 472
    Les mer
  • Code 408654
    Description LMR.100-AS-SST-M20x100
    Rotation 0
    D 100
    d M20
    l 100
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 632
    Les mer
  • Code 408656
    Description LMR.100-AS-SST-M20x125
    Rotation 0
    D 100
    d M20
    l 125
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 683
    Les mer
  • Code 408658
    Description LMR.100-AS-SST-M20x150
    Rotation 0
    D 100
    d M20
    l 150
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 734
    Les mer
  • Code 408652
    Description LMR.100-AS-SST-M20x75
    Rotation 0
    D 100
    d M20
    l 75
    l1 35
    l2 20
    l3 6
    s 10
    s1 15
    s2 3
    Max limit static load 11000
    Weight 581
    Les mer
  • Code 408672
    Description LMR.100-AS-SST-M24x100
    Rotation 0
    D 100
    d M24
    l 100
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 778
    Les mer
  • Code 408674
    Description LMR.100-AS-SST-M24x125
    Rotation 0
    D 100
    d M24
    l 125
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 853
    Les mer
  • Code 408676
    Description LMR.100-AS-SST-M24x150
    Rotation 0
    D 100
    d M24
    l 150
    l1 38
    l2 20
    l3 6
    s 12
    s1 19
    s2 3
    Max limit static load 11000
    Weight 927
    Les mer
  • Code 406680
    Description LMR.120-AS-M20x100
    Rotation 0
    D 120
    d M20
    l 100
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 878
    Les mer
  • Code 406681
    Description LMR.120-AS-M20x125
    Rotation 0
    D 120
    d M20
    l 125
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 929
    Les mer
  • Code 406683
    Description LMR.120-AS-M20x150
    Rotation 0
    D 120
    d M20
    l 150
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 977
    Les mer
  • Code 406682
    Description LMR.120-AS-M20x200
    Rotation 0
    D 120
    d M20
    l 200
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 1068
    Les mer
  • Code 406684
    Description LMR.120-AS-M20x250
    Rotation 0
    D 120
    d M20
    l 250
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 1238
    Les mer
  • Code 406686
    Description LMR.120-AS-M24x100
    Rotation 0
    D 120
    d M24
    l 100
    l1 42
    l2 22
    l3 6
    s 12
    s1 19
    s2 4
    Max limit static load 20000
    Weight 983
    Les mer
  • Code 406688
    Description LMR.120-AS-M24x125
    Rotation 0
    D 120
    d M24
    l 125
    l1 42
    l2 22
    l3 6
    s 12
    s1 19
    s2 4
    Max limit static load 20000
    Weight 1055
    Les mer
  • Code 406685
    Description LMR.120-AS-M24x150
    Rotation 0
    D 120
    d M24
    l 150
    l1 42
    l2 22
    l3 6
    s 12
    s1 19
    s2 4
    Max limit static load 20000
    Weight 1157
    Les mer
  • Code 406687
    Description LMR.120-AS-M24x200
    Rotation 0
    D 120
    d M24
    l 200
    l1 42
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1265
    Les mer
  • Code 406690
    Description LMR.120-AS-M24x300
    Rotation 0
    D 120
    d M24
    l 300
    l1 42
    l2 22
    l3 6
    s 12
    s1 19
    s2 4
    Max limit static load 20000
    Weight 1375
    Les mer
  • Code 406692
    Description LMR.120-AS-M30x100
    Rotation 0
    D 120
    d M30
    l 100
    l1 46
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1187
    Les mer
  • Code 406693
    Description LMR.120-AS-M30x125
    Rotation 0
    D 120
    d M30
    l 125
    l1 46
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1298
    Les mer
  • Code 406689
    Description LMR.120-AS-M30x150
    Rotation 0
    D 120
    d M30
    l 150
    l1 46
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1410
    Les mer
  • Code 406691
    Description LMR.120-AS-M30x200
    Rotation 0
    D 120
    d M30
    l 200
    l1 46
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1636
    Les mer
  • Code 406696
    Description LMR.120-AS-M30x300
    Rotation 0
    D 120
    d M30
    l 300
    l1 46
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1860
    Les mer
  • Code 408681
    Description LMR.120-AS-SST-M20x125
    Rotation 0
    D 120
    d M20
    l 125
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 990
    Les mer
  • Code 408683
    Description LMR.120-AS-SST-M20x150
    Rotation 0
    D 120
    d M20
    l 150
    l1 39
    l2 22
    l3 6
    s 10
    s1 15
    s2 4
    Max limit static load 20000
    Weight 1040
    Les mer
  • Code 408685
    Description LMR.120-AS-SST-M24x150
    Rotation 0
    D 120
    d M24
    l 150
    l1 39
    l2 22
    l3 6
    s 12
    s1 19
    s2 4
    Max limit static load 20000
    Weight 1240
    Les mer
  • Code 408687
    Description LMR.120-AS-SST-M24x200
    Rotation 0
    D 120
    d M24
    l 200
    l1 39
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1400
    Les mer
  • Code 408689
    Description LMR.120-AS-SST-M30x150
    Rotation 0
    D 120
    d M30
    l 150
    l1 39
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1640
    Les mer
  • Code 408691
    Description LMR.120-AS-SST-M30x200
    Rotation 0
    D 120
    d M30
    l 200
    l1 39
    l2 22
    l3 6
    s 12
    s1 24
    s2 4
    Max limit static load 20000
    Weight 1800
    Les mer
  • Code 406320
    Description LMR.50-AS-M10x100
    Rotation 0
    D 50
    d M10
    l 100
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 193
    Les mer
  • Code 406315
    Description LMR.50-AS-M10x50
    Rotation 0
    D 50
    d M10
    l 50
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 157
    Les mer
  • Code 406317
    Description LMR.50-AS-M10x60
    Rotation 0
    D 50
    d M10
    l 60
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 174
    Les mer
  • Code 406319
    Description LMR.50-AS-M10x80
    Rotation 0
    D 50
    d M10
    l 80
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 183
    Les mer
  • Code 406325
    Description LMR.50-AS-M12x100
    Rotation 0
    D 50
    d M12
    l 100
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 180
    Les mer
  • Code 406321
    Description LMR.50-AS-M12x60
    Rotation 0
    D 50
    d M12
    l 60
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 186
    Les mer
  • Code 406323
    Description LMR.50-AS-M12x80
    Rotation 0
    D 50
    d M12
    l 80
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 201
    Les mer
  • Code 406334
    Description LMR.50-AS-M16x100
    Rotation 0
    D 50
    d M16
    l 100
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 265
    Les mer
  • Code 406336
    Description LMR.50-AS-M16x125
    Rotation 0
    D 50
    d M16
    l 125
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 305
    Les mer
  • Code 406338
    Description LMR.50-AS-M16x150
    Rotation 0
    D 50
    d M16
    l 150
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 340
    Les mer
  • Code 406339
    Description LMR.50-AS-M16x200
    Rotation 0
    D 50
    d M16
    l 200
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 395
    Les mer
  • Code 406340
    Description LMR.50-AS-M16x250
    Rotation 0
    D 50
    d M16
    l 250
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 435
    Les mer
  • Code 406332
    Description LMR.50-AS-M16x75
    Rotation 0
    D 50
    d M16
    l 75
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 232
    Les mer
  • Code 406311
    Description LMR.50-AS-M8x40
    Rotation 0
    D 50
    d M8
    l 40
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 215
    Les mer
  • Code 406313
    Description LMR.50-AS-M8x50
    Rotation 0
    D 50
    d M8
    l 50
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 218
    Les mer
  • Code 406314
    Description LMR.50-AS-M8x63
    Rotation 0
    D 50
    d M8
    l 63
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 222
    Les mer
  • Code 408315
    Description LMR.50-AS-SST-M10x50
    Rotation 0
    D 50
    d M10
    l 50
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 130
    Les mer
  • Code 408317
    Description LMR.50-AS-SST-M10x60
    Rotation 0
    D 50
    d M10
    l 60
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 140
    Les mer
  • Code 408319
    Description LMR.50-AS-SST-M10x80
    Rotation 0
    D 50
    d M10
    l 80
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 155
    Les mer
  • Code 408325
    Description LMR.50-AS-SST-M12x100
    Rotation 0
    D 50
    d M12
    l 100
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 180
    Les mer
  • Code 408321
    Description LMR.50-AS-SST-M12x60
    Rotation 0
    D 50
    d M12
    l 60
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 140
    Les mer
  • Code 408323
    Description LMR.50-AS-SST-M12x80
    Rotation 0
    D 50
    d M12
    l 80
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 160
    Les mer
  • Code 408334
    Description LMR.50-AS-SST-M16x100
    Rotation 0
    D 50
    d M16
    l 100
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 18000
    Weight 246
    Les mer
  • Code 408336
    Description LMR.50-AS-SST-M16x125
    Rotation 0
    D 50
    d M16
    l 125
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 18000
    Weight 279
    Les mer
  • Code 408338
    Description LMR.50-AS-SST-M16x150
    Rotation 0
    D 50
    d M16
    l 150
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 18000
    Weight 312
    Les mer
  • Code 408332
    Description LMR.50-AS-SST-M16x75
    Rotation 0
    D 50
    d M16
    l 75
    l1 29
    l2 14.5
    l3 3.5
    s 8
    s1 12
    s2 3
    Max limit static load 18000
    Weight 213
    Les mer
  • Code 408311
    Description LMR-50-AS-SST-M8x40
    Rotation 0
    D 50
    d M8
    l 40
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 95
    Les mer
  • Code 408313
    Description LMR.50-AS-SST-M8x50
    Rotation 0
    D 50
    d M8
    l 50
    l1 23
    l2 14.5
    l3 3.5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 105
    Les mer
  • Code 406420
    Description LMR.60-AS-M10x100
    Rotation 0
    D 60
    d M10
    l 100
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 244
    Les mer
  • Code 406415
    Description LMR.60-AS-M10x50
    Rotation 0
    D 60
    d M10
    l 50
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 160
    Les mer
  • Code 406417
    Description LMR.60-AS-M10x60
    Rotation 0
    D 60
    d M10
    l 60
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 225
    Les mer
  • Code 406419
    Description LMR.60-AS-M10x80
    Rotation 0
    D 60
    d M10
    l 80
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 234
    Les mer
  • Code 406425
    Description LMR.60-AS-M12x100
    Rotation 0
    D 60
    d M12
    l 100
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 266
    Les mer
  • Code 406427
    Description LMR.60-AS-M12x125
    Rotation 0
    D 60
    d M12
    l 125
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 288
    Les mer
  • Code 406421
    Description LMR.60-AS-M12x60
    Rotation 0
    D 60
    d M12
    l 60
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 237
    Les mer
  • Code 406423
    Description LMR.60-AS-M12x80
    Rotation 0
    D 60
    d M12
    l 80
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 252
    Les mer
  • Code 406431
    Description LMR.60-AS-M16x50
    Rotation 0
    D 60
    d M16
    l 50
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 190
    Les mer
  • Code 406434
    Description LMR.60-AS-M16x100
    Rotation 0
    D 60
    d M16
    l 100
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 322
    Les mer
  • Code 406436
    Description LMR.60-AS-M16x125
    Rotation 0
    D 60
    d M16
    l 125
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 354
    Les mer
  • Code 406438
    Description LMR.60-AS-M16x150
    Rotation 0
    D 60
    d M16
    l 150
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 346
    Les mer
  • Code 406439
    Description LMR.60-AS-M16x200
    Rotation 0
    D 60
    d M16
    l 200
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 446
    Les mer
  • Code 406440
    Description LMR.60-AS-M16x250
    Rotation 0
    D 60
    d M16
    l 250
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 500
    Les mer
  • Code 406432
    Description LMR.60-AS-M16x75
    Rotation 0
    D 60
    d M16
    l 75
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 16000
    Weight 290
    Les mer
  • Code 406411
    Description LMR.60-AS-M8x40
    Rotation 0
    D 60
    d M8
    l 40
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 266
    Les mer
  • Code 406413
    Description LMR.60-AS-M8x50
    Rotation 0
    D 60
    d M8
    l 50
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 269
    Les mer
  • Code 406414
    Description LMR.60-AS-M8x63
    Rotation 0
    D 60
    d M8
    l 50
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 273
    Les mer
  • Code 408415
    Description LM.60-AS-SST-M10x50
    Rotation 0
    D 60
    d M10
    l 50
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 170
    Les mer
  • Code 408417
    Description LMR.60-AS-SST-M10x60
    Rotation 0
    D 60
    d M10
    l 60
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 180
    Les mer
  • Code 408419
    Description LMR.60-AS-SST-M10x80
    Rotation 0
    D 60
    d M10
    l 80
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 190
    Les mer
  • Code 408425
    Description LMR.60-AS-SST-M12x100
    Rotation 0
    D 60
    d M12
    l 100
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 220
    Les mer
  • Code 408421
    Description LMR.60-AS-SST-M12x60
    Rotation 0
    D 60
    d M12
    l 60
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 215
    Les mer
  • Code 408423
    Description LMR.60-AS-SST-M12x80
    Rotation 0
    D 60
    d M12
    l 80
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 216
    Les mer
  • Code 408434
    Description LMR.60-AS-SST-M16x100
    Rotation 0
    D 60
    d M16
    l 100
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 15000
    Weight 292
    Les mer
  • Code 408436
    Description LMR.60-AS-SST-M16x125
    Rotation 0
    D 60
    d M16
    l 125
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 15000
    Weight 325
    Les mer
  • Code 408438
    Description LMR.60-AS-SST-M16x150
    Rotation 0
    D 60
    d M16
    l 150
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 15000
    Weight 358
    Les mer
  • Code 408432
    Description LMR.60-AS-SST-M16x75
    Rotation 0
    D 60
    d M16
    l 75
    l1 30
    l2 16
    l3 4
    s 8
    s1 12
    s2 3
    Max limit static load 15000
    Weight 259
    Les mer
  • Code 408411
    Description LMR.60-AS-SST-M8x40
    Rotation 0
    D 60
    d M8
    l 40
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 140
    Les mer
  • Code 408413
    Description LMR.60-AS-SST-M8x50
    Rotation 0
    D 60
    d M8
    l 50
    l1 24
    l2 16
    l3 4
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 150
    Les mer
  • Code 406516
    Description LMR.80-AS-M10x100
    Rotation 0
    D 80
    d M10
    l 100
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 317
    Les mer
  • Code 406511
    Description LMR.80-AS-M10x50
    Rotation 0
    D 80
    d M10
    l 50
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 281
    Les mer
  • Code 406513
    Description LMR.80-AS-M10x60
    Rotation 0
    D 80
    d M10
    l 60
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 298
    Les mer
  • Code 406515
    Description LMR.80-AS-M10x80
    Rotation 0
    D 80
    d M10
    l 80
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 307
    Les mer
  • Code 406521
    Description LMR.80-AS-M12x100
    Rotation 0
    D 80
    d M12
    l 75
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 339
    Les mer
  • Code 406523
    Description LMR.80-AS-M12x125
    Rotation 0
    D 80
    d M12
    l 125
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 361
    Les mer
  • Code 406517
    Description LMR.80-AS-M12x60
    Rotation 0
    D 80
    d M12
    l 75
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 310
    Les mer
  • Code 406519
    Description LMR.80-AS-M12x80
    Rotation 0
    D 80
    d M12
    l 75
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 325
    Les mer
  • Code 406534
    Description LMR.80-AS-M16x100
    Rotation 0
    D 80
    d M16
    l 100
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 12000
    Weight 393
    Les mer
  • Code 406536
    Description LMR.80-AS-M16x125
    Rotation 0
    D 80
    d M16
    l 125
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 12000
    Weight 425
    Les mer
  • Code 406538
    Description LMR.80-AS-M16x150
    Rotation 0
    D 80
    d M16
    l 150
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 12000
    Weight 457
    Les mer
  • Code 406539
    Description LMR.80-AS-M16x200
    Rotation 0
    D 80
    d M16
    l 200
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 12000
    Weight 517
    Les mer
  • Code 406540
    Description LMR.80-AS-M16x250
    Rotation 0
    D 80
    d M16
    l 250
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 12000
    Weight 570
    Les mer
  • Code 406532
    Description LMR.80-AS-M16x75
    Rotation 0
    D 80
    d M16
    l 75
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 12000
    Weight 365
    Les mer
  • Code 406554
    Description LMR.80-AS-M20x100
    Rotation 0
    D 80
    d M20
    l 100
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 12000
    Weight 565
    Les mer
  • Code 406556
    Description LMR.80-AS-M20x125
    Rotation 0
    D 80
    d M20
    l 125
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 12000
    Weight 615
    Les mer
  • Code 406558
    Description LMR.80-AS-M20x150
    Rotation 0
    D 80
    d M20
    l 150
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 12000
    Weight 664
    Les mer
  • Code 406559
    Description LMR.80-AS-M20x200
    Rotation 0
    D 80
    d M20
    l 200
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 12000
    Weight 660
    Les mer
  • Code 406560
    Description LMR.80-AS-M20x250
    Rotation 0
    D 80
    d M20
    l 250
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 12000
    Weight 695
    Les mer
  • Code 406552
    Description LMR.80-AS-M20x75
    Rotation 0
    D 80
    d M20
    l 75
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 12000
    Weight 515
    Les mer
  • Code 406572
    Description LMR.80-AS-M24x100
    Rotation 0
    D 80
    d M24
    l 100
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 12000
    Weight 649
    Les mer
  • Code 406574
    Description LMR.80-AS-M24x125
    Rotation 0
    D 80
    d M24
    l 125
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 12000
    Weight 721
    Les mer
  • Code 406576
    Description LMR.80-AS-M24x150
    Rotation 0
    D 80
    d M24
    l 150
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 12000
    Weight 793
    Les mer
  • Code 406578
    Description LMR.80-AS-M24x200
    Rotation 0
    D 80
    d M24
    l 200
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 12000
    Weight 931
    Les mer
  • Code 406580
    Description LMR.80-AS-M24x300
    Rotation 0
    D 80
    d M24
    l 300
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 12000
    Weight 1000
    Les mer
  • Code 406506
    Description LMR.80-AS-M8x40
    Rotation 0
    D 80
    d M8
    l 40
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 260
    Les mer
  • Code 406507
    Description LMR.80-AS-M8x50
    Rotation 0
    D 80
    d M8
    l 50
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 263
    Les mer
  • Code 406508
    Description LMR.80-AS-M8x63
    Rotation 0
    D 80
    d M8
    l 63
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 8000
    Weight 267
    Les mer
  • Code 408511
    Description LMR.80-AS-SST-M10x50
    Rotation 0
    D 80
    d M10
    l 50
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 280
    Les mer
  • Code 408513
    Description LMR.80-AS-SST-M10x60
    Rotation 0
    D 80
    d M10
    l 60
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 290
    Les mer
  • Code 408515
    Description LMR.80-AS-SST-M10x80
    Rotation 0
    D 80
    d M10
    l 80
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 10000
    Weight 310
    Les mer
  • Code 408521
    Description LMR.80-AS-SST-M12x100
    Rotation 0
    D 80
    d M12
    l 100
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 330
    Les mer
  • Code 408517
    Description LMR.80-AS-SST-M12x60
    Rotation 0
    D 80
    d M12
    l 60
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 325
    Les mer
  • Code 408519
    Description LMR.80-AS-SST-M12x80
    Rotation 0
    D 80
    d M12
    l 80
    l1 26
    l2 18
    l3 5
    s -
    s1 17
    s2 3
    Max limit static load 12000
    Weight 327
    Les mer
  • Code 408534
    Description LMR.80-AS-SST-M16x100
    Rotation 0
    D 80
    d M16
    l 100
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 13000
    Weight 401
    Les mer
  • Code 408536
    Description LMR.80-AS-SST-M16x125
    Rotation 0
    D 80
    d M16
    l 125
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 13000
    Weight 434
    Les mer
  • Code 408538
    Description LMR.80-AS-SST-M16x150
    Rotation 0
    D 80
    d M16
    l 150
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 13000
    Weight 467
    Les mer
  • Code 408532
    Description LMR.80-AS-SST-M16x75
    Rotation 0
    D 80
    d M16
    l 75
    l1 32
    l2 18
    l3 5
    s 8
    s1 12
    s2 3
    Max limit static load 13000
    Weight 341
    Les mer
  • Code 408554
    Description LMR.80-AS-SST-M20x100
    Rotation 0
    D 80
    d M20
    l 100
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 13000
    Weight 501
    Les mer
  • Code 408556
    Description LMR.80-AS-SST-M20x125
    Rotation 0
    D 80
    d M20
    l 125
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 13000
    Weight 552
    Les mer
  • Code 408558
    Description LMR.80-AS-SST-M20x150
    Rotation 0
    D 80
    d M20
    l 150
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 13000
    Weight 603
    Les mer
  • Code 408552
    Description LMR.80-AS-SST-M20x75
    Rotation 0
    D 80
    d M20
    l 75
    l1 33
    l2 18
    l3 5
    s 10
    s1 15
    s2 3
    Max limit static load 13000
    Weight 450
    Les mer
  • Code 408572
    Description LMR.80-AS-SST-M24x100
    Rotation 0
    D 80
    d M24
    l 100
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 13000
    Weight 647
    Les mer
  • Code 408574
    Description LMR.80-AS-SST-M24x125
    Rotation 0
    D 80
    d M24
    l 125
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 13000
    Weight 722
    Les mer
  • Code 408576
    Description LMR.80-AS-SST-M24x150
    Rotation 0
    D 80
    d M24
    l 150
    l1 36
    l2 18
    l3 5
    s 12
    s1 19
    s2 3
    Max limit static load 13000
    Weight 796
    Les mer
Handlekurv
Skroll til toppen
