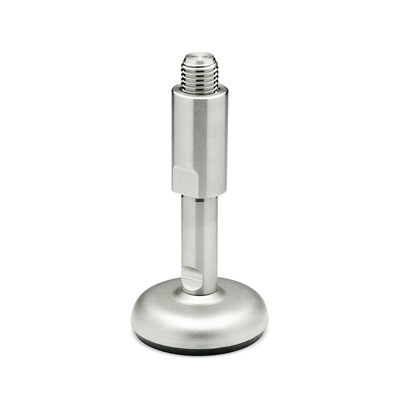

LMRS.

Levelling Elements

Teknisk datablad
CE.72471-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 26 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 409632
    Description LMRS.100-SST-M16-130
    Rotation
    —
    • —
    Position
    —
    • —
    D
    —
    • —
    L
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    l5
    —
    • —
    d1
    —
    • —
    d
    —
    • —
    Key s
    —
    • —
    Key s1
    —
    • —
    Load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 409632
    Description LMRS.100-SST-M16-130
    Rotation 0
    Position 1
    D 100
    L 130
    l 45
    l1 13
    l2 32
    l3 45
    l4 6
    l5 20
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 21000
    Weight 591
    Les mer
  • Code 409634
    Description LMRS.100-SST-M16-155
    Rotation 0
    Position 1
    D 100
    L 155
    l 45
    l1 13
    l2 32
    l3 45
    l4 6
    l5 20
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 21000
    Weight 631
    Les mer
  • Code 409636
    Description LMRS.100-SST-M16-180
    Rotation 0
    Position 1
    D 100
    L 180
    l 45
    l1 13
    l2 32
    l3 45
    l4 6
    l5 20
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 21000
    Weight 671
    Les mer
  • Code 409638
    Description LMRS.100-SST-M16-205
    Rotation 0
    Position 1
    D 100
    L 205
    l 45
    l1 13
    l2 32
    l3 45
    l4 6
    l5 20
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 21000
    Weight 711
    Les mer
  • Code 409652
    Description LMRS.100-SST-M20-155
    Rotation 0
    Position 1
    D 100
    L 155
    l 56
    l1 16
    l2 40
    l3 56
    l4 6
    l5 20
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 21000
    Weight 807
    Les mer
  • Code 409654
    Description LMRS.100-SST-M20-180
    Rotation 0
    Position 1
    D 100
    L 180
    l 56
    l1 16
    l2 40
    l3 56
    l4 6
    l5 20
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 21000
    Weight 869
    Les mer
  • Code 409656
    Description LMRS.100-SST-M20-205
    Rotation 0
    Position 1
    D 100
    L 205
    l 56
    l1 16
    l2 40
    l3 56
    l4 6
    l5 20
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 21000
    Weight 931
    Les mer
  • Code 409658
    Description LMRS.100-SST-M20-255
    Rotation 0
    Position 1
    D 100
    L 255
    l 56
    l1 16
    l2 40
    l3 56
    l4 6
    l5 20
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 21000
    Weight 1055
    Les mer
  • Code 409672
    Description LMRS.100-SST-M24-179
    Rotation 0
    Position 1
    D 100
    L 179
    l 67
    l1 19
    l2 48
    l3 67
    l4 6
    l5 20
    d1 35
    d M24
    Key s 30
    Key s1 20
    Load 21000
    Weight 1112
    Les mer
  • Code 409674
    Description LMRS.100-SST-M24-229
    Rotation 0
    Position 1
    D 100
    L 229
    l 67
    l1 19
    l2 48
    l3 67
    l4 6
    l5 20
    d1 35
    d M24
    Key s 30
    Key s1 20
    Load 21000
    Weight 1231
    Les mer
  • Code 409676
    Description LMRS.100-SST-M24-279
    Rotation 0
    Position 1
    D 100
    L 279
    l 67
    l1 19
    l2 48
    l3 67
    l4 6
    l5 20
    d1 35
    d M24
    Key s 30
    Key s1 20
    Load 21000
    Weight 1470
    Les mer
  • Code 409432
    Description LMRS.60-SST-M16-125
    Rotation 0
    Position 1
    D 60
    L 125
    l 45
    l1 13
    l2 32
    l3 45
    l4 4
    l5 16
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 27000
    Weight 351
    Les mer
  • Code 409434
    Description LMRS.60-SST-M16-150
    Rotation 0
    Position 1
    D 60
    L 150
    l 45
    l1 13
    l2 32
    l3 45
    l4 4
    l5 16
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 27000
    Weight 391
    Les mer
  • Code 409436
    Description LMRS.60-SST-M16-175
    Rotation 0
    Position 1
    D 60
    L 175
    l 45
    l1 13
    l2 32
    l3 45
    l4 4
    l5 16
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 27000
    Weight 431
    Les mer
  • Code 409438
    Description LMRS.60-SST-M16-200
    Rotation 0
    Position 1
    D 60
    L 200
    l 45
    l1 13
    l2 32
    l3 45
    l4 4
    l5 16
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 27000
    Weight 471
    Les mer
  • Code 409532
    Description LMRS.80-SST-M16-128
    Rotation 0
    Position 1
    D 80
    L 128
    l 45
    l1 13
    l2 32
    l3 45
    l4 5
    l5 18
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 24000
    Weight 460
    Les mer
  • Code 409534
    Description LMRS.80-SST-M16-153
    Rotation 0
    Position 1
    D 80
    L 153
    l 45
    l1 13
    l2 32
    l3 45
    l4 5
    l5 18
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 24000
    Weight 500
    Les mer
  • Code 409536
    Description LMRS.80-SST-M16-178
    Rotation 0
    Position 1
    D 80
    L 178
    l 45
    l1 13
    l2 32
    l3 45
    l4 5
    l5 18
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 24000
    Weight 540
    Les mer
  • Code 409538
    Description LMRS.80-SST-M16-203
    Rotation 0
    Position 1
    D 80
    L 203
    l 45
    l1 13
    l2 32
    l3 45
    l4 5
    l5 18
    d1 24
    d M16
    Key s 20
    Key s1 12
    Load 24000
    Weight 580
    Les mer
  • Code 409552
    Description LMRS.80-SST-M20-152
    Rotation 0
    Position 1
    D 80
    L 152
    l 56
    l1 16
    l2 40
    l3 56
    l4 5
    l5 18
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 24000
    Weight 676
    Les mer
  • Code 409554
    Description LMRS.80-SST-M20-177
    Rotation 0
    Position 1
    D 80
    L 177
    l 56
    l1 16
    l2 40
    l3 56
    l4 5
    l5 18
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 24000
    Weight 738
    Les mer
  • Code 409556
    Description LMRS.80-SST-M20-202
    Rotation 0
    Position 1
    D 80
    L 202
    l 56
    l1 16
    l2 40
    l3 56
    l4 5
    l5 18
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 24000
    Weight 800
    Les mer
  • Code 409558
    Description LMRS.80-SST-M20-252
    Rotation 0
    Position 1
    D 80
    L 252
    l 56
    l1 16
    l2 40
    l3 56
    l4 5
    l5 18
    d1 30
    d M20
    Key s 24
    Key s1 16
    Load 24000
    Weight 924
    Les mer
  • Code 409572
    Description LMRS.80-SST-M24-176
    Rotation 0
    Position 1
    D 80
    L 176
    l 67
    l1 19
    l2 48
    l3 67
    l4 5
    l5 18
    d1 35
    d M24
    Key s 30
    Key s1 20
    Load 24000
    Weight 981
    Les mer
  • Code 409574
    Description LMRS.80-SST-M24-226
    Rotation 0
    Position 1
    D 80
    L 226
    l 67
    l1 19
    l2 48
    l3 67
    l4 5
    l5 18
    d1 35
    d M24
    Key s 30
    Key s1 20
    Load 24000
    Weight 1160
    Les mer
  • Code 409576
    Description LMRS.80-SST-M24-276
    Rotation 0
    Position 1
    D 80
    L 276
    l 67
    l1 19
    l2 48
    l3 67
    l4 5
    l5 18
    d1 35
    d M24
    Key s 30
    Key s1 20
    Load 24000
    Weight 1339
    Les mer
