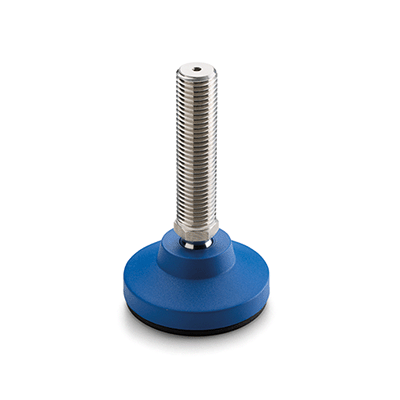

LS.A-SST-VD

Levelling Elements

Teknisk datablad
CE.72506-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 171 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 188111
    Description LS.A-25-14-AS-SST-M10x43-VD
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    h
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 188111
    Description LS.A-25-14-AS-SST-M10x43-VD
    Rotation 0
    D 25
    d M10
    L 67
    L1 70
    l 43
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 45
    Les mer
  • Code 188113
    Description LS.A-25-14-AS-SST-M10x68-VD
    Rotation 0
    D 25
    d M10
    L 92
    L1 95
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 58
    Les mer
  • Code 188115
    Description LS.A-25-14-AS-SST-M10x98-VD
    Rotation 0
    D 25
    d M10
    L 122
    L1 125
    l 98
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 72
    Les mer
  • Code 188121
    Description LS.A-25-14-AS-SST-M12x43-VD
    Rotation 0
    D 25
    d M12
    L 67
    L1 70
    l 43
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 55
    Les mer
  • Code 188123
    Description LS.A-25-14-AS-SST-M12x68-VD
    Rotation 0
    D 25
    d M12
    L 92
    L1 95
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 73
    Les mer
  • Code 188125
    Description LS.A-25-14-AS-SST-M12x98-VD
    Rotation 0
    D 25
    d M12
    L 122
    L1 125
    l 98
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 95
    Les mer
  • Code 188135
    Description LS.A-25-14-AS-SST-M14x148-VD
    Rotation 0
    D 25
    d M14
    L 172
    L1 175
    l 148
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 188
    Les mer
  • Code 188131
    Description LS.A-25-14-AS-SST-M14x68-VD
    Rotation 0
    D 25
    d M14
    L 92
    L1 95
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 84
    Les mer
  • Code 188133
    Description LS.A-25-14-AS-SST-M14x98-VD
    Rotation 0
    D 25
    d M14
    L 122
    L1 125
    l 98
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 105
    Les mer
  • Code 188143
    Description LS.A-25-14-AS-SST-M16x108-VD
    Rotation 0
    D 25
    d M16
    L 132
    L1 135
    l 108
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 169
    Les mer
  • Code 188145
    Description LS.A-25-14-AS-SST-M16x148-VD
    Rotation 0
    D 25
    d M16
    L 172
    L1 175
    l 148
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 222
    Les mer
  • Code 188147
    Description LS.A-25-14-AS-SST-M16x168-VD
    Rotation 0
    D 25
    d M16
    L 192
    L1 195
    l 168
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 249
    Les mer
  • Code 188141
    Description LS.A-25-14-AS-SST-M16x68-VD
    Rotation 0
    D 25
    d M16
    L 92
    L1 95
    l 68
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 118
    Les mer
  • Code 188101
    Description LS.A-25-14-AS-SST-M8x43-VD
    Rotation 0
    D 25
    d M8
    L 67
    L1 70
    l 43
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 35
    Les mer
  • Code 188103
    Description LS.A-25-14-AS-SST-M8x68-VD
    Rotation 0
    D 25
    d M8
    L 92
    L1 95
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 45
    Les mer
  • Code 187111
    Description LS.A-25-14-SST-M10x43-VD
    Rotation 0
    D 25
    d M10
    L 67
    L1 -
    l 43
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 43
    Les mer
  • Code 187113
    Description LS.A-25-14-SST-M10x68-VD
    Rotation 0
    D 25
    d M10
    L 92
    L1 -
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 56
    Les mer
  • Code 187115
    Description LS.A-25-14-SST-M10x98-VD
    Rotation 0
    D 25
    d M10
    L 122
    L1 -
    l 98
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 70
    Les mer
  • Code 187121
    Description LS.A-25-14-SST-M12x43-VD
    Rotation 0
    D 25
    d M12
    L 67
    L1 -
    l 43
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 53
    Les mer
  • Code 187123
    Description LS.A-25-14-SST-M12x68-VD
    Rotation 0
    D 25
    d M12
    L 92
    L1 -
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 71
    Les mer
  • Code 187125
    Description LS.A-25-14-SST-M12x98-VD
    Rotation 0
    D 25
    d M12
    L 122
    L1 -
    l 98
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 93
    Les mer
  • Code 187135
    Description LS.A-25-14-SST-M14x148-VD
    Rotation 0
    D 25
    d M14
    L 172
    L1 -
    l 148
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 188
    Les mer
  • Code 187131
    Description LS.A-25-14-SST-M14x68-VD
    Rotation 0
    D 25
    d M14
    L 92
    L1 -
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 84
    Les mer
  • Code 187133
    Description LS.A-25-14-SST-M14x98-VD
    Rotation 0
    D 25
    d M14
    L 122
    L1 -
    l 98
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 105
    Les mer
  • Code 187143
    Description LS.A-25-14-SST-M16x108-VD
    Rotation 0
    D 25
    d M16
    L 132
    L1 -
    l 108
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 167
    Les mer
  • Code 187145
    Description LS.A-25-14-SST-M16x148-VD
    Rotation 0
    D 25
    d M16
    L 172
    L1 -
    l 148
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 220
    Les mer
  • Code 187147
    Description LS.A-25-14-SST-M16x168-VD
    Rotation 0
    D 25
    d M16
    L 192
    L1 -
    l 168
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 247
    Les mer
  • Code 187141
    Description LS.A-25-14-SST-M16x68-VD
    Rotation 0
    D 25
    d M16
    L 92
    L1 -
    l 68
    l1 24
    h 12
    s 16
    Max limit static load 5000
    Weight 116
    Les mer
  • Code 187101
    Description LS.A-25-14-SST-M8x43-VD
    Rotation 0
    D 25
    d M8
    L 67
    L1 -
    l 43
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 33
    Les mer
  • Code 187103
    Description LS.A-25-14-SST-M8x68-VD
    Rotation 0
    D 25
    d M8
    L 92
    L1 -
    l 68
    l1 24
    h 12
    s 14
    Max limit static load 5000
    Weight 43
    Les mer
  • Code 188211
    Description LS.A-32-14-AS-SST-M10x43-VD
    Rotation 0
    D 32
    d M10
    L 68
    L1 71
    l 43
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 52
    Les mer
  • Code 188213
    Description LS.A-32-14-AS-SST-M10x68-VD
    Rotation 0
    D 32
    d M10
    L 93
    L1 96
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 65
    Les mer
  • Code 188215
    Description LS.A-32-14-AS-SST-M10x98-VD
    Rotation 0
    D 32
    d M10
    L 123
    L1 126
    l 98
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 79
    Les mer
  • Code 188221
    Description LS.A-32-14-AS-SST-M12x43-VD
    Rotation 0
    D 32
    d M12
    L 68
    L1 71
    l 43
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 62
    Les mer
  • Code 188223
    Description LS.A-32-14-AS-SST-M12x68-VD
    Rotation 0
    D 32
    d M12
    L 93
    L1 96
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 82
    Les mer
  • Code 188225
    Description LS.A-32-14-AS-SST-M12x98-VD
    Rotation 0
    D 32
    d M12
    L 123
    L1 126
    l 98
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 102
    Les mer
  • Code 188235
    Description LS.A-32-14-AS-SST-M14x148-VD
    Rotation 0
    D 32
    d M14
    L 173
    L1 176
    l 148
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 194
    Les mer
  • Code 188231
    Description LS.A-32-14-AS-SST-M14x68-VD
    Rotation 0
    D 32
    d M14
    L 93
    L1 96
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 90
    Les mer
  • Code 188233
    Description LS.A-32-14-AS-SST-M14x98-VD
    Rotation 0
    D 32
    d M14
    L 123
    L1 126
    l 98
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 111
    Les mer
  • Code 188243
    Description LS.A-32-14-AS-SST-M16x108-VD
    Rotation 0
    D 32
    d M16
    L 133
    L1 136
    l 108
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 179
    Les mer
  • Code 188245
    Description LS.A-32-14-AS-SST-M16x148-VD
    Rotation 0
    D 32
    d M16
    L 173
    L1 176
    l 148
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 232
    Les mer
  • Code 188247
    Description LS.A-32-14-AS-SST-M16x168-VD
    Rotation 0
    D 32
    d M16
    L 193
    L1 196
    l 168
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 259
    Les mer
  • Code 188241
    Description LS.A-32-14-AS-SST-M16x68-VD
    Rotation 0
    D 32
    d M16
    L 93
    L1 96
    l 68
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 125
    Les mer
  • Code 188201
    Description LS.A-32-14-AS-SST-M8x43-VD
    Rotation 0
    D 32
    d M8
    L 68
    L1 71
    l 43
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 42
    Les mer
  • Code 188203
    Description LS.A-32-14-AS-SST-M8x68-VD
    Rotation 0
    D 32
    d M8
    L 93
    L1 96
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 52
    Les mer
  • Code 187211
    Description LS.A-32-14-SST-M10x43-VD
    Rotation 0
    D 32
    d M10
    L 68
    L1 -
    l 43
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 48
    Les mer
  • Code 187213
    Description LS.A-32-14-SST-M10x68-VD
    Rotation 0
    D 32
    d M10
    L 93
    L1 -
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 61
    Les mer
  • Code 187215
    Description LS.A-32-14-SST-M10x98-VD
    Rotation 0
    D 32
    d M10
    L 123
    L1 -
    l 98
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 75
    Les mer
  • Code 187221
    Description LS.A-32-14-SST-M12x43-VD
    Rotation 0
    D 32
    d M12
    L 68
    L1 -
    l 43
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 58
    Les mer
  • Code 187223
    Description LS.A-32-14-SST-M12x68-VD
    Rotation 0
    D 32
    d M12
    L 93
    L1 -
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 78
    Les mer
  • Code 187225
    Description LS.A-32-14-SST-M12x98-VD
    Rotation 0
    D 32
    d M12
    L 123
    L1 -
    l 98
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 98
    Les mer
  • Code 187235
    Description LS.A-32-14-SST-M14x148-VD
    Rotation 0
    D 32
    d M14
    L 173
    L1 -
    l 148
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 194
    Les mer
  • Code 187231
    Description LS.A-32-14-SST-M14x68-VD
    Rotation 0
    D 32
    d M14
    L 93
    L1 -
    l 68
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 90
    Les mer
  • Code 187233
    Description LS.A-32-14-SST-M14x98-VD
    Rotation 0
    D 32
    d M14
    L 123
    L1 -
    l 98
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 111
    Les mer
  • Code 187243
    Description LS.A-32-14-SST-M16x108-VD
    Rotation 0
    D 32
    d M16
    L 133
    L1 -
    l 108
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 175
    Les mer
  • Code 187245
    Description LS.A-32-14-SST-M16x148-VD
    Rotation 0
    D 32
    d M16
    L 173
    L1 -
    l 148
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 228
    Les mer
  • Code 187247
    Description LS.A-32-14-SST-M16x168-VD
    Rotation 0
    D 32
    d M16
    L 193
    L1 -
    l 168
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 255
    Les mer
  • Code 187241
    Description LS.A-32-14-SST-M16x68-VD
    Rotation 0
    D 32
    d M16
    L 93
    L1 -
    l 68
    l1 25
    h 15
    s 16
    Max limit static load 7000
    Weight 121
    Les mer
  • Code 187201
    Description LS.A-32-14-SST-M8x43-VD
    Rotation 0
    D 32
    d M8
    L 68
    L1 -
    l 43
    l1 25
    h 15
    s 14
    Max limit static load 7000
    Weight 38
    Les mer
  • Code 188311
    Description LS.A-40-14-AS-SST-M10x43-VD
    Rotation 0
    D 40
    d M10
    L 68
    L1 71
    l 43
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 59
    Les mer
  • Code 188313
    Description LS.A-40-14-AS-SST-M10x68-VD
    Rotation 0
    D 40
    d M10
    L 93
    L1 96
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 72
    Les mer
  • Code 188315
    Description LS.A-40-14-AS-SST-M10x98-VD
    Rotation 0
    D 40
    d M10
    L 123
    L1 126
    l 98
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 86
    Les mer
  • Code 188321
    Description LS.A-40-14-AS-SST-M12x43-VD
    Rotation 0
    D 40
    d M12
    L 68
    L1 71
    l 43
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 69
    Les mer
  • Code 188323
    Description LS.A-40-14-AS-SST-M12x68-VD
    Rotation 0
    D 40
    d M12
    L 93
    L1 96
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 87
    Les mer
  • Code 188325
    Description LS.A-40-14-AS-SST-M12x98-VD
    Rotation 0
    D 40
    d M12
    L 123
    L1 126
    l 98
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 109
    Les mer
  • Code 188335
    Description LS.A-40-14-AS-SST-M14x148-VD
    Rotation 0
    D 40
    d M14
    L 173
    L1 176
    l 148
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 197
    Les mer
  • Code 188331
    Description LS.A-40-14-AS-SST-M14x68-VD
    Rotation 0
    D 40
    d M14
    L 93
    L1 96
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 93
    Les mer
  • Code 188333
    Description LS.A-40-14-AS-SST-M14x98-VD
    Rotation 0
    D 40
    d M14
    L 123
    L1 126
    l 98
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 114
    Les mer
  • Code 188343
    Description LS.A-40-14-AS-SST-M16x108-VD
    Rotation 0
    D 40
    d M16
    L 133
    L1 136
    l 108
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 186
    Les mer
  • Code 188345
    Description LS.A-40-14-AS-SST-M16x148-VD
    Rotation 0
    D 40
    d M16
    L 173
    L1 176
    l 148
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 239
    Les mer
  • Code 188347
    Description LS.A-40-14-AS-SST-M16x168-VD
    Rotation 0
    D 40
    d M16
    L 193
    L1 196
    l 168
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 266
    Les mer
  • Code 188341
    Description LS.A-40-14-AS-SST-M16x68-VD
    Rotation 0
    D 40
    d M16
    L 93
    L1 96
    l 68
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 132
    Les mer
  • Code 188301
    Description LS.A-40-14-AS-SST-M8x43-VD
    Rotation 0
    D 40
    d M8
    L 68
    L1 71
    l 43
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 49
    Les mer
  • Code 188303
    Description LS.A-40-14-AS-SST-M8x68-VD
    Rotation 0
    D 40
    d M8
    L 93
    L1 96
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 59
    Les mer
  • Code 187311
    Description LS.A-40-14-SST-M10x43-VD
    Rotation 0
    D 40
    d M10
    L 68
    L1 -
    l 43
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 52
    Les mer
  • Code 187313
    Description LS.A-40-14-SST-M10x68-VD
    Rotation 0
    D 40
    d M10
    L 93
    L1 -
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 65
    Les mer
  • Code 187315
    Description LS.A-40-14-SST-M10x98-VD
    Rotation 0
    D 40
    d M10
    L 123
    L1 -
    l 98
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 79
    Les mer
  • Code 187321
    Description LS.A-40-14-SST-M12x43-VD
    Rotation 0
    D 40
    d M12
    L 68
    L1 -
    l 43
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 62
    Les mer
  • Code 187323
    Description LS.A-40-14-SST-M12x68-VD
    Rotation 0
    D 40
    d M12
    L 93
    L1 -
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 80
    Les mer
  • Code 187325
    Description LS.A-40-14-SST-M12x98-VD
    Rotation 0
    D 40
    d M12
    L 123
    L1 -
    l 98
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 102
    Les mer
  • Code 187335
    Description LS.A-40-14-SST-M14x148-VD
    Rotation 0
    D 40
    d M14
    L 173
    L1 -
    l 148
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 197
    Les mer
  • Code 187331
    Description LS.A-40-14-SST-M14x68-VD
    Rotation 0
    D 40
    d M14
    L 93
    L1 -
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 93
    Les mer
  • Code 187333
    Description LS.A-40-14-SST-M14x98-VD
    Rotation 0
    D 40
    d M14
    L 123
    L1 -
    l 98
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 114
    Les mer
  • Code 187343
    Description LS.A-40-14-SST-M16x108-VD
    Rotation 0
    D 40
    d M16
    L 133
    L1 -
    l 108
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 179
    Les mer
  • Code 187345
    Description LS.A-40-14-SST-M16x148-VD
    Rotation 0
    D 40
    d M16
    L 173
    L1 -
    l 148
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 232
    Les mer
  • Code 187347
    Description LS.A-40-14-SST-M16x168-VD
    Rotation 0
    D 40
    d M16
    L 193
    L1 -
    l 168
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 259
    Les mer
  • Code 187341
    Description LS.A-40-14-SST-M16x68-VD
    Rotation 0
    D 40
    d M16
    L 93
    L1 -
    l 68
    l1 25
    h 17
    s 16
    Max limit static load 10000
    Weight 125
    Les mer
  • Code 187301
    Description LS.A-40-14-SST-M8x43-VD
    Rotation 0
    D 40
    d M8
    L 68
    L1 -
    l 43
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 42
    Les mer
  • Code 187303
    Description LS.A-40-14-SST-M8x68-VD
    Rotation 0
    D 40
    d M8
    L 93
    L1 -
    l 68
    l1 25
    h 17
    s 14
    Max limit static load 10000
    Weight 52
    Les mer
  • Code 188411
    Description LS.A-50-14-AS-SST-M10x43-VD
    Rotation 0
    D 50
    d M10
    L 70
    L1 73
    l 43
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 71
    Les mer
  • Code 188413
    Description LS.A-50-14-AS-SST-M10x68-VD
    Rotation 0
    D 50
    d M10
    L 95
    L1 98
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 84
    Les mer
  • Code 188415
    Description LS.A-50-14-AS-SST-M10x98-VD
    Rotation 0
    D 50
    d M10
    L 125
    L1 128
    l 98
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 98
    Les mer
  • Code 188421
    Description LS.A-50-14-AS-SST-M12x43-VD
    Rotation 0
    D 50
    d M12
    L 70
    L1 73
    l 43
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 81
    Les mer
  • Code 188423
    Description LS.A-50-14-AS-SST-M12x68-VD
    Rotation 0
    D 50
    d M12
    L 95
    L1 98
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 99
    Les mer
  • Code 188425
    Description LS.A-50-14-AS-SST-M12x98-VD
    Rotation 0
    D 50
    d M12
    L 125
    L1 128
    l 98
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 121
    Les mer
  • Code 188435
    Description LS.A-50-14-AS-SST-M14x148-VD
    Rotation 0
    D 50
    d M14
    L 175
    L1 178
    l 148
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 204
    Les mer
  • Code 188431
    Description LS.A-50-14-AS-SST-M14x68-VD
    Rotation 0
    D 50
    d M14
    L 95
    L1 98
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 188433
    Description LS.A-50-14-AS-SST-M14x98-VD
    Rotation 0
    D 50
    d M14
    L 125
    L1 128
    l 98
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 121
    Les mer
  • Code 188443
    Description LS.A-50-14-AS-SST-M16x108-VD
    Rotation 0
    D 50
    d M16
    L 135
    L1 138
    l 108
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 197
    Les mer
  • Code 188445
    Description LS.A-50-14-AS-SST-M16x148-VD
    Rotation 0
    D 50
    d M16
    L 175
    L1 178
    l 148
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 251
    Les mer
  • Code 188447
    Description LS.A-50-14-AS-SST-M16x168-VD
    Rotation 0
    D 50
    d M16
    L 195
    L1 198
    l 168
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 278
    Les mer
  • Code 188441
    Description LS.A-50-14-AS-SST-M16x68-VD
    Rotation 0
    D 50
    d M16
    L 95
    L1 98
    l 68
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 144
    Les mer
  • Code 188401
    Description LS.A-50-14-AS-SST-M8x43-VD
    Rotation 0
    D 50
    d M8
    L 70
    L1 73
    l 43
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 61
    Les mer
  • Code 188403
    Description LS.A-50-14-AS-SST-M8x68-VD
    Rotation 0
    D 50
    d M8
    L 95
    L1 98
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 71
    Les mer
  • Code 187411
    Description LS.A-50-14-SST-M10x43-VD
    Rotation 0
    D 50
    d M10
    L 70
    L1 -
    l 43
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 59
    Les mer
  • Code 187413
    Description LS.A-50-14-SST-M10x68-VD
    Rotation 0
    D 50
    d M10
    L 95
    L1 -
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 72
    Les mer
  • Code 187415
    Description LS.A-50-14-SST-M10x98-VD
    Rotation 0
    D 50
    d M10
    L 125
    L1 -
    l 98
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 86
    Les mer
  • Code 187421
    Description LS.A-50-14-SST-M12x43-VD
    Rotation 0
    D 50
    d M12
    L 70
    L1 -
    l 43
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 69
    Les mer
  • Code 187423
    Description LS.A-50-14-SST-M12x68-VD
    Rotation 0
    D 50
    d M12
    L 95
    L1 -
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 87
    Les mer
  • Code 187425
    Description LS.A-50-14-SST-M12x98-VD
    Rotation 0
    D 50
    d M12
    L 125
    L1 -
    l 98
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 109
    Les mer
  • Code 187435
    Description LS.A-50-14-SST-M14x148-VD
    Rotation 0
    D 50
    d M14
    L 175
    L1 -
    l 148
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 204
    Les mer
  • Code 187431
    Description LS.A-50-14-SST-M14x68-VD
    Rotation 0
    D 50
    d M14
    L 95
    L1 -
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 100
    Les mer
  • Code 187433
    Description LS.A-50-14-SST-M14x98-VD
    Rotation 0
    D 50
    d M14
    L 125
    L1 -
    l 98
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 121
    Les mer
  • Code 187443
    Description LS.A-50-14-SST-M16x108-VD
    Rotation 0
    D 50
    d M16
    L 135
    L1 -
    l 108
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 185
    Les mer
  • Code 187445
    Description LS.A-50-14-SST-M16x148-VD
    Rotation 0
    D 50
    d M16
    L 175
    L1 -
    l 148
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 239
    Les mer
  • Code 187447
    Description LS.A-50-14-SST-M16x168-VD
    Rotation 0
    D 50
    d M16
    L 195
    L1 -
    l 168
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 266
    Les mer
  • Code 187441
    Description LS.A-50-14-SST-M16x68-VD
    Rotation 0
    D 50
    d M16
    L 95
    L1 -
    l 68
    l1 27
    h 19
    s 16
    Max limit static load 10000
    Weight 132
    Les mer
  • Code 187401
    Description LS.A-50-14-SST-M8x43-VD
    Rotation 0
    D 50
    d M8
    L 70
    L1 -
    l 43
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 49
    Les mer
  • Code 187403
    Description LS.A-50-14-SST-M8x68-VD
    Rotation 0
    D 50
    d M8
    L 95
    L1 -
    l 68
    l1 27
    h 19
    s 14
    Max limit static load 10000
    Weight 59
    Les mer
  • Code 188511
    Description LS.A-60-14-AS-SST-M10x43-VD
    Rotation 0
    D 60
    d M10
    L 76
    L1 79
    l 43
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 90
    Les mer
  • Code 188513
    Description LS.A-60-14-AS-SST-M10x68-VD
    Rotation 0
    D 60
    d M10
    L 101
    L1 104
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 103
    Les mer
  • Code 188515
    Description LS.A-60-14-AS-SST-M10x98-VD
    Rotation 0
    D 60
    d M10
    L 131
    L1 134
    l 98
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 117
    Les mer
  • Code 188521
    Description LS.A-60-14-AS-SST-M12x43-VD
    Rotation 0
    D 60
    d M12
    L 76
    L1 79
    l 43
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 100
    Les mer
  • Code 188523
    Description LS.A-60-14-AS-SST-M12x68-VD
    Rotation 0
    D 60
    d M12
    L 101
    L1 104
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 118
    Les mer
  • Code 188525
    Description LS.A-60-14-AS-SST-M12x98-VD
    Rotation 0
    D 60
    d M12
    L 131
    L1 134
    l 98
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 140
    Les mer
  • Code 188535
    Description LS.A-60-14-AS-SST-M14x148-VD
    Rotation 0
    D 60
    d M14
    L 181
    L1 184
    l 148
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 245
    Les mer
  • Code 188531
    Description LS.A-60-14-AS-SST-M14x68-VD
    Rotation 0
    D 60
    d M14
    L 101
    L1 104
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 141
    Les mer
  • Code 188533
    Description LS.A-60-14-AS-SST-M14x98-VD
    Rotation 0
    D 60
    d M14
    L 131
    L1 134
    l 98
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 162
    Les mer
  • Code 188543
    Description LS.A-60-14-AS-SST-M16x108-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 144
    l 108
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 217
    Les mer
  • Code 188545
    Description LS.A-60-14-AS-SST-M16x148-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 184
    l 148
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 270
    Les mer
  • Code 188547
    Description LS.A-60-14-AS-SST-M16x168-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 204
    l 168
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 297
    Les mer
  • Code 188541
    Description LS.A-60-14-AS-SST-M16x68-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 104
    l 68
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 163
    Les mer
  • Code 188501
    Description LS.A-60-14-AS-SST-M8x43-VD
    Rotation 0
    D 60
    d M8
    L 76
    L1 79
    l 43
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 81
    Les mer
  • Code 188503
    Description LS.A-60-14-AS-SST-M8x68-VD
    Rotation 0
    D 60
    d M8
    L 101
    L1 104
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 93
    Les mer
  • Code 187511
    Description LS.A-60-14-SST-M10x43-VD
    Rotation 0
    D 60
    d M10
    L 76
    L1 -
    l 43
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 73
    Les mer
  • Code 187513
    Description LS.A-60-14-SST-M10x68-VD
    Rotation 0
    D 60
    d M10
    L 101
    L1 -
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 86
    Les mer
  • Code 187515
    Description LS.A-60-14-SST-M10x98-VD
    Rotation 0
    D 60
    d M10
    L 131
    L1 -
    l 98
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 100
    Les mer
  • Code 187521
    Description LS.A-60-14-SST-M12x43-VD
    Rotation 0
    D 60
    d M12
    L 76
    L1 -
    l 43
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 83
    Les mer
  • Code 187523
    Description LS.A-60-14-SST-M12x68-VD
    Rotation 0
    D 60
    d M12
    L 101
    L1 -
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 187525
    Description LS.A-60-14-SST-M12x98-VD
    Rotation 0
    D 60
    d M12
    L 131
    L1 -
    l 98
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 123
    Les mer
  • Code 187535
    Description LS.A-60-14-SST-M14x148-VD
    Rotation 0
    D 60
    d M14
    L 181
    L1 -
    l 148
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 228
    Les mer
  • Code 187531
    Description LS.A-60-14-SST-M14x68-VD
    Rotation 0
    D 60
    d M14
    L 101
    L1 -
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 124
    Les mer
  • Code 187533
    Description LS.A-60-14-SST-M14x98-VD
    Rotation 0
    D 60
    d M14
    L 131
    L1 -
    l 98
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 145
    Les mer
  • Code 187543
    Description LS.A-60-14-SST-M16x108-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 -
    l 108
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 200
    Les mer
  • Code 187545
    Description LS.A-60-14-SST-M16x148-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 -
    l 148
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 253
    Les mer
  • Code 187547
    Description LS.A-60-14-SST-M16x168-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 -
    l 168
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 280
    Les mer
  • Code 187541
    Description LS.A-60-14-SST-M16x68-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 -
    l 68
    l1 33
    h 24
    s 16
    Max limit static load 14000
    Weight 146
    Les mer
  • Code 187501
    Description LS.A-60-14-SST-M8x43-VD
    Rotation 0
    D 60
    d M8
    L 76
    L1 -
    l 43
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 64
    Les mer
  • Code 187503
    Description LS.A-60-14-SST-M8x68-VD
    Rotation 0
    D 60
    d M8
    L 101
    L1 -
    l 68
    l1 33
    h 24
    s 14
    Max limit static load 14000
    Weight 76
    Les mer
  • Code 188555
    Description LS.A-60-24-AS-SST-M16x138-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 184
    l 138
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 330
    Les mer
  • Code 188557
    Description LS.A-60-24-AS-SST-M16x158-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 204
    l 158
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 358
    Les mer
  • Code 188551
    Description LS.A-60-24-AS-SST-M16x58-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 104
    l 58
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 226
    Les mer
  • Code 188553
    Description LS.A-60-24-AS-SST-M16x98-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 144
    l 98
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 279
    Les mer
  • Code 188563
    Description LS.A-60-24-AS-SST-M20x138-VD
    Rotation 0
    D 60
    d M20
    L 181
    L1 184
    l 138
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 432
    Les mer
  • Code 188565
    Description LS.A-60-24-AS-SST-M20x158-VD
    Rotation 0
    D 60
    d M20
    L 201
    L1 204
    l 158
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 472
    Les mer
  • Code 188567
    Description LS.A-60-24-AS-SST-M20x198-VD
    Rotation 0
    D 60
    d M20
    L 241
    L1 244
    l 198
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 558
    Les mer
  • Code 188561
    Description LS.A-60-24-AS-SST-M20x98-VD
    Rotation 0
    D 60
    d M20
    L 141
    L1 144
    l 98
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 351
    Les mer
  • Code 188573
    Description LS.A-60-24-AS-SST-M24x158-VD
    Rotation 0
    D 60
    d M24
    L 201
    L1 204
    l 158
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 629
    Les mer
  • Code 188575
    Description LS.A-60-24-AS-SST-M24x198-VD
    Rotation 0
    D 60
    d M24
    L 241
    L1 244
    l 198
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 751
    Les mer
  • Code 188571
    Description LS.A-60-24-AS-SST-M24x98-VD
    Rotation 0
    D 60
    d M24
    L 141
    L1 144
    l 98
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 452
    Les mer
  • Code 187555
    Description LS.A-60-24-SST-M16x138-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 -
    l 138
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 313
    Les mer
  • Code 187557
    Description LS.A-60-24-SST-M16x158-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 -
    l 158
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 341
    Les mer
  • Code 187551
    Description LS.A-60-24-SST-M16x58-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 -
    l 58
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 209
    Les mer
  • Code 187553
    Description LS.A-60-24-SST-M16x98-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 -
    l 98
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 262
    Les mer
  • Code 187563
    Description LS.A-60-24-SST-M20x138-VD
    Rotation 0
    D 60
    d M20
    L 181
    L1 -
    l 138
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 415
    Les mer
  • Code 187565
    Description LS.A-60-24-SST-M20x158-VD
    Rotation 0
    D 60
    d M20
    L 201
    L1 -
    l 158
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 455
    Les mer
  • Code 187567
    Description LS.A-60-24-SST-M20x198-VD
    Rotation 0
    D 60
    d M20
    L 241
    L1 -
    l 198
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 541
    Les mer
  • Code 187561
    Description LS.A-60-24-SST-M20x98-VD
    Rotation 0
    D 60
    d M20
    L 141
    L1 -
    l 98
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 334
    Les mer
  • Code 187573
    Description LS.A-60-24-SST-M24x158-VD
    Rotation 0
    D 60
    d M24
    L 201
    L1 -
    l 158
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 612
    Les mer
  • Code 187575
    Description LS.A-60-24-SST-M24x198-VD
    Rotation 0
    D 60
    d M24
    L 241
    L1 -
    l 198
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 734
    Les mer
  • Code 187571
    Description LS.A-60-24-SST-M24x98-VD
    Rotation 0
    D 60
    d M24
    L 141
    L1 -
    l 98
    l1 43
    h 24
    s 24
    Max limit static load 18000
    Weight 435
    Les mer
Handlekurv
Skroll til toppen
