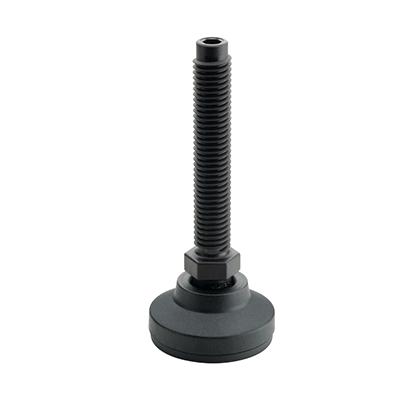

LS.A-STP

Levelling Elements

Teknisk datablad
CE.72507-gw12

Viser alle 80 resultater

    Code 346223
    Description LS.A-25-14-AS-STP-M10x44
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    a
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 346223
    Description LS.A-25-14-AS-STP-M10x44
    Rotation 0
    D 25
    d M10
    L 69
    L1 72
    l 44
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 15.5
    Les mer
  • Code 346227
    Description LS.A-25-14-AS-STP-M10x69
    Rotation 0
    D 25
    d M10
    L 94
    L1 97
    l 69
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 18
    Les mer
  • Code 346233
    Description LS.A-25-14-AS-STP-M10x99
    Rotation 0
    D 25
    d M10
    L 124
    L1 127
    l 99
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 21
    Les mer
  • Code 346323
    Description LS.A-25-14-AS-STP-M12x44
    Rotation 0
    D 25
    d M12
    L 69
    L1 72
    l 44
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 17
    Les mer
  • Code 346327
    Description LS.A-25-14-AS-STP-M12x69
    Rotation 0
    D 25
    d M12
    L 94
    L1 97
    l 69
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 21
    Les mer
  • Code 346333
    Description LS.A-25-14-AS-STP-M12x99
    Rotation 0
    D 25
    d M12
    L 124
    L1 127
    l 99
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 25.5
    Les mer
  • Code 346123
    Description LS.A-25-14-AS-STP-M8x44
    Rotation 0
    D 25
    d M8
    L 69
    L1 72
    l 44
    l1 25
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 14
    Les mer
  • Code 346127
    Description LS.A-25-14-AS-STP-M8x69
    Rotation 0
    D 25
    d M8
    L 94
    L1 97
    l 69
    l1 25
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 15.5
    Les mer
  • Code 341223
    Description LS.A-25-14-STP-M10x44
    Rotation 0
    D 25
    d M10
    L 68
    L1 -
    l 44
    l1 24
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 13.5
    Les mer
  • Code 341227
    Description LS.A-25-14-STP-M10x69
    Rotation 0
    D 25
    d M10
    L 93
    L1 -
    l 69
    l1 24
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 16
    Les mer
  • Code 341233
    Description LS.A-25-14-STP-M10x99
    Rotation 0
    D 25
    d M10
    L 123
    L1 -
    l 99
    l1 24
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 19
    Les mer
  • Code 341323
    Description LS.A-25-14-STP-M12x44
    Rotation 0
    D 25
    d M12
    L 68
    L1 -
    l 44
    l1 24
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 15
    Les mer
  • Code 341327
    Description LS.A-25-14-STP-M12x69
    Rotation 0
    D 25
    d M12
    L 93
    L1 -
    l 69
    l1 24
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 19
    Les mer
  • Code 341333
    Description LS.A-25-14-STP-M12x99
    Rotation 0
    D 25
    d M12
    L 123
    L1 -
    l 99
    l1 24
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 23.5
    Les mer
  • Code 341123
    Description LS.A-25-14-STP-M8x44
    Rotation 0
    D 25
    d M8
    L 68
    L1 -
    l 44
    l1 24
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 28
    Les mer
  • Code 341127
    Description LS.A-25-14-STP-M8x69
    Rotation 0
    D 25
    d M8
    L 93
    L1 -
    l 69
    l1 24
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 13.5
    Les mer
  • Code 347223
    Description LS.A-32-14-AS-STP-M10x44
    Rotation 0
    D 32
    d M10
    L 70
    L1 73
    l 44
    l1 26
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 21.5
    Les mer
  • Code 347227
    Description LS.A-32-14-AS-STP-M10x69
    Rotation 0
    D 32
    d M10
    L 95
    L1 98
    l 69
    l1 26
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 24
    Les mer
  • Code 347233
    Description LS.A-32-14-AS-STP-M10x99
    Rotation 0
    D 32
    d M10
    L 125
    L1 128
    l 99
    l1 26
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 27
    Les mer
  • Code 347323
    Description LS.A-32-14-AS-STP-M12x44
    Rotation 0
    D 32
    d M12
    L 70
    L1 73
    l 44
    l1 26
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 23
    Les mer
  • Code 347327
    Description LS.A-32-14-AS-STP-M12x69
    Rotation 0
    D 32
    d M12
    L 95
    L1 98
    l 69
    l1 26
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 27
    Les mer
  • Code 347333
    Description LS.A-32-14-AS-STP-M12x99
    Rotation 0
    D 32
    d M12
    L 125
    L1 128
    l 99
    l1 26
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 31.5
    Les mer
  • Code 347123
    Description LS.A-32-14-AS-STP-M8x44
    Rotation 0
    D 32
    d M8
    L 70
    L1 73
    l 44
    l1 26
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 20
    Les mer
  • Code 347127
    Description LS.A-32-14-AS-STP-M8x69
    Rotation 0
    D 32
    d M8
    L 95
    L1 98
    l 69
    l1 26
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 21.5
    Les mer
  • Code 342223
    Description LS.A-32-14-STP-M10x44
    Rotation 0
    D 32
    d M10
    L 69
    L1 -
    l 44
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 17.5
    Les mer
  • Code 342227
    Description LS.A-32-14-STP-M10x69
    Rotation 0
    D 32
    d M10
    L 94
    L1 -
    l 69
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 20
    Les mer
  • Code 342233
    Description LS.A-32-14-STP-M10x99
    Rotation 0
    D 32
    d M10
    L 124
    L1 -
    l 99
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 23
    Les mer
  • Code 342323
    Description LS.A-32-14-STP-M12x44
    Rotation 0
    D 32
    d M12
    L 69
    L1 -
    l 44
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 19
    Les mer
  • Code 342327
    Description LS.A-32-14-STP-M12x69
    Rotation 0
    D 32
    d M12
    L 94
    L1 -
    l 69
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 23
    Les mer
  • Code 342333
    Description LS.A-32-14-STP-M12x99
    Rotation 0
    D 32
    d M12
    L 124
    L1 -
    l 99
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 27.5
    Les mer
  • Code 342123
    Description LS.A-32-14-STP-M8x44
    Rotation 0
    D 32
    d M8
    L 69
    L1 -
    l 44
    l1 25
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 16
    Les mer
  • Code 342127
    Description LS.A-32-14-STP-M8x69
    Rotation 0
    D 32
    d M8
    L 94
    L1 -
    l 69
    l1 25
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 17.5
    Les mer
  • Code 348223
    Description LS.A-40-14-AS-STP-M10x44
    Rotation 0
    D 40
    d M10
    L 69.5
    L1 72.5
    l 44
    l1 26
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 29.5
    Les mer
  • Code 348227
    Description LS.A-40-14-AS-STP-M10x69
    Rotation 0
    D 40
    d M10
    L 94.5
    L1 97.5
    l 69
    l1 26
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 32
    Les mer
  • Code 348233
    Description LS.A-40-14-AS-STP-M10x99
    Rotation 0
    D 40
    d M10
    L 124.5
    L1 127.5
    l 99
    l1 26
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 35
    Les mer
  • Code 348323
    Description LS.A-40-14-AS-STP-M12x44
    Rotation 0
    D 40
    d M12
    L 69.5
    L1 72.5
    l 44
    l1 26
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 31
    Les mer
  • Code 348327
    Description LS.A-40-14-AS-STP-M12x69
    Rotation 0
    D 40
    d M12
    L 94.5
    L1 97.5
    l 69
    l1 26
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 35
    Les mer
  • Code 348333
    Description LS.A-40-14-AS-STP-M12x99
    Rotation 0
    D 40
    d M12
    L 124.5
    L1 127.5
    l 99
    l1 26
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 39.5
    Les mer
  • Code 348123
    Description LS.A-40-14-AS-STP-M8x44
    Rotation 0
    D 40
    d M8
    L 69.5
    L1 72.5
    l 44
    l1 26
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 28
    Les mer
  • Code 348127
    Description LS.A-40-14-AS-STP-M8x69
    Rotation 0
    D 40
    d M8
    L 94.5
    L1 97.5
    l 69
    l1 26
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 29.5
    Les mer
  • Code 343223
    Description LS.A-40-14-STP-M10x44
    Rotation 0
    D 40
    d M10
    L 69
    L1 -
    l 44
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 22.5
    Les mer
  • Code 343227
    Description LS.A-40-14-STP-M10x69
    Rotation 0
    D 40
    d M10
    L 94
    L1 -
    l 69
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 25
    Les mer
  • Code 343233
    Description LS.A-40-14-STP-M10x99
    Rotation 0
    D 40
    d M10
    L 124
    L1 -
    l 99
    l1 25
    l2 6
    h 17
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 28
    Les mer
  • Code 343323
    Description LS.A-40-14-STP-M12x44
    Rotation 0
    D 40
    d M12
    L 69
    L1 -
    l 44
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 24
    Les mer
  • Code 343327
    Description LS.A-40-14-STP-M12x69
    Rotation 0
    D 40
    d M12
    L 94
    L1 -
    l 69
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 28
    Les mer
  • Code 343333
    Description LS.A-40-14-STP-M12x99
    Rotation 0
    D 40
    d M12
    L 124
    L1 -
    l 99
    l1 25
    l2 7
    h 17
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 32.5
    Les mer
  • Code 343123
    Description LS.A-40-14-STP-M8x44
    Rotation 0
    D 40
    d M8
    L 69
    L1 -
    l 44
    l1 25
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 21
    Les mer
  • Code 343127
    Description LS.A-40-14-STP-M8x69
    Rotation 0
    D 40
    d M8
    L 94
    L1 -
    l 69
    l1 25
    l2 5
    h 17
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 22.5
    Les mer
  • Code 349223
    Description LS.A-50-14-AS-STP-M10x44
    Rotation 0
    D 50
    d M10
    L 72
    L1 75
    l 44
    l1 28
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 40.5
    Les mer
  • Code 349227
    Description LS.A-50-14-AS-STP-M10x69
    Rotation 0
    D 50
    d M10
    L 97
    L1 100
    l 69
    l1 28
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 43
    Les mer
  • Code 349233
    Description LS.A-50-14-AS-STP-M10x99
    Rotation 0
    D 50
    d M10
    L 127
    L1 130
    l 99
    l1 28
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 46
    Les mer
  • Code 349323
    Description LS.A-50-14-AS-STP-M12x44
    Rotation 0
    D 50
    d M12
    L 72
    L1 75
    l 44
    l1 28
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 42
    Les mer
  • Code 349327
    Description LS.A-50-14-AS-STP-M12x69
    Rotation 0
    D 50
    d M12
    L 97
    L1 100
    l 69
    l1 28
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 46
    Les mer
  • Code 349333
    Description LS.A-50-14-AS-STP-M12x99
    Rotation 0
    D 50
    d M12
    L 127
    L1 130
    l 99
    l1 28
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 50.5
    Les mer
  • Code 349123
    Description LS.A-50-14-AS-STP-M8x44
    Rotation 0
    D 50
    d M8
    L 72
    L1 75
    l 44
    l1 28
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 39
    Les mer
  • Code 349127
    Description LS.A-50-14-AS-STP-M8x69
    Rotation 0
    D 50
    d M8
    L 97
    L1 100
    l 69
    l1 28
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 40.5
    Les mer
  • Code 344223
    Description LS.A-50-14-STP-M10x44
    Rotation 0
    D 50
    d M10
    L 71
    L1 -
    l 44
    l1 27
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 28.5
    Les mer
  • Code 344227
    Description LS.A-50-14-STP-M10x69
    Rotation 0
    D 50
    d M10
    L 96
    L1 -
    l 69
    l1 27
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 31
    Les mer
  • Code 344233
    Description LS.A-50-14-STP-M10x99
    Rotation 0
    D 50
    d M10
    L 126
    L1 -
    l 99
    l1 27
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 34
    Les mer
  • Code 344323
    Description LS.A-50-14-STP-M12x44
    Rotation 0
    D 50
    d M12
    L 71
    L1 -
    l 44
    l1 27
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 30
    Les mer
  • Code 344327
    Description LS.A-50-14-STP-M12x69
    Rotation 0
    D 50
    d M12
    L 96
    L1 -
    l 69
    l1 27
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 34
    Les mer
  • Code 344333
    Description LS.A-50-14-STP-M12x99
    Rotation 0
    D 50
    d M12
    L 126
    L1 -
    l 99
    l1 27
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 38.5
    Les mer
  • Code 344123
    Description LS.A-50-14-STP-M8x44
    Rotation 0
    D 50
    d M8
    L 71
    L1 -
    l 44
    l1 27
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 27
    Les mer
  • Code 344127
    Description LS.A-50-14-STP-M8x69
    Rotation 0
    D 50
    d M8
    L 96
    L1 -
    l 69
    l1 27
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 28.5
    Les mer
  • Code 349623
    Description LS.A-60-14-AS-STP-M10x44
    Rotation 0
    D 60
    d M10
    L 79
    L1 82
    l 44
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 59.5
    Les mer
  • Code 349627
    Description LS.A-60-14-AS-STP-M10x69
    Rotation 0
    D 60
    d M10
    L 104
    L1 107
    l 69
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 62
    Les mer
  • Code 349633
    Description LS.A-60-14-AS-STP-M10x99
    Rotation 0
    D 60
    d M10
    L 134
    L1 137
    l 99
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 65
    Les mer
  • Code 349723
    Description LS.A-60-14-AS-STP-M12x44
    Rotation 0
    D 60
    d M12
    L 79
    L1 82
    l 44
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 61
    Les mer
  • Code 349727
    Description LS.A-60-14-AS-STP-M12x69
    Rotation 0
    D 60
    d M12
    L 104
    L1 107
    l 69
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 65
    Les mer
  • Code 349733
    Description LS.A-60-14-AS-STP-M12x99
    Rotation 0
    D 60
    d M12
    L 134
    L1 137
    l 99
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 69.5
    Les mer
  • Code 349613
    Description LS.A-60-14-AS-STP-M8x44
    Rotation 0
    D 60
    d M8
    L 79
    L1 82
    l 44
    l1 35
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 58
    Les mer
  • Code 349617
    Description LS.A-60-14-AS-STP-M8x69
    Rotation 0
    D 60
    d M8
    L 104
    L1 107
    l 69
    l1 35
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 59.5
    Les mer
  • Code 344623
    Description LS.A-60-14-STP-M10x44
    Rotation 0
    D 60
    d M10
    L 77
    L1 -
    l 44
    l1 33
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 42.5
    Les mer
  • Code 344627
    Description LS.A-60-14-STP-M10x69
    Rotation 0
    D 60
    d M10
    L 102
    L1 -
    l 69
    l1 33
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 45
    Les mer
  • Code 344633
    Description LS.A-60-14-STP-M10x99
    Rotation 0
    D 60
    d M10
    L 132
    L1 -
    l 99
    l1 33
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 48
    Les mer
  • Code 344723
    Description LS.A-60-14-STP-M12x44
    Rotation 0
    D 60
    d M12
    L 77
    L1 -
    l 44
    l1 33
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 44
    Les mer
  • Code 344727
    Description LS.A-60-14-STP-M12x69
    Rotation 0
    D 60
    d M12
    L 102
    L1 -
    l 69
    l1 33
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 48
    Les mer
  • Code 344733
    Description LS.A-60-14-STP-M12x99
    Rotation 0
    D 60
    d M12
    L 132
    L1 -
    l 99
    l1 33
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 52.5
    Les mer
  • Code 344613
    Description LS.A-60-14-STP-M8x44
    Rotation 0
    D 60
    d M8
    L 77
    L1 -
    l 44
    l1 33
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 41
    Les mer
  • Code 344617
    Description LS.A-60-14-STP-M8x69
    Rotation 0
    D 60
    d M8
    L 102
    L1 -
    l 69
    l1 33
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 42.5
    Les mer
Handlekurv
Skroll til toppen
