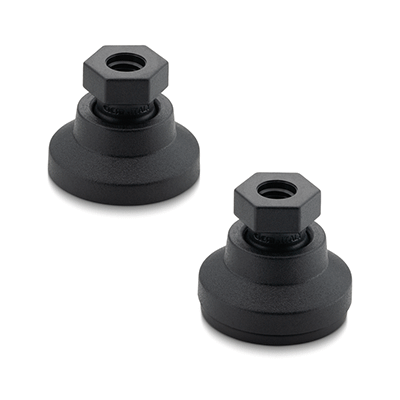

LS.A+SJF_COMBI

Levelling Elements

CE.72501-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 22 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 300277
    Description LS.A-25-14-AS+SJF-M8
    Rotation
    —
    • —
    D
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    a
    —
    • —
    Maximum tightening torque for the screw
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 300277
    Description LS.A-25-14-AS+SJF-M8
    Rotation 0
    D 25
    d1 M8
    L 25
    L1 28
    h 12
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 3700
    Weight 11
    Les mer
  • Code 300177
    Description LS.A-25-14+SJF-M8
    Rotation 0
    D 25
    d1 M8
    L 25
    h 12
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 3700
    Weight 9
    Les mer
  • Code 300281
    Description LS.A-32-14-AS+SJF-M6
    Rotation 0
    D 32
    d1 M6
    L 26
    L1 29
    h 15
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5000
    Weight 18
    Les mer
  • Code 300282
    Description LS.A-32-14-AS+SJF-M8
    Rotation 0
    D 32
    d1 M8
    L 26
    L1 29
    h 15
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6000
    Weight 17
    Les mer
  • Code 300181
    Description LS.A-32-14+SJF-M6
    Rotation 0
    D 32
    d1 M6
    L 26
    h 15
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5000
    Weight 17
    Les mer
  • Code 300182
    Description LS.A-32-14+SJF-M8
    Rotation 0
    D 32
    d1 M8
    L 26
    h 15
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6000
    Weight 13
    Les mer
  • Code 300286
    Description LS.A-40-14-AS+SJF-M6
    Rotation 0
    D 40
    d1 M6
    L 25.5
    L1 28.5
    h 17
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5600
    Weight 26
    Les mer
  • Code 300287
    Description LS.A-40-14-AS+SJF-M8
    Rotation 0
    D 40
    d1 M8
    L 25.5
    L1 28.5
    h 17
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6800
    Weight 25
    Les mer
  • Code 300186
    Description LS.A-40-14+SJF-M6
    Rotation 0
    D 40
    d1 M6
    L 25.5
    h 17
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5600
    Weight 19
    Les mer
  • Code 300187
    Description LS.A-40-14+SJF-M8
    Rotation 0
    D 40
    d1 M8
    L 25.5
    h 17
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6800
    Weight 18
    Les mer
  • Code 300291
    Description LS.A-50-14-AS+SJF-M6
    Rotation 0
    D 50
    d1 M6
    L 28
    L1 31
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 4600
    Weight 37
    Les mer
  • Code 300292
    Description LS.A-50-14-AS+SJF-M8
    Rotation 0
    D 50
    d1 M8
    L 28
    L1 31
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 5600
    Weight 36
    Les mer
  • Code 300191
    Description LS.A-50-14+SJF-M6
    Rotation 0
    D 50
    d1 M6
    L 28
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 4600
    Weight 25
    Les mer
  • Code 300192
    Description LS.A-50-14+SJF-M8
    Rotation 0
    D 50
    d1 M8
    L 28
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 5600
    Weight 24
    Les mer
  • Code 300296
    Description LS.A-60-14-AS+SJF-M6
    Rotation 0
    D 60
    d1 M6
    L 35
    L1 38
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5800
    Weight 56
    Les mer
  • Code 300297
    Description LS.A-60-14-AS+SJF-M8
    Rotation 0
    D 60
    d1 M8
    L 35
    L1 38
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6900
    Weight 55
    Les mer
  • Code 300196
    Description LS.A-60-14+SJF-M6
    Rotation 0
    D 60
    d1 M6
    L 35
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5800
    Weight 39
    Les mer
  • Code 300197
    Description LS.A-60-14+SJF-M8
    Rotation 0
    D 60
    d1 M8
    L 35
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6900
    Weight 38
    Les mer
  • Code 300298
    Description LS.A-60-24-AS+SJF-M10
    Rotation 0
    D 60
    d1 M10
    L 44
    L1 47
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 10500
    Weight 64
    Les mer
  • Code 300299
    Description LS.A-60-24-AS+SJF-M12
    Rotation 0
    D 60
    d1 M12
    L 44
    L1 47
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 10700
    Weight 63
    Les mer
  • Code 300198
    Description LS.A-60-24+SJF-M10
    Rotation 0
    D 60
    d1 M10
    L 44
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 10500
    Weight 47
    Les mer
  • Code 300199
    Description LS.A-60-24+SJF-M12
    Rotation 0
    D 60
    d1 M12
    L 44
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 10700
    Weight 46
    Les mer
