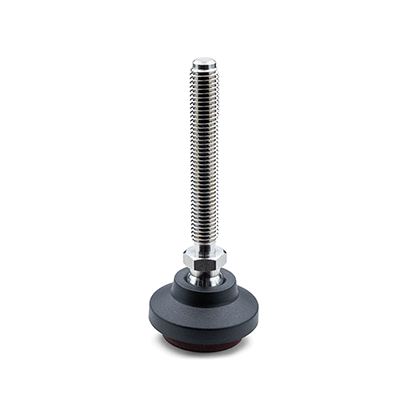

LS.VA-SST

Levelling Elements

Teknisk datablad
CE.72511-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 71 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 352222
    Description LS.VA-32-14-SST-M10x43
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    s
    —
    • —
    a
    —
    • —
    l2 0
    —
    • —
    l2 0.4
    —
    • —
    l2 0.6
    —
    • —
    Area damping insert
    —
    • —
    Static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 352222
    Description LS.VA-32-14-SST-M10x43
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 43
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 52
    Les mer
  • Code 352226
    Description LS.VA-32-14-SST-M10x68
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 65
    Les mer
  • Code 352232
    Description LS.VA-32-14-SST-M10x98
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 98
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 79
    Les mer
  • Code 352322
    Description LS.VA-32-14-SST-M12x43
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 43
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 62
    Les mer
  • Code 352326
    Description LS.VA-32-14-SST-M12x68
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 82
    Les mer
  • Code 352332
    Description LS.VA-32-14-SST-M12x98
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 98
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 102
    Les mer
  • Code 352442
    Description LS.VA-32-14-SST-M14x148
    Rotation 0
    D 32
    d M14
    d1 23.1
    l 148
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 203
    Les mer
  • Code 352422
    Description LS.VA-32-14-SST-M14x68
    Rotation 0
    D 32
    d M14
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 99
    Les mer
  • Code 352432
    Description LS.VA-32-14-SST-M14x98
    Rotation 0
    D 32
    d M14
    d1 23.1
    l 98
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 120
    Les mer
  • Code 352526
    Description LS.VA-32-14-SST-M16x108
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 108
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 179
    Les mer
  • Code 352542
    Description LS.VA-32-14-SST-M16x148
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 148
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 232
    Les mer
  • Code 352562
    Description LS.VA-32-14-SST-M16x168
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 168
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 259
    Les mer
  • Code 352522
    Description LS.VA-32-14-SST-M16x68
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 125
    Les mer
  • Code 352122
    Description LS.VA-32-14-SST-M8x43
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 43
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 42
    Les mer
  • Code 352126
    Description LS.VA-32-14-SST-M8x68
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 52
    Les mer
  • Code 353222
    Description LS.VA-40-14-SST-M10x43
    Rotation 0
    D 40
    d M10
    d1 30
    l 43
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 59
    Les mer
  • Code 353226
    Description LS.VA-40-14-SST-M10x68
    Rotation 0
    D 40
    d M10
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 72
    Les mer
  • Code 353232
    Description LS.VA-40-14-SST-M10x98
    Rotation 0
    D 40
    d M10
    d1 30
    l 98
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 86
    Les mer
  • Code 353322
    Description LS.VA-40-14-SST-M12x43
    Rotation 0
    D 40
    d M12
    d1 30
    l 43
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 69
    Les mer
  • Code 353326
    Description LS.VA-40-14-SST-M12x68
    Rotation 0
    D 40
    d M12
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 87
    Les mer
  • Code 353332
    Description LS.VA-40-14-SST-M12x98
    Rotation 0
    D 40
    d M12
    d1 30
    l 98
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 109
    Les mer
  • Code 353442
    Description LS.VA-40-14-SST-M14x148
    Rotation 0
    D 40
    d M14
    d1 30
    l 148
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 206
    Les mer
  • Code 353422
    Description LS.VA-40-14-SST-M14x68
    Rotation 0
    D 40
    d M14
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 102
    Les mer
  • Code 353432
    Description LS.VA-40-14-SST-M14x98
    Rotation 0
    D 40
    d M14
    d1 30
    l 98
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 123
    Les mer
  • Code 353526
    Description LS.VA-40-14-SST-M16x108
    Rotation 0
    D 40
    d M16
    d1 30
    l 108
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 186
    Les mer
  • Code 353542
    Description LS.VA-40-14-SST-M16x148
    Rotation 0
    D 40
    d M16
    d1 30
    l 148
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 239
    Les mer
  • Code 353562
    Description LS.VA-40-14-SST-M16x168
    Rotation 0
    D 40
    d M16
    d1 30
    l 168
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 266
    Les mer
  • Code 353522
    Description LS.VA-40-14-SST-M16x68
    Rotation 0
    D 40
    d M16
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 132
    Les mer
  • Code 353122
    Description LS.VA-40-14-SST-M8x43
    Rotation 0
    D 40
    d M8
    d1 30
    l 43
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 49
    Les mer
  • Code 353126
    Description LS.VA-40-14-SST-M8x68
    Rotation 0
    D 40
    d M8
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 59
    Les mer
  • Code 354222
    Description LS.VA-50-14-SST-M10x43
    Rotation 0
    D 50
    d M10
    d1 40
    l 43
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 71
    Les mer
  • Code 354226
    Description LS.VA-50-14-SST-M10x68
    Rotation 0
    D 50
    d M10
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 84
    Les mer
  • Code 354232
    Description LS.VA-50-14-SST-M10x98
    Rotation 0
    D 50
    d M10
    d1 40
    l 98
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 98
    Les mer
  • Code 354322
    Description LS.VA-50-14-SST-M12x43
    Rotation 0
    D 50
    d M12
    d1 40
    l 43
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 81
    Les mer
  • Code 354326
    Description LS.VA-50-14-SST-M12x68
    Rotation 0
    D 50
    d M12
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 99
    Les mer
  • Code 354332
    Description LS.VA-50-14-SST-M12x98
    Rotation 0
    D 50
    d M12
    d1 40
    l 98
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 121
    Les mer
  • Code 354442
    Description LS.VA-50-14-SST-M14x148
    Rotation 0
    D 50
    d M14
    d1 40
    l 148
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 218
    Les mer
  • Code 354422
    Description LS.VA-50-14-SST-M14x68
    Rotation 0
    D 50
    d M14
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 114
    Les mer
  • Code 354432
    Description LS.VA-50-14-SST-M14x98
    Rotation 0
    D 50
    d M14
    d1 40
    l 98
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 135
    Les mer
  • Code 354526
    Description LS.VA-50-14-SST-M16x108
    Rotation 0
    D 50
    d M16
    d1 40
    l 108
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 197
    Les mer
  • Code 354542
    Description LS.VA-50-14-SST-M16x148
    Rotation 0
    D 50
    d M16
    d1 40
    l 148
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 251
    Les mer
  • Code 354562
    Description LS.VA-50-14-SST-M16x168
    Rotation 0
    D 50
    d M16
    d1 40
    l 168
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 278
    Les mer
  • Code 354522
    Description LS.VA-50-14-SST-M16x68
    Rotation 0
    D 50
    d M16
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 144
    Les mer
  • Code 354122
    Description LS.VA-50-14-SST-M8x43
    Rotation 0
    D 50
    d M8
    d1 40
    l 43
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 61
    Les mer
  • Code 354126
    Description LS.VA-50-14-SST-M8x68
    Rotation 0
    D 50
    d M8
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 71
    Les mer
  • Code 355222
    Description LS.VA-60-14-SST-M10x43
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 43
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 90
    Les mer
  • Code 355226
    Description LS.VA-60-14-SST-M10x68
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 103
    Les mer
  • Code 355232
    Description LS.VA-60-14-SST-M10x98
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 98
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 117
    Les mer
  • Code 355322
    Description LS.VA-60-14-SST-M12x43
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 43
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 100
    Les mer
  • Code 355326
    Description LS.VA-60-14-SST-M12x68
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 118
    Les mer
  • Code 355332
    Description LS.VA-60-14-SST-M12x98
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 98
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 140
    Les mer
  • Code 355442
    Description LS.VA-60-14-SST-M14x148
    Rotation 0
    D 60
    d M14
    d1 50.5
    l 148
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 245
    Les mer
  • Code 355422
    Description LS.VA-60-14-SST-M14x68
    Rotation 0
    D 60
    d M14
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 141
    Les mer
  • Code 355432
    Description LS.VA-60-14-SST-M14x98
    Rotation 0
    D 60
    d M14
    d1 50.5
    l 98
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 162
    Les mer
  • Code 355526
    Description LS.VA-60-14-SST-M16x108
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 108
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 217
    Les mer
  • Code 355542
    Description LS.VA-60-14-SST-M16x148
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 148
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 270
    Les mer
  • Code 355562
    Description LS.VA-60-14-SST-M16x168
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 168
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 297
    Les mer
  • Code 355522
    Description LS.VA-60-14-SST-M16x68
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 163
    Les mer
  • Code 355122
    Description LS.VA-60-14-SST-M8x43
    Rotation 0
    D 60
    d M8
    d1 50.5
    l 43
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 81
    Les mer
  • Code 355126
    Description LS.VA-60-14-SST-M8x68
    Rotation 0
    D 60
    d M8
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 93
    Les mer
  • Code 355722
    Description LS.VA-60-24-SST-M16x138
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 138
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 330
    Les mer
  • Code 355726
    Description LS.VA-60-24-SST-M16x158
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 158
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 358
    Les mer
  • Code 355622
    Description LS.VA-60-24-SST-M16x58
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 58
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 226
    Les mer
  • Code 355626
    Description LS.VA-60-24-SST-M16x98
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 98
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 279
    Les mer
  • Code 355822
    Description LS.VA-60-24-SST-M20x138
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 138
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 432
    Les mer
  • Code 355826
    Description LS.VA-60-24-SST-M20x158
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 158
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 472
    Les mer
  • Code 355832
    Description LS.VA-60-24-SST-M20x198
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 198
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 558
    Les mer
  • Code 355732
    Description LS.VA-60-24-SST-M20x98
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 98
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 351
    Les mer
  • Code 355932
    Description LS.VA-60-24-SST-M24x158
    Rotation 0
    D 60
    d M24
    d1 50.5
    l 158
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 629
    Les mer
  • Code 355942
    Description LS.VA-60-24-SST-M24x198
    Rotation 0
    D 60
    d M24
    d1 50.5
    l 198
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 751
    Les mer
  • Code 355922
    Description LS.VA-60-24-SST-M24x98
    Rotation 0
    D 60
    d M24
    d1 50.5
    l 98
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 452
    Les mer
Handlekurv
Skroll til toppen
