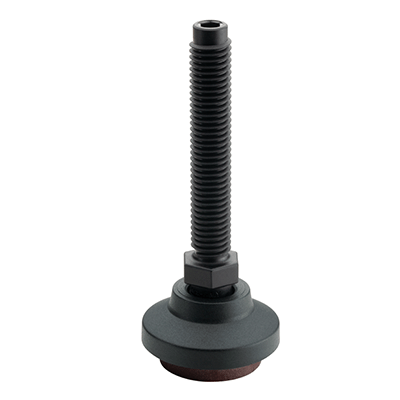

LS.VA-STP

Levelling Elements

Teknisk datablad
CE.72512-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 32 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 342224
    Description LS.VA-32-14-STP-M10x44
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    h
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    a
    —
    • —
    l2 0
    —
    • —
    l2 0.4
    —
    • —
    l2 0.6
    —
    • —
    Area damping insert
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 342224
    Description LS.VA-32-14-STP-M10x44
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 44
    l1 26
    l2 5.3
    l3 6
    h 17
    s 16
    s1 4
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 21.5
    Les mer
  • Code 342228
    Description LS.VA-32-14-STP-M10x69
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 69
    l1 26
    l2 5.3
    l3 6
    h 17
    s 16
    s1 4
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 24
    Les mer
  • Code 342234
    Description LS.VA-32-14-STP-M10x99
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 99
    l1 26
    l2 5.3
    l3 6
    h 17
    s 16
    s1 4
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 27
    Les mer
  • Code 342324
    Description LS.VA-32-14-STP-M12x44
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 44
    l1 26
    l2 5.3
    l3 7
    h 17
    s 16
    s1 5
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 23
    Les mer
  • Code 342328
    Description LS.VA-32-14-STP-M12x69
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 69
    l1 26
    l2 5.3
    l3 7
    h 17
    s 16
    s1 5
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 27
    Les mer
  • Code 342334
    Description LS.VA-32-14-STP-M12x99
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 99
    l1 26
    l2 5.3
    l3 7
    h 17
    s 16
    s1 5
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 31.5
    Les mer
  • Code 342124
    Description LS.VA-32-14-STP-M8x44
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 44
    l1 26
    l2 5.3
    l3 5
    h 17
    s 16
    s1 3
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 20
    Les mer
  • Code 342128
    Description LS.VA-32-14-STP-M8x69
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 69
    l1 26
    l2 5.3
    l3 5
    h 17
    s 16
    s1 3
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Max limit static load 96
    Weight 21.5
    Les mer
  • Code 343224
    Description LS.VA-40-14-STP-M10x44
    Rotation 0
    D 40
    d M10
    d1 30
    l 44
    l1 26
    l2 6
    l3 6
    h 17
    s 16
    s1 4
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 29.5
    Les mer
  • Code 343228
    Description LS.VA-40-14-STP-M10x69
    Rotation 0
    D 40
    d M10
    d1 30
    l 69
    l1 26
    l2 6
    l3 6
    h 17
    s 16
    s1 4
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 32
    Les mer
  • Code 343234
    Description LS.VA-40-14-STP-M10x99
    Rotation 0
    D 40
    d M10
    d1 30
    l 99
    l1 26
    l2 6
    l3 6
    h 17
    s 16
    s1 4
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 35
    Les mer
  • Code 343324
    Description LS.VA-40-14-STP-M12x44
    Rotation 0
    D 40
    d M12
    d1 30
    l 44
    l1 26
    l2 6
    l3 7
    h 17
    s 16
    s1 5
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 31
    Les mer
  • Code 343328
    Description LS.VA-40-14-STP-M12x69
    Rotation 0
    D 40
    d M12
    d1 30
    l 69
    l1 26
    l2 6
    l3 7
    h 17
    s 16
    s1 5
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 35
    Les mer
  • Code 343334
    Description LS.VA-40-14-STP-M12x99
    Rotation 0
    D 40
    d M12
    d1 30
    l 99
    l1 26
    l2 6
    l3 7
    h 17
    s 16
    s1 5
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 39.5
    Les mer
  • Code 343124
    Description LS.VA-40-14-STP-M8x44
    Rotation 0
    D 40
    d M8
    d1 30
    l 44
    l1 26
    l2 6
    l3 5
    h 17
    s 16
    s1 3
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 28
    Les mer
  • Code 343128
    Description LS.VA-40-14-STP-M8x69
    Rotation 0
    D 40
    d M8
    d1 30
    l 69
    l1 26
    l2 6
    l3 5
    h 17
    s 16
    s1 3
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Max limit static load 180
    Weight 29.5
    Les mer
  • Code 344224
    Description LS.VA-50-14-STP-M10x44
    Rotation 0
    D 50
    d M10
    d1 40
    l 44
    l1 28
    l2 6
    l3 6
    h 19
    s 16
    s1 4
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 40.5
    Les mer
  • Code 344228
    Description LS.VA-50-14-STP-M10x69
    Rotation 0
    D 50
    d M10
    d1 40
    l 69
    l1 28
    l2 6
    l3 6
    h 19
    s 16
    s1 4
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 43
    Les mer
  • Code 344234
    Description LS.VA-50-14-STP-M10x99
    Rotation 0
    D 50
    d M10
    d1 40
    l 99
    l1 28
    l2 6
    l3 6
    h 19
    s 16
    s1 4
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 46
    Les mer
  • Code 344324
    Description LS.VA-50-14-STP-M12x44
    Rotation 0
    D 50
    d M12
    d1 40
    l 44
    l1 28
    l2 6
    l3 7
    h 19
    s 16
    s1 5
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 42
    Les mer
  • Code 344328
    Description LS.VA-50-14-STP-M12x69
    Rotation 0
    D 50
    d M12
    d1 40
    l 69
    l1 28
    l2 6
    l3 7
    h 19
    s 16
    s1 5
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 46
    Les mer
  • Code 344334
    Description LS.VA-50-14-STP-M12x99
    Rotation 0
    D 50
    d M12
    d1 40
    l 99
    l1 28
    l2 6
    l3 7
    h 19
    s 16
    s1 5
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 50.5
    Les mer
  • Code 344124
    Description LS.VA-50-14-STP-M8x44
    Rotation 0
    D 50
    d M8
    d1 40
    l 44
    l1 28
    l2 6
    l3 5
    h 19
    s 16
    s1 3
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 39
    Les mer
  • Code 344128
    Description LS.VA-50-14-STP-M8x69
    Rotation 0
    D 50
    d M8
    d1 40
    l 69
    l1 28
    l2 6
    l3 5
    h 19
    s 16
    s1 3
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Max limit static load 400
    Weight 40.5
    Les mer
  • Code 344624
    Description LS.VA-60-14-STP-M10x44
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 44
    l1 35
    l2 5
    l3 6
    h 24
    s 16
    s1 4
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 54.5
    Les mer
  • Code 344628
    Description LS.VA-60-14-STP-M10x69
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 69
    l1 35
    l2 5
    l3 6
    h 24
    s 16
    s1 4
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 57
    Les mer
  • Code 344634
    Description LS.VA-60-14-STP-M10x99
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 99
    l1 35
    l2 5
    l3 6
    h 24
    s 16
    s1 4
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 60
    Les mer
  • Code 344724
    Description LS.VA-60-14-STP-M12x44
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 44
    l1 35
    l2 5
    l3 7
    h 24
    s 16
    s1 5
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 56
    Les mer
  • Code 344728
    Description LS.VA-60-14-STP-M12x69
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 69
    l1 35
    l2 5
    l3 7
    h 24
    s 16
    s1 5
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 60
    Les mer
  • Code 344734
    Description LS.VA-60-14-STP-M12x99
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 99
    l1 35
    l2 5
    l3 7
    h 24
    s 16
    s1 5
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 64.5
    Les mer
  • Code 344614
    Description LS.VA-60-14-STP-M8x44
    Rotation 0
    D 60
    d M8
    d1 50.5
    l 44
    l1 35
    l2 5
    l3 5
    h 24
    s 16
    s1 3
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 53
    Les mer
  • Code 344618
    Description LS.VA-60-14-STP-M8x69
    Rotation 0
    D 60
    d M8
    d1 50.5
    l 69
    l1 35
    l2 5
    l3 5
    h 24
    s 16
    s1 3
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Max limit static load 680
    Weight 54.5
    Les mer
