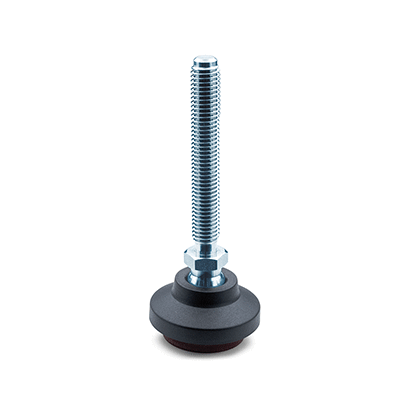

LS.VA

Levelling Elements

Teknisk datablad
CE.72508-gw12

Viser alle 95 resultater

    Code 342222
    Description LS.VA-32-14-M10x43
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    s
    —
    • —
    a
    —
    • —
    l2 0
    —
    • —
    l2 0.4
    —
    • —
    l2 0.6
    —
    • —
    Area damping insert
    —
    • —
    Static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 342222
    Description LS.VA-32-14-M10x43
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 43
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 51
    Les mer
  • Code 342226
    Description LS.VA-32-14-M10x68
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 63
    Les mer
  • Code 342232
    Description LS.VA-32-14-M10x98
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 98
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 77
    Les mer
  • Code 342322
    Description LS.VA-32-14-M12x43
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 43
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 61
    Les mer
  • Code 342326
    Description LS.VA-32-14-M12x68
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 78
    Les mer
  • Code 342332
    Description LS.VA-32-14-M12x98
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 98
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 99
    Les mer
  • Code 342442
    Description LS.VA-32-14-M14x148
    Rotation 0
    D 32
    d M14
    d1 23.1
    l 148
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 197
    Les mer
  • Code 342422
    Description LS.VA-32-14-M14x68
    Rotation 0
    D 32
    d M14
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 93
    Les mer
  • Code 342432
    Description LS.VA-32-14-M14x98
    Rotation 0
    D 32
    d M14
    d1 23.1
    l 98
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 114
    Les mer
  • Code 342526
    Description LS.VA-32-14-M16x108
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 108
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 174
    Les mer
  • Code 342542
    Description LS.VA-32-14-M16x148
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 148
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 44
    Les mer
  • Code 342562
    Description LS.VA-32-14-M16x168
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 168
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 54
    Les mer
  • Code 342522
    Description LS.VA-32-14-M16x68
    Rotation 0
    D 32
    d M16
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 16
    a 14
    l2 0 5.3
    l2 0.4 5.6
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 122
    Les mer
  • Code 342122
    Description LS.VA-32-14-M8x43
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 43
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 41
    Les mer
  • Code 342126
    Description LS.VA-32-14-M8x68
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 68
    l1 25
    l2 5.3
    h 15
    s 14
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 51
    Les mer
  • Code 341622
    Description LS.VA-32-8.5-M10x43
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 43
    l1 21.5
    l2 5.3
    h 15
    s 10
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 47
    Les mer
  • Code 341626
    Description LS.VA-32-8.5-M10x68
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 68
    l1 21.5
    l2 5.3
    h 15
    s 10
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 59
    Les mer
  • Code 341632
    Description LS.VA-32-8.5-M10x98
    Rotation 0
    D 32
    d M10
    d1 23.1
    l 98
    l1 21.5
    l2 5.3
    h 15
    s 10
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 73
    Les mer
  • Code 341722
    Description LS.VA-32-8.5-M12x43
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 43
    l1 21.5
    l2 5.3
    h 15
    s 12
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 57
    Les mer
  • Code 341726
    Description LS.VA-32-8.5-M12x68
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 68
    l1 21.5
    l2 5.3
    h 15
    s 12
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 74
    Les mer
  • Code 341732
    Description LS.VA-32-8.5-M12x98
    Rotation 0
    D 32
    d M12
    d1 23.1
    l 98
    l1 21.5
    l2 5.3
    h 15
    s 12
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 95
    Les mer
  • Code 341612
    Description LS.VA-32-8.5-M8x43
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 43
    l1 21.5
    l2 5.3
    h 15
    s 10
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 37
    Les mer
  • Code 341616
    Description LS.VA-32-8.5-M8x68
    Rotation 0
    D 32
    d M8
    d1 23.1
    l 68
    l1 21.5
    l2 5.3
    h 15
    s 10
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 47
    Les mer
  • Code 343222
    Description LS.VA-40-14-M10x43
    Rotation 0
    D 40
    d M10
    d1 30
    l 43
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 58
    Les mer
  • Code 343226
    Description LS.VA-40-14-M10x68
    Rotation 0
    D 40
    d M10
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 70
    Les mer
  • Code 343232
    Description LS.VA-40-14-M10x98
    Rotation 0
    D 40
    d M10
    d1 30
    l 98
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 84
    Les mer
  • Code 343322
    Description LS.VA-40-14-M12x43
    Rotation 0
    D 40
    d M12
    d1 30
    l 43
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 68
    Les mer
  • Code 343326
    Description LS.VA-40-14-M12x68
    Rotation 0
    D 40
    d M12
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 85
    Les mer
  • Code 343332
    Description LS.VA-40-14-M12x98
    Rotation 0
    D 40
    d M12
    d1 30
    l 98
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 106
    Les mer
  • Code 343442
    Description LS.VA-40-14-M14x148
    Rotation 0
    D 40
    d M14
    d1 30
    l 148
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 204
    Les mer
  • Code 343422
    Description LS.VA-40-14-M14x68
    Rotation 0
    D 40
    d M14
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 100
    Les mer
  • Code 343432
    Description LS.VA-40-14-M14x98
    Rotation 0
    D 40
    d M14
    d1 30
    l 98
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 121
    Les mer
  • Code 343526
    Description LS.VA-40-14-M16x108
    Rotation 0
    D 40
    d M16
    d1 30
    l 108
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 181
    Les mer
  • Code 343542
    Description LS.VA-40-14-M16x148
    Rotation 0
    D 40
    d M16
    d1 30
    l 148
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 233
    Les mer
  • Code 343562
    Description LS.VA-40-14-M16x168
    Rotation 0
    D 40
    d M16
    d1 30
    l 168
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 259
    Les mer
  • Code 343522
    Description LS.VA-40-14-M16x68
    Rotation 0
    D 40
    d M16
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 16
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 129
    Les mer
  • Code 343122
    Description LS.VA-40-14-M8x43
    Rotation 0
    D 40
    d M8
    d1 30
    l 43
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 48
    Les mer
  • Code 343126
    Description LS.VA-40-14-M8x68
    Rotation 0
    D 40
    d M8
    d1 30
    l 68
    l1 25
    l2 6
    h 17
    s 14
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 58
    Les mer
  • Code 342622
    Description LS.VA-40-8.5-M10x43
    Rotation 0
    D 40
    d M10
    d1 30
    l 43
    l1 23
    l2 6
    h 17
    s 10
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 54
    Les mer
  • Code 342626
    Description LS.VA-40-8.5-M10x68
    Rotation 0
    D 40
    d M10
    d1 30
    l 68
    l1 23
    l2 6
    h 17
    s 10
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 66
    Les mer
  • Code 342632
    Description LS.VA-40-8.5-M10x98
    Rotation 0
    D 40
    d M10
    d1 30
    l 98
    l1 23
    l2 6
    h 17
    s 10
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 80
    Les mer
  • Code 342722
    Description LS.VA-40-8.5-M12x43
    Rotation 0
    D 40
    d M12
    d1 30
    l 43
    l1 23
    l2 6
    h 17
    s 12
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 64
    Les mer
  • Code 342726
    Description LS.VA-40-8.5-M12x68
    Rotation 0
    D 40
    d M12
    d1 30
    l 68
    l1 23
    l2 6
    h 17
    s 12
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 81
    Les mer
  • Code 342732
    Description LS.VA-40-8.5-M12x98
    Rotation 0
    D 40
    d M12
    d1 30
    l 98
    l1 23
    l2 6
    h 17
    s 12
    a 8.5
    l2 0 6
    l2 0.4 5
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 102
    Les mer
  • Code 342612
    Description LS.VA-40-8.5-M8x43
    Rotation 0
    D 40
    d M8
    d1 30
    l 43
    l1 23
    l2 6
    h 17
    s 10
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 44
    Les mer
  • Code 342616
    Description LS.VA-40-8.5-M8x68
    Rotation 0
    D 40
    d M8
    d1 30
    l 68
    l1 23
    l2 6
    h 17
    s 10
    a 8.5
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 54
    Les mer
  • Code 344222
    Description LS.VA-50-14-M10x43
    Rotation 0
    D 50
    d M10
    d1 40
    l 43
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 70
    Les mer
  • Code 344226
    Description LS.VA-50-14-M10x68
    Rotation 0
    D 50
    d M10
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 82
    Les mer
  • Code 344232
    Description LS.VA-50-14-M10x98
    Rotation 0
    D 50
    d M10
    d1 40
    l 98
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 96
    Les mer
  • Code 344322
    Description LS.VA-50-14-M12x43
    Rotation 0
    D 50
    d M12
    d1 40
    l 43
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 80
    Les mer
  • Code 344326
    Description LS.VA-50-14-M12x68
    Rotation 0
    D 50
    d M12
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 97
    Les mer
  • Code 344332
    Description LS.VA-50-14-M12x98
    Rotation 0
    D 50
    d M12
    d1 40
    l 98
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 118
    Les mer
  • Code 344442
    Description LS.VA-50-14-M14x148
    Rotation 0
    D 50
    d M14
    d1 40
    l 148
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 216
    Les mer
  • Code 344422
    Description LS.VA-50-14-M14x68
    Rotation 0
    D 50
    d M14
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 112
    Les mer
  • Code 344432
    Description LS.VA-50-14-M14x98
    Rotation 0
    D 50
    d M14
    d1 40
    l 98
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 132
    Les mer
  • Code 344526
    Description LS.VA-50-14-M16x108
    Rotation 0
    D 50
    d M16
    d1 40
    l 108
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 193
    Les mer
  • Code 344542
    Description LS.VA-50-14-M16x148
    Rotation 0
    D 50
    d M16
    d1 40
    l 148
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 245
    Les mer
  • Code 344562
    Description LS.VA-50-14-M16x168
    Rotation 0
    D 50
    d M16
    d1 40
    l 168
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 271
    Les mer
  • Code 344522
    Description LS.VA-50-14-M16x68
    Rotation 0
    D 50
    d M16
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 16
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 141
    Les mer
  • Code 344122
    Description LS.VA-50-14-M8x43
    Rotation 0
    D 50
    d M8
    d1 40
    l 43
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 60
    Les mer
  • Code 344126
    Description LS.VA-50-14-M8x68
    Rotation 0
    D 50
    d M8
    d1 40
    l 68
    l1 27
    l2 6
    h 19
    s 14
    a 14
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 70
    Les mer
  • Code 343622
    Description LS.VA-50-8.5-M10x43
    Rotation 0
    D 50
    d M10
    d1 40
    l 43
    l1 25
    l2 6
    h 19
    s 10
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 66
    Les mer
  • Code 343626
    Description LS.VA-50-8.5-M10x68
    Rotation 0
    D 50
    d M10
    d1 40
    l 68
    l1 25
    l2 6
    h 19
    s 10
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 78
    Les mer
  • Code 343632
    Description LS.VA-50-8.5-M10x98
    Rotation 0
    D 50
    d M10
    d1 40
    l 98
    l1 25
    l2 6
    h 19
    s 10
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 92
    Les mer
  • Code 343722
    Description LS.VA-50-8.5-M12x43
    Rotation 0
    D 50
    d M12
    d1 40
    l 43
    l1 25
    l2 6
    h 19
    s 12
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 76
    Les mer
  • Code 343726
    Description LS.VA-50-8.5-M12x68
    Rotation 0
    D 50
    d M12
    d1 40
    l 68
    l1 25
    l2 6
    h 19
    s 12
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 93
    Les mer
  • Code 343732
    Description LS.VA-50-8.5-M12x98
    Rotation 0
    D 50
    d M12
    d1 40
    l 98
    l1 25
    l2 6
    h 19
    s 12
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 114
    Les mer
  • Code 343612
    Description LS.VA-50-8.5-M8x43
    Rotation 0
    D 50
    d M8
    d1 40
    l 43
    l1 25
    l2 6
    h 19
    s 10
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 56
    Les mer
  • Code 343616
    Description LS.VA-50-8.5-M8x68
    Rotation 0
    D 50
    d M8
    d1 40
    l 68
    l1 25
    l2 6
    h 19
    s 10
    a 8.5
    l2 0 6
    l2 0.4 3.9
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 66
    Les mer
  • Code 344622
    Description LS.VA-60-14-M10x43
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 43
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 85
    Les mer
  • Code 344626
    Description LS.VA-60-14-M10x68
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 96
    Les mer
  • Code 344632
    Description LS.VA-60-14-M10x98
    Rotation 0
    D 60
    d M10
    d1 50.5
    l 98
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 111
    Les mer
  • Code 344722
    Description LS.VA-60-14-M12x43
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 43
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 95
    Les mer
  • Code 344726
    Description LS.VA-60-14-M12x68
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 112
    Les mer
  • Code 344732
    Description LS.VA-60-14-M12x98
    Rotation 0
    D 60
    d M12
    d1 50.5
    l 98
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 133
    Les mer
  • Code 345222
    Description LS.VA-60-14-M14x148
    Rotation 0
    D 60
    d M14
    d1 50.5
    l 148
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 242
    Les mer
  • Code 345122
    Description LS.VA-60-14-M14x68
    Rotation 0
    D 60
    d M14
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 138
    Les mer
  • Code 345126
    Description LS.VA-60-14-M14x98
    Rotation 0
    D 60
    d M14
    d1 50.5
    l 98
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 159
    Les mer
  • Code 345232
    Description
    Les mer
  • Code 345236
    Description LS.VA-60-14-M16x148
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 148
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 264
    Les mer
  • Code 345242
    Description LS.VA-60-14-M16x168
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 168
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 290
    Les mer
  • Code 345226
    Description LS.VA-60-14-M16x68
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 16
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 160
    Les mer
  • Code 344612
    Description LS.VA-60-14-M8x43
    Rotation 0
    D 60
    d M8
    d1 50.5
    l 43
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 76
    Les mer
  • Code 344616
    Description LS.VA-60-14-M8x68
    Rotation 0
    D 60
    d M8
    d1 50.5
    l 68
    l1 33
    l2 5
    h 24
    s 14
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 88
    Les mer
  • Code 345256
    Description LS.VA-60-24-M16x138
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 138
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 322
    Les mer
  • Code 345262
    Description LS.VA-60-24-M16x158
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 158
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 349
    Les mer
  • Code 345246
    Description LS.VA-60-24-M16x58
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 58
    l1 43
    l2 5
    h 24
    s 24
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 221
    Les mer
  • Code 345252
    Description LS.VA-60-24-M16x98
    Rotation 0
    D 60
    d M16
    d1 50.5
    l 98
    l1 43
    l2 5
    h 24
    s 24
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 272
    Les mer
  • Code 345272
    Description LS.VA-60-24-M20x138
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 138
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 421
    Les mer
  • Code 345276
    Description LS.VA-60-24-M20x158
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 158
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 460
    Les mer
  • Code 345282
    Description LS.VA-60-24-M20x198
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 198
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 543
    Les mer
  • Code 345266
    Description LS.VA-60-24-M20x98
    Rotation 0
    D 60
    d M20
    d1 50.5
    l 98
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 342
    Les mer
  • Code 345292
    Description LS.VA-60-24-M24x158
    Rotation 0
    D 60
    d M24
    d1 50.5
    l 158
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 612
    Les mer
  • Code 345296
    Description LS.VA-60-24-M24x198
    Rotation 0
    D 60
    d M24
    d1 50.5
    l 198
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 730
    Les mer
  • Code 345286
    Description LS.VA-60-24-M24x98
    Rotation 0
    D 60
    d M24
    d1 50.5
    l 98
    l1 43
    l2 5
    h 24
    s 24
    a 24
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 440
    Les mer
Handlekurv
Skroll til toppen
