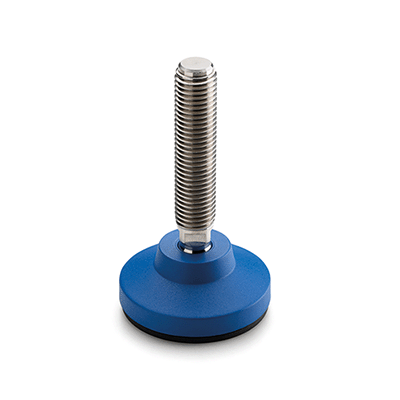

LSQ.A-SST-VD

Levelling Elements

Teknisk datablad
CE.72518-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 48 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 188153
    Description LSQ.A-25-14-AS-SST-M16x108-VD
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1#
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    s
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 188153
    Description LSQ.A-25-14-AS-SST-M16x108-VD
    Rotation 0
    D 25
    d M16
    L 132
    L1# 135
    l 108
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 166
    Les mer
  • Code 188155
    Description LSQ.A-25-14-AS-SST-M16x148-VD
    Rotation 0
    D 25
    d M16
    L 172
    L1# 175
    l 148
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 230
    Les mer
  • Code 188157
    Description LSQ.A-25-14-AS-SST-M16x168-VD
    Rotation 0
    D 25
    d M16
    L 192
    L1# 195
    l 168
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 262
    Les mer
  • Code 188151
    Description LSQ.A-25-14-AS-SST-M16x68-VD
    Rotation 0
    D 25
    d M16
    L 92
    L1# 95
    l 68
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 102
    Les mer
  • Code 187153
    Description LSQ.A-25-14-SST-M16x108-VD
    Rotation 0
    D 25
    d M16
    L 132
    L1# 0
    l 108
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 164
    Les mer
  • Code 187155
    Description LSQ.A-25-14-SST-M16x148-VD
    Rotation 0
    D 25
    d M16
    L 172
    L1# 0
    l 148
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 228
    Les mer
  • Code 187157
    Description LSQ.A-25-14-SST-M16x168-VD
    Rotation 0
    D 25
    d M16
    L 192
    L1# 0
    l 168
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 260
    Les mer
  • Code 187151
    Description LSQ.A-25-14-SST-M16x68-VD
    Rotation 0
    D 25
    d M16
    L 92
    L1# 0
    l 68
    l1 24
    l2 22.5
    h 12
    s 12
    Weight 100
    Les mer
  • Code 188253
    Description LSQ.A-32-14-AS-SST-M16x108-VD
    Rotation 0
    D 32
    d M16
    L 132
    L1# 135
    l 108
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 172
    Les mer
  • Code 188255
    Description LSQ.A-32-14-AS-SST-M16x148-VD
    Rotation 0
    D 32
    d M16
    L 172
    L1# 175
    l 148
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 236
    Les mer
  • Code 188257
    Description LSQ.A-32-14-AS-SST-M16x168-VD
    Rotation 0
    D 32
    d M16
    L 192
    L1# 195
    l 168
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 268
    Les mer
  • Code 188251
    Description LSQ.A-32-14-AS-SST-M16x68-VD
    Rotation 0
    D 32
    d M16
    L 92
    L1# 95
    l 68
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 108
    Les mer
  • Code 187253
    Description LSQ.A-32-14-SST-M16x108-VD
    Rotation 0
    D 32
    d M16
    L 132
    L1# 0
    l 108
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 168
    Les mer
  • Code 187255
    Description LSQ.A-32-14-SST-M16x148-VD
    Rotation 0
    D 32
    d M16
    L 172
    L1# 0
    l 148
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 232
    Les mer
  • Code 187257
    Description LSQ.A-32-14-SST-M16x168-VD
    Rotation 0
    D 32
    d M16
    L 192
    L1# 0
    l 168
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 264
    Les mer
  • Code 187251
    Description LSQ.A-32-14-SST-M16x68-VD
    Rotation 0
    D 32
    d M16
    L 92
    L1# 0
    l 68
    l1 24
    l2 22.5
    h 15
    s 12
    Weight 104
    Les mer
  • Code 188353
    Description LSQ.A-40-14-AS-SST-M16x108-VD
    Rotation 0
    D 40
    d M16
    L 133
    L1# 136
    l 108
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 180
    Les mer
  • Code 188355
    Description LSQ.A-40-14-AS-SST-M16x148-VD
    Rotation 0
    D 40
    d M16
    L 173
    L1# 176
    l 148
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 244
    Les mer
  • Code 188357
    Description LSQ.A-40-14-AS-SST-M16x168-VD
    Rotation 0
    D 40
    d M16
    L 193
    L1# 196
    l 168
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 276
    Les mer
  • Code 188351
    Description LSQ.A-40-14-AS-SST-M16x68-VD
    Rotation 0
    D 40
    d M16
    L 93
    L1# 96
    l 68
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 116
    Les mer
  • Code 187353
    Description LSQ.A-40-14-SST-M16x108-VD
    Rotation 0
    D 40
    d M16
    L 133
    L1# 0
    l 108
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 173
    Les mer
  • Code 187355
    Description LSQ.A-40-14-SST-M16x148-VD
    Rotation 0
    D 40
    d M16
    L 173
    L1# 0
    l 148
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 237
    Les mer
  • Code 187357
    Description LSQ.A-40-14-SST-M16x168-VD
    Rotation 0
    D 40
    d M16
    L 193
    L1# 0
    l 168
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 269
    Les mer
  • Code 187351
    Description LSQ.A-40-14-SST-M16x68-VD
    Rotation 0
    D 40
    d M16
    L 93
    L1# 0
    l 68
    l1 25
    l2 23.5
    h 17
    s 12
    Weight 109
    Les mer
  • Code 188453
    Description LSQ.A-50-14-AS-SST-M16x108-VD
    Rotation 0
    D 50
    d M16
    L 135
    L1# 138
    l 108
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 191
    Les mer
  • Code 188455
    Description LSQ.A-50-14-AS-SST-M16x148-VD
    Rotation 0
    D 50
    d M16
    L 175
    L1# 178
    l 148
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 255
    Les mer
  • Code 188457
    Description LSQ.A-50-14-AS-SST-M16x168-VD
    Rotation 0
    D 50
    d M16
    L 195
    L1# 198
    l 168
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 287
    Les mer
  • Code 188451
    Description LSQ.A-50-14-AS-SST-M16x68-VD
    Rotation 0
    D 50
    d M16
    L 95
    L1# 98
    l 68
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 127
    Les mer
  • Code 187453
    Description LSQ.A-50-14-SST-M16x108-VD
    Rotation 0
    D 50
    d M16
    L 135
    L1# 0
    l 108
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 179
    Les mer
  • Code 187455
    Description LSQ.A-50-14-SST-M16x148-VD
    Rotation 0
    D 50
    d M16
    L 175
    L1# 0
    l 148
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 243
    Les mer
  • Code 187457
    Description LSQ.A-50-14-SST-M16x168-VD
    Rotation 0
    D 50
    d M16
    L 195
    L1# 0
    l 168
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 275
    Les mer
  • Code 187451
    Description LSQ.A-50-14-SST-M16x68-VD
    Rotation 0
    D 50
    d M16
    L 95
    L1# 0
    l 68
    l1 27
    l2 25.5
    h 19
    s 12
    Weight 115
    Les mer
  • Code 188583
    Description LSQ.A-60-14-AS-SST-M16x108-VD
    Rotation 0
    D 60
    d M16
    L 144
    L1# 147
    l 108
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 207
    Les mer
  • Code 188585
    Description LSQ.A-60-14-AS-SST-M16x148-VD
    Rotation 0
    D 60
    d M16
    L 184
    L1# 187
    l 148
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 267
    Les mer
  • Code 188587
    Description LSQ.A-60-14-AS-SST-M16x168-VD
    Rotation 0
    D 60
    d M16
    L 204
    L1# 207
    l 158
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 292
    Les mer
  • Code 188581
    Description LSQ.A-60-14-AS-SST-M16x68-VD
    Rotation 0
    D 60
    d M16
    L 104
    L1# 107
    l 68
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 137
    Les mer
  • Code 188591
    Description LSQ.A-60-14-AS-SST-M20x110-VD
    Rotation 0
    D 60
    d M20
    L 151
    L1# 154
    l 110
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 386
    Les mer
  • Code 188593
    Description LSQ.A-60-14-AS-SST-M20x150-VD
    Rotation 0
    D 60
    d M20
    L 191
    L1# 194
    l 150
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 417
    Les mer
  • Code 188595
    Description LSQ.A-60-14-AS-SST-M20x170-VD
    Rotation 0
    D 60
    d M20
    L 211
    L1# 214
    l 170
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 452
    Les mer
  • Code 188597
    Description LSQ.A-60-14-AS-SST-M20x210-VD
    Rotation 0
    D 60
    d M20
    L 251
    L1# 254
    l 210
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 517
    Les mer
  • Code 187583
    Description LSQ.A-60-14-SST-M16x108-VD
    Rotation 0
    D 60
    d M16
    L 144
    L1# 0
    l 108
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 195
    Les mer
  • Code 187585
    Description LSQ.A-60-14-SST-M16x148-VD
    Rotation 0
    D 60
    d M16
    L 184
    L1# 0
    l 148
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 255
    Les mer
  • Code 187587
    Description LSQ.A-60-14-SST-M16x168-VD
    Rotation 0
    D 60
    d M16
    L 204
    L1# 0
    l 158
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 280
    Les mer
  • Code 187581
    Description LSQ.A-60-14-SST-M16x68-VD
    Rotation 0
    D 60
    d M16
    L 104
    L1# 0
    l 68
    l1 36
    l2 34.5
    h 24
    s 12
    Weight 125
    Les mer
  • Code 187591
    Description LSQ.A-60-14-SST-M20x110-VD
    Rotation 0
    D 60
    d M20
    L 151
    L1# 0
    l 110
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 374
    Les mer
  • Code 187593
    Description LSQ.A-60-14-SST-M20x150-VD
    Rotation 0
    D 60
    d M20
    L 191
    L1# 0
    l 150
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 405
    Les mer
  • Code 187595
    Description LSQ.A-60-14-SST-M20x170-VD
    Rotation 0
    D 60
    d M20
    L 211
    L1# 0
    l 170
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 440
    Les mer
  • Code 187597
    Description LSQ.A-60-14-SST-M20x210-VD
    Rotation 0
    D 60
    d M20
    L 251
    L1# 0
    l 210
    l1 41
    l2 38.5
    h 24
    s 15
    Weight 505
    Les mer
