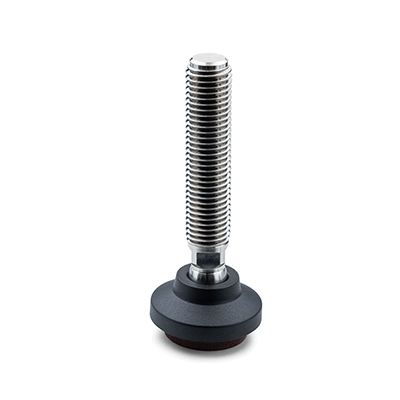

LSQ.VA-SST

Levelling Elements

Teknisk datablad
CE.72521-gw12

Viser alle 44 resultater

    Code 360134
    Description LSQ.VA-32-14-SST-M16x108
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    I
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    h
    —
    • —
    s
    —
    • —
    a
    —
    • —
    l2 0
    —
    • —
    l2 0.4
    —
    • —
    l2 0.6
    —
    • —
    Area damping insert
    —
    • —
    Static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 360134
    Description LSQ.VA-32-14-SST-M16x108
    Rotation 0
    D 32
    d M16
    d1 23.1
    I 108
    l1 24
    l2 5.3
    l3 22.5
    h 15
    s 12
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 172
    Les mer
  • Code 360136
    Description LSQ.VA-32-14-SST-M16x148
    Rotation 0
    D 32
    d M16
    d1 23.1
    I 148
    l1 24
    l2 5.3
    l3 22.5
    h 15
    s 12
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 236
    Les mer
  • Code 360138
    Description LSQ.VA-32-14-SST-M16x168
    Rotation 0
    D 32
    d M16
    d1 23.1
    I 168
    l1 24
    l2 5.3
    l3 22.5
    h 15
    s 12
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 268
    Les mer
  • Code 360132
    Description LSQ.VA-32-14-SST-M16x68
    Rotation 0
    D 32
    d M16
    d1 23.1
    I 68
    l1 24
    l2 5.3
    l3 22.5
    h 15
    s 12
    a 14
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 108
    Les mer
  • Code 360106
    Description LSQ.VA-32-8.5-SST-M10x103
    Rotation 0
    D 32
    d M10
    d1 23.1
    I 103
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 7
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 73
    Les mer
  • Code 360102
    Description LSQ.VA-32-8.5-SST-M10x48
    Rotation 0
    D 32
    d M10
    d1 23.1
    I 48
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 7
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 39
    Les mer
  • Code 360104
    Description LSQ.VA-32-8.5-SST-M10x73
    Rotation 0
    D 32
    d M10
    d1 23.1
    I 73
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 7
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 55
    Les mer
  • Code 360116
    Description LSQ.VA-32-8.5-SST-M12x103
    Rotation 0
    D 32
    d M12
    d1 23.1
    I 103
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 9
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 103
    Les mer
  • Code 360112
    Description LSQ.VA-32-8.5-SST-M12x48
    Rotation 0
    D 32
    d M12
    d1 23.1
    I 48
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 9
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 50
    Les mer
  • Code 360114
    Description LSQ.VA-32-8.5-SST-M12x73
    Rotation 0
    D 32
    d M12
    d1 23.1
    I 73
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 9
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 72
    Les mer
  • Code 360092
    Description LSQ.VA-32-8.5-SST-M8x48
    Rotation 0
    D 32
    d M8
    d1 23.1
    I 48
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 7
    a 8.5
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 32
    Les mer
  • Code 360094
    Description LSQ.VA-32-8.5-SST-M8x73
    Rotation 0
    D 32
    d M8
    d1 23.1
    I 73
    l1 23
    l2 5.3
    l3 21.5
    h 15
    s 7
    a 8
    l2 0 5.3
    l2 0.4 4.8
    l2 0.6 4.6
    Area damping insert 239
    Static load 96
    Weight 42
    Les mer
  • Code 360234
    Description LSQ.VA-40-14-SST-M16x108
    Rotation 0
    D 40
    d M16
    d1 30
    I 108
    l1 25
    l2 6
    l3 23.5
    h 17
    s 12
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 180
    Les mer
  • Code 360236
    Description LSQ.VA-40-14-SST-M16x148
    Rotation 0
    D 40
    d M16
    d1 30
    I 148
    l1 25
    l2 6
    l3 23.5
    h 17
    s 12
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 244
    Les mer
  • Code 360238
    Description LSQ.VA-40-14-SST-M16x168
    Rotation 0
    D 40
    d M16
    d1 30
    I 168
    l1 25
    l2 6
    l3 23.5
    h 17
    s 12
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 276
    Les mer
  • Code 360232
    Description LSQ.VA-40-14-SST-M16x68
    Rotation 0
    D 40
    d M16
    d1 30
    I 68
    l1 25
    l2 6
    l3 23.5
    h 17
    s 12
    a 14
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 116
    Les mer
  • Code 360206
    Description LSQ.VA-40-8.5-SST-M10x103
    Rotation 0
    D 40
    d M10
    d1 30
    I 103
    l1 25
    l2 6
    l3 23.5
    h 17
    s 7
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 81
    Les mer
  • Code 360202
    Description LSQ.VA-40-8.5-SST-M10x48
    Rotation 0
    D 40
    d M10
    d1 30
    I 48
    l1 25
    l2 6
    l3 23.5
    h 17
    s 7
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 47
    Les mer
  • Code 360204
    Description LSQ.VA-40-8.5-SST-M10x73
    Rotation 0
    D 40
    d M10
    d1 30
    I 73
    l1 25
    l2 6
    l3 23.5
    h 17
    s 7
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 63
    Les mer
  • Code 360216
    Description LSQ.VA-40-8.5-SST-M12x103
    Rotation 0
    D 40
    d M12
    d1 30
    I 103
    l1 25
    l2 6
    l3 23.5
    h 17
    s 9
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 111
    Les mer
  • Code 360212
    Description LSQ.VA-40-8.5-SST-M12x48
    Rotation 0
    D 40
    d M12
    d1 30
    I 48
    l1 25
    l2 6
    l3 23.5
    h 17
    s 9
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 58
    Les mer
  • Code 360214
    Description LSQ.VA-40-8.5-SST-M12x73
    Rotation 0
    D 40
    d M12
    d1 30
    I 73
    l1 25
    l2 6
    l3 23.5
    h 17
    s 9
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 80
    Les mer
  • Code 360192
    Description LSQ.VA-40-8.5-SST-M8x48
    Rotation 0
    D 40
    d M8
    d1 30
    I 48
    l1 25
    l2 6
    l3 23.5
    h 17
    s 7
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 40
    Les mer
  • Code 360194
    Description LSQ.VA-40-8.5-SST-M8x73
    Rotation 0
    D 40
    d M8
    d1 30
    I 73
    l1 25
    l2 6
    l3 23.5
    h 17
    s 7
    a 8
    l2 0 6
    l2 0.4 5.6
    l2 0.6 5.4
    Area damping insert 452
    Static load 180
    Weight 50
    Les mer
  • Code 360334
    Description LSQ.VA-50-14-SST-M16x108
    Rotation 0
    D 50
    d M16
    d1 40
    I 108
    l1 27
    l2 6
    l3 25.5
    h 19
    s 12
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 191
    Les mer
  • Code 360336
    Description LSQ.VA-50-14-SST-M16x148
    Rotation 0
    D 50
    d M16
    d1 40
    I 148
    l1 27
    l2 6
    l3 25.5
    h 19
    s 12
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 255
    Les mer
  • Code 360338
    Description LSQ.VA-50-14-SST-M16x168
    Rotation 0
    D 50
    d M16
    d1 40
    I 168
    l1 27
    l2 6
    l3 25.5
    h 19
    s 12
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 287
    Les mer
  • Code 360332
    Description LSQ.VA-50-14-SST-M16x68
    Rotation 0
    D 50
    d M16
    d1 40
    I 68
    l1 27
    l2 6
    l3 25.5
    h 19
    s 12
    a 14
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 127
    Les mer
  • Code 360306
    Description LSQ.VA-50-8.5-SST-M10x103
    Rotation 0
    D 50
    d M10
    d1 40
    I 103
    l1 27
    l2 6
    l3 25.5
    h 19
    s 7
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 92
    Les mer
  • Code 360302
    Description LSQ.VA-50-8.5-SST-M10x48
    Rotation 0
    D 50
    d M10
    d1 40
    I 48
    l1 27
    l2 6
    l3 25.5
    h 19
    s 7
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 58
    Les mer
  • Code 360304
    Description LSQ.VA-50-8.5-SST-M10x73
    Rotation 0
    D 50
    d M10
    d1 40
    I 73
    l1 27
    l2 6
    l3 25.5
    h 19
    s 7
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 74
    Les mer
  • Code 360316
    Description LSQ.VA-50-8.5-SST-M12x103
    Rotation 0
    D 50
    d M12
    d1 40
    I 103
    l1 27
    l2 6
    l3 25.5
    h 19
    s 9
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 122
    Les mer
  • Code 360312
    Description LSQ.VA-50-8.5-SST-M12x48
    Rotation 0
    D 50
    d M12
    d1 40
    I 48
    l1 27
    l2 6
    l3 25.5
    h 19
    s 9
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 69
    Les mer
  • Code 360314
    Description LSQ.VA-50-8.5-SST-M12x73
    Rotation 0
    D 50
    d M12
    d1 40
    I 73
    l1 27
    l2 6
    l3 25.5
    h 19
    s 9
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 91
    Les mer
  • Code 360292
    Description LSQ.VA-50-8.5-SST-M8x48
    Rotation 0
    D 50
    d M8
    d1 40
    I 48
    l1 27
    l2 6
    l3 25.5
    h 19
    s 7
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 51
    Les mer
  • Code 360294
    Description LSQ.VA-50-8.5-SST-M8x73
    Rotation 0
    D 50
    d M8
    d1 40
    I 73
    l1 27
    l2 6
    l3 25.5
    h 19
    s 7
    a 8
    l2 0 6
    l2 0.4 5
    l2 0.6 4.7
    Area damping insert 1000
    Static load 400
    Weight 61
    Les mer
  • Code 360394
    Description LSQ.VA-60-14-SST-M16x108
    Rotation 0
    D 60
    d M16
    d1 50.5
    I 108
    l1 36
    l2 5
    l3 34.5
    h 24
    s 12
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 207
    Les mer
  • Code 360402
    Description LSQ.VA-60-14-SST-M16x148
    Rotation 0
    D 60
    d M16
    d1 50.5
    I 148
    l1 36
    l2 5
    l3 34.5
    h 24
    s 12
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 267
    Les mer
  • Code 360404
    Description LSQ.VA-60-14-SST-M16x168
    Rotation 0
    D 60
    d M16
    d1 50.5
    I 168
    l1 36
    l2 5
    l3 34.5
    h 24
    s 12
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 292
    Les mer
  • Code 360392
    Description LSQ.VA-60-14-SST-M16x68
    Rotation 0
    D 60
    d M16
    d1 50.5
    I 68
    l1 36
    l2 5
    l3 34.5
    h 24
    s 12
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 137
    Les mer
  • Code 360406
    Description LSQ.VA-60-14-SST-M20x110
    Rotation 0
    D 60
    d M20
    d1 50.5
    I 110
    l1 41
    l2 5
    l3 38.5
    h 24
    s 15
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 386
    Les mer
  • Code 360412
    Description LSQ.VA-60-14-SST-M20x150
    Rotation 0
    D 60
    d M20
    d1 50.5
    I 150
    l1 41
    l2 5
    l3 38.5
    h 24
    s 15
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 417
    Les mer
  • Code 360414
    Description LSQ.VA-60-14-SST-M20x170
    Rotation 0
    D 60
    d M20
    d1 50.5
    I 170
    l1 41
    l2 5
    l3 38.5
    h 24
    s 15
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 452
    Les mer
  • Code 360416
    Description LSQ.VA-60-14-SST-M20x210
    Rotation 0
    D 60
    d M20
    d1 50.5
    I 210
    l1 41
    l2 5
    l3 38.5
    h 24
    s 15
    a 14
    l2 0 5
    l2 0.4 3.9
    l2 0.6 3.5
    Area damping insert 1709
    Static load 680
    Weight 517
    Les mer
Handlekurv
Skroll til toppen
