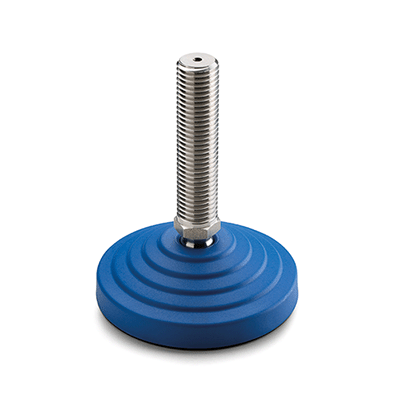

LV.A-SST-VD

Levelling Elements

Teknisk datablad
CE.72541-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 208 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 184411
    Description LV.A-100-14-AS-SST-M10x43-VD
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 184411
    Description LV.A-100-14-AS-SST-M10x43-VD
    Rotation 0
    D 100
    d M10
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 18000
    Weight 155
    Les mer
  • Code 184413
    Description LV.A-100-14-AS-SST-M10x68-VD
    Rotation 0
    D 100
    d M10
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 167
    Les mer
  • Code 184415
    Description LV.A-100-14-AS-SST-M10x98-VD
    Rotation 0
    D 100
    d M10
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 18000
    Weight 181
    Les mer
  • Code 184421
    Description LV.A-100-14-AS-SST-M12x43-VD
    Rotation 0
    D 100
    d M12
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 18000
    Weight 165
    Les mer
  • Code 184423
    Description LV.A-100-14-AS-SST-M12x68-VD
    Rotation 0
    D 100
    d M12
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 182
    Les mer
  • Code 184425
    Description LV.A-100-14-AS-SST-M12x98-VD
    Rotation 0
    D 100
    d M12
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 18000
    Weight 203
    Les mer
  • Code 184435
    Description LV.A-100-14-AS-SST-M14x148-VD
    Rotation 0
    D 100
    d M14
    L 181
    L1 184
    l 148
    l1 33
    s 14
    Max limit static load 18000
    Weight 308
    Les mer
  • Code 184431
    Description LV.A-100-14-AS-SST-M14x68-VD
    Rotation 0
    D 100
    d M14
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 204
    Les mer
  • Code 184433
    Description LV.A-100-14-AS-SST-M14x98-VD
    Rotation 0
    D 100
    d M14
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 18000
    Weight 225
    Les mer
  • Code 184443
    Description LV.A-100-14-AS-SST-M16x108-VD
    Rotation 0
    D 100
    d M16
    L 141
    L1 144
    l 108
    l1 33
    s 16
    Max limit static load 18000
    Weight 278
    Les mer
  • Code 184445
    Description LV.A-100-14-AS-SST-M16x148-VD
    Rotation 0
    D 100
    d M16
    L 181
    L1 184
    l 148
    l1 33
    s 16
    Max limit static load 18000
    Weight 330
    Les mer
  • Code 184447
    Description LV.A-100-14-AS-SST-M16x168-VD
    Rotation 0
    D 100
    d M16
    L 201
    L1 204
    l 168
    l1 33
    s 16
    Max limit static load 18000
    Weight 356
    Les mer
  • Code 184441
    Description LV.A-100-14-AS-SST-M16x68-VD
    Rotation 0
    D 100
    d M16
    L 101
    L1 104
    l 68
    l1 33
    s 16
    Max limit static load 18000
    Weight 226
    Les mer
  • Code 184401
    Description LV.A-100-14-AS-SST-M8x43-VD
    Rotation 0
    D 100
    d M8
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 18000
    Weight 146
    Les mer
  • Code 184403
    Description LV.A-100-14-AS-SST-M8x68-VD
    Rotation 0
    D 100
    d M8
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 158
    Les mer
  • Code 183411
    Description LV.A-100-14-SST-M10x43-VD
    Rotation 0
    D 100
    d M10
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 18000
    Weight 100
    Les mer
  • Code 183413
    Description LV.A-100-14-SST-M10x68-VD
    Rotation 0
    D 100
    d M10
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 112
    Les mer
  • Code 183415
    Description LV.A-100-14-SST-M10x98-VD
    Rotation 0
    D 100
    d M10
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 18000
    Weight 126
    Les mer
  • Code 183421
    Description LV.A-100-14-SST-M12x43-VD
    Rotation 0
    D 100
    d M12
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 18000
    Weight 110
    Les mer
  • Code 183423
    Description LV.A-100-14-SST-M12x68-VD
    Rotation 0
    D 100
    d M12
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 127
    Les mer
  • Code 183425
    Description LV.A-100-14-SST-M12x98-VD
    Rotation 0
    D 100
    d M12
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 18000
    Weight 148
    Les mer
  • Code 183435
    Description LV.A-100-14-SST-M14x148-VD
    Rotation 0
    D 100
    d M14
    L 181
    L1 -
    l 148
    l1 33
    s 14
    Max limit static load 18000
    Weight 253
    Les mer
  • Code 183431
    Description LV.A-100-14-SST-M14x68-VD
    Rotation 0
    D 100
    d M14
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 149
    Les mer
  • Code 183433
    Description LV.A-100-14-SST-M14x98-VD
    Rotation 0
    D 100
    d M14
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 18000
    Weight 170
    Les mer
  • Code 183443
    Description LV.A-100-14-SST-M16x108-VD
    Rotation 0
    D 100
    d M16
    L 141
    L1 -
    l 108
    l1 33
    s 16
    Max limit static load 18000
    Weight 223
    Les mer
  • Code 183445
    Description LV.A-100-14-SST-M16x148-VD
    Rotation 0
    D 100
    d M16
    L 181
    L1 -
    l 148
    l1 33
    s 16
    Max limit static load 18000
    Weight 275
    Les mer
  • Code 183447
    Description LV.A-100-14-SST-M16x168-VD
    Rotation 0
    D 100
    d M16
    L 201
    L1 -
    l 168
    l1 33
    s 16
    Max limit static load 18000
    Weight 301
    Les mer
  • Code 183441
    Description LV.A-100-14-SST-M16x68-VD
    Rotation 0
    D 100
    d M16
    L 101
    L1 -
    l 68
    l1 33
    s 16
    Max limit static load 18000
    Weight 171
    Les mer
  • Code 183401
    Description LV.A-100-14-SST-M8x43-VD
    Rotation 0
    D 100
    d M8
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 18000
    Weight 91
    Les mer
  • Code 183403
    Description LV.A-100-14-SST-M8x68-VD
    Rotation 0
    D 100
    d M8
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 18000
    Weight 103
    Les mer
  • Code 184455
    Description LV.A-100-24-AS-SST-M16x138-VD
    Rotation 0
    D 100
    d M16
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 25000
    Weight 411
    Les mer
  • Code 184457
    Description LV.A-100-24-AS-SST-M16x158-VD
    Rotation 0
    D 100
    d M16
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 25000
    Weight 439
    Les mer
  • Code 184451
    Description LV.A-100-24-AS-SST-M16x58-VD
    Rotation 0
    D 100
    d M16
    L 101
    L1 104
    l 58
    l1 43
    s 24
    Max limit static load 25000
    Weight 308
    Les mer
  • Code 184453
    Description LV.A-100-24-AS-SST-M16x98-VD
    Rotation 0
    D 100
    d M16
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 25000
    Weight 411
    Les mer
  • Code 184463
    Description LV.A-100-24-AS-SST-M20x138-VD
    Rotation 0
    D 100
    d M20
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 25000
    Weight 512
    Les mer
  • Code 184465
    Description LV.A-100-24-AS-SST-M20x158-VD
    Rotation 0
    D 100
    d M20
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 25000
    Weight 552
    Les mer
  • Code 184467
    Description LV.A-100-24-AS-SST-M20x198-VD
    Rotation 0
    D 100
    d M20
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 25000
    Weight 637
    Les mer
  • Code 184461
    Description LV.A-100-24-AS-SST-M20x98-VD
    Rotation 0
    D 100
    d M20
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 25000
    Weight 432
    Les mer
  • Code 184473
    Description LV.A-100-24-AS-SST-M24x158-VD
    Rotation 0
    D 100
    d M24
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 25000
    Weight 707
    Les mer
  • Code 184475
    Description LV.A-100-24-AS-SST-M24x198-VD
    Rotation 0
    D 100
    d M24
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 25000
    Weight 828
    Les mer
  • Code 184471
    Description LV.A-100-24-AS-SST-M24x98-VD
    Rotation 0
    D 100
    d M24
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 25000
    Weight 532
    Les mer
  • Code 183455
    Description LV.A-100-24-SST-M16x138-VD
    Rotation 0
    D 100
    d M16
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 25000
    Weight 357
    Les mer
  • Code 183457
    Description LV.A-100-24-SST-M16x158-VD
    Rotation 0
    D 100
    d M16
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 25000
    Weight 385
    Les mer
  • Code 183451
    Description LV.A-100-24-SST-M16x58-VD
    Rotation 0
    D 100
    d M16
    L 101
    L1 -
    l 58
    l1 43
    s 24
    Max limit static load 25000
    Weight 254
    Les mer
  • Code 183453
    Description LV.A-100-24-SST-M16x98-VD
    Rotation 0
    D 100
    d M16
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 25000
    Weight 357
    Les mer
  • Code 183463
    Description LV.A-100-24-SST-M20x138-VD
    Rotation 0
    D 100
    d M20
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 25000
    Weight 458
    Les mer
  • Code 183465
    Description LV.A-100-24-SST-M20x158-VD
    Rotation 0
    D 100
    d M20
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 25000
    Weight 498
    Les mer
  • Code 183467
    Description LV.A-100-24-SST-M20x198-VD
    Rotation 0
    D 100
    d M20
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 25000
    Weight 583
    Les mer
  • Code 183461
    Description LV.A-100-24-SST-M20x98-VD
    Rotation 0
    D 100
    d M20
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 25000
    Weight 378
    Les mer
  • Code 183473
    Description LV.A-100-24-SST-M24x158-VD
    Rotation 0
    D 100
    d M24
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 25000
    Weight 653
    Les mer
  • Code 183475
    Description LV.A-100-24-SST-M24x198-VD
    Rotation 0
    D 100
    d M24
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 25000
    Weight 774
    Les mer
  • Code 183471
    Description LV.A-100-24-SST-M24x98-VD
    Rotation 0
    D 100
    d M24
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 25000
    Weight 478
    Les mer
  • Code 184505
    Description LV.A-125-24-AS-SST-M16x138-VD
    Rotation 0
    D 125
    d M16
    L 205
    L1 208
    l 138
    l1 67
    s 24
    Max limit static load 28000
    Weight 618
    Les mer
  • Code 184507
    Description LV.A-125-24-AS-SST-M16x158-VD
    Rotation 0
    D 125
    d M16
    L 225
    L1 228
    l 158
    l1 67
    s 24
    Max limit static load 28000
    Weight 646
    Les mer
  • Code 184501
    Description LV.A-125-24-AS-SST-M16x58-VD
    Rotation 0
    D 125
    d M16
    L 125
    L1 128
    l 58
    l1 67
    s 24
    Max limit static load 28000
    Weight 515
    Les mer
  • Code 184503
    Description LV.A-125-24-AS-SST-M16x98-VD
    Rotation 0
    D 125
    d M16
    L 165
    L1 168
    l 98
    l1 67
    s 24
    Max limit static load 28000
    Weight 567
    Les mer
  • Code 184513
    Description LV.A-125-24-AS-SST-M20x138-VD
    Rotation 0
    D 125
    d M20
    L 205
    L1 208
    l 138
    l1 67
    s 24
    Max limit static load 28000
    Weight 759
    Les mer
  • Code 184515
    Description LV.A-125-24-AS-SST-M20x158-VD
    Rotation 0
    D 125
    d M20
    L 225
    L1 228
    l 158
    l1 67
    s 24
    Max limit static load 28000
    Weight 759
    Les mer
  • Code 184517
    Description LV.A-125-24-AS-SST-M20x198-VD
    Rotation 0
    D 125
    d M20
    L 265
    L1 268
    l 198
    l1 67
    s 24
    Max limit static load 28000
    Weight 844
    Les mer
  • Code 184511
    Description LV.A-125-24-AS-SST-M20x98-VD
    Rotation 0
    D 125
    d M20
    L 165
    L1 168
    l 98
    l1 67
    s 24
    Max limit static load 28000
    Weight 639
    Les mer
  • Code 184523
    Description LV.A-125-24-AS-SST-M24x158-VD
    Rotation 0
    D 125
    d M24
    L 225
    L1 228
    l 158
    l1 67
    s 24
    Max limit static load 28000
    Weight 914
    Les mer
  • Code 184525
    Description LV.A-125-24-AS-SST-M24x198-VD
    Rotation 0
    D 125
    d M24
    L 265
    L1 268
    l 198
    l1 67
    s 24
    Max limit static load 28000
    Weight 1035
    Les mer
  • Code 184521
    Description LV.A-125-24-AS-SST-M24x98-VD
    Rotation 0
    D 125
    d M24
    L 165
    L1 168
    l 98
    l1 67
    s 24
    Max limit static load 28000
    Weight 739
    Les mer
  • Code 183505
    Description LV.A-125-24-SST-M16x138-VD
    Rotation 0
    D 125
    d M16
    L 205
    L1 -
    l 138
    l1 67
    s 24
    Max limit static load 28000
    Weight 492
    Les mer
  • Code 183507
    Description LV.A-125-24-SST-M16x158-VD
    Rotation 0
    D 125
    d M16
    L 225
    L1 -
    l 158
    l1 67
    s 24
    Max limit static load 28000
    Weight 520
    Les mer
  • Code 183501
    Description LV.A-125-24-SST-M16x58-VD
    Rotation 0
    D 125
    d M16
    L 125
    L1 -
    l 58
    l1 67
    s 24
    Max limit static load 28000
    Weight 389
    Les mer
  • Code 183503
    Description LV.A-125-24-SST-M16x98-VD
    Rotation 0
    D 125
    d M16
    L 165
    L1 -
    l 98
    l1 67
    s 24
    Max limit static load 28000
    Weight 441
    Les mer
  • Code 183513
    Description LV.A-125-24-SST-M20x138-VD
    Rotation 0
    D 125
    d M20
    L 205
    L1 -
    l 138
    l1 67
    s 24
    Max limit static load 28000
    Weight 633
    Les mer
  • Code 183515
    Description LV.A-125-24-SST-M20x158-VD
    Rotation 0
    D 125
    d M20
    L 225
    L1 -
    l 158
    l1 67
    s 24
    Max limit static load 28000
    Weight 633
    Les mer
  • Code 183517
    Description LV.A-125-24-SST-M20x198-VD
    Rotation 0
    D 125
    d M20
    L 265
    L1 -
    l 198
    l1 67
    s 24
    Max limit static load 28000
    Weight 718
    Les mer
  • Code 183511
    Description LV.A-125-24-SST-M20x98-VD
    Rotation 0
    D 125
    d M20
    L 165
    L1 -
    l 98
    l1 67
    s 24
    Max limit static load 28000
    Weight 513
    Les mer
  • Code 183523
    Description LV.A-125-24-SST-M24x158-VD
    Rotation 0
    D 125
    d M24
    L 225
    L1 -
    l 158
    l1 67
    s 24
    Max limit static load 28000
    Weight 788
    Les mer
  • Code 183525
    Description LV.A-125-24-SST-M24x198-VD
    Rotation 0
    D 125
    d M24
    L 265
    L1 -
    l 198
    l1 67
    s 24
    Max limit static load 28000
    Weight 909
    Les mer
  • Code 183521
    Description LV.A-125-24-SST-M24x98-VD
    Rotation 0
    D 125
    d M24
    L 165
    L1 -
    l 98
    l1 67
    s 24
    Max limit static load 28000
    Weight 613
    Les mer
  • Code 184111
    Description LV.A-60-14-AS-SST-M10x43-VD
    Rotation 0
    D 60
    d M10
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 14000
    Weight 91
    Les mer
  • Code 184113
    Description LV.A-60-14-AS-SST-M10x68-VD
    Rotation 0
    D 60
    d M10
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 104
    Les mer
  • Code 184115
    Description LV.A-60-14-AS-SST-M10x98-VD
    Rotation 0
    D 60
    d M10
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 14000
    Weight 118
    Les mer
  • Code 184121
    Description LV.A-60-14-AS-SST-M12x43-VD
    Rotation 0
    D 60
    d M12
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 14000
    Weight 101
    Les mer
  • Code 184123
    Description LV.A-60-14-AS-SST-M12x68-VD
    Rotation 0
    D 60
    d M12
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 119
    Les mer
  • Code 184125
    Description LV.A-60-14-AS-SST-M12x98-VD
    Rotation 0
    D 60
    d M12
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 14000
    Weight 141
    Les mer
  • Code 184135
    Description LV.A-60-14-AS-SST-M14x148-VD
    Rotation 0
    D 60
    d M14
    L 181
    L1 184
    l 148
    l1 33
    s 14
    Max limit static load 14000
    Weight 246
    Les mer
  • Code 184131
    Description LV.A-60-14-AS-SST-M14x68-VD
    Rotation 0
    D 60
    d M14
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 142
    Les mer
  • Code 184133
    Description LV.A-60-14-AS-SST-M14x98-VD
    Rotation 0
    D 60
    d M14
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 14000
    Weight 163
    Les mer
  • Code 184143
    Description LV.A-60-14-AS-SST-M16x108-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 144
    l 108
    l1 33
    s 16
    Max limit static load 14000
    Weight 218
    Les mer
  • Code 184145
    Description LV.A-60-14-AS-SST-M16x148-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 184
    l 148
    l1 33
    s 16
    Max limit static load 14000
    Weight 271
    Les mer
  • Code 184147
    Description LV.A-60-14-AS-SST-M16x168-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 204
    l 168
    l1 33
    s 16
    Max limit static load 14000
    Weight 298
    Les mer
  • Code 184141
    Description LV.A-60-14-AS-SST-M16x68-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 104
    l 68
    l1 33
    s 16
    Max limit static load 14000
    Weight 164
    Les mer
  • Code 184101
    Description LV.A-60-14-AS-SST-M8x43-VD
    Rotation 0
    D 60
    d M8
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 14000
    Weight 82
    Les mer
  • Code 184103
    Description LV.A-60-14-AS-SST-M8x68-VD
    Rotation 0
    D 60
    d M8
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 94
    Les mer
  • Code 183111
    Description LV.A-60-14-SST-M10x43-VD
    Rotation 0
    D 60
    d M10
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 14000
    Weight 72
    Les mer
  • Code 183113
    Description LV.A-60-14-SST-M10x68-VD
    Rotation 0
    D 60
    d M10
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 85
    Les mer
  • Code 183115
    Description LV.A-60-14-SST-M10x98-VD
    Rotation 0
    D 60
    d M10
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 14000
    Weight 99
    Les mer
  • Code 183121
    Description LV.A-60-14-SST-M12x43-VD
    Rotation 0
    D 60
    d M12
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 14000
    Weight 82
    Les mer
  • Code 183123
    Description LV.A-60-14-SST-M12x68-VD
    Rotation 0
    D 60
    d M12
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 100
    Les mer
  • Code 183125
    Description LV.A-60-14-SST-M12x98-VD
    Rotation 0
    D 60
    d M12
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 14000
    Weight 122
    Les mer
  • Code 183135
    Description LV.A-60-14-SST-M14x148-VD
    Rotation 0
    D 60
    d M14
    L 181
    L1 -
    l 148
    l1 33
    s 14
    Max limit static load 14000
    Weight 227
    Les mer
  • Code 183131
    Description LV.A-60-14-SST-M14x68-VD
    Rotation 0
    D 60
    d M14
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 123
    Les mer
  • Code 183133
    Description LV.A-60-14-SST-M14x98-VD
    Rotation 0
    D 60
    d M14
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 14000
    Weight 144
    Les mer
  • Code 183143
    Description LV.A-60-14-SST-M16x108-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 -
    l 108
    l1 33
    s 16
    Max limit static load 14000
    Weight 199
    Les mer
  • Code 183145
    Description LV.A-60-14-SST-M16x148-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 -
    l 148
    l1 33
    s 16
    Max limit static load 14000
    Weight 252
    Les mer
  • Code 183147
    Description LV.A-60-14-SST-M16x168-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 -
    l 168
    l1 33
    s 16
    Max limit static load 14000
    Weight 279
    Les mer
  • Code 183141
    Description LV.A-60-14-SST-M16x68-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 -
    l 68
    l1 33
    s 16
    Max limit static load 14000
    Weight 145
    Les mer
  • Code 183101
    Description LV.A-60-14-SST-M8x43-VD
    Rotation 0
    D 60
    d M8
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 14000
    Weight 63
    Les mer
  • Code 183103
    Description LV.A-60-14-SST-M8x68-VD
    Rotation 0
    D 60
    d M8
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 14000
    Weight 75
    Les mer
  • Code 184155
    Description LV.A-60-24-AS-SST-M16x138-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 330
    Les mer
  • Code 184157
    Description LV.A-60-24-AS-SST-M16x158-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 358
    Les mer
  • Code 184151
    Description LV.A-60-24-AS-SST-M16x58-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 104
    l 58
    l1 43
    s 24
    Max limit static load 18000
    Weight 227
    Les mer
  • Code 184153
    Description LV.A-60-24-AS-SST-M16x98-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 279
    Les mer
  • Code 184163
    Description LV.A-60-24-AS-SST-M20x138-VD
    Rotation 0
    D 60
    d M20
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 431
    Les mer
  • Code 184165
    Description LV.A-60-24-AS-SST-M20x158-VD
    Rotation 0
    D 60
    d M20
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 471
    Les mer
  • Code 184167
    Description LV.A-60-24-AS-SST-M20x198-VD
    Rotation 0
    D 60
    d M20
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 556
    Les mer
  • Code 184161
    Description LV.A-60-24-AS-SST-M20x98-VD
    Rotation 0
    D 60
    d M20
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 351
    Les mer
  • Code 184173
    Description LV.A-60-24-AS-SST-M24x158-VD
    Rotation 0
    D 60
    d M24
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 626
    Les mer
  • Code 184175
    Description LV.A-60-24-AS-SST-M24x198-VD
    Rotation 0
    D 60
    d M24
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 747
    Les mer
  • Code 184171
    Description LV.A-60-24-AS-SST-M24x98-VD
    Rotation 0
    D 60
    d M24
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 451
    Les mer
  • Code 183155
    Description LV.A-60-24-SST-M16x138-VD
    Rotation 0
    D 60
    d M16
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 311
    Les mer
  • Code 183157
    Description LV.A-60-24-SST-M16x158-VD
    Rotation 0
    D 60
    d M16
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 339
    Les mer
  • Code 183151
    Description LV.A-60-24-SST-M16x58-VD
    Rotation 0
    D 60
    d M16
    L 101
    L1 -
    l 58
    l1 43
    s 24
    Max limit static load 18000
    Weight 208
    Les mer
  • Code 183153
    Description LV.A-60-24-SST-M16x98-VD
    Rotation 0
    D 60
    d M16
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 260
    Les mer
  • Code 183163
    Description LV.A-60-24-SST-M20x138-VD
    Rotation 0
    D 60
    d M20
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 412
    Les mer
  • Code 183165
    Description LV.A-60-24-SST-M20x158-VD
    Rotation 0
    D 60
    d M20
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 452
    Les mer
  • Code 183167
    Description LV.A-60-24-SST-M20x198-VD
    Rotation 0
    D 60
    d M20
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 537
    Les mer
  • Code 183161
    Description LV.A-60-24-SST-M20x98-VD
    Rotation 0
    D 60
    d M20
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 332
    Les mer
  • Code 183173
    Description LV.A-60-24-SST-M24x158-VD
    Rotation 0
    D 60
    d M24
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 607
    Les mer
  • Code 183175
    Description LV.A-60-24-SST-M24x198-VD
    Rotation 0
    D 60
    d M24
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 728
    Les mer
  • Code 183171
    Description LV.A-60-24-SST-M24x98-VD
    Rotation 0
    D 60
    d M24
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 432
    Les mer
  • Code 184211
    Description LV.A-70-14-AS-SST-M10x43-VD
    Rotation 0
    D 70
    d M10
    L 71
    L1 74
    l 43
    l1 28
    s 14
    Max limit static load 14000
    Weight 90
    Les mer
  • Code 184213
    Description LV.A-70-14-AS-SST-M10x68-VD
    Rotation 0
    D 70
    d M10
    L 96
    L1 99
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 103
    Les mer
  • Code 184215
    Description LV.A-70-14-AS-SST-M10x98-VD
    Rotation 0
    D 70
    d M10
    L 126
    L1 129
    l 98
    l1 28
    s 14
    Max limit static load 14000
    Weight 117
    Les mer
  • Code 184221
    Description LV.A-70-14-AS-SST-M12x43-VD
    Rotation 0
    D 70
    d M12
    L 71
    L1 74
    l 43
    l1 28
    s 14
    Max limit static load 14000
    Weight 100
    Les mer
  • Code 184223
    Description LV.A-70-14-AS-SST-M12x68-VD
    Rotation 0
    D 70
    d M12
    L 96
    L1 99
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 118
    Les mer
  • Code 184225
    Description LV.A-70-14-AS-SST-M12x98-VD
    Rotation 0
    D 70
    d M12
    L 126
    L1 129
    l 98
    l1 28
    s 14
    Max limit static load 14000
    Weight 140
    Les mer
  • Code 184235
    Description LV.A-70-14-AS-SST-M14x148-VD
    Rotation 0
    D 70
    d M14
    L 176
    L1 179
    l 148
    l1 28
    s 14
    Max limit static load 14000
    Weight 245
    Les mer
  • Code 184231
    Description LV.A-70-14-AS-SST-M14x68-VD
    Rotation 0
    D 70
    d M14
    L 96
    L1 99
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 141
    Les mer
  • Code 184233
    Description LV.A-70-14-AS-SST-M14x98-VD
    Rotation 0
    D 70
    d M14
    L 126
    L1 129
    l 98
    l1 28
    s 14
    Max limit static load 14000
    Weight 162
    Les mer
  • Code 184243
    Description LV.A-70-14-AS-SST-M16x108-VD
    Rotation 0
    D 70
    d M16
    L 136
    L1 139
    l 108
    l1 28
    s 16
    Max limit static load 14000
    Weight 217
    Les mer
  • Code 184245
    Description LV.A-70-14-AS-SST-M16x148-VD
    Rotation 0
    D 70
    d M16
    L 176
    L1 179
    l 148
    l1 28
    s 16
    Max limit static load 14000
    Weight 270
    Les mer
  • Code 184247
    Description LV.A-70-14-AS-SST-M16x168-VD
    Rotation 0
    D 70
    d M16
    L 196
    L1 199
    l 168
    l1 28
    s 16
    Max limit static load 14000
    Weight 297
    Les mer
  • Code 184241
    Description LV.A-70-14-AS-SST-M16x68-VD
    Rotation 0
    D 70
    d M16
    L 96
    L1 99
    l 68
    l1 28
    s 16
    Max limit static load 14000
    Weight 163
    Les mer
  • Code 184201
    Description LV.A-70-14-AS-SST-M8x43-VD
    Rotation 0
    D 70
    d M8
    L 71
    L1 74
    l 43
    l1 28
    s 14
    Max limit static load 14000
    Weight 81
    Les mer
  • Code 184203
    Description LV.A-70-14-AS-SST-M8x68-VD
    Rotation 0
    D 70
    d M8
    L 96
    L1 99
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 93
    Les mer
  • Code 183211
    Description LV.A-70-14-SST-M10x43-VD
    Rotation 0
    D 70
    d M10
    L 71
    L1 -
    l 43
    l1 28
    s 14
    Max limit static load 14000
    Weight 70
    Les mer
  • Code 183213
    Description LV.A-70-14-SST-M10x68-VD
    Rotation 0
    D 70
    d M10
    L 96
    L1 -
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 84
    Les mer
  • Code 183215
    Description LV.A-70-14-SST-M10x98-VD
    Rotation 0
    D 70
    d M10
    L 126
    L1 -
    l 98
    l1 28
    s 14
    Max limit static load 14000
    Weight 97
    Les mer
  • Code 183221
    Description LV.A-70-14-SST-M12x43-VD
    Rotation 0
    D 70
    d M12
    L 71
    L1 -
    l 43
    l1 28
    s 14
    Max limit static load 14000
    Weight 80
    Les mer
  • Code 183223
    Description LV.A-70-14-SST-M12x68-VD
    Rotation 0
    D 70
    d M12
    L 96
    L1 -
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 98
    Les mer
  • Code 183225
    Description LV.A-70-14-SST-M12x98-VD
    Rotation 0
    D 70
    d M12
    L 126
    L1 -
    l 98
    l1 28
    s 14
    Max limit static load 14000
    Weight 120
    Les mer
  • Code 183235
    Description LV.A-70-14-SST-M14x148-VD
    Rotation 0
    D 70
    d M14
    L 176
    L1 -
    l 148
    l1 28
    s 14
    Max limit static load 14000
    Weight 225
    Les mer
  • Code 183231
    Description LV.A-70-14-SST-M14x68-VD
    Rotation 0
    D 70
    d M14
    L 96
    L1 -
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 121
    Les mer
  • Code 183233
    Description LV.A-70-14-SST-M14x98-VD
    Rotation 0
    D 70
    d M14
    L 126
    L1 -
    l 98
    l1 28
    s 14
    Max limit static load 14000
    Weight 142
    Les mer
  • Code 183243
    Description LV.A-70-14-SST-M16x108-VD
    Rotation 0
    D 70
    d M16
    L 136
    L1 -
    l 108
    l1 28
    s 16
    Max limit static load 14000
    Weight 197
    Les mer
  • Code 183245
    Description LV.A-70-14-SST-M16x148-VD
    Rotation 0
    D 70
    d M16
    L 176
    L1 -
    l 148
    l1 28
    s 16
    Max limit static load 14000
    Weight 250
    Les mer
  • Code 183247
    Description LV.A-70-14-SST-M16x168-VD
    Rotation 0
    D 70
    d M16
    L 196
    L1 -
    l 168
    l1 28
    s 16
    Max limit static load 14000
    Weight 277
    Les mer
  • Code 183241
    Description LV.A-70-14-SST-M16x68-VD
    Rotation 0
    D 70
    d M16
    L 96
    L1 -
    l 68
    l1 28
    s 16
    Max limit static load 14000
    Weight 143
    Les mer
  • Code 183201
    Description LV.A-70-14-SST-M8x43-VD
    Rotation 0
    D 70
    d M8
    L 71
    L1 -
    l 43
    l1 28
    s 14
    Max limit static load 14000
    Weight 61
    Les mer
  • Code 183203
    Description LV.A-70-14-SST-M8x68-VD
    Rotation 0
    D 70
    d M8
    L 96
    L1 -
    l 68
    l1 28
    s 14
    Max limit static load 14000
    Weight 73
    Les mer
  • Code 184311
    Description LV.A-80-14-AS-SST-M10x43-VD
    Rotation 0
    D 80
    d M10
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 16000
    Weight 119
    Les mer
  • Code 184313
    Description LV.A-80-14-AS-SST-M10x68-VD
    Rotation 0
    D 80
    d M10
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 132
    Les mer
  • Code 184315
    Description LV.A-80-14-AS-SST-M10x98-VD
    Rotation 0
    D 80
    d M10
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 16000
    Weight 146
    Les mer
  • Code 184321
    Description LV.A-80-14-AS-SST-M12x43-VD
    Rotation 0
    D 80
    d M12
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 16000
    Weight 129
    Les mer
  • Code 184323
    Description LV.A-80-14-AS-SST-M12x68-VD
    Rotation 0
    D 80
    d M12
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 147
    Les mer
  • Code 184325
    Description LV.A-80-14-AS-SST-M12x98-VD
    Rotation 0
    D 80
    d M12
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 16000
    Weight 169
    Les mer
  • Code 184335
    Description LV.A-80-14-AS-SST-M14x148-VD
    Rotation 0
    D 80
    d M14
    L 181
    L1 184
    l 148
    l1 33
    s 14
    Max limit static load 16000
    Weight 274
    Les mer
  • Code 184331
    Description LV.A-80-14-AS-SST-M14x68-VD
    Rotation 0
    D 80
    d M14
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 170
    Les mer
  • Code 184333
    Description LV.A-80-14-AS-SST-M14x98-VD
    Rotation 0
    D 80
    d M14
    L 131
    L1 134
    l 98
    l1 33
    s 14
    Max limit static load 16000
    Weight 191
    Les mer
  • Code 184343
    Description LV.A-80-14-AS-SST-M16x108-VD
    Rotation 0
    D 80
    d M16
    L 141
    L1 144
    l 108
    l1 33
    s 16
    Max limit static load 16000
    Weight 246
    Les mer
  • Code 184345
    Description LV.A-80-14-AS-SST-M16x148-VD
    Rotation 0
    D 80
    d M16
    L 181
    L1 184
    l 148
    l1 33
    s 16
    Max limit static load 16000
    Weight 299
    Les mer
  • Code 184347
    Description LV.A-80-14-AS-SST-M16x168-VD
    Rotation 0
    D 80
    d M16
    L 201
    L1 204
    l 168
    l1 33
    s 16
    Max limit static load 16000
    Weight 326
    Les mer
  • Code 184341
    Description LV.A-80-14-AS-SST-M16x68-VD
    Rotation 0
    D 80
    d M16
    L 101
    L1 104
    l 68
    l1 33
    s 16
    Max limit static load 16000
    Weight 192
    Les mer
  • Code 184301
    Description LV.A-80-14-AS-SST-M8x43-VD
    Rotation 0
    D 80
    d M8
    L 76
    L1 79
    l 43
    l1 33
    s 14
    Max limit static load 16000
    Weight 110
    Les mer
  • Code 184303
    Description LV.A-80-14-AS-SST-M8x68-VD
    Rotation 0
    D 80
    d M8
    L 101
    L1 104
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 122
    Les mer
  • Code 183311
    Description LV.A-80-14-SST-M10x43-VD
    Rotation 0
    D 80
    d M10
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 16000
    Weight 93
    Les mer
  • Code 183313
    Description LV.A-80-14-SST-M10x68-VD
    Rotation 0
    D 80
    d M10
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 106
    Les mer
  • Code 183315
    Description LV.A-80-14-SST-M10x98-VD
    Rotation 0
    D 80
    d M10
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 16000
    Weight 120
    Les mer
  • Code 183321
    Description LV.A-80-14-SST-M12x43-VD
    Rotation 0
    D 80
    d M12
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 16000
    Weight 103
    Les mer
  • Code 183323
    Description LV.A-80-14-SST-M12x68-VD
    Rotation 0
    D 80
    d M12
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 121
    Les mer
  • Code 183325
    Description LV.A-80-14-SST-M12x98-VD
    Rotation 0
    D 80
    d M12
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 16000
    Weight 143
    Les mer
  • Code 183335
    Description LV.A-80-14-SST-M14x148-VD
    Rotation 0
    D 80
    d M14
    L 181
    L1 -
    l 148
    l1 33
    s 14
    Max limit static load 16000
    Weight 248
    Les mer
  • Code 183331
    Description LV.A-80-14-SST-M14x68-VD
    Rotation 0
    D 80
    d M14
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 144
    Les mer
  • Code 183333
    Description LV.A-80-14-SST-M14x98-VD
    Rotation 0
    D 80
    d M14
    L 131
    L1 -
    l 98
    l1 33
    s 14
    Max limit static load 16000
    Weight 165
    Les mer
  • Code 183343
    Description LV.A-80-14-SST-M16x108-VD
    Rotation 0
    D 80
    d M16
    L 141
    L1 -
    l 108
    l1 33
    s 16
    Max limit static load 16000
    Weight 220
    Les mer
  • Code 183345
    Description LV.A-80-14-SST-M16x148-VD
    Rotation 0
    D 80
    d M16
    L 181
    L1 -
    l 148
    l1 33
    s 16
    Max limit static load 16000
    Weight 273
    Les mer
  • Code 183347
    Description LV.A-80-14-SST-M16x168-VD
    Rotation 0
    D 80
    d M16
    L 201
    L1 -
    l 168
    l1 33
    s 16
    Max limit static load 16000
    Weight 300
    Les mer
  • Code 183341
    Description LV.A-80-14-SST-M16x68-VD
    Rotation 0
    D 80
    d M16
    L 101
    L1 -
    l 68
    l1 33
    s 16
    Max limit static load 16000
    Weight 166
    Les mer
  • Code 183301
    Description LV.A-80-14-SST-M8x43-VD
    Rotation 0
    D 80
    d M8
    L 76
    L1 -
    l 43
    l1 33
    s 14
    Max limit static load 16000
    Weight 84
    Les mer
  • Code 183303
    Description LV.A-80-14-SST-M8x68-VD
    Rotation 0
    D 80
    d M8
    L 101
    L1 -
    l 68
    l1 33
    s 14
    Max limit static load 16000
    Weight 96
    Les mer
  • Code 184355
    Description LV.A-80-24-AS-SST-M16x138-VD
    Rotation 0
    D 80
    d M16
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 357
    Les mer
  • Code 184357
    Description LV.A-80-24-AS-SST-M16x158-VD
    Rotation 0
    D 80
    d M16
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 385
    Les mer
  • Code 184351
    Description LV.A-80-24-AS-SST-M16x58-VD
    Rotation 0
    D 80
    d M16
    L 101
    L1 104
    l 58
    l1 43
    s 24
    Max limit static load 18000
    Weight 254
    Les mer
  • Code 184353
    Description LV.A-80-24-AS-SST-M16x98-VD
    Rotation 0
    D 80
    d M16
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 306
    Les mer
  • Code 184363
    Description LV.A-80-24-AS-SST-M20x138-VD
    Rotation 0
    D 80
    d M20
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 458
    Les mer
  • Code 184365
    Description LV.A-80-24-AS-SST-M20x158-VD
    Rotation 0
    D 80
    d M20
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 498
    Les mer
  • Code 184367
    Description LV.A-80-24-AS-SST-M20x198-VD
    Rotation 0
    D 80
    d M20
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 583
    Les mer
  • Code 184361
    Description LV.A-80-24-AS-SST-M20x98-VD
    Rotation 0
    D 80
    d M20
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 378
    Les mer
  • Code 184373
    Description LV.A-80-24-AS-SST-M24x158-VD
    Rotation 0
    D 80
    d M24
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 653
    Les mer
  • Code 184375
    Description LV.A-80-24-AS-SST-M24x198-VD
    Rotation 0
    D 80
    d M24
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 774
    Les mer
  • Code 184371
    Description LV.A-80-24-AS-SST-M24x98-VD
    Rotation 0
    D 80
    d M24
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 478
    Les mer
  • Code 183355
    Description LV.A-80-24-SST-M16x138-VD
    Rotation 0
    D 80
    d M16
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 331
    Les mer
  • Code 183357
    Description LV.A-80-24-SST-M16x158-VD
    Rotation 0
    D 80
    d M16
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 359
    Les mer
  • Code 183351
    Description LV.A-80-24-SST-M16x58-VD
    Rotation 0
    D 80
    d M16
    L 101
    L1 -
    l 58
    l1 43
    s 24
    Max limit static load 18000
    Weight 228
    Les mer
  • Code 183353
    Description LV.A-80-24-SST-M16x98-VD
    Rotation 0
    D 80
    d M16
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 280
    Les mer
  • Code 183363
    Description LV.A-80-24-SST-M20x138-VD
    Rotation 0
    D 80
    d M20
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 18000
    Weight 432
    Les mer
  • Code 183365
    Description LV.A-80-24-SST-M20x158-VD
    Rotation 0
    D 80
    d M20
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 472
    Les mer
  • Code 183367
    Description LV.A-80-24-SST-M20x198-VD
    Rotation 0
    D 80
    d M20
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 577
    Les mer
  • Code 183361
    Description LV.A-80-24-SST-M20x98-VD
    Rotation 0
    D 80
    d M20
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 352
    Les mer
  • Code 183373
    Description LV.A-80-24-SST-M24x158-VD
    Rotation 0
    D 80
    d M24
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 18000
    Weight 627
    Les mer
  • Code 183375
    Description LV.A-80-24-SST-M24x198-VD
    Rotation 0
    D 80
    d M24
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 18000
    Weight 748
    Les mer
  • Code 183371
    Description LV.A-80-24-SST-M24x98-VD
    Rotation 0
    D 80
    d M24
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 18000
    Weight 452
    Les mer
Handlekurv
Skroll til toppen
