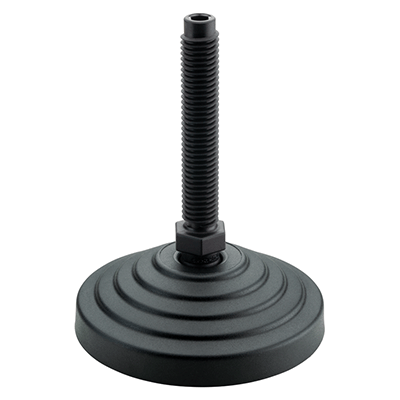

LV.A-STP

Levelling Elements

Teknisk datablad
CE.72542-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 64 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 309462
    Description LV.A-100-14-AS-STP-M10x44
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    h
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    a
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 309462
    Description LV.A-100-14-AS-STP-M10x44
    Rotation 0
    D 100
    d M10
    L 79
    L1 82
    l 44
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 145.5
    Les mer
  • Code 309464
    Description LV.A-100-14-AS-STP-M10x69
    Rotation 0
    D 100
    d M10
    L 104
    L1 107
    l 69
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 148
    Les mer
  • Code 309466
    Description LV.A-100-14-AS-STP-M10x99
    Rotation 0
    D 100
    d M10
    L 134
    L1 137
    l 99
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 151
    Les mer
  • Code 309472
    Description LV.A-100-14-AS-STP-M12x44
    Rotation 0
    D 100
    d M12
    L 79
    L1 82
    l 44
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 147
    Les mer
  • Code 309474
    Description LV.A-100-14-AS-STP-M12x69
    Rotation 0
    D 100
    d M12
    L 104
    L1 107
    l 69
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 151
    Les mer
  • Code 309476
    Description LV.A-100-14-AS-STP-M12x99
    Rotation 0
    D 100
    d M12
    L 134
    L1 137
    l 99
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 155.5
    Les mer
  • Code 309452
    Description LV.A-100-14-AS-STP-M8x44
    Rotation 0
    D 100
    d M8
    L 79
    L1 82
    l 44
    l1 35
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 144
    Les mer
  • Code 309454
    Description LV.A-100-14-AS-STP-M8x69
    Rotation 0
    D 100
    d M8
    L 104
    L1 107
    l 69
    l1 35
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 145.5
    Les mer
  • Code 305462
    Description LV.A-100-14-STP-M10x44
    Rotation 0
    D 100
    d M10
    L 79
    L1 -
    l 44
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 91.5
    Les mer
  • Code 305464
    Description LV.A-100-14-STP-M10x69
    Rotation 0
    D 100
    d M10
    L 104
    L1 -
    l 69
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 94
    Les mer
  • Code 305467
    Description LV.A-100-14-STP-M10x99
    Rotation 0
    D 100
    d M10
    L 134
    L1 -
    l 99
    l1 35
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 97
    Les mer
  • Code 305472
    Description LV.A-100-14-STP-M12x44
    Rotation 0
    D 100
    d M12
    L 79
    L1 -
    l 44
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 93
    Les mer
  • Code 305474
    Description LV.A-100-14-STP-M12x69
    Rotation 0
    D 100
    d M12
    L 104
    L1 -
    l 69
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 97
    Les mer
  • Code 305476
    Description LV.A-100-14-STP-M12x99
    Rotation 0
    D 100
    d M12
    L 134
    L1 -
    l 99
    l1 35
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 101.5
    Les mer
  • Code 305452
    Description LV.A-100-14-STP-M8x44
    Rotation 0
    D 100
    d M8
    L 79
    L1 -
    l 44
    l1 35
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 90
    Les mer
  • Code 305455
    Description LV.A-100-14-STP-M8x69
    Rotation 0
    D 100
    d M8
    L 104
    L1 -
    l 69
    l1 35
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 91.5
    Les mer
  • Code 307223
    Description LV.A-60-14-AS-STP-M10x44
    Rotation 0
    D 60
    d M10
    L 78.5
    L1 81.5
    l 44
    l1 34.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 60.5
    Les mer
  • Code 307227
    Description LV.A-60-14-AS-STP-M10x69
    Rotation 0
    D 60
    d M10
    L 103.5
    L1 106.5
    l 69
    l1 34.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 63
    Les mer
  • Code 307233
    Description LV.A-60-14-AS-STP-M10x99
    Rotation 0
    D 60
    d M10
    L 133.5
    L1 136.5
    l 99
    l1 34.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 66
    Les mer
  • Code 307323
    Description LV.A-60-14-AS-STP-M12x44
    Rotation 0
    D 60
    d M12
    L 78.5
    L1 81.5
    l 44
    l1 34.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 62
    Les mer
  • Code 307327
    Description LV.A-60-14-AS-STP-M12x69
    Rotation 0
    D 60
    d M12
    L 103.5
    L1 106.5
    l 69
    l1 34.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 66
    Les mer
  • Code 307333
    Description LV.A-60-14-AS-STP-M12x99
    Rotation 0
    D 60
    d M12
    L 133.5
    L1 136.5
    l 99
    l1 34.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 70.5
    Les mer
  • Code 307123
    Description LV.A-60-14-AS-STP-M8x44
    Rotation 0
    D 60
    d M8
    L 78.5
    L1 81.5
    l 44
    l1 34.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 59
    Les mer
  • Code 307127
    Description LV.A-60-14-AS-STP-M8x69
    Rotation 0
    D 60
    d M8
    L 103.5
    L1 106.5
    l 69
    l1 34.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 60.5
    Les mer
  • Code 303223
    Description LV.A-60-14-STP-M10x44
    Rotation 0
    D 60
    d M10
    L 78.5
    L1 -
    l 44
    l1 34.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 41.5
    Les mer
  • Code 303227
    Description LV.A-60-14-STP-M10x69
    Rotation 0
    D 60
    d M10
    L 103.5
    L1 -
    l 69
    l1 34.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 44
    Les mer
  • Code 303233
    Description LV.A-60-14-STP-M10x99
    Rotation 0
    D 60
    d M10
    L 133.5
    L1 -
    l 99
    l1 34.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 47
    Les mer
  • Code 303323
    Description LV.A-60-14-STP-M12x44
    Rotation 0
    D 60
    d M12
    L 78.5
    L1 -
    l 44
    l1 34.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 43
    Les mer
  • Code 303327
    Description LV.A-60-14-STP-M12x69
    Rotation 0
    D 60
    d M12
    L 103.5
    L1 -
    l 69
    l1 34.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 47
    Les mer
  • Code 303333
    Description LV.A-60-14-STP-M12x99
    Rotation 0
    D 60
    d M12
    L 133.5
    L1 -
    l 99
    l1 34.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 51.5
    Les mer
  • Code 303123
    Description LV.A-60-14-STP-M8x44
    Rotation 0
    D 60
    d M8
    L 78.5
    L1 -
    l 44
    l1 34.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 40
    Les mer
  • Code 303127
    Description LV.A-60-14-STP-M8x69
    Rotation 0
    D 60
    d M8
    L 103.5
    L1 -
    l 69
    l1 34.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 41.5
    Les mer
  • Code 308023
    Description LV.A-70-14-AS-STP-M10x44
    Rotation 0
    D 70
    d M10
    L 74.5
    L1 77.5
    l 44
    l1 30.5
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 59.5
    Les mer
  • Code 308027
    Description LV.A-70-14-AS-STP-M10x69
    Rotation 0
    D 70
    d M10
    L 99.5
    L1 102.5
    l 69
    l1 30.5
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 62
    Les mer
  • Code 308033
    Description LV.A-70-14-AS-STP-M10x99
    Rotation 0
    D 70
    d M10
    L 129.5
    L1 132.5
    l 99
    l1 30.5
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 65
    Les mer
  • Code 308063
    Description LV.A-70-14-AS-STP-M12x44
    Rotation 0
    D 70
    d M12
    L 74.5
    L1 77.5
    l 44
    l1 30.5
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 61
    Les mer
  • Code 308067
    Description LV.A-70-14-AS-STP-M12x69
    Rotation 0
    D 70
    d M12
    L 99.5
    L1 102.5
    l 69
    l1 30.5
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 65
    Les mer
  • Code 308073
    Description LV.A-70-14-AS-STP-M12x99
    Rotation 0
    D 70
    d M12
    L 129.5
    L1 132.5
    l 99
    l1 30.5
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 69.5
    Les mer
  • Code 308007
    Description LV.A-70-14-AS-STP-M8x44
    Rotation 0
    D 70
    d M8
    L 74.5
    L1 77.5
    l 44
    l1 30.5
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 58
    Les mer
  • Code 308013
    Description LV.A-70-14-AS-STP-M8x69
    Rotation 0
    D 70
    d M8
    L 99.5
    L1 102.5
    l 69
    l1 30.5
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 59.5
    Les mer
  • Code 304023
    Description LV.A-70-14-STP-M10x44
    Rotation 0
    D 70
    d M10
    L 74.5
    L1 -
    l 44
    l1 30.5
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 39.5
    Les mer
  • Code 304027
    Description LV.A-70-14-STP-M10x69
    Rotation 0
    D 70
    d M10
    L 99.5
    L1 -
    l 69
    l1 30.5
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 42
    Les mer
  • Code 304033
    Description LV.A-70-14-STP-M10x99
    Rotation 0
    D 70
    d M10
    L 129.5
    L1 -
    l 99
    l1 30.5
    l2 6
    h 19
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 45
    Les mer
  • Code 304063
    Description LV.A-70-14-STP-M12x44
    Rotation 0
    D 70
    d M12
    L 74.5
    L1 -
    l 44
    l1 30.5
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 41
    Les mer
  • Code 304067
    Description LV.A-70-14-STP-M12x69
    Rotation 0
    D 70
    d M12
    L 99.5
    L1 -
    l 69
    l1 30.5
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 45
    Les mer
  • Code 304073
    Description LV.A-70-14-STP-M12x99
    Rotation 0
    D 70
    d M12
    L 129.5
    L1 -
    l 99
    l1 30.5
    l2 7
    h 19
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 49.5
    Les mer
  • Code 304007
    Description LV.A-70-14-STP-M8x44
    Rotation 0
    D 70
    d M8
    L 74.5
    L1 -
    l 44
    l1 30.5
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 38
    Les mer
  • Code 304013
    Description LV.A-70-14-STP-M8x69
    Rotation 0
    D 70
    d M8
    L 99.5
    L1 -
    l 69
    l1 30.5
    l2 5
    h 19
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 39.5
    Les mer
  • Code 308223
    Description LV.A-80-14-AS-STP-M10x44
    Rotation 0
    D 80
    d M10
    L 79.5
    L1 82.5
    l 44
    l1 35.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 88.5
    Les mer
  • Code 308227
    Description LV.A-80-14-AS-STP-M10x69
    Rotation 0
    D 80
    d M10
    L 104.5
    L1 107.5
    l 69
    l1 35.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 91
    Les mer
  • Code 308233
    Description LV.A-80-14-AS-STP-M10x99
    Rotation 0
    D 80
    d M10
    L 134.5
    L1 137.5
    l 99
    l1 35.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 94
    Les mer
  • Code 308323
    Description LV.A-80-14-AS-STP-M12x44
    Rotation 0
    D 80
    d M12
    L 79.5
    L1 82.5
    l 44
    l1 35.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 90
    Les mer
  • Code 308327
    Description LV.A-80-14-AS-STP-M12x69
    Rotation 0
    D 80
    d M12
    L 104.5
    L1 107.5
    l 69
    l1 35.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 94
    Les mer
  • Code 308333
    Description LV.A-80-14-AS-STP-M12x99
    Rotation 0
    D 80
    d M12
    L 134.5
    L1 137.5
    l 99
    l1 35.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 98.5
    Les mer
  • Code 308123
    Description LV.A-80-14-AS-STP-M8x44
    Rotation 0
    D 80
    d M8
    L 79.5
    L1 82.5
    l 44
    l1 35.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 87
    Les mer
  • Code 308127
    Description LV.A-80-14-AS-STP-M8x69
    Rotation 0
    D 80
    d M8
    L 104.5
    L1 107.5
    l 69
    l1 35.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 88.5
    Les mer
  • Code 304223
    Description LV.A-80-14-STP-M10x44
    Rotation 0
    D 80
    d M10
    L 79.5
    L1 -
    l 44
    l1 35.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 62.5
    Les mer
  • Code 304227
    Description LV.A-80-14-STP-M10x69
    Rotation 0
    D 80
    d M10
    L 104.5
    L1 -
    l 69
    l1 35.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 65
    Les mer
  • Code 304233
    Description LV.A-80-14-STP-M10x99
    Rotation 0
    D 80
    d M10
    L 134.5
    L1 -
    l 99
    l1 35.5
    l2 6
    h 24
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 68
    Les mer
  • Code 304323
    Description LV.A-80-14-STP-M12x44
    Rotation 0
    D 80
    d M12
    L 79.5
    L1 -
    l 44
    l1 35.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 64
    Les mer
  • Code 304327
    Description LV.A-80-14-STP-M12x69
    Rotation 0
    D 80
    d M12
    L 104.5
    L1 -
    l 69
    l1 35.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 68
    Les mer
  • Code 304333
    Description LV.A-80-14-STP-M12x99
    Rotation 0
    D 80
    d M12
    L 134.5
    L1 -
    l 99
    l1 35.5
    l2 7
    h 24
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 72.5
    Les mer
  • Code 304123
    Description LV.A-80-14-STP-M8x44
    Rotation 0
    D 80
    d M8
    L 79.5
    L1 -
    l 44
    l1 35.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 61
    Les mer
  • Code 304127
    Description LV.A-80-14-STP-M8x69
    Rotation 0
    D 80
    d M8
    L 104.5
    L1 -
    l 69
    l1 35.5
    l2 5
    h 24
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 62.5
    Les mer
Handlekurv
Skroll til toppen
