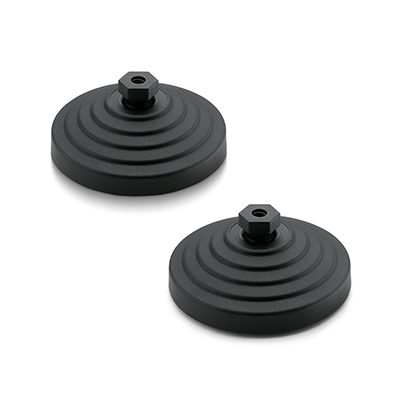

LV.A+SJF_COMBI

Levelling Elements

CE.72526-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 32 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Description LV.A-100-14-AS+SJF-M6
    Rotation
    —
    • —
    D
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    a
    —
    • —
    Maximum tightening torque for the screw
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
  • Description LV.A-100-14-AS+SJF-M6
    Rotation 0
    D 100
    d1 M6
    L 35
    L1 38
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 8100
    Weight 88
  • Description LV.A-100-14-AS+SJF-M8
    Rotation 0
    D 100
    d1 M8
    L 35
    L1 38
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 9700
    Weight 87
  • Description LV.A-100-14+SJF-M6
    Rotation 0
    D 100
    d1 M6
    L 35
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Weight 88
  • Description LV.A-100-14+SJF-M8
    Rotation 0
    D 100
    d1 M8
    L 35
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Weight 87
  • Description LV.A-100-24-AS+SJF-M10
    Rotation 0
    D 100
    d1 M10
    L 44
    L1 47
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 14000
    Weight 100
  • Description LV.A-100-24-AS+SJF-M12
    Rotation 0
    D 100
    d1 M12
    L 44
    L1 47
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 14000
    Weight 99
  • Description LV.A-100-24+SJF-M10
    Rotation 0
    D 100
    d1 M10
    L 44
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Weight 100
  • Description LV.A-100-24+SJF-M12
    Rotation 0
    D 100
    d1 M12
    L 44
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Weight 99
  • Description LV.A-125-24-AS+SJF-M10
    Rotation 0
    D 125
    d1 M10
    L 66.4
    L1 69.4
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 16900
    Weight 209
  • Description LV.A-125-24-AS+SJF-M12
    Rotation 0
    D 125
    d1 M12
    L 66.4
    L1 69.4
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 16900
    Weight 208
  • Description LV.A-125-24+SJF-M10
    Rotation 0
    D 125
    d1 M10
    L 66.4
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Weight 209
  • Description LV.A-125-24+SJF-M12
    Rotation 0
    D 125
    d1 M12
    L 66.4
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Weight 208
  • Description LV.A-60-14-AS+SJF-M6
    Rotation 0
    D 60
    d1 M6
    L 34.6
    L1 37.6
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5800
    Weight 38
  • Description LV.A-60-14-AS+SJF-M8
    Rotation 0
    D 60
    d1 M8
    L 34.6
    L1 37.6
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6900
    Weight 37
  • Description LV.A-60-14+SJF-M6
    Rotation 0
    D 60
    d1 M6
    L 34.6
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Weight 38
  • Description LV.A-60-14+SJF-M8
    Rotation 0
    D 60
    d1 M8
    L 34.6
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Weight 37
  • Description LV.A-60-24-AS+SJF-M10
    Rotation 0
    D 60
    d1 M10
    L 43.4
    L1 46.4
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 10500
    Weight 48
  • Description LV.A-60-24-AS+SJF-M12
    Rotation 0
    D 60
    d1 M12
    L 43.4
    L1 46.4
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 10700
    Weight 47
  • Description LV.A-60-24+SJF-M10
    Rotation 0
    D 60
    d1 M10
    L 43.4
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Weight 48
  • Description LV.A-60-24+SJF-M12
    Rotation 0
    D 60
    d1 M12
    L 43.4
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Weight 47
  • Description LV.A-70-14-AS+SJF-M6
    Rotation 0
    D 70
    d1 M6
    L 30.6
    L1 33.6
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 5600
    Weight 36
  • Description LV.A-70-14-AS+SJF-M8
    Rotation 0
    D 70
    d1 M8
    L 30.6
    L1 33.6
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 6700
    Weight 35
  • Description LV.A-70-14+SJF-M6
    Rotation 0
    D 70
    d1 M6
    L 30.6
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Weight 36
  • Description LV.A-70-14+SJF-M8
    Rotation 0
    D 70
    d1 M8
    L 30.6
    h 19
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Weight 35
  • Description LV.A-80-14-AS+SJF-M6
    Rotation 0
    D 80
    d1 M6
    L 35.4
    L1 38.4
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 7400
    Weight 59
  • Description LV.A-80-14-AS+SJF-M8
    Rotation 0
    D 80
    d1 M8
    L 35.4
    L1 38.4
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 8800
    Weight 58
  • Description LV.A-80-14+SJF-M6
    Rotation 0
    D 80
    d1 M6
    L 35.4
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Weight 59
  • Description LV.A-80-14+SJF-M8
    Rotation 0
    D 80
    d1 M8
    L 35.4
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Weight 58
  • Description LV.A-80-24-AS+SJF-M10
    Rotation 0
    D 80
    d1 M10
    L 44
    L1 47
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 9600
    Weight 68
  • Description LV.A-80-24-AS+SJF-M12
    Rotation 0
    D 80
    d1 M12
    L 44
    L1 47
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 9600
    Weight 67
  • Description LV.A-80-24+SJF-M10
    Rotation 0
    D 80
    d1 M10
    L 44
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Weight 68
  • Description LV.A-80-24+SJF-M12
    Rotation 0
    D 80
    d1 M12
    L 44
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Weight 67
