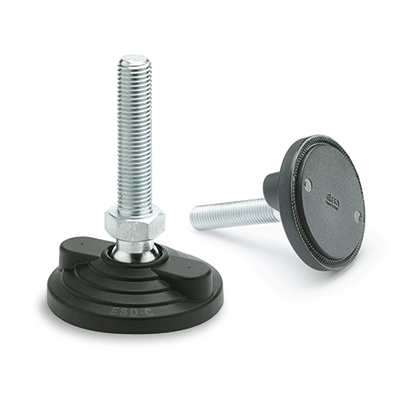

LV.F-ESD-C

Levelling Elements

Teknisk datablad
CE.72561-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 24 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 315461-ESD
    Description LV.F-100-14-AS-M10X43-ESD-C
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 315461-ESD
    Description LV.F-100-14-AS-M10X43-ESD-C
    Rotation 0
    D 100
    d M10
    L 76
    L1 79
    l 43
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 182
    Les mer
  • Code 315463-ESD
    Description LV.F-100-14-AS-M10X68-ESD-C
    Rotation 0
    D 100
    d M10
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 194
    Les mer
  • Code 315465-ESD
    Description LV.F-100-14-AS-M10X98-ESD-C
    Rotation 0
    D 100
    d M10
    L 131
    L1 134
    l 98
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 209
    Les mer
  • Code 315471-ESD
    Description LV.F-100-14-AS-M12X43-ESD-C
    Rotation 0
    D 100
    d M12
    L 76
    L1 79
    l 43
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 191
    Les mer
  • Code 315473-ESD
    Description LV.F-100-14-AS-M12X68-ESD-C
    Rotation 0
    D 100
    d M12
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 208
    Les mer
  • Code 315475-ESD
    Description LV.F-100-14-AS-M12X98-ESD-C
    Rotation 0
    D 100
    d M12
    L 131
    L1 134
    l 98
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 229
    Les mer
  • Code 315483-ESD
    Description LV.F-100-14-AS-M16X108-ESD-C
    Rotation 0
    D 100
    d M16
    L 141
    L1 144
    l 108
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 301
    Les mer
  • Code 315485-ESD
    Description LV.F-100-14-AS-M16X148-ESD-C
    Rotation 0
    D 100
    d M16
    L 181
    L1 184
    l 148
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 355
    Les mer
  • Code 315487-ESD
    Description LV.F-100-14-AS-M16X168-ESD-C
    Rotation 0
    D 100
    d M16
    L 201
    L1 204
    l 168
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 379
    Les mer
  • Code 315481-ESD
    Description LV.F-100-14-AS-M16X68-ESD-C
    Rotation 0
    D 100
    d M16
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 248
    Les mer
  • Code 315451-ESD
    Description LV.F-100-14-AS-M8X43-ESD-C
    Rotation 0
    D 100
    d M8
    L 76
    L1 79
    l 43
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 175
    Les mer
  • Code 315453-ESD
    Description LV.F-100-14-AS-M8X68-ESD-C
    Rotation 0
    D 100
    d M8
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 182
    Les mer
  • Code 312461-ESD
    Description LV.F-100-14-M10X43-ESD-C
    Rotation 0
    D 100
    d M10
    L 76
    L1 -
    l 43
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 139
    Les mer
  • Code 312463-ESD
    Description LV.F-100-14-M10X68-ESD-C
    Rotation 0
    D 100
    d M10
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 151
    Les mer
  • Code 312465-ESD
    Description LV.F-100-14-M10X98-ESD-C
    Rotation 0
    D 100
    d M10
    L 131
    L1 -
    l 98
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 166
    Les mer
  • Code 312471-ESD
    Description LV.F-100-14-M12X43-ESD-C
    Rotation 0
    D 100
    d M12
    L 76
    L1 -
    l 43
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 148
    Les mer
  • Code 312473-ESD
    Description LV.F-100-14-M12X68-ESD-C
    Rotation 0
    D 100
    d M12
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 165
    Les mer
  • Code 312475-ESD
    Description LV.F-100-14-M12X98-ESD-C
    Rotation 0
    D 100
    d M12
    L 131
    L1 -
    l 98
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 186
    Les mer
  • Code 312483-ESD
    Description LV.F-100-14-M16X108-ESD-C
    Rotation 0
    D 100
    d M16
    L 141
    L1 -
    l 108
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 258
    Les mer
  • Code 312485-ESD
    Description LV.F-100-14-M16X148-ESD-C
    Rotation 0
    D 100
    d M16
    L 181
    L1 -
    l 148
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 312
    Les mer
  • Code 312487-ESD
    Description LV.F-100-14-M16X168-ESD-C
    Rotation 0
    D 100
    d M16
    L 201
    L1 -
    l 168
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 336
    Les mer
  • Code 312481-ESD
    Description LV.F-100-14-M16X68-ESD-C
    Rotation 0
    D 100
    d M16
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 16
    Weight 205
    Les mer
  • Code 312451-ESD
    Description LV.F-100-14-M8X43-ESD-C
    Rotation 0
    D 100
    d M8
    L 76
    L1 -
    l 43
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 132
    Les mer
  • Code 312453-ESD
    Description LV.F-100-14-M8X68-ESD-C
    Rotation 0
    D 100
    d M8
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12.5
    h 24
    h1 23
    s 14
    Weight 139
    Les mer
