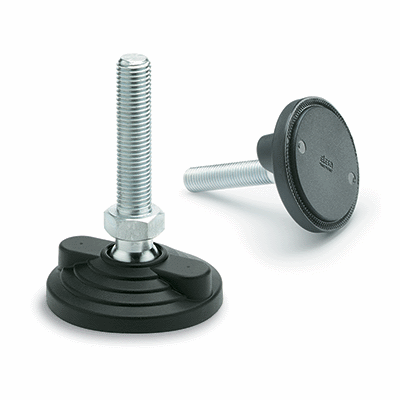

LV.F-PP-SST

Levelling Elements

Teknisk datablad
CE.72581-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 44 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 394541
    Description LV.F-100-PP-24-AS-SST-M16x138
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Load at breakage
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 394541
    Description LV.F-100-PP-24-AS-SST-M16x138
    Rotation 0
    D 100
    d M16
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 417
    Les mer
  • Code 394561
    Description LV.F-100-PP-24-AS-SST-M16x158
    Rotation 0
    D 100
    d M16
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 445
    Les mer
  • Code 394521
    Description LV.F-100-PP-24-AS-SST-M16x58
    Rotation 0
    D 100
    d M16
    L 101
    L1 104
    l 58
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 314
    Les mer
  • Code 394525
    Description LV.F-100-PP-24-AS-SST-M16x98
    Rotation 0
    D 100
    d M16
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 366
    Les mer
  • Code 394641
    Description LV.F-100-PP-24-AS-SST-M20x138
    Rotation 0
    D 100
    d M20
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 518
    Les mer
  • Code 394661
    Description LV.F-100-PP-24-AS-SST-M20x158
    Rotation 0
    D 100
    d M20
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 558
    Les mer
  • Code 394681
    Description LV.F-100-PP-24-AS-SST-M20x198
    Rotation 0
    D 100
    d M20
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 643
    Les mer
  • Code 394625
    Description LV.F-100-PP-24-AS-SST-M20x98
    Rotation 0
    D 100
    d M20
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 438
    Les mer
  • Code 394761
    Description LV.F-100-PP-24-AS-SST-M24x158
    Rotation 0
    D 100
    d M24
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 713
    Les mer
  • Code 394781
    Description LV.F-100-PP-24-AS-SST-M24x198
    Rotation 0
    D 100
    d M24
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 834
    Les mer
  • Code 394725
    Description LV.F-100-PP-24-AS-SST-M24x98
    Rotation 0
    D 100
    d M24
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 538
    Les mer
  • Code 391541
    Description LV.F-100-PP-24-SST-M16x138
    Rotation 0
    D 100
    d M16
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 363
    Les mer
  • Code 391561
    Description LV.F-100-PP-24-SST-M16x158
    Rotation 0
    D 100
    d M16
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 391
    Les mer
  • Code 391521
    Description LV.F-100-PP-24-SST-M16x58
    Rotation 0
    D 100
    d M16
    L 101
    L1 -
    l 58
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 260
    Les mer
  • Code 391525
    Description LV.F-100-PP-24-SST-M16x98
    Rotation 0
    D 100
    d M16
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 312
    Les mer
  • Code 391641
    Description LV.F-100-PP-24-SST-M20x138
    Rotation 0
    D 100
    d M20
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 464
    Les mer
  • Code 391661
    Description LV.F-100-PP-24-SST-M20x158
    Rotation 0
    D 100
    d M20
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 504
    Les mer
  • Code 391681
    Description LV.F-100-PP-24-SST-M20x198
    Rotation 0
    D 100
    d M20
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 589
    Les mer
  • Code 391625
    Description LV.F-100-PP-24-SST-M20x98
    Rotation 0
    D 100
    d M20
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 384
    Les mer
  • Code 391761
    Description LV.F-100-PP-24-SST-M24x158
    Rotation 0
    D 100
    d M24
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 659
    Les mer
  • Code 391781
    Description LV.F-100-PP-24-SST-M24x198
    Rotation 0
    D 100
    d M24
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 780
    Les mer
  • Code 391725
    Description LV.F-100-PP-24-SST-M24x98
    Rotation 0
    D 100
    d M24
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 5000
    Load at breakage 18500
    Weight 484
    Les mer
  • Code 393641
    Description LV.F-80-PP-24-AS-SST-M16x138
    Rotation 0
    D 80
    d M16
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 359
    Les mer
  • Code 393661
    Description LV.F-80-PP-24-AS-SST-M16x158
    Rotation 0
    D 80
    d M16
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 387
    Les mer
  • Code 393621
    Description LV.F-80-PP-24-AS-SST-M16x58
    Rotation 0
    D 80
    d M16
    L 101
    L1 104
    l 58
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 256
    Les mer
  • Code 393625
    Description LV.F-80-PP-24-AS-SST-M16x98
    Rotation 0
    D 80
    d M16
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 308
    Les mer
  • Code 393741
    Description LV.F-80-PP-24-AS-SST-M20x138
    Rotation 0
    D 80
    d M20
    L 181
    L1 184
    l 138
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 460
    Les mer
  • Code 393761
    Description LV.F-80-PP-24-AS-SST-M20x158
    Rotation 0
    D 80
    d M20
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 500
    Les mer
  • Code 393781
    Description LV.F-80-PP-24-AS-SST-M20x198
    Rotation 0
    D 80
    d M20
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 585
    Les mer
  • Code 393725
    Description LV.F-80-PP-24-AS-SST-M20x98
    Rotation 0
    D 80
    d M20
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 380
    Les mer
  • Code 393861
    Description LV.F-80-PP-24-AS-SST-M24x158
    Rotation 0
    D 80
    d M24
    L 201
    L1 204
    l 158
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 655
    Les mer
  • Code 393881
    Description LV.F-80-PP-24-AS-SST-M24x198
    Rotation 0
    D 80
    d M24
    L 241
    L1 244
    l 198
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 776
    Les mer
  • Code 393825
    Description LV.F-80-PP-24-AS-SST-M24x98
    Rotation 0
    D 80
    d M24
    L 141
    L1 144
    l 98
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 480
    Les mer
  • Code 390641
    Description LV.F-80-PP-24-SST-M16x138
    Rotation 0
    D 80
    d M16
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 333
    Les mer
  • Code 390661
    Description LV.F-80-PP-24-SST-M16x158
    Rotation 0
    D 80
    d M16
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 361
    Les mer
  • Code 390621
    Description LV.F-80-PP-24-SST-M16x58
    Rotation 0
    D 80
    d M16
    L 101
    L1 -
    l 58
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 230
    Les mer
  • Code 390625
    Description LV.F-80-PP-24-SST-M16x98
    Rotation 0
    D 80
    d M16
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 282
    Les mer
  • Code 390741
    Description LV.F-80-PP-24-SST-M20x138
    Rotation 0
    D 80
    d M20
    L 181
    L1 -
    l 138
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 434
    Les mer
  • Code 390761
    Description LV.F-80-PP-24-SST-M20x158
    Rotation 0
    D 80
    d M20
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 474
    Les mer
  • Code 390781
    Description LV.F-80-PP-24-SST-M20x198
    Rotation 0
    D 80
    d M20
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 559
    Les mer
  • Code 390725
    Description LV.F-80-PP-24-SST-M20x98
    Rotation 0
    D 80
    d M20
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 354
    Les mer
  • Code 390861
    Description LV.F-80-PP-24-SST-M24x158
    Rotation 0
    D 80
    d M24
    L 201
    L1 -
    l 158
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 629
    Les mer
  • Code 390881
    Description LV.F-80-PP-24-SST-M24x198
    Rotation 0
    D 80
    d M24
    L 241
    L1 -
    l 198
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 750
    Les mer
  • Code 390825
    Description LV.F-80-PP-24-SST-M24x98
    Rotation 0
    D 80
    d M24
    L 141
    L1 -
    l 98
    l1 43
    s 24
    Max limit static load 4000
    Load at breakage 18000
    Weight 454
    Les mer
