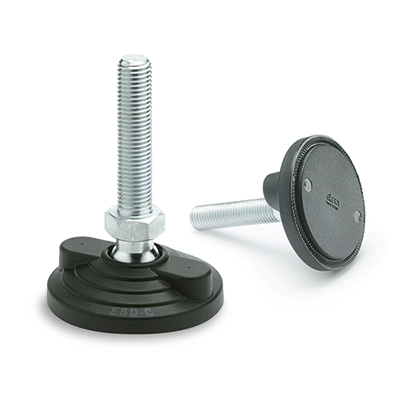

LV.F-SST-ESD-C

Levelling Elements

Teknisk datablad
CE.72591-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 24 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 335461-ESD
    Description LV.F-100-14-AS-SST-M10X43-ESD-C
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 335461-ESD
    Description LV.F-100-14-AS-SST-M10X43-ESD-C
    Rotation 0
    D 100
    d M10
    L 76
    L1 79
    l 43
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 183
    Les mer
  • Code 335463-ESD
    Description LV.F-100-14-AS-SST-M10X68-ESD-C
    Rotation 0
    D 100
    d M10
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 196
    Les mer
  • Code 335465-ESD
    Description LV.F-100-14-AS-SST-M10X98-ESD-C
    Rotation 0
    D 100
    d M10
    L 131
    L1 134
    l 98
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 211
    Les mer
  • Code 335471-ESD
    Description LV.F-100-14-AS-SST-M12X43-ESD-C
    Rotation 0
    D 100
    d M12
    L 76
    L1 79
    l 43
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 193
    Les mer
  • Code 335473-ESD
    Description LV.F-100-14-AS-SST-M12X68-ESD-C
    Rotation 0
    D 100
    d M12
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 210
    Les mer
  • Code 335475-ESD
    Description LV.F-100-14-AS-SST-M12X98-ESD-C
    Rotation 0
    D 100
    d M12
    L 131
    L1 134
    l 98
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 232
    Les mer
  • Code 335483-ESD
    Description LV.F-100-14-AS-SST-M16X108-ESD-C
    Rotation 0
    D 100
    d M16
    L 141
    L1 144
    l 108
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 306
    Les mer
  • Code 335485-ESD
    Description LV.F-100-14-AS-SST-M16X148-ESD-C
    Rotation 0
    D 100
    d M16
    L 181
    L1 184
    l 148
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 363
    Les mer
  • Code 335487-ESD
    Description LV.F-100-14-AS-SST-M16X168-ESD-C
    Rotation 0
    D 100
    d M16
    L 201
    L1 204
    l 168
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 388
    Les mer
  • Code 335481-ESD
    Description LV.F-100-14-AS-SST-M16X68-ESD-C
    Rotation 0
    D 100
    d M16
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 257
    Les mer
  • Code 335451-ESD
    Description LV.F-100-14-AS-SST-M8X43-ESD-C
    Rotation 0
    D 100
    d M8
    L 76
    L1 79
    l 43
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 175
    Les mer
  • Code 335453-ESD
    Description LV.F-100-14-AS-SST-M8X68-ESD-C
    Rotation 0
    D 100
    d M8
    L 101
    L1 104
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 183
    Les mer
  • Code 332461-ESD
    Description LV.F-100-14-SST-M10X43-ESD-C
    Rotation 0
    D 100
    d M10
    L 76
    L1 -
    l 43
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 140
    Les mer
  • Code 332463-ESD
    Description LV.F-100-14-SST-M10X68-ESD-C
    Rotation 0
    D 100
    d M10
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 153
    Les mer
  • Code 332465-ESD
    Description LV.F-100-14-SST-M10X98-ESD-C
    Rotation 0
    D 100
    d M10
    L 131
    L1 -
    l 98
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 168
    Les mer
  • Code 332471-ESD
    Description LV.F-100-14-SST-M12X43-ESD-C
    Rotation 0
    D 100
    d M12
    L 76
    L1 -
    l 43
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 150
    Les mer
  • Code 332473-ESD
    Description LV.F-100-14-SST-M12X68-ESD-C
    Rotation 0
    D 100
    d M12
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 167
    Les mer
  • Code 332475-ESD
    Description LV.F-100-14-SST-M12X98-ESD-C
    Rotation 0
    D 100
    d M12
    L 131
    L1 -
    l 98
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 189
    Les mer
  • Code 332483-ESD
    Description LV.F-100-14-SST-M16X108-ESD-C
    Rotation 0
    D 100
    d M16
    L 141
    L1 -
    l 108
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 263
    Les mer
  • Code 332485-ESD
    Description LV.F-100-14-SST-M16X148-ESD-C
    Rotation 0
    D 100
    d M16
    L 181
    L1 -
    l 148
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 320
    Les mer
  • Code 332487-ESD
    Description LV.F-100-14-SST-M16X168-ESD-C
    Rotation 0
    D 100
    d M16
    L 201
    L1 -
    l 168
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 345
    Les mer
  • Code 332481-ESD
    Description LV.F-100-14-SST-M16X68-ESD-C
    Rotation 0
    D 100
    d M16
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 16
    Weight 214
    Les mer
  • Code 332451-ESD
    Description LV.F-100-14-SST-M8X43-ESD-C
    Rotation 0
    D 100
    d M8
    L 76
    L1 -
    l 43
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 132
    Les mer
  • Code 332453-ESD
    Description LV.F-100-14-SST-M8X68-ESD-C
    Rotation 0
    D 100
    d M8
    L 101
    L1 -
    l 68
    l1 33
    d1 70
    d2 12
    h 24
    h1 23
    s 14
    Weight 140
    Les mer
