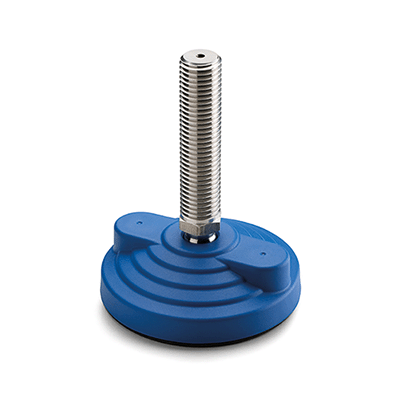

LV.F-SST-VD

Levelling Elements

Teknisk datablad
CE.72592-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 126 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 186411
    Description LV.F-100-14-AS-SST-M10x43-VD
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 186411
    Description LV.F-100-14-AS-SST-M10x43-VD
    Rotation 0
    D 100
    d M10
    d1 70
    L 76
    L1 79
    l 43
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 157
    Les mer
  • Code 186413
    Description LV.F-100-14-AS-SST-M10x68-VD
    Rotation 0
    D 100
    d M10
    d1 70
    L 101
    L1 104
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 169
    Les mer
  • Code 186415
    Description LV.F-100-14-AS-SST-M10x98-VD
    Rotation 0
    D 100
    d M10
    d1 70
    L 131
    L1 134
    l 98
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 183
    Les mer
  • Code 186421
    Description LV.F-100-14-AS-SST-M12x43-VD
    Rotation 0
    D 100
    d M12
    d1 70
    L 76
    L1 79
    l 43
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 167
    Les mer
  • Code 186423
    Description LV.F-100-14-AS-SST-M12x68-VD
    Rotation 0
    D 100
    d M12
    d1 70
    L 101
    L1 104
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 184
    Les mer
  • Code 186425
    Description LV.F-100-14-AS-SST-M12x98-VD
    Rotation 0
    D 100
    d M12
    d1 70
    L 131
    L1 134
    l 98
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 205
    Les mer
  • Code 186435
    Description LV.F-100-14-AS-SST-M14x148-VD
    Rotation 0
    D 100
    d M14
    d1 70
    L 181
    L1 184
    l 148
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 310
    Les mer
  • Code 186431
    Description LV.F-100-14-AS-SST-M14x68-VD
    Rotation 0
    D 100
    d M14
    d1 70
    L 101
    L1 104
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 206
    Les mer
  • Code 186433
    Description LV.F-100-14-AS-SST-M14x98-VD
    Rotation 0
    D 100
    d M14
    d1 70
    L 131
    L1 134
    l 98
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 227
    Les mer
  • Code 186443
    Description LV.F-100-14-AS-SST-M16x108-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 141
    L1 144
    l 108
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 280
    Les mer
  • Code 186445
    Description LV.F-100-14-AS-SST-M16x148-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 181
    L1 184
    l 148
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 332
    Les mer
  • Code 186447
    Description LV.F-100-14-AS-SST-M16x168-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 201
    L1 204
    l 168
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 358
    Les mer
  • Code 186441
    Description LV.F-100-14-AS-SST-M16x68-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 101
    L1 104
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 228
    Les mer
  • Code 186401
    Description LV.F-100-14-AS-SST-M8x43-VD
    Rotation 0
    D 100
    d M8
    d1 70
    L 76
    L1 79
    l 43
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 148
    Les mer
  • Code 186403
    Description LV.F-100-14-AS-SST-M8x68-VD
    Rotation 0
    D 100
    d M8
    d1 70
    L 101
    L1 104
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 160
    Les mer
  • Code 185411
    Description LV.F-100-14-SST-M10x43-VD
    Rotation 0
    D 100
    d M10
    d1 70
    L 76
    L1 -
    l 43
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 102
    Les mer
  • Code 185413
    Description LV.F-100-14-SST-M10x68-VD
    Rotation 0
    D 100
    d M10
    d1 70
    L 101
    L1 -
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 114
    Les mer
  • Code 185415
    Description LV.F-100-14-SST-M10x98-VD
    Rotation 0
    D 100
    d M10
    d1 70
    L 131
    L1 -
    l 98
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 128
    Les mer
  • Code 185421
    Description LV.F-100-14-SST-M12x43-VD
    Rotation 0
    D 100
    d M12
    d1 70
    L 76
    L1 -
    l 43
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 112
    Les mer
  • Code 185423
    Description LV.F-100-14-SST-M12x68-VD
    Rotation 0
    D 100
    d M12
    d1 70
    L 101
    L1 -
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 129
    Les mer
  • Code 185425
    Description LV.F-100-14-SST-M12x98-VD
    Rotation 0
    D 100
    d M12
    d1 70
    L 131
    L1 -
    l 98
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 150
    Les mer
  • Code 185435
    Description LV.F-100-14-SST-M14x148-VD
    Rotation 0
    D 100
    d M14
    d1 70
    L 181
    L1 -
    l 148
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 255
    Les mer
  • Code 185431
    Description LV.F-100-14-SST-M14x68-VD
    Rotation 0
    D 100
    d M14
    d1 70
    L 101
    L1 -
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 151
    Les mer
  • Code 185433
    Description LV.F-100-14-SST-M14x98-VD
    Rotation 0
    D 100
    d M14
    d1 70
    L 131
    L1 -
    l 98
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 172
    Les mer
  • Code 185443
    Description LV.F-100-14-SST-M16x108-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 141
    L1 -
    l 108
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 225
    Les mer
  • Code 185445
    Description LV.F-100-14-SST-M16x148-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 181
    L1 -
    l 148
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 277
    Les mer
  • Code 185447
    Description LV.F-100-14-SST-M16x168-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 201
    L1 -
    l 168
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 303
    Les mer
  • Code 185441
    Description LV.F-100-14-SST-M16x68-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 101
    L1 -
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 16
    Max limit static load 18000
    Weight 173
    Les mer
  • Code 185401
    Description LV.F-100-14-SST-M8x43-VD
    Rotation 0
    D 100
    d M8
    d1 70
    L 76
    L1 -
    l 43
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 93
    Les mer
  • Code 185403
    Description LV.F-100-14-SST-M8x68-VD
    Rotation 0
    D 100
    d M8
    d1 70
    L 101
    L1 -
    l 68
    l1 33
    d2 12.5
    h 24.000
    h1 23
    s 14
    Max limit static load 18000
    Weight 105
    Les mer
  • Code 186455
    Description LV.F-100-24-AS-SST-M16x138-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 181
    L1 184
    l 138
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 417
    Les mer
  • Code 186457
    Description LV.F-100-24-AS-SST-M16x158-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 201
    L1 204
    l 158
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 445
    Les mer
  • Code 186451
    Description LV.F-100-24-AS-SST-M16x58-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 101
    L1 104
    l 58
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 314
    Les mer
  • Code 186453
    Description LV.F-100-24-AS-SST-M16x98-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 141
    L1 144
    l 98
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 366
    Les mer
  • Code 186463
    Description LV.F-100-24-AS-SST-M20x138-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 181
    L1 184
    l 138
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 518
    Les mer
  • Code 186465
    Description LV.F-100-24-AS-SST-M20x158-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 201
    L1 204
    l 158
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 558
    Les mer
  • Code 186467
    Description LV.F-100-24-AS-SST-M20x198-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 241
    L1 244
    l 198
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 643
    Les mer
  • Code 186461
    Description LV.F-100-24-AS-SST-M20x98-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 141
    L1 144
    l 98
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 438
    Les mer
  • Code 186473
    Description LV.F-100-24-AS-SST-M24x158-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 201
    L1 204
    l 158
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 713
    Les mer
  • Code 186475
    Description LV.F-100-24-AS-SST-M24x198-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 241
    L1 244
    l 198
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 834
    Les mer
  • Code 186471
    Description LV.F-100-24-AS-SST-M24x98-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 141
    L1 144
    l 98
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 538
    Les mer
  • Code 185455
    Description LV.F-100-24-SST-M16x138-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 181
    L1 -
    l 138
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 363
    Les mer
  • Code 185457
    Description LV.F-100-24-SST-M16x158-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 201
    L1 -
    l 158
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 391
    Les mer
  • Code 185451
    Description LV.F-100-24-SST-M16x58-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 101
    L1 -
    l 58
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 260
    Les mer
  • Code 185453
    Description LV.F-100-24-SST-M16x98-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 141
    L1 -
    l 98
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 312
    Les mer
  • Code 185463
    Description LV.F-100-24-SST-M20x138-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 181
    L1 -
    l 138
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 464
    Les mer
  • Code 185465
    Description LV.F-100-24-SST-M20x158-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 201
    L1 -
    l 158
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 504
    Les mer
  • Code 185467
    Description LV.F-100-24-SST-M20x198-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 241
    L1 -
    l 198
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 589
    Les mer
  • Code 185461
    Description LV.F-100-24-SST-M20x98-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 141
    L1 -
    l 98
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 384
    Les mer
  • Code 185473
    Description LV.F-100-24-SST-M24x158-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 201
    L1 -
    l 158
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 659
    Les mer
  • Code 185475
    Description LV.F-100-24-SST-M24x198-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 241
    L1 -
    l 198
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 780
    Les mer
  • Code 185471
    Description LV.F-100-24-SST-M24x98-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 141
    L1 -
    l 98
    l1 43
    d2 12.5
    h 24.000
    h1 23
    s 24
    Max limit static load 25000
    Weight 484
    Les mer
  • Code 186505
    Description LV.F-125-24-AS-SST-M16x138-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 205
    L1 208
    l 138
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 627
    Les mer
  • Code 186507
    Description LV.F-125-24-AS-SST-M16x158-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 225
    L1 228
    l 158
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 655
    Les mer
  • Code 186501
    Description LV.F-125-24-AS-SST-M16x58-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 125
    L1 128
    l 58
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 524
    Les mer
  • Code 186503
    Description LV.F-125-24-AS-SST-M16x98-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 165
    L1 168
    l 98
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 576
    Les mer
  • Code 186513
    Description LV.F-125-24-AS-SST-M20x138-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 205
    L1 208
    l 138
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 728
    Les mer
  • Code 186515
    Description LV.F-125-24-AS-SST-M20x158-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 225
    L1 228
    l 158
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 768
    Les mer
  • Code 186517
    Description LV.F-125-24-AS-SST-M20x198-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 265
    L1 268
    l 198
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 853
    Les mer
  • Code 186511
    Description LV.F-125-24-AS-SST-M20x98-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 165
    L1 168
    l 98
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 648
    Les mer
  • Code 186523
    Description LV.F-125-24-AS-SST-M24x158-VD
    Rotation 0
    D 125
    d M24
    d1 95
    L 225
    L1 228
    l 158
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 923
    Les mer
  • Code 186525
    Description LV.F-125-24-AS-SST-M24x198-VD
    Rotation 0
    D 125
    d M24
    d1 95
    L 265
    L1 268
    l 198
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 1044
    Les mer
  • Code 186521
    Description LV.F-125-24-AS-SST-M24x98-VD
    Rotation 0
    D 125
    d M24
    d1 95
    L 165
    L1 168
    l 98
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 748
    Les mer
  • Code 185505
    Description LV.F-125-24-SST-M16x138-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 205
    L1 -
    l 138
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 502
    Les mer
  • Code 185507
    Description LV.F-125-24-SST-M16x158-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 225
    L1 -
    l 158
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 530
    Les mer
  • Code 185501
    Description LV.F-125-24-SST-M16x58-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 125
    L1 -
    l 58
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 399
    Les mer
  • Code 185503
    Description LV.F-125-24-SST-M16x98-VD
    Rotation 0
    D 125
    d M16
    d1 95
    L 165
    L1 -
    l 98
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 451
    Les mer
  • Code 185513
    Description LV.F-125-24-SST-M20x138-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 205
    L1 -
    l 138
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 603
    Les mer
  • Code 185515
    Description LV.F-125-24-SST-M20x158-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 225
    L1 -
    l 158
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 643
    Les mer
  • Code 185517
    Description LV.F-125-24-SST-M20x198-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 265
    L1 -
    l 198
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 728
    Les mer
  • Code 185511
    Description LV.F-125-24-SST-M20x98-VD
    Rotation 0
    D 125
    d M20
    d1 95
    L 165
    L1 -
    l 98
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 523
    Les mer
  • Code 185523
    Description LV.F-125-24-SST-M24x158-VD
    Rotation 0
    D 125
    d M24
    d1 95
    L 225
    L1 -
    l 158
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 798
    Les mer
  • Code 185525
    Description LV.F-125-24-SST-M24x198-VD
    Rotation 0
    D 125
    d M24
    d1 95
    L 265
    L1 -
    l 198
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 919
    Les mer
  • Code 185521
    Description LV.F-125-24-SST-M24x98-VD
    Rotation 0
    D 125
    d M24
    d1 95
    L 165
    L1 -
    l 98
    l1 67
    d2 12.5
    h 46.000
    h1 23
    s 24
    Max limit static load 28000
    Weight 623
    Les mer
  • Code 186311
    Description LV.F-80-14-AS-SST-M10x43-VD
    Rotation 0
    D 80
    d M10
    d1 54
    L 76
    L1 79
    l 43
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 121
    Les mer
  • Code 186313
    Description LV.F-80-14-AS-SST-M10x68-VD
    Rotation 0
    D 80
    d M10
    d1 54
    L 101
    L1 104
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 134
    Les mer
  • Code 186315
    Description LV.F-80-14-AS-SST-M10x98-VD
    Rotation 0
    D 80
    d M10
    d1 54
    L 131
    L1 134
    l 98
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 148
    Les mer
  • Code 186321
    Description LV.F-80-14-AS-SST-M12x43-VD
    Rotation 0
    D 80
    d M12
    d1 54
    L 76
    L1 79
    l 43
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 131
    Les mer
  • Code 186323
    Description LV.F-80-14-AS-SST-M12x68-VD
    Rotation 0
    D 80
    d M12
    d1 54
    L 101
    L1 104
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 149
    Les mer
  • Code 186325
    Description LV.F-80-14-AS-SST-M12x98-VD
    Rotation 0
    D 80
    d M12
    d1 54
    L 131
    L1 134
    l 98
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 171
    Les mer
  • Code 186335
    Description LV.F-80-14-AS-SST-M14x148-VD
    Rotation 0
    D 80
    d M14
    d1 54
    L 181
    L1 184
    l 148
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 276
    Les mer
  • Code 186331
    Description LV.F-80-14-AS-SST-M14x68-VD
    Rotation 0
    D 80
    d M14
    d1 54
    L 101
    L1 104
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 172
    Les mer
  • Code 186333
    Description LV.F-80-14-AS-SST-M14x98-VD
    Rotation 0
    D 80
    d M14
    d1 54
    L 131
    L1 134
    l 98
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 193
    Les mer
  • Code 186343
    Description LV.F-80-14-AS-SST-M16x108-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 141
    L1 144
    l 108
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 248
    Les mer
  • Code 186345
    Description LV.F-80-14-AS-SST-M16x148-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 181
    L1 184
    l 148
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 301
    Les mer
  • Code 186347
    Description LV.F-80-14-AS-SST-M16x168-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 201
    L1 204
    l 168
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 328
    Les mer
  • Code 186341
    Description LV.F-80-14-AS-SST-M16x68-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 101
    L1 104
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 194
    Les mer
  • Code 186301
    Description LV.F-80-14-AS-SST-M8x43-VD
    Rotation 0
    D 80
    d M8
    d1 54
    L 76
    L1 79
    l 43
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 112
    Les mer
  • Code 186303
    Description LV.F-80-14-AS-SST-M8x68-VD
    Rotation 0
    D 80
    d M8
    d1 54
    L 101
    L1 104
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 124
    Les mer
  • Code 185311
    Description LV.F-80-14-SST-M10x43-VD
    Rotation 0
    D 80
    d M10
    d1 54
    L 76
    L1 -
    l 43
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 95
    Les mer
  • Code 185313
    Description LV.F-80-14-SST-M10x68-VD
    Rotation 0
    D 80
    d M10
    d1 54
    L 101
    L1 -
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 108
    Les mer
  • Code 185315
    Description LV.F-80-14-SST-M10x98-VD
    Rotation 0
    D 80
    d M10
    d1 54
    L 131
    L1 -
    l 98
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 122
    Les mer
  • Code 185321
    Description LV.F-80-14-SST-M12x43-VD
    Rotation 0
    D 80
    d M12
    d1 54
    L 76
    L1 -
    l 43
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 105
    Les mer
  • Code 185323
    Description LV.F-80-14-SST-M12x68-VD
    Rotation 0
    D 80
    d M12
    d1 54
    L 101
    L1 -
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 123
    Les mer
  • Code 185325
    Description LV.F-80-14-SST-M12x98-VD
    Rotation 0
    D 80
    d M12
    d1 54
    L 131
    L1 -
    l 98
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 145
    Les mer
  • Code 185335
    Description LV.F-80-14-SST-M14x148-VD
    Rotation 0
    D 80
    d M14
    d1 54
    L 181
    L1 -
    l 148
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 250
    Les mer
  • Code 185331
    Description LV.F-80-14-SST-M14x68-VD
    Rotation 0
    D 80
    d M14
    d1 54
    L 101
    L1 -
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 146
    Les mer
  • Code 185333
    Description LV.F-80-14-SST-M14x98-VD
    Rotation 0
    D 80
    d M14
    d1 54
    L 131
    L1 -
    l 98
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 167
    Les mer
  • Code 185343
    Description LV.F-80-14-SST-M16x108-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 141
    L1 -
    l 108
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 222
    Les mer
  • Code 185345
    Description LV.F-80-14-SST-M16x148-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 181
    L1 -
    l 148
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 275
    Les mer
  • Code 185347
    Description LV.F-80-14-SST-M16x168-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 201
    L1 -
    l 168
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 302
    Les mer
  • Code 185341
    Description LV.F-80-14-SST-M16x68-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 101
    L1 -
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 16
    Max limit static load 16000
    Weight 168
    Les mer
  • Code 185301
    Description LV.F-80-14-SST-M8x43-VD
    Rotation 0
    D 80
    d M8
    d1 54
    L 76
    L1 -
    l 43
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 86
    Les mer
  • Code 185303
    Description LV.F-80-14-SST-M8x68-VD
    Rotation 0
    D 80
    d M8
    d1 54
    L 101
    L1 -
    l 68
    l1 33
    d2 8.5
    h 24.000
    h1 23
    s 14
    Max limit static load 16000
    Weight 98
    Les mer
  • Code 186355
    Description LV.F-80-24-AS-SST-M16x138-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 181
    L1 184
    l 138
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 359
    Les mer
  • Code 186357
    Description LV.F-80-24-AS-SST-M16x158-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 201
    L1 204
    l 158
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 387
    Les mer
  • Code 186351
    Description LV.F-80-24-AS-SST-M16x58-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 101
    L1 104
    l 58
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 256
    Les mer
  • Code 186353
    Description LV.F-80-24-AS-SST-M16x98-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 141
    L1 144
    l 98
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 308
    Les mer
  • Code 186363
    Description LV.F-80-24-AS-SST-M20x138-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 181
    L1 184
    l 138
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 460
    Les mer
  • Code 186365
    Description LV.F-80-24-AS-SST-M20x158-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 201
    L1 204
    l 158
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 500
    Les mer
  • Code 186367
    Description LV.F-80-24-AS-SST-M20x198-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 241
    L1 244
    l 198
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 585
    Les mer
  • Code 186361
    Description LV.F-80-24-AS-SST-M20x98-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 141
    L1 144
    l 98
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 380
    Les mer
  • Code 186373
    Description LV.F-80-24-AS-SST-M24x158-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 201
    L1 204
    l 158
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 655
    Les mer
  • Code 186375
    Description LV.F-80-24-AS-SST-M24x198-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 241
    L1 244
    l 198
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 776
    Les mer
  • Code 186371
    Description LV.F-80-24-AS-SST-M24x98-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 141
    L1 144
    l 98
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 480
    Les mer
  • Code 185355
    Description LV.F-80-24-SST-M16x138-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 181
    L1 -
    l 138
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 333
    Les mer
  • Code 185357
    Description LV.F-80-24-SST-M16x158-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 201
    L1 -
    l 158
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 361
    Les mer
  • Code 185351
    Description LV.F-80-24-SST-M16x58-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 101
    L1 -
    l 58
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 230
    Les mer
  • Code 185353
    Description LV.F-80-24-SST-M16x98-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 141
    L1 -
    l 98
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 282
    Les mer
  • Code 185363
    Description LV.F-80-24-SST-M20x138-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 181
    L1 -
    l 138
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 434
    Les mer
  • Code 185365
    Description LV.F-80-24-SST-M20x158-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 201
    L1 -
    l 158
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 474
    Les mer
  • Code 185367
    Description LV.F-80-24-SST-M20x198-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 241
    L1 -
    l 198
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 559
    Les mer
  • Code 185361
    Description LV.F-80-24-SST-M20x98-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 141
    L1 -
    l 98
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 354
    Les mer
  • Code 185373
    Description LV.F-80-24-SST-M24x158-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 201
    L1 -
    l 158
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 629
    Les mer
  • Code 185375
    Description LV.F-80-24-SST-M24x198-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 241
    L1 -
    l 198
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 750
    Les mer
  • Code 185371
    Description LV.F-80-24-SST-M24x98-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 141
    L1 -
    l 98
    l1 43
    d2 8.5
    h 24.000
    h1 23
    s 24
    Max limit static load 18000
    Weight 454
    Les mer
Handlekurv
Skroll til toppen
