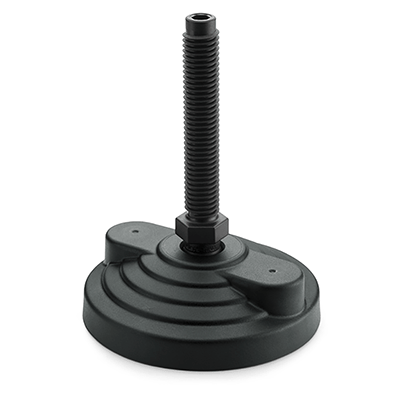

LV.F-STP

Levelling Elements

Teknisk datablad
CE.72601-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 32 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 315462
    Description LV.F-100-14-AS-STP-M10x44
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    a
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 315462
    Description LV.F-100-14-AS-STP-M10x44
    Rotation 0
    D 100
    d M10
    d1 70
    L 80
    L1 83
    l 44
    l1 36
    l2 6
    d2 12.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 148.5
    Les mer
  • Code 315464
    Description LV.F-100-14-AS-STP-M10x69
    Rotation 0
    D 100
    d M10
    d1 70
    L 105
    L1 108
    l 69
    l1 36
    l2 6
    d2 12.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 151
    Les mer
  • Code 315466
    Description LV.F-100-14-AS-STP-M10x99
    Rotation 0
    D 100
    d M10
    d1 70
    L 135
    L1 138
    l 99
    l1 36
    l2 6
    d2 12.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 154
    Les mer
  • Code 315472
    Description LV.F-100-14-AS-STP-M12x44
    Rotation 0
    D 100
    d M12
    d1 70
    L 80
    L1 83
    l 44
    l1 36
    l2 7
    d2 12.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 150
    Les mer
  • Code 315474
    Description LV.F-100-14-AS-STP-M12x69
    Rotation 0
    D 100
    d M12
    d1 70
    L 105
    L1 108
    l 69
    l1 36
    l2 7
    d2 12.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 154
    Les mer
  • Code 315476
    Description LV.F-100-14-AS-STP-M12x99
    Rotation 0
    D 100
    d M12
    d1 70
    L 135
    L1 138
    l 99
    l1 36
    l2 7
    d2 12.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 158.5
    Les mer
  • Code 315452
    Description LV.F-100-14-AS-STP-M8x44
    Rotation 0
    D 100
    d M8
    d1 54
    L 80
    L1 83
    l 44
    l1 36
    l2 5
    d2 12.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 147
    Les mer
  • Code 315454
    Description LV.F-100-14-AS-STP-M8x69
    Rotation 0
    D 100
    d M8
    d1 54
    L 105
    L1 108
    l 69
    l1 36
    l2 5
    d2 12.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 148.5
    Les mer
  • Code 312462
    Description LV.F-100-14-STP-M10x44
    Rotation 0
    D 100
    d M10
    d1 54
    L 80
    L1 -
    l 44
    l1 36
    l2 6
    d2 12.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 94.5
    Les mer
  • Code 312464
    Description LV.F-100-14-STP-M10x69
    Rotation 0
    D 100
    d M10
    d1 54
    L 105
    L1 -
    l 69
    l1 36
    l2 6
    d2 12.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 97
    Les mer
  • Code 312466
    Description LV.F-100-14-STP-M10x99
    Rotation 0
    D 100
    d M10
    d1 54
    L 135
    L1 -
    l 99
    l1 36
    l2 6
    d2 12.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 100
    Les mer
  • Code 312472
    Description LV.F-100-14-STP-M12x44
    Rotation 0
    D 100
    d M12
    d1 54
    L 80
    L1 -
    l 44
    l1 36
    l2 7
    d2 12.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 96
    Les mer
  • Code 312474
    Description LV.F-100-14-STP-M12x69
    Rotation 0
    D 100
    d M12
    d1 54
    L 105
    L1 -
    l 69
    l1 36
    l2 7
    d2 12.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 100
    Les mer
  • Code 312476
    Description LV.F-100-14-STP-M12x99
    Rotation 0
    D 100
    d M12
    d1 54
    L 135
    L1 -
    l 99
    l1 36
    l2 7
    d2 12.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 104.5
    Les mer
  • Code 312452
    Description LV.F-100-14-STP-M8x44
    Rotation 0
    D 100
    d M8
    d1 54
    L 80
    L1 -
    l 44
    l1 36
    l2 5
    d2 12.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 93
    Les mer
  • Code 312454
    Description LV.F-100-14-STP-M8x69
    Rotation 0
    D 100
    d M8
    d1 54
    L 105
    L1 -
    l 69
    l1 36
    l2 5
    d2 12.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 94.5
    Les mer
  • Code 314223
    Description LV.F-80-14-AS-STP-M10x44
    Rotation 0
    D 80
    d M10
    d1 54
    L 79
    L1 82
    l 44
    l1 35
    l2 6
    d2 8.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 90.5
    Les mer
  • Code 314227
    Description LV.F-80-14-AS-STP-M10x69
    Rotation 0
    D 80
    d M10
    d1 54
    L 104
    L1 107
    l 69
    l1 35
    l2 6
    d2 8.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 93
    Les mer
  • Code 314233
    Description LV.F-80-14-AS-STP-M10x99
    Rotation 0
    D 80
    d M10
    d1 54
    L 134
    L1 137
    l 99
    l1 35
    l2 6
    d2 8.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 96
    Les mer
  • Code 314323
    Description LV.F-80-14-AS-STP-M12x44
    Rotation 0
    D 80
    d M12
    d1 54
    L 79
    L1 82
    l 44
    l1 35
    l2 7
    d2 8.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 92
    Les mer
  • Code 314327
    Description LV.F-80-14-AS-STP-M12x69
    Rotation 0
    D 80
    d M12
    d1 54
    L 104
    L1 107
    l 69
    l1 35
    l2 7
    d2 8.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 96
    Les mer
  • Code 314333
    Description LV.F-80-14-AS-STP-M12x99
    Rotation 0
    D 80
    d M12
    d1 54
    L 134
    L1 137
    l 99
    l1 35
    l2 7
    d2 8.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 100.5
    Les mer
  • Code 314123
    Description LV.F-80-14-AS-STP-M8x44
    Rotation 0
    D 80
    d M8
    d1 54
    L 79
    L1 82
    l 44
    l1 35
    l2 5
    d2 8.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 89
    Les mer
  • Code 314127
    Description LV.F-80-14-AS-STP-M8x69
    Rotation 0
    D 80
    d M8
    d1 54
    L 104
    L1 107
    l 69
    l1 35
    l2 5
    d2 8.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 90.5
    Les mer
  • Code 311223
    Description LV.F-80-14-STP-M10x44
    Rotation 0
    D 80
    d M10
    d1 54
    L 79
    L1 -
    l 44
    l1 35
    l2 6
    d2 8.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 4800
    Weight 64.5
    Les mer
  • Code 311227
    Description LV.F-80-14-STP-M10x69
    Rotation 0
    D 80
    d M10
    d1 54
    L 104
    L1 -
    l 69
    l1 35
    l2 6
    d2 8.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5000
    Weight 67
    Les mer
  • Code 311233
    Description LV.F-80-14-STP-M10x99
    Rotation 0
    D 80
    d M10
    d1 54
    L 134
    L1 -
    l 99
    l1 35
    l2 6
    d2 8.5
    h 24
    h1 23
    s 16
    s1 4
    a 14
    Max limit static load 5100
    Weight 70
    Les mer
  • Code 311323
    Description LV.F-80-14-STP-M12x44
    Rotation 0
    D 80
    d M12
    d1 54
    L 79
    L1 -
    l 44
    l1 35
    l2 7
    d2 8.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 6800
    Weight 66
    Les mer
  • Code 311327
    Description LV.F-80-14-STP-M12x69
    Rotation 0
    D 80
    d M12
    d1 54
    L 104
    L1 -
    l 69
    l1 35
    l2 7
    d2 8.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 70
    Les mer
  • Code 311333
    Description LV.F-80-14-STP-M12x99
    Rotation 0
    D 80
    d M12
    d1 54
    L 134
    L1 -
    l 99
    l1 35
    l2 7
    d2 8.5
    h 24
    h1 23
    s 16
    s1 5
    a 14
    Max limit static load 7000
    Weight 74.5
    Les mer
  • Code 311123
    Description LV.F-80-14-STP-M8x44
    Rotation 0
    D 80
    d M8
    d1 54
    L 79
    L1 -
    l 44
    l1 35
    l2 5
    d2 8.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 63
    Les mer
  • Code 311127
    Description LV.F-80-14-STP-M8x69
    Rotation 0
    D 80
    d M8
    d1 54
    L 104
    L1 -
    l 69
    l1 35
    l2 5
    d2 8.5
    h 24
    h1 23
    s 16
    s1 3
    a 14
    Max limit static load 2700
    Weight 64.5
    Les mer
