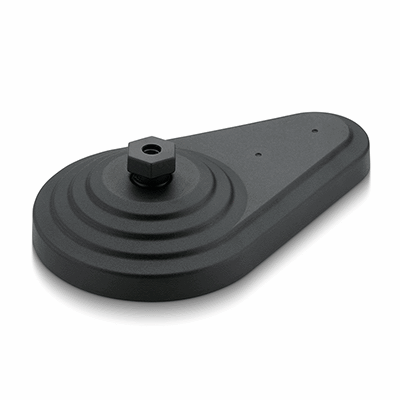

LV.FO+SJF_COMBI

Levelling Elements

CE.72566-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 300266
    Description LV.FO-60-14-AS+SJF-M6
    Rotation
    —
    • —
    D
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    B
    —
    • —
    f
    —
    • —
    f1
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 300266
    Description LV.FO-60-14-AS+SJF-M6
    Rotation 0
    D 60
    d1 M6
    L 31.5
    L1 34.5
    d2 8.5
    h 21
    h1 10
    B 96.5
    f 50
    f1 18
    s 16
    Max limit static load 5800
    Weight 70
    Les mer
  • Code 300267
    Description LV.FO-60-14-AS+SJF-M8
    Rotation 0
    D 60
    d1 M8
    L 31.5
    L1 34.5
    d2 8.5
    h 21
    h1 10
    B 96.5
    f 50
    f1 18
    s 16
    Max limit static load 6900
    Weight 69
    Les mer
  • Code 300166
    Description LV.FO-60-14+SJF-M6
    Rotation 0
    D 60
    d1 M6
    L 31.5
    d2 8.5
    h 21
    h1 10
    B 96.5
    f 50
    f1 18
    s 16
    Max limit static load 5800
    Weight 54
    L1 -
    Les mer
  • Code 300167
    Description LV.FO-60-14+SJF-M8
    Rotation 0
    D 60
    d1 M8
    L 31.5
    d2 8.5
    h 21
    h1 10
    B 96.5
    f 50
    f1 18
    s 16
    Max limit static load 6900
    Weight 53
    L1 -
    Les mer
  • Code 300271
    Description LV.FO-80-14-AS+SJF-M6
    Rotation 0
    D 80
    d1 M6
    L 33
    L1 36
    d2 10.5
    h 22
    h1 10
    B 130
    f 70
    f1 25
    s 16
    Max limit static load 6900
    Weight 122
    Les mer
  • Code 300272
    Description LV.FO-80-14-AS+SJF-M8
    Rotation 0
    D 80
    d1 M8
    L 33
    L1 36
    d2 10.5
    h 22
    h1 10
    B 130
    f 70
    f1 25
    s 16
    Max limit static load 8200
    Weight 121
    Les mer
  • Code 300171
    Description LV.FO-80-14+SJF-M6
    Rotation 0
    D 80
    d1 M6
    L 33
    d2 10.5
    h 22
    h1 10
    B 130
    f 70
    f1 25
    s 16
    Max limit static load 6900
    Weight 91
    L1 -
    Les mer
  • Code 300172
    Description LV.FO-80-14+SJF-M8
    Rotation 0
    D 80
    d1 M8
    L 33
    d2 10.5
    h 22
    h1 10
    B 130
    f 70
    f1 25
    s 16
    Max limit static load 8200
    Weight 90
    L1 -
    Les mer
