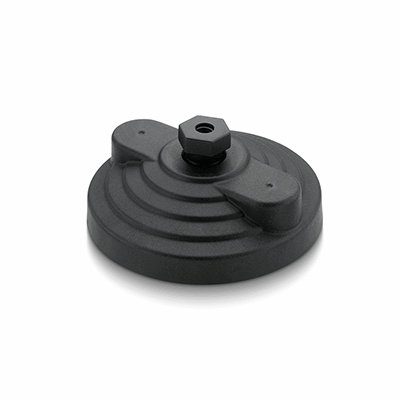

LV.F+SJF_COMBI

Levelling Elements

CE.72552-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 20 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 300251
    Description LV.F-100-14-AS+SJF-M6
    Rotation
    —
    • —
    D
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    a
    —
    • —
    Maximum tightening torque for the screw
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 300251
    Description LV.F-100-14-AS+SJF-M6
    Rotation 0
    D 100
    d1 M6
    L 36
    L1 39
    d2 12.5
    d3 70
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 7500
    Weight 145
    Les mer
  • Code 300252
    Description LV.F-100-14-AS+SJF-M8
    Rotation 0
    D 100
    d1 M8
    L 36
    L1 39
    d2 12.5
    d3 70
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 9000
    Weight 144
    Les mer
  • Code 300151
    Description LV.F-100-14+SJF-M6
    Rotation 0
    D 100
    d1 M6
    L 36
    d2 12.5
    d3 70
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 7500
    Weight 91
    Les mer
  • Code 300152
    Description LV.F-100-14+SJF-M8
    Rotation 0
    D 100
    d1 M8
    L 36
    d2 12.5
    d3 70
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 9000
    Weight 90
    Les mer
  • Code 300256
    Description LV.F-100-24-AS+SJF-M10
    Rotation 0
    D 100
    d1 M10
    L 44
    L1 47
    d2 12.5
    d3 70
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 14000
    Weight 158
    Les mer
  • Code 300257
    Description LV.F-100-24-AS+SJF-M12
    Rotation 0
    D 100
    d1 M12
    L 44
    L1 47
    d2 12.5
    d3 70
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 14000
    Weight 157
    Les mer
  • Code 300156
    Description LV.F-100-24+SJF-M10
    Rotation 0
    D 100
    d1 M10
    L 44
    d2 12.5
    d3 70
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 14000
    Weight 104
    Les mer
  • Code 300157
    Description LV.F-100-24+SJF-M12
    Rotation 0
    D 100
    d1 M12
    L 44
    d2 12.5
    d3 70
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 14000
    Weight 103
    Les mer
  • Code 300261
    Description LV.F-125-24-AS+SJF-M10
    Rotation 0
    D 125
    d1 M10
    L 65
    L1 68.4
    d2 12.5
    d3 95
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 16800
    Weight 344
    Les mer
  • Code 300262
    Description LV.F-125-24-AS+SJF-M12
    Rotation 0
    D 125
    d1 M12
    L 65
    L1 68.4
    d2 12.5
    d3 95
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 16800
    Weight 343
    Les mer
  • Code 300161
    Description LV.F-125-24+SJF-M10
    Rotation 0
    D 125
    d1 M10
    L 65
    d2 12.5
    d3 95
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 16800
    Weight 219
    Les mer
  • Code 300162
    Description LV.F-125-24+SJF-M12
    Rotation 0
    D 125
    d1 M12
    L 65
    d2 12.5
    d3 95
    h 46
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 16800
    Weight 218
    Les mer
  • Code 300241
    Description LV.F-80-14-AS+SJF-M6
    Rotation 0
    D 80
    d1 M6
    L 35
    L1 38
    d2 8.5
    d3 54
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 6900
    Weight 87
    Les mer
  • Code 300242
    Description LV.F-80-14-AS+SJF-M8
    Rotation 0
    D 80
    d1 M8
    L 35
    L1 38
    d2 8.5
    d3 54
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 8200
    Weight 86
    Les mer
  • Code 300141
    Description LV.F-80-14+SJF-M6
    Rotation 0
    D 80
    d1 M6
    L 35
    d2 8.5
    d3 54
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 4
    Max limit static load 6900
    Weight 61
    Les mer
  • Code 300142
    Description LV.F-80-14+SJF-M8
    Rotation 0
    D 80
    d1 M8
    L 35
    d2 8.5
    d3 54
    h 24
    h1 10
    s 16
    a 14
    Maximum tightening torque for the screw 6
    Max limit static load 8200
    Weight 60
    Les mer
  • Code 300246
    Description LV.F-80-24-AS+SJF-M10
    Rotation 0
    D 80
    d1 M10
    L 44
    L1 47
    d2 8.5
    d3 54
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 9700
    Weight 81
    Les mer
  • Code 300247
    Description LV.F-80-24-AS+SJF-M12
    Rotation 0
    D 80
    d1 M12
    L 44
    L1 47
    d2 8.5
    d3 54
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 9700
    Weight 80
    Les mer
  • Code 300146
    Description LV.F-80-24+SJF-M10
    Rotation 0
    D 80
    d1 M10
    L 44
    d2 8.5
    d3 54
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 10
    Max limit static load 9700
    Weight 98
    Les mer
  • Code 300147
    Description LV.F-80-24+SJF-M12
    Rotation 0
    D 80
    d1 M12
    L 44
    d2 8.5
    d3 54
    h 24
    h1 16
    s 24
    a 24
    Maximum tightening torque for the screw 12
    Max limit static load 9700
    Weight 97
    Les mer
