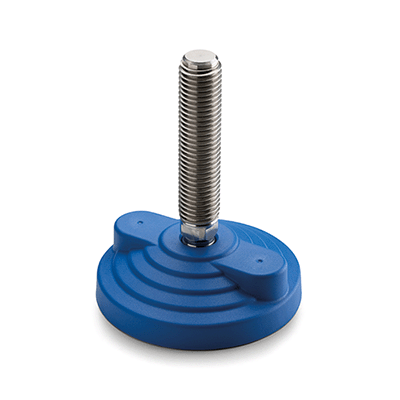

LVQ.F-SST-VD

Levelling Elements

Teknisk datablad
CE.72622-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 44 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 186483
    Description LVQ.F-100-14-AS-SST-M16x108-VD
    Rotation
    —
    • —
    D
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    L
    —
    • —
    L1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    d2
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 186483
    Description LVQ.F-100-14-AS-SST-M16x108-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 142
    L1 145
    l 108
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 299
    Les mer
  • Code 186485
    Description LVQ.F-100-14-AS-SST-M16x148-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 182
    L1 185
    l 148
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 363
    Les mer
  • Code 186487
    Description LVQ.F-100-14-AS-SST-M16x168-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 202
    L1 205
    l 168
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 395
    Les mer
  • Code 186481
    Description LVQ.F-100-14-AS-SST-M16x68-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 102
    L1 105
    l 68
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 235
    Les mer
  • Code 186491
    Description LVQ.F-100-14-AS-SST-M20x110-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 149
    L1 152
    l 110
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 399
    Les mer
  • Code 186493
    Description LVQ.F-100-14-AS-SST-M20x150-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 189
    L1 192
    l 150
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 499
    Les mer
  • Code 186495
    Description LVQ.F-100-14-AS-SST-M20x170-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 209
    L1 212
    l 170
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 549
    Les mer
  • Code 186497
    Description LVQ.F-100-14-AS-SST-M20x210-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 249
    L1 252
    l 210
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 648
    Les mer
  • Code 186498
    Description LVQ.F-100-14-AS-SST-M24x110-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 149
    L1 152
    l 110
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 506
    Les mer
  • Code 186499
    Description LVQ.F-100-14-AS-SST-M24x170-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 209
    L1 212
    l 170
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 721
    Les mer
  • Code 186500
    Description LVQ.F-100-14-AS-SST-M24x210-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 249
    L1 252
    l 210
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 865
    Les mer
  • Code 185483
    Description LVQ.F-100-14-SST-M16x108-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 142
    L1 -
    l 108
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 245
    Les mer
  • Code 185485
    Description LVQ.F-100-14-SST-M16x148-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 182
    L1 -
    l 148
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 309
    Les mer
  • Code 185487
    Description LVQ.F-100-14-SST-M16x168-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 202
    L1 -
    l 168
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 341
    Les mer
  • Code 185481
    Description LVQ.F-100-14-SST-M16x68-VD
    Rotation 0
    D 100
    d M16
    d1 70
    L 102
    L1 -
    l 68
    l1 34
    l2 32.5
    d2 12.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 181
    Les mer
  • Code 185491
    Description LVQ.F-100-14-SST-M20x110-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 149
    L1 -
    l 110
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 345
    Les mer
  • Code 185493
    Description LVQ.F-100-14-SST-M20x150-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 189
    L1 -
    l 150
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 445
    Les mer
  • Code 185495
    Description LVQ.F-100-14-SST-M20x170-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 209
    L1 -
    l 170
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 495
    Les mer
  • Code 185497
    Description LVQ.F-100-14-SST-M20x210-VD
    Rotation 0
    D 100
    d M20
    d1 70
    L 249
    L1 -
    l 210
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 594
    Les mer
  • Code 185498
    Description LVQ.F-100-14-SST-M24x110-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 149
    L1 -
    l 110
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 452
    Les mer
  • Code 185499
    Description LVQ.F-100-14-SST-M24x170-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 209
    L1 -
    l 170
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 667
    Les mer
  • Code 185500
    Description LVQ.F-100-14-SST-M24x210-VD
    Rotation 0
    D 100
    d M24
    d1 70
    L 249
    L1 -
    l 210
    l1 39
    l2 36.5
    d2 12.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 811
    Les mer
  • Code 186383
    Description LVQ.F-80-14-AS-SST-M16x108-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 142
    L1 145
    l 108
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 241
    Les mer
  • Code 186385
    Description LVQ.F-80-14-AS-SST-M16x148-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 182
    L1 185
    l 148
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 305
    Les mer
  • Code 186387
    Description LVQ.F-80-14-AS-SST-M16x168-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 202
    L1 205
    l 168
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 337
    Les mer
  • Code 186381
    Description LVQ.F-80-14-AS-SST-M16x68-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 102
    L1 105
    l 68
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 177
    Les mer
  • Code 186391
    Description LVQ.F-80-14-AS-SST-M20x110-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 149
    L1 152
    l 110
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 341
    Les mer
  • Code 186393
    Description LVQ.F-80-14-AS-SST-M20x150-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 189
    L1 192
    l 150
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 441
    Les mer
  • Code 186395
    Description LVQ.F-80-14-AS-SST-M20x170-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 209
    L1 212
    l 170
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 491
    Les mer
  • Code 186397
    Description LVQ.F-80-14-AS-SST-M20x210-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 249
    L1 252
    l 210
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 590
    Les mer
  • Code 186398
    Description LVQ.F-80-14-AS-SST-M24x110-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 149
    L1 152
    l 110
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 448
    Les mer
  • Code 186399
    Description LVQ.F-80-14-AS-SST-M24x170-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 209
    L1 212
    l 170
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 663
    Les mer
  • Code 186400
    Description LVQ.F-80-14-AS-SST-M24x210-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 249
    L1 252
    l 210
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 807
    Les mer
  • Code 185383
    Description LVQ.F-80-14-SST-M16x108-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 142
    L1 -
    l 108
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 215
    Les mer
  • Code 185385
    Description LVQ.F-80-14-SST-M16x148-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 182
    L1 -
    l 148
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 279
    Les mer
  • Code 185387
    Description LVQ.F-80-14-SST-M16x168-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 202
    L1 -
    l 168
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 311
    Les mer
  • Code 185381
    Description LVQ.F-80-14-SST-M16x68-VD
    Rotation 0
    D 80
    d M16
    d1 54
    L 102
    L1 -
    l 68
    l1 34
    l2 32.5
    d2 8.5
    h 24
    h1 23
    s 12
    Max limit static load 16000
    Weight 151
    Les mer
  • Code 185391
    Description LVQ.F-80-14-SST-M20x110-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 149
    L1 -
    l 110
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 315
    Les mer
  • Code 185393
    Description LVQ.F-80-14-SST-M20x150-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 189
    L1 -
    l 150
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 415
    Les mer
  • Code 185395
    Description LVQ.F-80-14-SST-M20x170-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 209
    L1 -
    l 170
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 465
    Les mer
  • Code 185397
    Description LVQ.F-80-14-SST-M20x210-VD
    Rotation 0
    D 80
    d M20
    d1 54
    L 249
    L1 -
    l 210
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 15
    Max limit static load 16000
    Weight 564
    Les mer
  • Code 185398
    Description LVQ.F-80-14-SST-M24x110-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 149
    L1 -
    l 110
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 422
    Les mer
  • Code 185399
    Description LVQ.F-80-14-SST-M24x170-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 209
    L1 -
    l 170
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 637
    Les mer
  • Code 185400
    Description LVQ.F-80-14-SST-M24x210-VD
    Rotation 0
    D 80
    d M24
    d1 54
    L 249
    L1 -
    l 210
    l1 39
    l2 36.5
    d2 8.5
    h 24
    h1 23
    s 18
    Max limit static load 16000
    Weight 781
    Les mer
Handlekurv
Skroll til toppen
