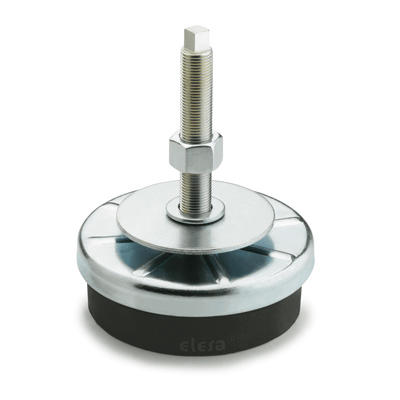

LW.A

Levelling Elements

Teknisk datablad
CE.72641-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 4 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 415121
    Description LW.A-120-M16x1.5x130
    D
    —
    • —
    d
    —
    • —
    D1
    —
    • —
    L max
    —
    • —
    L1 min÷max
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    d2
    —
    • —
    s
    —
    • —
    Max limit static load
    —
    • —
    Stiffness
    —
    • —
    Max. deflection
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 415121
    Description LW.A-120-M16x1.5x130
    D 120
    d M16x1.5
    D1 109
    L max 144
    L1 min÷max 40÷51
    l 23
    l1 36.5
    d2 80
    s 9x9
    Max limit static load 10000
    Stiffness 4000
    Max. deflection 2.5
    Weight 1200
    Les mer
  • Code 415131
    Description LW.A-160-M20x1.5x170
    D 160
    d M20x1.5
    D1 150
    L max 188
    L1 min÷max 50÷63
    l 29
    l1 43.5
    d2 130
    s 12x12
    Max limit static load 20000
    Stiffness 9000
    Max. deflection 2.2
    Weight 2650
    Les mer
  • Code 415141
    Description LW.A-200-M20x1.5x170
    D 200
    d M20x1.5
    D1 186
    L max 198
    L1 min÷max 60÷73
    l 36
    l1 54.5
    d2 130
    s 12x12
    Max limit static load 40000
    Stiffness 15000
    Max. deflection 2.7
    Weight 4500
    Les mer
  • Code 415111
    Description LW.A-80-M12x1.25x120
    D 80
    d M12x1.25
    D1 72
    L max 133
    L1 min÷max 35÷46
    l 18.5
    l1 32
    d2 60
    s 7x7
    Max limit static load 5000
    Stiffness 2500
    Max. deflection 2
    Weight 530
    Les mer
