STP

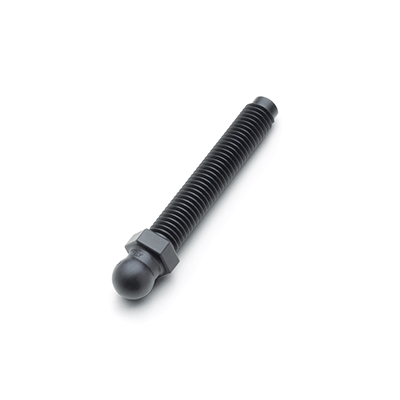

Levelling Elements

Teknisk datablad
CE.72666-gw12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 8 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Description STP-14-M10x44
    d1
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    d2
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    Max limit static load
    —
    • —
    Weight
    —
    • —
    CAD
  • Description STP-14-M10x44
    d1 M10
    l 44
    l1 6
    l2 21
    d2 14
    s 16
    s1 4
    Max limit static load 4800
    Weight 9.5
  • Description STP-14-M10x69
    d1 M10
    l 69
    l1 6
    l2 21
    d2 14
    s 16
    s1 4
    Max limit static load 5000
    Weight 12
  • Description STP-14-M10x99
    d1 M10
    l 99
    l1 6
    l2 21
    d2 14
    s 16
    s1 4
    Max limit static load 5100
    Weight 15
  • Description STP-14-M12x44
    d1 M12
    l 44
    l1 7
    l2 21
    d2 14
    s 16
    s1 5
    Max limit static load 6800
    Weight 11
  • Description STP-14-M12x69
    d1 M12
    l 69
    l1 7
    l2 21
    d2 14
    s 16
    s1 5
    Max limit static load 7000
    Weight 15
  • Description STP-14-M12x99
    d1 M12
    l 99
    l1 7
    l2 21
    d2 14
    s 16
    s1 5
    Max limit static load 7000
    Weight 19.5
  • Description STP-14-M8x44
    d1 M8
    l 44
    l1 5
    l2 21
    d2 14
    s 16
    s1 3
    Max limit static load 2700
    Weight 8
  • Description STP-14-M8x69
    d1 M8
    l 69
    l1 5
    l2 21
    d2 14
    s 16
    s1 3
    Max limit static load 2700
    Weight 9.5
