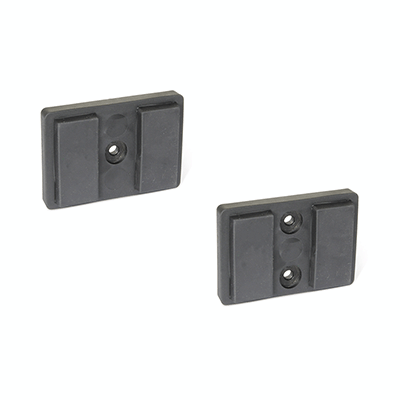

RMS-D

Magnets

Teknisk datablad
CE.70112-ga11_ga12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 502960
    Description RMS-D-HF-70-5
    B
    —
    • —
    d
    —
    • —
    H
    —
    • —
    L
    —
    • —
    d1
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    f
    —
    • —
    Nominal adhesive forces uni
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 502960
    Description RMS-D-HF-70-5
    B 50
    d 5.5
    H 13
    L 70
    d1 12
    l1 20.75 ±0.5
    l2 20.25 ±0.5
    f 27.5
    Nominal adhesive forces uni 45
    Weight 125
    Les mer
  • Code 502962
    Description RMS-D-HF-70-M5-1-BK
    B 50
    d M5
    H 13
    L 70
    d1 12
    l1 20.75 ±0.5
    l2 20.25 ±0.5
    f 27.5
    Nominal adhesive forces uni 45
    Weight 125
    Les mer
  • Code 502963
    Description RMS-D-HF-70-M5-2-BK
    B 50
    d M5
    H 13
    L 70
    d1 12
    l1 20.75 ±0.5
    l2 20.25 ±0.5
    f 27.5
    Nominal adhesive forces uni 45
    Weight 125
    Les mer
  • Code 502968
    Description RMS-D-ND-70-5
    B 50
    d 5.5
    H 13
    L 70
    d1 12
    l1 20.75 ±0.5
    l2 20.25 ±0.5
    f 27.5
    Nominal adhesive forces uni 290
    Weight 149
    Les mer
  • Code 502969
    Description RMS-D-ND-70-M5-1-BK
    B 50
    d M5
    H 13
    L 70
    d1 12
    l1 20.75 ±0.5
    l2 20.25 ±0.5
    f 27.5
    Nominal adhesive forces uni 290
    Weight 149
    Les mer
  • Code 502970
    Description RMS-D-ND-70-M5-2-BK
    B 50
    d M5
    H 13
    L 70
    d1 12
    l1 20.75 ±0.5
    l2 20.25 ±0.5
    f 27.5
    Nominal adhesive forces uni 290
    Weight 149
    Les mer
