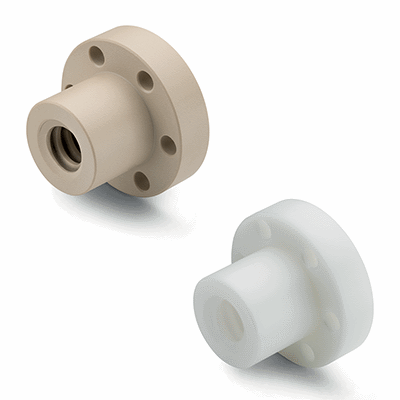

NSF

Transmission elements

Teknisk datablad
CE.70802-ga11_ga12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 26 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 470361
    Description NSF-10x2-R-F
    d1
    —
    • —
    D
    —
    • —
    L
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    d4
    —
    • —
    l1
    —
    • —
    Support surface
    —
    • —
    Static axial load
    —
    • —
    e
    —
    • —
    Friction coefficient
    —
    • —
    C
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 470361
    Description NSF-10x2-R-F
    d1 TR 10x2
    D 42
    L 25
    d2 25
    d3 5
    d4 34
    l1 10
    Support surface 353
    Static axial load 1.2
    e 20 ÷ 30
    Friction coefficient 0.15 ÷ 0.25
    C 2.5
    Weight 28
    Les mer
  • Code 470391
    Description NSF-10x2-R-W
    d1 TR 10x2
    D 42
    L 25
    d2 25
    d3 5
    d4 34
    l1 10
    Support surface 353
    Static axial load 1.8
    e 20 ÷ 34
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 24
    Les mer
  • Code 470363
    Description NSF-10x3-R-F
    d1 TR 10x3
    D 42
    L 25
    d2 25
    d3 5
    d4 34
    l1 10
    Support surface 334
    Static axial load 1.1
    e 27 ÷ 38
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 28
    Les mer
  • Code 470393
    Description NSF-10x3-R-W
    d1 TR 10x3
    D 42
    L 25
    d2 25
    d3 5
    d4 34
    l1 10
    Support surface 334
    Static axial load 1.7
    e 27 ÷ 44
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 24
    Les mer
  • Code 470365
    Description NSF-12x3-R-F
    d1 TR 12x3
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 577
    Static axial load 2
    e 24 ÷ 44
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 46
    Les mer
  • Code 470395
    Description NSF-12x3-R-W
    d1 TR 12x3
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 577
    Static axial load 2.9
    e 24 ÷ 39
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 40
    Les mer
  • Code 470367
    Description NSF-14x3-R-F
    d1 TR 14x3
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 687
    Static axial load 2.4
    e 21 ÷ 31
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 44
    Les mer
  • Code 470397
    Description NSF-14x3-R-W
    d1 TR 14x3
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 687
    Static axial load 3.4
    e 21 ÷ 36
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 37
    Les mer
  • Code 470369
    Description NSF-14x4-R-F
    d1 TR 14x4
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 660
    Static axial load 2.3
    e 26 ÷ 47
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 44
    Les mer
  • Code 470399
    Description NSF-14x4-R-W
    d1 TR 14x4
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 660
    Static axial load 3.3
    e 26 ÷ 43
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 37
    Les mer
  • Code 470371
    Description NSF-16x2-R-F
    d1 TR 16x2
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 825
    Static axial load 2.9
    e 14 ÷ 21
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 42
    Les mer
  • Code 470401
    Description NSF-16x2-R-W
    d1 TR 16x2
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 825
    Static axial load 4.1
    e 14 ÷ 25
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 35
    Les mer
  • Code 470373
    Description NSF-16x4-R-F
    d1 TR 16x4
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 770
    Static axial load 2.6
    e 24 ÷ 34
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 42
    Les mer
  • Code 470403
    Description NSF-16x4-R-W
    d1 TR 16x4
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 770
    Static axial load 3.8
    e 24 ÷ 39
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 35
    Les mer
  • Code 470375
    Description NSF-18x4-R-F
    d1 TR 18x4
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 880
    Static axial load 3
    e 22 ÷ 32
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 39
    Les mer
  • Code 470405
    Description NSF-18x4-R-W
    d1 TR 18x4
    D 48
    L 35
    d2 28
    d3 6
    d4 38
    l1 12
    Support surface 880
    Static axial load 4.4
    e 22 ÷ 37
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 33
    Les mer
  • Code 470377
    Description NSF-20x4-R-F
    d1 TR 20x4
    D 55
    L 44
    d2 32
    d3 7
    d4 45
    l1 12
    Support surface 1244
    Static axial load 4.3
    e 20 ÷ 30
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 59
    Les mer
  • Code 470407
    Description NSF-20x4-R-W
    d1 TR 20x4
    D 55
    L 44
    d2 32
    d3 7
    d4 45
    l1 12
    Support surface 1244
    Static axial load 6.2
    e 20 ÷ 34
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 50
    Les mer
  • Code 470379
    Description NSF-24x5-R-F
    d1 TR 24x5
    D 55
    L 44
    d2 32
    d3 7
    d4 45
    l1 14
    Support surface 1486
    Static axial load 5.2
    e 21 ÷ 30
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 50
    Les mer
  • Code 470409
    Description NSF-24x5-R-W
    d1 TR 24x5
    D 55
    L 44
    d2 32
    d3 7
    d4 45
    l1 14
    Support surface 1486
    Static axial load 7.4
    e 21 ÷ 35
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 42
    Les mer
  • Code 470381
    Description NSF-26x5-R-F
    d1 TR 26x5
    D 62
    L 46
    d2 38
    d3 7
    d4 50
    l1 14
    Support surface 1698
    Static axial load 6.3
    e 19 ÷ 29
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 79
    Les mer
  • Code 470411
    Description NSF-26x5-R-W
    d1 TR 26x5
    D 62
    L 46
    d2 38
    d3 7
    d4 50
    l1 14
    Support surface 1698
    Static axial load 6.3
    e 19 ÷ 34
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 67
    Les mer
  • Code 470383
    Description NSF-28x5-R-F
    d1 TR 28x5
    D 62
    L 46
    d2 38
    d3 7
    d4 50
    l1 14
    Support surface 1843
    Static axial load 4.5
    e 18 ÷ 27
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 73
    Les mer
  • Code 470413
    Description NSF-28x5-R-W
    d1 TR 28x5
    D 62
    L 46
    d2 38
    d3 7
    d4 50
    l1 14
    Support surface 1843
    Static axial load 4.5
    e 18 ÷ 32
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 62
    Les mer
  • Code 470385
    Description NSF-30x6-R-F
    d1 TR 30x6
    D 62
    L 46
    d2 38
    d3 7
    d4 50
    l1 14
    Support surface 1951
    Static axial load 3.5
    e 20 ÷ 30
    Friction coefficient 0.15 ÷ 0.25
    C 3
    Weight 67
    Les mer
  • Code 470415
    Description NSF-30x6-R-W
    d1 TR 30x6
    D 62
    L 46
    d2 38
    d3 7
    d4 50
    l1 14
    Support surface 1951
    Static axial load 3.5
    e 20 ÷ 34
    Friction coefficient 0.12 ÷ 0.25
    C 2.5
    Weight 57
    Les mer
