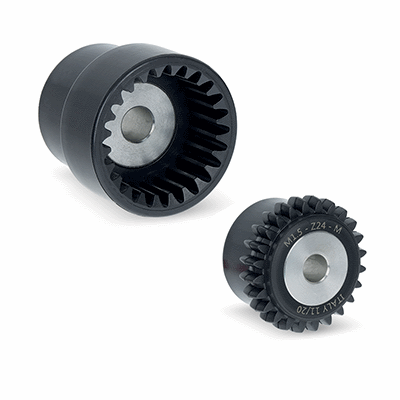

ZGD

Transmission elements

Teknisk datablad
CE.71201-ga11_ga12

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code 551011
    Description ZGD-1.5-20-F
    Module
    —
    • —
    N° teeth z
    —
    • —
    D
    —
    • —
    D1
    —
    • —
    H
    —
    • —
    d
    —
    • —
    d1
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code 551011
    Description ZGD-1.5-20-F
    Module 1.5
    N° teeth z 20
    D 40
    D1 33
    H 40
    d 6
    d1 25
    h1 17
    h2 15
    Weight 50
    Les mer
  • Code 551016
    Description ZGD-1.5-20-M
    Module 1.5
    N° teeth z 20
    D 25
    H 23
    d 6
    d1 20
    l 8.1
    s 2.8
    Weight 24
    Les mer
  • Code 551021
    Description ZGD-1.5-24-F
    Module 1.5
    N° teeth z 24
    D 48
    D1 38
    H 42
    d 10
    d1 30
    h1 17
    h2 18
    Weight 68
    Les mer
  • Code 551026
    Description ZGD-1.5-24-M
    Module 1.5
    N° teeth z 24
    D 30
    H 25
    d 8
    d1 24
    l 8.1
    s 2.8
    Weight 38
    Les mer
  • Code 551031
    Description ZGD-1.5-28-F
    Module 1.5
    N° teeth z 28
    D 53
    D1 44
    H 45
    d 12
    d1 38
    h1 19
    h2 18.5
    Weight 104
    Les mer
  • Code 551036
    Description ZGD-1.5-28-M
    Module 1.5
    N° teeth z 28
    D 33
    H 26
    d 10
    d1 27
    l 8.1
    s 5.1
    Weight 48
    Les mer
