VPC

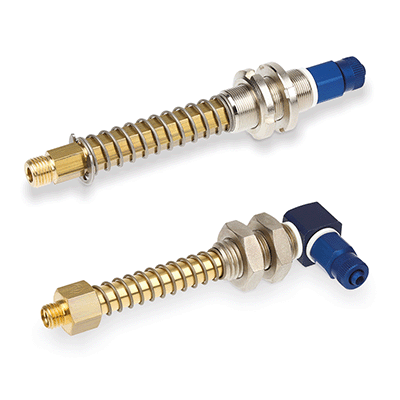

Vacuum cup holders

Teknisk datablad

VPC-M

Vacuum cup holders

Code VV.41002

Description VPC-55-90-G1/4-M

d1

d2

d3

l

l1

l2

l3

l4

l5

s

s1

Weight

CAD

Les mer

Code VV.41002

Description VPC-55-90-G1/4-M

d1 G1/4

d2 6

d3 M20 x 1.5

l 144

l1 15

l2 -

l3 55

l4 40

l5 34

s 22

s1 16

Weight 314

Les mer
Code VV.41001

Description VPC-55-90-G1/4-M-L

d1 G1/4

d2 6

d3 M20 x 1.5

l1 15

l2 -

l3 55

l4 40

s 22

Weight 329

Les mer
Code VV.41003

Description VPC-55-91-G3/8-M

d1 G3/8

d2 6

d3 M20 x 1.5

l 144

l1 15

l2 -

l3 55

l4 40

l5 34

s 22

s1 16

Weight 320

Les mer
Code VV.41004

Description VPC-55-91-G3/8-M-L

d1 G3/8

d2 6

d3 M20 x 1.5

l1 15

l2 -

l3 55

l4 40

s 22

Weight 335

Les mer
Code VV.41005

Description VPC-55-92-G3/8-M

d1 G3/8

d2 9

d3 M20 x 1.5

l 150

l1 15

l2 -

l3 55

l4 40

l5 40

s 22

s1 16

Weight 330

Les mer
Code VV.41006

Description VPC-55-92-G3/8-M-L

d1 G3/8

d2 9

d3 M20 x 1.5

l1 15

l2 -

l3 55

l4 40

s 22

Weight 345

Les mer
Code VV.41102

Description VPC-95-28-G1/4-M

d1 G1/4

d2 6

d3 M20 x 1.6

l 125

l1 10

l2 15

l3 28

l4 40

l5 32

s 13

s1 17

Weight 181

Les mer
Code VV.41103

Description VPC-95-28-G1/4-M-L

d1 M12

d2 6

d3 M20 x 1

l1 10

l2 15

l3 28

l4 40

s 13

Weight 195

Les mer
Code VV.41101

Description VPC-95-28-M12-M

d1 M12

d2 6

d3 M20 x 1

l 125

l1 10

l2 15

l3 28

l4 40

l5 32

s 13

s1 17

Weight 180

Les mer
Code VV.41104

Description VPC-95-28-M12-M-L

d1 G1/4

d2 6

d3 M20 x 1.6

l1 10

l2 15

l3 28

l4 40

s 13

Weight 196

Les mer
Code VV.41106

Description VPC-95-65-G1/4-M

d1 G1/4

d2 6

d3 M20 x 3

l 162

l1 10

l2 15

l3 65

l4 40

l5 32

s 13

s1 17

Weight 226

Les mer
Code VV.41107

Description VPC-95-65-G1/4-M-L

d1 M12

d2 6

d3 M20 x 1.5

l1 10

l2 15

l3 65

l4 40

s 13

Weight 240

Les mer
Code VV.41105

Description VPC-95-65-M12-M

d1 M12

d2 6

d3 M20 x 1.5

l 162

l1 10

l2 15

l3 65

l4 40

l5 32

s 13

s1 17

Weight 225

Les mer
Code VV.41108

Description VPC-95-65-M12-M-L

d1 G1/4

d2 6

d3 M20 x 3

l1 10

l2 15

l3 65

l4 40

s 13

Weight 241

Les mer
Code VV.41111

Description VPC-95-95-G1/4-M

d1 G1/4

d2 6

d3 M20 x 1.7

l 192

l1 10

l2 15

l3 95

l4 40

l5 32

s 13

s1 17

Weight 247

Les mer
Code VV.41112

Description VPC-95-95-G1/4-M-L

d1 G1/4

d2 6

d3 M20 x 1.7

l1 10

l2 15

l3 95

l4 40

s 13

Weight 262

Les mer
Code VV.41110

Description VPC-95-95-M12-M

d1 M12

d2 6

d3 M20 x 2

l 192

l1 10

l2 15

l3 95

l4 40

l5 32

s 13

s1 17

Weight 246

Les mer
Code VV.41109

Description VPC-95-95-M12-M-L

d1 M12

d2 6

d3 M20 x 2

l1 10

l2 15

l3 95

l4 40

s 13

Weight 261

Les mer
