VPH

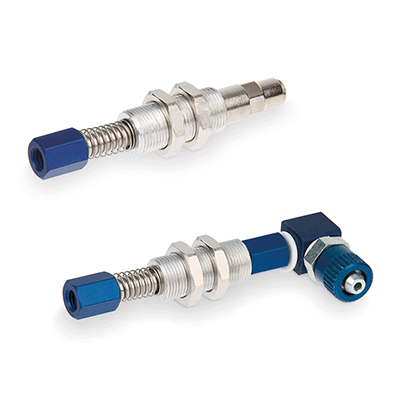

Vacuum cup holders

Teknisk datablad
GN.11825-din_6332

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Color
Accessory color
Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 5 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Description VPH-80-05-M5-F
    Color
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    d4
    —
    • —
    l
    —
    • —
    l1
    —
    • —
    l2
    —
    • —
    l3
    —
    • —
    l4
    —
    • —
    l5
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    s2
    —
    • —
    Weight
    —
    • —
    CAD
  • Description VPH-80-05-M5-F
    d2 4
    d3 M10 x 0.75
    d4 M5
    l 73.5
    l1 10
    l2 14
    l3 22
    l4 10
    l5 17.5
    s 13
    s1 13
    s2 10
    Weight 20
    Color -
  • Description VPH-80-05-M5-F-L
    d2 4
    d3 M10 x 0.75
    d4 M5
    l1 10
    l2 14
    l3 22
    l4 10
    s 13
    s1 13
    Weight 25
    Color -
    l -
    l5 -
    s2 -
  • Description VPH-80-05-M5-F-RR
    d2 3
    d3 M10 x 0.75
    d4 M5
    l 63
    l1 10
    l2 14
    l3 22
    l4 17
    s 13
    s1 13
    s2 7
    Weight 16
    Color -
    l5 -
  • Description VPH-80-05-M5-F-SR
    d3 M10 x 0.75
    Color SR
    d4 M5
    l 56
    l1 10
    l2 14
    l3 22
    l4 10
    s 13
    s1 13
    Weight 14
    d2 -
    l5 -
    s2 -
  • Description VPH-80-05-M5-F-T
    d2 4
    d3 M10 x 0.75
    d4 M5
    l1 10
    l2 14
    l3 22
    l4 10
    s 13
    s1 13
    Weight 30
    Color -
    l -
    l5 -
    s2 -
