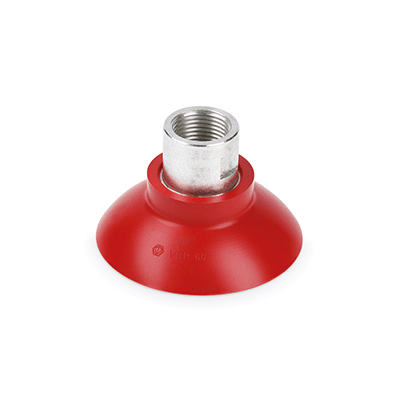

VVB

Vacuum pads cups

Teknisk datablad
GN.10666-gn_6339

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code VV.46505
    Description VVB-100-G3/8-B
    d
    —
    • —
    d1
    —
    • —
    d2
    —
    • —
    d3
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    h4
    —
    • —
    s
    —
    • —
    s1
    —
    • —
    C
    —
    • —
    F
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code VV.46505
    Description VVB-100-G3/8-B
    d 100
    d1 G 3/8
    d2 21
    d3 35
    h 40
    h1 25
    h2 15
    h3 9.5
    h4 14
    s 6
    s1 19
    C 19.60
    F 51.6
    Weight 81
    Les mer
  • Code VV.46506
    Description VVB-125-G3/8-B
    d 125
    d1 G 3/8
    d2 21
    d3 35
    h 48
    h1 33
    h2 15
    h3 12.5
    h4 14
    s 6
    s1 19
    C 30.60
    F 96.5
    Weight 140
    Les mer
  • Code VV.46501
    Description VVB-40-G1/4-B
    d 40
    d1 G 1/4
    d2 17
    d3 26
    h 31
    h1 16
    h2 15
    h3 4
    h4 14
    s 6
    s1 15
    C 3.14
    F 3.7
    Weight 34
    Les mer
  • Code VV.46502
    Description VVB-50-G3/8-B
    d 50
    d1 G 3/8
    d2 21
    d3 30
    h 33
    h1 18
    h2 15
    h3 5
    h4 14
    s 6
    s1 19
    C 4.90
    F 7.4
    Weight 49
    Les mer
  • Code VV.46503
    Description VVB-60-G3/8-B
    d 60
    d1 G 3/8
    d2 21
    d3 30
    h 36
    h1 21
    h2 15
    h3 6
    h4 14
    s 6
    s1 19
    C 7.00
    F 13.9
    Weight 55
    Les mer
  • Code VV.46504
    Description VVB-80-G3/8-B
    d 80
    d1 G 3/8
    d2 21
    d3 35
    h 40
    h1 25
    h2 15
    h3 7.5
    h4 14
    s 6
    s1 19
    C 12.50
    F 29.6
    Weight 75
    Les mer
