VVD

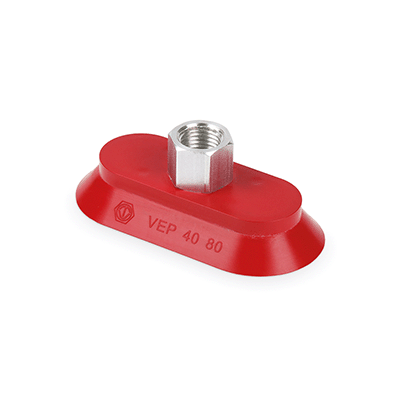

Vacuum pads cups

Teknisk datablad
GN.10671-gn_6339

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

Bracket Material
Material
Bushing Material
Carrying Capacity
Diameter
Plunger Diameter
Type Of Assembly
Type Of Tube
Diameter Bases
Connecting Thread
External Diameter
Handle
Hole
Lever Length
Wheel Base
Threaded Screw
Hole Distance
Threaded Connection
Type Of Bellow
Type Of Vacuum Cups Holder
Vacuum Cup Holders Dimension
Vacuum Cups Dimension
Connector

Viser alle 6 resultater

    Vennligst velg en deltype for å få relevante valg.

    Lukk
    Code VV.48001
    Description VVD-30-60-G1/4-B
    d
    —
    • —
    d1
    —
    • —
    h
    —
    • —
    h1
    —
    • —
    h2
    —
    • —
    h3
    —
    • —
    h4
    —
    • —
    b
    —
    • —
    b1
    —
    • —
    I
    —
    • —
    l1
    —
    • —
    s
    —
    • —
    F
    —
    • —
    Volume
    —
    • —
    Weight
    —
    • —
    CAD
    Les mer
  • Code VV.48001
    Description VVD-30-60-G1/4-B
    d G1/8
    d1 G1/4
    h 27
    h1 13
    h2 14
    h3 3
    h4 10
    b 30
    b1 17
    I 60
    l1 47
    s 17
    F 4
    Volume 4.5
    Weight 42.6
    Les mer
  • Code VV.48002
    Description VVD-30-90-G1/4-B
    d G1/8
    d1 G1/4
    h 27
    h1 13
    h2 14
    h3 3
    h4 10
    b 30
    b1 17
    I 90
    l1 77
    s 17
    F 6.2
    Volume 7
    Weight 63.5
    Les mer
  • Code VV.48003
    Description VVD-40-80-G1/4-B
    d G1/8
    d1 G1/4
    h 28
    h1 14
    h2 14
    h3 4
    h4 10
    b 40
    b1 30
    I 80
    l1 70
    s 17
    F 7.1
    Volume 13.2
    Weight 68
    Les mer
  • Code VV.48004
    Description VVD-50-100-G3/8-B
    d G1/4
    d1 G3/8
    h 31
    h1 16
    h2 15
    h3 5
    h4 10
    b 50
    b1 30
    I 100
    l1 80
    s 22
    F 11.1
    Volume 15
    Weight 110
    Les mer
  • Code VV.48005
    Description VVD-60-120-G3/8-B
    d G1/4
    d1 G3/8
    h 33
    h1 18
    h2 15
    h3 6
    h4 10
    b 60
    b1 35
    I 120
    l1 95
    s 22
    F 16
    Volume 32.1
    Weight 156.1
    Les mer
  • Code VV.48006
    Description VVD-70-140-G3/8-B
    d G1/4
    d1 G3/8
    h 34
    h1 19
    h2 15
    h3 7
    h4 10
    b 70
    b1 40
    I 140
    l1 110
    s 22
    F 21.9
    Volume 53.5
    Weight 199.4
    Les mer
