Hjem / Industrikomponenter / Vacuum components / Vacuum pads cups / VVK

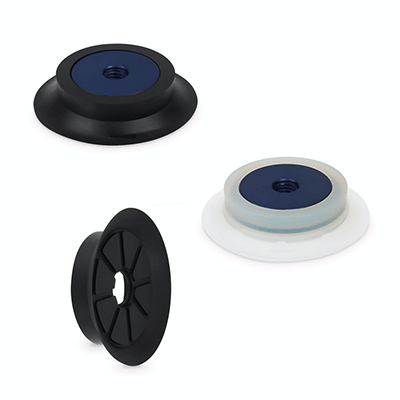

VVK

Vacuum pads cups

Teknisk datablad

Velg deltype

Velg ønsket deltype for å se forhåndsvist tegning av tekniske dimensjoner

VVK

Vacuum pads cups
VVK-T

Vacuum pads cups

Bracket Material

Stainless steel(0)
Steel(0)

Material

Aluminium(0)
Aluminium-Steel(0)
Aluminium|Stainless steel(0)
Brass(0)
Brass zinc alloy(0)
Brass-Steel(0)
Cast iron(0)
Die-cast zinc alloy(0)
Duroplast(0)
Duroplast-Chromium(0)
Duroplast-Stainless steel(0)
Duroplast-Steel(0)
Oslrubber(5)
Rubber(5)
Rubber-Stainless steel(0)
Rubber-Steel(0)
Silicon(5)
Stainless steel(0)
Stainless steel A4(0)
Steel(0)
Technopolymer(0)
Technopolymer-Die-cast zinc alloy(0)
Technopolymer-Stainless steel(0)
Technopolymer-Steel(0)
Technopolymer-Zamac(0)
Technopolymer|Stainless steel(0)
Titanium(0)
Zinc(0)

Bushing Material

Steel(0)

Carrying Capacity

0 - 1400 N(0)
10001 - 25000 N(0)
1401 - 2600 N(0)
2601 - 5000 N(0)
5001 - 10000 N(0)

Diameter

Plunger Diameter

Type Of Assembly

Blind hole(0)
Blind holes(0)
Blind holes-Threaded screws(0)
For welding(0)
Not drilled(0)
Pass-through hole(0)
Pass-through holes(0)
Pass-through holes-Blind holes(0)
Pass-through holes-Threaded screws(0)
Plain hole(0)
Plain hole and keyway(0)
Snap-in(0)
Square hole(0)
Threaded screw(0)
Threaded screws(0)
Without holes(0)

Type Of Tube

Round(0)
Square(0)
Square-Round(0)

Diameter Bases

100(0)
120(0)
125(0)
160(0)
200(0)
25(0)
26(0)
30(0)
32(0)
40(0)
50(0)
60(0)
70(0)
80(0)

Connecting Thread

1/2-13(0)
3/8-24(0)
M 10(0)
M 10x1(0)
M 12(0)
M 12x1.5(0)
M 16(0)
M 16x1.5(0)
M 20(0)
M 20x1.5(0)
M 24x2(0)
M 6(0)
M 6x0.75(0)
M 8(0)
M 8x0.75(0)
M 8x1(0)

External Diameter

Handle

fixed handle(0)
fold away handle(0)
revolving handle(0)
safety fold away handle(0)
without handle(0)

Hole

Lever Length

Wheel Base

Threaded Screw

1/2-13(0)
1/4-20(0)
10-32(0)
3/8-16(0)
5/16-18(0)
5/8-11(0)
63(0)
M 10(0)
M 12(0)
M 14(0)
M 16(0)
M 2(0)
M 2,5(0)
M 20(0)
M 20x1.5(0)
M 24(0)
M 24x2(0)
M 3(0)
M 30(0)
M 30x2(0)
M 36x2(0)
M 4(0)
M 42x2(0)
M 5(0)
M 6(0)
M 8(0)
M 8x22(0)

Hole Distance

Threaded Connection

G 1/2(2)
G 1/4(1)
G 1/8(0)
G 3/8(2)
M 10(0)
M 10x1.25(0)
M 10x1.5(0)
M 12(2)
M 14x1.5(0)
M 5(0)
M 6(0)
M 8(0)
NPT1/4(0)
NPT3/8(0)

Type Of Bellow

Multi-bellow(0)
Wibellow(0)

Type Of Vacuum Cups Holder

Anti-rotating(0)
Fixed(0)
Micro(0)
Mini-Anti-rotating(0)
Mini-Built-in Spring(0)
Mini-Fixed(0)
Mini-Spring(0)
Spring(0)

Vacuum Cup Holders Dimension

101 - 150(0)
151 - 192(0)
43 - 74(0)
75 - 100(0)

Vacuum Cups Dimension

101 - 143(0)
11 - 20(0)
21 - 30(0)
31 - 40(0)
4 - 10(0)
41 - 50(0)
51 - 60(0)
61 - 70(0)
71 - 80(13)
81 - 100(0)

Connector

DIN43650C(0)
KN(0)

length
pcs
set
stk

Viser alle 15 resultater

Vennligst velg en deltype for å få relevante valg.

Lukk

Code VV.55001

Description VVK-80-A

d

—

—

d1

—

—

d2

—

—

d3

—

—

d4

—

—

h

—

—

h1

—

—

h2

—

—

F

—

—

Volume

—

—

Weight

—

—

CAD

Les mer

Code VV.55001

Description VVK-80-A

d 80

d1 45

d2 54

d3 58

d4 17

h 20

h1 3

h2 7

F 12.6

Volume 27

Weight 26

Les mer
Code VV.55013

Description VVK-80-G1/2-T-A

d 80

d1 G1/2

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55014

Description VVK-80-G1/2-T-N

d 80

d1 G1/2

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55015

Description VVK-80-G1/2-T-S

d 80

d1 G1/2

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55007

Description VVK-80-G1/4-T-A

d 80

d1 G1/4

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55008

Description VVK-80-G1/4-T-N

d 80

d1 G1/4

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55009

Description VVK-80-G1/4-T-S

d 80

d1 G1/4

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55010

Description VVK-80-G3/8-T-A

d 80

d1 G3/8

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55011

Description VVK-80-G3/8-T-N

d 80

d1 G3/8

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55012

Description VVK-80-G3/8-T-S

d 80

d1 G3/8

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 67

Les mer
Code VV.55004

Description VVK-80-M12-T-A

d 80

d1 M12

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 71

Les mer
Code VV.55005

Description VVK-80-M12-T-N

d 80

d1 M12

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 71

Les mer
Code VV.55006

Description VVK-80-M12-T-S

d 80

d1 M12

d3 58

h 20

h1 6

h2 10

F 12.6

Volume 27

Weight 71

Les mer
Code VV.55002

Description VVK-80-N

d 80

d1 45

d2 54

d3 58

d4 17

h 20

h1 3

h2 7

F 12.6

Volume 27

Weight 26

Les mer
Code VV.55003

Description VVK-80-S

d 80

d1 45

d2 54

d3 58

d4 17

h 20

h1 3

h2 7

F 12.6

Volume 27

Weight 26

Les mer
